Aston Martin Vanquish (2001-2007) - Heat Deflectors and Shields 4

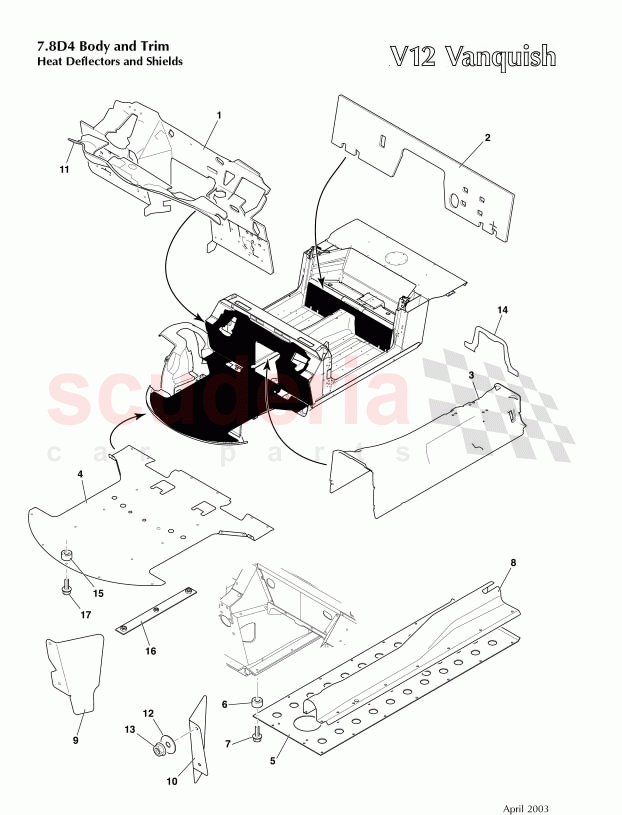

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12104566AE ASSY FRONT BULKHEAD INSULATION RHD $259.38 To Order
1R12104567AE ASSY FRONT BULKHEAD INSULATION LHD $240.77 To Order
4184347 WASHER M8 x 25mm OD HARDENED $13.83 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12104324AD ASSY REAR BULKHEAD INSULATION $44.78 To Order
Photo Part No Description Price (each) Stock
91775 ASSY-TUNNEL INSULATN Enquire To Order
Photo Part No Description Price (each) Stock
5R135E209AA AERO CLOSER PANEL - FRONT $745.46 To Order
5R1317F018AA WHEEL TAB RH $64.05 To Order
5R1317F017AA WHEEL TAB-LH $64.05 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12160589AD TUNNEL SHEAR PANEL $476.76 To Order
Photo Part No Description Price (each) Stock
1R12162658AA SPACER - TUNNEL SHEAR PANEL $14.97 To Order
Photo Part No Description Price (each) Stock
700260 BOLT M8 x 40 HEX FLG HEAD GRD 10.9 $21.05 To Order
699527 O RING (DOWTY - 2025084470) $0.19 To Order
Photo Part No Description Price (each) Stock
1R12862743AE DUCTING TUNNEL LH $429.45 To Order
1R12862744AE DUCTING TUNNEL RH $429.45 To Order
Photo Part No Description Price (each) Stock
1R12104112AB PROTECTOR HEATSHIELD BULKHEAD FRONT $30.31 To Order
Photo Part No Description Price (each) Stock
1R12104113AB PROTECTOR HEATSHIELD BULKHEAD FRONT $30.31 To Order
Photo Part No Description Price (each) Stock
1R12632498AE HEATSHIELD-PLENUM RHD/LHD $112.57 To Order
Photo Part No Description Price (each) Stock
703129 Washer Large OD M12 Chrome Free $1.24 IN STOCK
4184347 WASHER M8 x 25mm OD HARDENED $13.83 To Order
Photo Part No Description Price (each) Stock
703739 Nut, M8, Hex Flange Head $1.11 To Order
Photo Part No Description Price (each) Stock
1R12104310AA PATCH - TUNNEL TO REAR BULKHEAD $41.80 To Order
Photo Part No Description Price (each) Stock
1R12162704AA SPACER-AERO PANEL $18.32 To Order
Photo Part No Description Price (each) Stock
1R12105287AB Service foam repair kit, tunnel insulation Enquire To Order
1R12105286AB SERVICE PATCH KIT TUNNEL INSULATION $462.49 To Order
699297 SCREW M4 X 16 FLAT CSK 8 $2.22 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12224068AB ASSY - REINF REAR FRAME $2,454.11 To Order
703265 Screw, M6 x 16, Hex Flange Head $0.32 IN STOCK
View All
Heat Deflectors and Shields 4 of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 1R12104566AE
ASSY FRONT BULKHEAD INSULATION RHD
RHD 		$259.38 1
1 1R12104567AE
ASSY FRONT BULKHEAD INSULATION LHD
LHD 		$240.77 1
1 4184347
WASHER M8 x 25mm OD HARDENED 		$13.83 4
1 703739
Nut, M8, Hex Flange Head 		$1.11 4
2 1R12104324AD
ASSY REAR BULKHEAD INSULATION 		$44.78 1
3 91775
ASSY-TUNNEL INSULATN 		- 1 Enquire
4 5R135E209AA
AERO CLOSER PANEL - FRONT
Vanquish S From (V) 501506 		$745.46 1
4 5R1317F018AA
WHEEL TAB RH
Vanquish S From (V) 501506 		$64.05 1
4 5R1317F017AA
WHEEL TAB-LH
Vanquish S From (V) 501506 		$64.05 1
4 1R12181950AH
AERO CLOSER PNL FRT 		$1,002.83 1
5 1R12160589AD
TUNNEL SHEAR PANEL 		$476.76 1
6 1R12162658AA
SPACER - TUNNEL SHEAR PANEL 		$14.97 14
7 700260
BOLT M8 x 40 HEX FLG HEAD GRD 10.9 		$21.05 14
7 699527
O RING (DOWTY - 2025084470) 		$0.19 14
8 1R12862743AE
DUCTING TUNNEL LH 		$429.45 1
8 1R12862744AE
DUCTING TUNNEL RH 		$429.45 1
9 1R12104112AB
PROTECTOR HEATSHIELD BULKHEAD FRONT 		$30.31 1
10 1R12104113AB
PROTECTOR HEATSHIELD BULKHEAD FRONT 		$30.31 1
11 1R12632498AE
HEATSHIELD-PLENUM RHD/LHD 		$112.57 1
12 703129
Washer Large OD M12 Chrome Free
IN STOCK 		$1.24 1
12 4184347
WASHER M8 x 25mm OD HARDENED 		$13.83 2
13 703739
Nut, M8, Hex Flange Head 		$1.11 4
14 1R12104310AA
PATCH - TUNNEL TO REAR BULKHEAD 		$41.80 1
15 1R12162704AA
SPACER-AERO PANEL 		$18.32 2
16 1R12105287AB
Service foam repair kit, tunnel insulation 		- 1 Enquire
16 1R12105286AB
SERVICE PATCH KIT TUNNEL INSULATION 		$462.49 1
16 699297
SCREW M4 X 16 FLAT CSK 8 		$2.22 1
16 700247
SCREW &WSHR M6x20 		$1.14 15
16 1R12182014AA
NUTPLATE AERO CLOSER PANEL 		$18.31 2
16 1R12104326AB
Self adhesive patch 		- 9 Enquire
17 1R12224068AB
ASSY - REINF REAR FRAME 		$2,454.11 1
17 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.32 17
