Heat Deflectors And Shields 2

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - Heat Deflectors and Shields 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12160347AG TANKBAY CROSSMEMBER -MACHINING $146.96 To Order
Photo Part No Description Price (each) Stock
1R12160952AD NUTPLATE - TANKBAY CROSSMEMBER $103.68 To Order
Photo Part No Description Price (each) Stock
1R12162364AJ SIDE PANEL - LCD UNDERSIDE RH $150.78 To Order
703121 Screw, M8 x 25, Hex Flange Head $0.25 IN STOCK
Photo Part No Description Price (each) Stock
1R12162365AH SIDE PANEL - LCD UNDERSIDE LH $214.99 To Order
Photo Part No Description Price (each) Stock
703187 SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE $0.64 To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head $0.19 IN STOCK
Photo Part No Description Price (each) Stock
699282 RIVNUT - M6 STEEL - XYLAN COATED $0.63 To Order
Photo Part No Description Price (each) Stock
699282 RIVNUT - M6 STEEL - XYLAN COATED $0.63 To Order
Photo Part No Description Price (each) Stock
699274 RIVNUT-M8 STEEL- XYLAN COATED $0.97 To Order
Photo Part No Description Price (each) Stock
702972 Screw, M8 x 14 $0.38 To Order
Photo Part No Description Price (each) Stock
1R12352816AG REAR HANGER - REINF BRACKET RH $144.87 To Order
703265 Screw, M6 x 16, Hex Flange Head $0.31 IN STOCK
Photo Part No Description Price (each) Stock
1R12352817AG REAR HANGER - REINF BRACKET LH $65.90 To Order
Photo Part No Description Price (each) Stock
1R12102930AE OUTLET MUFFLER RH $115.56 To Order
700162 RIVET POP 4.9mm $0.58 To Order
Photo Part No Description Price (each) Stock
1R12102931AE OUTLET MUFFLER LH $115.56 To Order
Photo Part No Description Price (each) Stock
700162 RIVET POP 4.9mm $0.58 To Order
Photo Part No Description Price (each) Stock
699282 RIVNUT - M6 STEEL - XYLAN COATED $0.63 To Order
Photo Part No Description Price (each) Stock
1R12272948AA HEATSHIELD SUBFRAME MOUNTING $36.62 To Order
Photo Part No Description Price (each) Stock
1R12160584AF ASSY-TANK SHEAR PNL $514.19 To Order
Photo Part No Description Price (each) Stock
700162 RIVET POP 4.9mm $0.58 To Order
Photo Part No Description Price (each) Stock
1R12103352AD INSULATION TANKBAY PANEL $56.40 To Order
Photo Part No Description Price (each) Stock
1R12103353AE SECURING PANEL - TANKBAY INSULATION $123.26 To Order
Photo Part No Description Price (each) Stock
1R12371081AA HEATSHIELD - ALTERNATOR $1,104.42 To Order
Photo Part No Description Price (each) Stock
1R12370806AA DUCT - ALTERNATOR HEATSHIELD - SIZE 40 I/D x 740mm LONG $60.99 To Order
Photo Part No Description Price (each) Stock
1R12372293AB BRACKET-ALTERNATOR COOLING DUCT $270.96 To Order
Photo Part No Description Price (each) Stock
697659 CLIP HOSE-SPR/LOADED $2.39 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.31 IN STOCK
Photo Part No Description Price (each) Stock
1R12341851AC SUPPORT FUEL TANK BOTTOM $16.84 To Order
View All

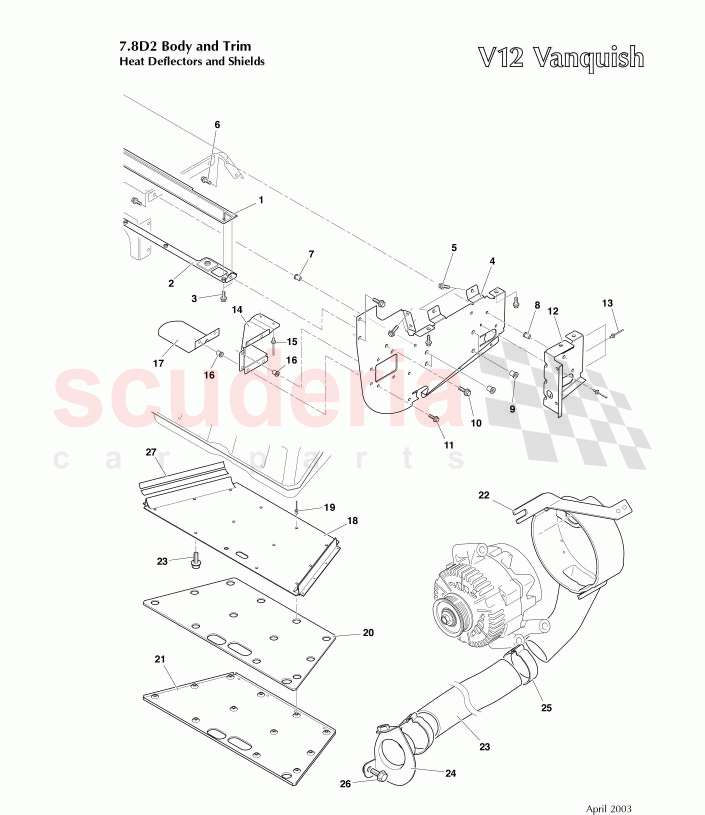

Heat Deflectors and Shields 2 of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 1R12160347AG
TANKBAY CROSSMEMBER -MACHINING 		$146.96 1
2 1R12160952AD
NUTPLATE - TANKBAY CROSSMEMBER 		$103.68 1
3 1R12162364AJ
SIDE PANEL - LCD UNDERSIDE RH 		$150.78 1
3 703121
Screw, M8 x 25, Hex Flange Head
IN STOCK 		$0.25 4
4 1R12162365AH
SIDE PANEL - LCD UNDERSIDE LH 		$214.99 1
5 703187
SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE 		$0.64 20
6 700606
Screw, M6 x 12, Hex Flange Head
IN STOCK 		$0.19 4
7 699282
RIVNUT - M6 STEEL - XYLAN COATED 		$0.63 6
8 699282
RIVNUT - M6 STEEL - XYLAN COATED 		$0.63 6
9 699274
RIVNUT-M8 STEEL- XYLAN COATED 		$0.97 12
10 702972
Screw, M8 x 14 		$0.38 2
11 1R12352816AG
REAR HANGER - REINF BRACKET RH 		$144.87 1
11 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.31 4
12 1R12352817AG
REAR HANGER - REINF BRACKET LH 		$65.90 1
13 1R12102930AE
OUTLET MUFFLER RH 		$115.56 1
13 700162
RIVET POP 4.9mm 		$0.58 8
14 1R12102931AE
OUTLET MUFFLER LH 		$115.56 1
15 700162
RIVET POP 4.9mm 		$0.58 4
16 699282
RIVNUT - M6 STEEL - XYLAN COATED 		$0.63 12
17 1R12272948AA
HEATSHIELD SUBFRAME MOUNTING 		$36.62 2
18 1R12160584AF
ASSY-TANK SHEAR PNL 		$514.19 1
19 700162
RIVET POP 4.9mm 		$0.58 8
20 1R12103352AD
INSULATION TANKBAY PANEL 		$56.40 1
21 1R12103353AE
SECURING PANEL - TANKBAY INSULATION 		$123.26 1
22 1R12371081AA
HEATSHIELD - ALTERNATOR 		$1,104.42 1
23 1R12370806AA
DUCT - ALTERNATOR HEATSHIELD - SIZE 40 I/D x 740mm LONG 		$60.99 1
24 1R12372293AB
BRACKET-ALTERNATOR COOLING DUCT 		$270.96 1
25 697659
CLIP HOSE-SPR/LOADED 		$2.39 2
26 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.31 2
27 1R12341851AC
SUPPORT FUEL TANK BOTTOM 		$16.84 4
28 703187
SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE 		$0.64 10
