Aston Martin Vanquish (2001-2007) - Underbody 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12160564AK PANEL-TANKBAY $371.55 To Order
Photo Part No Description Price (each) Stock
1R12742748AA BRACKET-GUIDE FRT SEAT BELT RH $63.05 To Order
Photo Part No Description Price (each) Stock
1R12742749AA BRACKET-GUIDE FRT SEAT BELT LH $63.05 To Order
Photo Part No Description Price (each) Stock
1R12160347AG TANKBAY CROSSMEMBER -MACHINING $147.65 To Order
Photo Part No Description Price (each) Stock
1R12160952AD NUTPLATE - TANKBAY CROSSMEMBER $104.16 To Order
Photo Part No Description Price (each) Stock
1R12160562AF Panel, Seatback Enquire To Order
Photo Part No Description Price (each) Stock
3R12165716AB X Member, Seatback Enquire To Order
Photo Part No Description Price (each) Stock
1R12160949AC NUTPLATE - SEAT BACK CROSSMEMBER $69.47 To Order
Photo Part No Description Price (each) Stock
1R12160950AF NUTPLATE - REAR BELTS CENTRE $72.66 To Order
Photo Part No Description Price (each) Stock
3R12165715AA Panel, Torque cell rear, RHS Enquire To Order
Photo Part No Description Price (each) Stock
1R12162255AF Panel, Torque cell rear, LHS Enquire To Order
Photo Part No Description Price (each) Stock
1R12160546AE SUBFRAME MTG REAR UPPER RH-MACHINING $34.71 To Order
Photo Part No Description Price (each) Stock
1R12160547AE SUBFRAME MTG REAR UPPER LH-MACHINING $38.19 To Order
Photo Part No Description Price (each) Stock
1R12161462AC SUBFRAME MTG REAR LOWER RG-MACHINING $45.15 To Order
Photo Part No Description Price (each) Stock
1R12161461AC SUBFRAME MTG REAR LOWER LH-MACHINING $52.13 To Order
Photo Part No Description Price (each) Stock
1R12160568AJ Panel, Tunnel, RHS Enquire To Order
Photo Part No Description Price (each) Stock
1R12160569AH Panel, Tunnel, LHS Enquire To Order
Photo Part No Description Price (each) Stock
1R12160566AG Panel, Torque cell side, RHS Enquire To Order
Photo Part No Description Price (each) Stock
1R12160567AG Panel, Torque cell side, LHS Enquire To Order
Photo Part No Description Price (each) Stock
1R12161420AC Nutplate, Rear Belt, outer Enquire To Order
Photo Part No Description Price (each) Stock
1R12160540AJ TANKBAY SIDEMEMBER UPPER RH-MCNG $102.46 To Order
Photo Part No Description Price (each) Stock
1R12160541AJ TANKBAY SIDEMEMBER UPPER LH-MCHG $79.89 To Order
Photo Part No Description Price (each) Stock
1R12162264AG Panel, Tankside, RHS Enquire To Order
Photo Part No Description Price (each) Stock
1R12162265AC Panel, Tankside, LHS Enquire To Order
Photo Part No Description Price (each) Stock
1R12160542AJ TANKBAY SIDEMEMBER LOWER RH-MCNG $79.89 To Order
Photo Part No Description Price (each) Stock
1R12160543AJ TANKBAY SIDEMEMBER LOWER LH-MCHG $79.89 To Order
Photo Part No Description Price (each) Stock
1R12343261AD Protector, outer Fuel Filler Pipe Enquire To Order
Photo Part No Description Price (each) Stock
1R12160342AK X Member, B Post Enquire To Order
Photo Part No Description Price (each) Stock
1R12160346AF TANKBAY UPRIGHT RH -MACHINING $41.37 To Order
Photo Part No Description Price (each) Stock
1R12160345AF TANKBAY UPRIGHT LH -MACHINING $51.21 To Order
Photo Part No Description Price (each) Stock
1R12160956AH Panel, Heelboard, RHS Enquire To Order
Photo Part No Description Price (each) Stock
1R12160957AH Panel, Heelboard, LHS Enquire To Order
Photo Part No Description Price (each) Stock
1R12160554AF PANEL - B POST OUTER RH $152.84 To Order
Photo Part No Description Price (each) Stock
1R12160555AF PANEL - B POST OUTER LH $97.27 To Order
Photo Part No Description Price (each) Stock
1R12160552AF PANEL - B POST INNER RH $208.33 To Order
Photo Part No Description Price (each) Stock
1R12160553AF PANEL - B POST INNER LH $208.33 To Order
Photo Part No Description Price (each) Stock
1R12160340AG B Post, RH Enquire To Order
Photo Part No Description Price (each) Stock
1R12160341AG B Post, LH Enquire To Order
Photo Part No Description Price (each) Stock
1R12161015AC NUTPLATE - B POST $62.53 To Order
Photo Part No Description Price (each) Stock
1R12631200AE PANEL-REAR QUARTER INNER LOWER RH $72.85 To Order
Photo Part No Description Price (each) Stock
1R12631201AE PANEL-REAR QUARTER INNER LOWER LH $86.80 To Order
Photo Part No Description Price (each) Stock
1R12742746AB ASSY-FRT SEAT BELT D LOOP RH $121.53 To Order
Photo Part No Description Price (each) Stock
1R12742747AB ASSY-FRT SEAT BELT D LOOP LH $121.53 To Order
View All

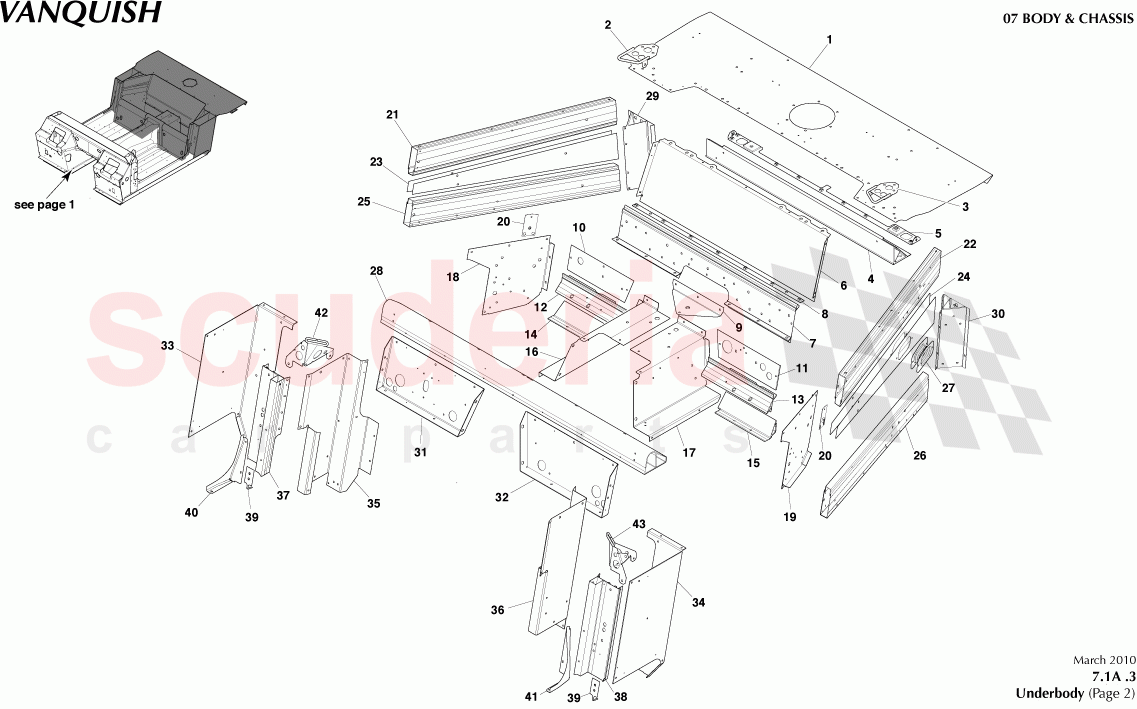

Underbody 2 of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 1R12160564AK
PANEL-TANKBAY
Structural Cat. A only 		$371.55 1
2 1R12742748AA
BRACKET-GUIDE FRT SEAT BELT RH
Structural Cat. A only 		$63.05 1
3 1R12742749AA
BRACKET-GUIDE FRT SEAT BELT LH
Structural Cat. A only 		$63.05 1
4 1R12160347AG
TANKBAY CROSSMEMBER -MACHINING
Structural Cat. A only 		$147.65 1
5 1R12160952AD
NUTPLATE - TANKBAY CROSSMEMBER
Structural Cat. A only 		$104.16 1
6 1R12160562AF
Panel, Seatback
Structural Cat. A only 		- 1 Enquire
7 3R12165716AB
X Member, Seatback
Structural Cat. A only 		- 2 Enquire
8 1R12160949AC
NUTPLATE - SEAT BACK CROSSMEMBER
Structural Cat. A only 		$69.47 1
9 1R12160950AF
NUTPLATE - REAR BELTS CENTRE
Structural Cat. A only 		$72.66 1
10 3R12165715AA
Panel, Torque cell rear, RHS
Structural Cat. A only 		- 1 Enquire
11 1R12162255AF
Panel, Torque cell rear, LHS
Structural Cat. A only 		- 2 Enquire
12 1R12160546AE
SUBFRAME MTG REAR UPPER RH-MACHINING
Structural Cat. A only 		$34.71 1
13 1R12160547AE
SUBFRAME MTG REAR UPPER LH-MACHINING
Structural Cat. A only 		$38.19 1
14 1R12161462AC
SUBFRAME MTG REAR LOWER RG-MACHINING
Structural Cat. A only 		$45.15 1
15 1R12161461AC
SUBFRAME MTG REAR LOWER LH-MACHINING
Structural Cat. A only 		$52.13 1
16 1R12160568AJ
Panel, Tunnel, RHS
Structural Cat. A only 		- 1 Enquire
17 1R12160569AH
Panel, Tunnel, LHS
Structural Cat. A only 		- 1 Enquire
18 1R12160566AG
Panel, Torque cell side, RHS
Structural Cat. A only 		- 1 Enquire
19 1R12160567AG
Panel, Torque cell side, LHS
Structural Cat. A only 		- 1 Enquire
20 1R12161420AC
Nutplate, Rear Belt, outer
Structural Cat. A only 		- 2 Enquire
21 1R12160540AJ
TANKBAY SIDEMEMBER UPPER RH-MCNG
Structural Cat. A only 		$102.46 1
22 1R12160541AJ
TANKBAY SIDEMEMBER UPPER LH-MCHG
Structural Cat. A only 		$79.89 1
23 1R12162264AG
Panel, Tankside, RHS
Structural Cat. A only 		- 1 Enquire
24 1R12162265AC
Panel, Tankside, LHS
Structural Cat. A only 		- 1 Enquire
25 1R12160542AJ
TANKBAY SIDEMEMBER LOWER RH-MCNG
Structural Cat. A only 		$79.89 1
26 1R12160543AJ
TANKBAY SIDEMEMBER LOWER LH-MCHG
Structural Cat. A only 		$79.89 1
27 1R12343261AD
Protector, outer Fuel Filler Pipe
Structural Cat. A only 		- 1 Enquire
28 1R12160342AK
X Member, B Post
Structural Cat. A only 		- 1 Enquire
29 1R12160346AF
TANKBAY UPRIGHT RH -MACHINING
Structural Cat. A only 		$41.37 1
30 1R12160345AF
TANKBAY UPRIGHT LH -MACHINING
Structural Cat. A only 		$51.21 1
31 1R12160956AH
Panel, Heelboard, RHS
Structural Cat. A only 		- 1 Enquire
32 1R12160957AH
Panel, Heelboard, LHS
Structural Cat. A only 		- 1 Enquire
33 1R12160554AF
PANEL - B POST OUTER RH
Structural Cat. A only 		$152.84 1
34 1R12160555AF
PANEL - B POST OUTER LH
Structural Cat. A only 		$97.27 1
35 1R12160552AF
PANEL - B POST INNER RH
Structural Cat. A only 		$208.33 1
36 1R12160553AF
PANEL - B POST INNER LH
Structural Cat. A only 		$208.33 1
37 1R12160340AG
B Post, RH
Structural Cat. A only 		- 1 Enquire
38 1R12160341AG
B Post, LH
Structural Cat. A only 		- 1 Enquire
39 1R12161015AC
NUTPLATE - B POST
Structural Cat. A only 		$62.53 2
40 1R12631200AE
PANEL-REAR QUARTER INNER LOWER RH
Structural Cat. A only 		$72.85 1
41 1R12631201AE
PANEL-REAR QUARTER INNER LOWER LH
Structural Cat. A only 		$86.80 1
42 1R12742746AB
ASSY-FRT SEAT BELT D LOOP RH
Structural Cat. A only 		$121.53 1
43 1R12742747AB
ASSY-FRT SEAT BELT D LOOP LH
Structural Cat. A only 		$121.53 1
