Front Wings

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - Front Wings

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12631026AK ASSY FRT FENDER RH $6,100.88 To Order
1R12631027AK ASSY FRT FENDER LH $6,100.88 To Order
Photo Part No Description Price (each) Stock
5R13FA0036AA Screw and Washer M6x28 Pan hd $2.69 IN STOCK
703143 BUTTON TORX WASHER CHROME FREE $1.73 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.32 IN STOCK
Photo Part No Description Price (each) Stock
1R12632224AF BRACKET-FENDER FRONT SUPPORT RH $56.98 To Order
1R12632225AF BRACKET-FENDER FRONT SUPPORT LH $19.00 To Order
Photo Part No Description Price (each) Stock
1R12632476AD BRACKET - STRUCTURE TO FENDER RH $44.52 To Order
1R12632477AD BRACKET - STRUCTURE TO FENDER LH $40.44 To Order
Photo Part No Description Price (each) Stock
1R12632222AB BRACKET-FENDER CENTER SUPPORT RH $52.52 To Order
1R12632223AB BRACKET-FENDER CENTER SUPPORT LH $30.35 To Order
697781 NUT M6 FLG $0.09 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
700224 SCREW M8x30 HEX FLG8 $3.77 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.32 IN STOCK
Photo Part No Description Price (each) Stock
1R12634764AA BRACKET B POST FENDER & SILL RH $29.16 To Order
1R12634765AA BRACKET 'B' POST FENDER & SILL LH $29.16 To Order
Photo Part No Description Price (each) Stock
700126 SCREW M6x20 HEX FLG $2.82 To Order
Photo Part No Description Price (each) Stock
1R12634739AB C WASHER OD 20 X 6.4 SLOT X 1.0 $0.33 To Order
1R12635201AA C WASHER OD 20 X 6.4 SLOT X 1.5 $0.40 To Order
1R12635202AA C WASHER OD 20 x 6.4 SLOT x 2.0 $17.59 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12631204AG BRACKET - FRONT FENDER & SILL RH $233.62 To Order
1R12631205AG BRACKET - FRONT FENDER & SILL LH $97.79 To Order
Photo Part No Description Price (each) Stock
697517PK WASHER-M6 LGE OD BLK PACK OF 20 $20.96 To Order
Photo Part No Description Price (each) Stock
703169 NUT - M6 HEX FLANGE CHROME FREE $0.52 IN STOCK
Photo Part No Description Price (each) Stock
FD43E830667AB WASHER 25MM X 6.4MM BLACK $0.65 IN STOCK
Photo Part No Description Price (each) Stock
1R12831338AB MESH-SIDE STRAKE RH $119.02 To Order
1R12831339AB MESH-SIDE STRAKE LH $119.02 To Order
1R12632221AC BRACKET-APRON SUPPORT $35.70 To Order
...and 3 more part variants. See table on right for more details.
View All

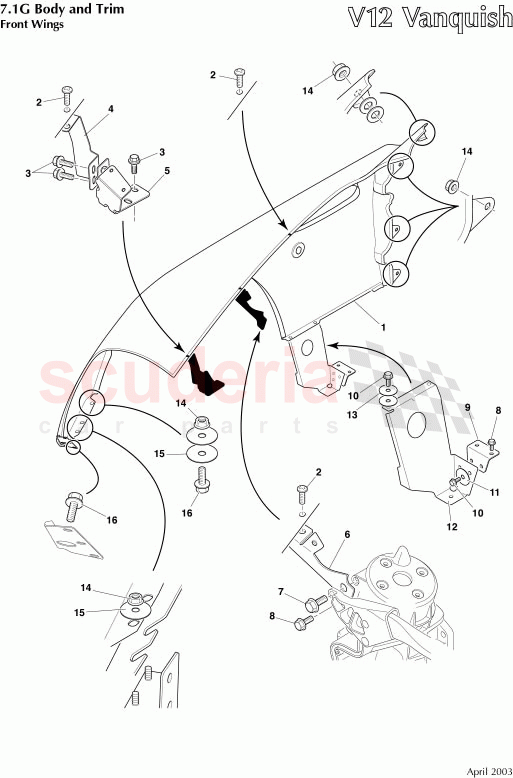

Front Wings of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 1R12631026AK
ASSY FRT FENDER RH 		$6,100.88 1
1 1R12631027AK
ASSY FRT FENDER LH 		$6,100.88 1
2 5R13FA0036AA
Screw and Washer M6x28 Pan hd
Vanquish S From (V) 501506
IN STOCK 		$2.69 6
2 703143
BUTTON TORX WASHER CHROME FREE
Up to (V) 501505 		$1.73 6
3 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.32 12
4 1R12632224AF
BRACKET-FENDER FRONT SUPPORT RH 		$56.98 1
4 1R12632225AF
BRACKET-FENDER FRONT SUPPORT LH 		$19.00 1
5 1R12632476AD
BRACKET - STRUCTURE TO FENDER RH 		$44.52 1
5 1R12632477AD
BRACKET - STRUCTURE TO FENDER LH 		$40.44 1
6 1R12632222AB
BRACKET-FENDER CENTER SUPPORT RH 		$52.52 1
6 1R12632223AB
BRACKET-FENDER CENTER SUPPORT LH 		$30.35 1
6 697781
NUT M6 FLG 		$0.09 14
6 697819
SCREW PAN TORX M6x20 PIL (BLACK) 		$0.55 6
7 700224
SCREW M8x30 HEX FLG8 		$3.77 2
8 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.32 8
9 1R12634764AA
BRACKET B POST FENDER & SILL RH 		$29.16 1
9 1R12634765AA
BRACKET 'B' POST FENDER & SILL LH 		$29.16 1
10 700126
SCREW M6x20 HEX FLG 		$2.82 4
11 1R12634739AB
C WASHER OD 20 X 6.4 SLOT X 1.0 		$0.33 13
11 1R12635201AA
C WASHER OD 20 X 6.4 SLOT X 1.5 		$0.40 3
11 1R12635202AA
C WASHER OD 20 x 6.4 SLOT x 2.0 		$17.59 3
11 1R12635203AA
C WASHER OD 20 X 6.4 SLOT X 2.5 		$0.54 3
11 1R12635260AA
C WASHER OD 20 X 6.4 SLOT X 0.5 		$0.33 3
11 699614
WASHER 22 X 6.8 X 2 STAINLESS 		$16.53 4
12 1R12631204AG
BRACKET - FRONT FENDER & SILL RH 		$233.62 1
12 1R12631205AG
BRACKET - FRONT FENDER & SILL LH 		$97.79 1
13 697517PK
WASHER-M6 LGE OD BLK PACK OF 20 		$20.96 4
14 703169
NUT - M6 HEX FLANGE CHROME FREE
IN STOCK 		$0.52 8
15 FD43E830667AB
WASHER 25MM X 6.4MM BLACK
IN STOCK 		$0.65 4
16 1R12831338AB
MESH-SIDE STRAKE RH 		$119.02 1
16 1R12831339AB
MESH-SIDE STRAKE LH 		$119.02 1
16 1R12632221AC
BRACKET-APRON SUPPORT 		$35.70 2
16 700126
SCREW M6x20 HEX FLG 		$2.82 4
16 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.32 4
16 697517PK
WASHER-M6 LGE OD BLK PACK OF 20 		$20.96 8
