Aston Martin Vanquish (2001-2007) - Doors

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12651164AJ ASSY - DOOR COMPLETE RH $5,693.03 To Order
1R12651165AJ ASSY - DOOR COMPLETE LH $5,693.03 To Order
Photo Part No Description Price (each) Stock
1R12650104AG Panel, door outer, RH Enquire To Order
1R12650105AG Panel, door outer, LH Enquire To Order
Photo Part No Description Price (each) Stock
1R126510344 DOOR HINGE-UPPER RH $177.66 To Order
1R126510345 DOOR HINGE-UPPER LH $177.66 To Order
Photo Part No Description Price (each) Stock
1R126510346 DOOR HINGE-LOWER RH $169.19 To Order
1R126510347 DOOR HINGE-LOWER LH $169.19 To Order
Photo Part No Description Price (each) Stock
700609 SCREW M6x35 $9.21 To Order
701885 LOCTITE 243-10ml BTL $26.86 To Order
Photo Part No Description Price (each) Stock
1R12651360AA SPACER - UPPER DOOR HINGE - A PILLAR $13.97 To Order
Photo Part No Description Price (each) Stock
1R12630294AA SPACER - LOWER DOOR HINGE - A PILLAR $14.22 To Order
Photo Part No Description Price (each) Stock
703153 BOLT M8x33 FLNG PIL ADH 10.9 CHROME FREE $2.18 To Order
Photo Part No Description Price (each) Stock
700260 BOLT M8 x 40 HEX FLG HEAD GRD 10.9 $20.85 To Order
Photo Part No Description Price (each) Stock
FJE2580AA Washer plate, door upper Enquire To Order
Photo Part No Description Price (each) Stock
1R126510141 WASHER PLATE $11.50 To Order
Photo Part No Description Price (each) Stock
703161 Nut Hex M8 Flanged $0.85 IN STOCK
Photo Part No Description Price (each) Stock
1R126510142 DOOR CHECKARM $506.29 To Order
Photo Part No Description Price (each) Stock
700036S447 BOLT M8 X 1.25 X 25 HEX FLANGE HEAD $2.14 IN STOCK
Photo Part No Description Price (each) Stock
700037 NUT M8 HEX DURLOCK FL GR 12 $1.96 To Order
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head $0.09 IN STOCK
View All

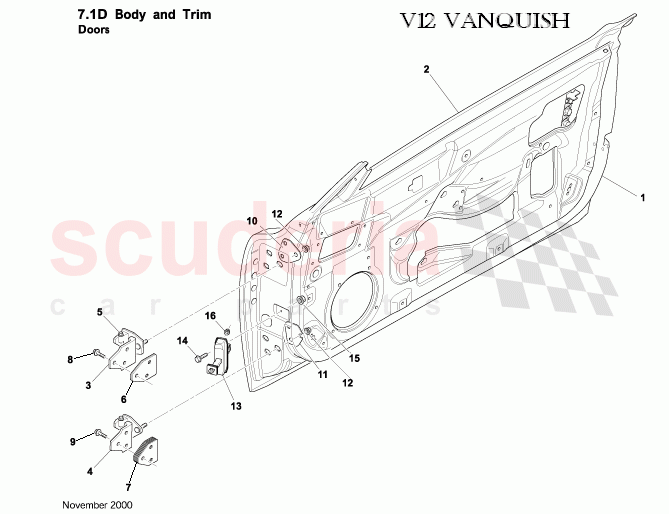

Doors of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 1R12651164AJ
ASSY - DOOR COMPLETE RH 		$5,693.03 1
1 1R12651165AJ
ASSY - DOOR COMPLETE LH 		$5,693.03 1
2 1R12650104AG
Panel, door outer, RH 		- 1 Enquire
2 1R12650105AG
Panel, door outer, LH 		- 1 Enquire
3 1R126510344
DOOR HINGE-UPPER RH 		$177.66 1
3 1R126510345
DOOR HINGE-UPPER LH 		$177.66 1
4 1R126510346
DOOR HINGE-LOWER RH 		$169.19 1
4 1R126510347
DOOR HINGE-LOWER LH 		$169.19 1
5 700609
SCREW M6x35 		$9.21 4
5 701885
LOCTITE 243-10ml BTL 		$26.86 -
6 1R12651360AA
SPACER - UPPER DOOR HINGE - A PILLAR 		$13.97 4
7 1R12630294AA
SPACER - LOWER DOOR HINGE - A PILLAR 		$14.22 10
8 703153
BOLT M8x33 FLNG PIL ADH 10.9 CHROME FREE 		$2.18 6
9 700260
BOLT M8 x 40 HEX FLG HEAD GRD 10.9 		$20.85 6
10 FJE2580AA
Washer plate, door upper 		- 2 Enquire
11 1R126510141
WASHER PLATE 		$11.50 2
12 703161
Nut Hex M8 Flanged
IN STOCK 		$0.85 12
13 1R126510142
DOOR CHECKARM 		$506.29 2
14 700036S447
BOLT M8 X 1.25 X 25 HEX FLANGE HEAD
IN STOCK 		$2.14 2
15 700037
NUT M8 HEX DURLOCK FL GR 12 		$1.96 2
16 702295
Nut, M5, Hex Flange Head
IN STOCK 		$0.09 4
