Front Body Support Structure

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - Front Body Support Structure

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12200210AJ STRUT TOWER - RH MACHINING DETAIL $2,911.58 To Order
Photo Part No Description Price (each) Stock
1R12200209AJ STRUT TOWER - LH MACHINING DETAIL $2,758.02 To Order
Photo Part No Description Price (each) Stock
1R12160624AH ASSY STRUT TOWER SUPPORT RH $1,529.23 To Order
Photo Part No Description Price (each) Stock
1R12160625AH ASSY STRUT TOWER SUP SUPPORT LH $1,529.23 To Order
Photo Part No Description Price (each) Stock
700212 BOLT M12x45 HEX FLG $12.12 To Order
Photo Part No Description Price (each) Stock
700147 NUT M12x1.75 HEX FLG $13.14 To Order
Photo Part No Description Price (each) Stock
703183 BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE $0.74 To Order
Photo Part No Description Price (each) Stock
700212 BOLT M12x45 HEX FLG $12.12 To Order
Photo Part No Description Price (each) Stock
700147 NUT M12x1.75 HEX FLG $13.14 To Order
Photo Part No Description Price (each) Stock
700212 BOLT M12x45 HEX FLG $12.12 To Order
Photo Part No Description Price (each) Stock
1R12161798AB NUTPLATE - STRUT TOWER SUPPORT OUTER $19.18 To Order
Photo Part No Description Price (each) Stock
703183 BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE $0.74 To Order
Photo Part No Description Price (each) Stock
700147 NUT M12x1.75 HEX FLG $13.14 To Order
Photo Part No Description Price (each) Stock
702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) $21.44 IN STOCK
Photo Part No Description Price (each) Stock
1R12161229AB NUTPLATE - STRUT TOWER SUPPORT $17.27 To Order
Photo Part No Description Price (each) Stock
1R122110697 ASSY ENGINE CRADLE- PAINTED AND WAXED $11,080.94 To Order
Photo Part No Description Price (each) Stock
700217 BOLT M10x90 HEX FLG $7.17 To Order
Photo Part No Description Price (each) Stock
702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) $21.44 IN STOCK
Photo Part No Description Price (each) Stock
1R12201230AA DOWEL - DIAM 10 X 30 LONG $2.09 To Order
694858 LOCTITE 648 50ML BOTTLE $78.70 To Order
Photo Part No Description Price (each) Stock
700219 BOLT M12x50 HEX FLG $19.94 To Order
Photo Part No Description Price (each) Stock
700988 BOLT M12 x 90 FLG HD $7.84 To Order
Photo Part No Description Price (each) Stock
700147 NUT M12x1.75 HEX FLG $13.14 To Order
Photo Part No Description Price (each) Stock
700985 SCREW-M12 x 30 FLGHD GRD 10.9 ADH $0.79 To Order
Photo Part No Description Price (each) Stock
1R12161017AA NUTPLATE - FRONT SUBFRAME LOWER LH $95.97 To Order
Photo Part No Description Price (each) Stock
1R12161016AA NUTPLATE - FRONT SUBFRAME LOWER RH $43.96 To Order
Photo Part No Description Price (each) Stock
5R135S021AA UNDERPANEL - VENTILATED $517.06 To Order
5R135S021AA UNDERPANEL - VENTILATED $517.06 To Order
Photo Part No Description Price (each) Stock
703730 Screw, M8 x 16, Hex Flange Head $0.43 IN STOCK
Photo Part No Description Price (each) Stock
700224 SCREW M8x30 HEX FLG8 $3.76 To Order
Photo Part No Description Price (each) Stock
1R12201059AB NUT PLATE - MOUNTING RAIL $136.03 To Order
Photo Part No Description Price (each) Stock
1R12103709AC Assy Panel, Steering Rack Enquire To Order
Photo Part No Description Price (each) Stock
703730 Screw, M8 x 16, Hex Flange Head $0.43 IN STOCK
Photo Part No Description Price (each) Stock
1R12162405AD ASSY STRUT BRACE $3,829.31 To Order
Photo Part No Description Price (each) Stock
703187 SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE $0.65 To Order
700151 SCREW M8x45 HEX FLG8 $2.16 To Order
700225 BOLT M8X50 HEX FLG HEAD GRD 10.9 $35.37 IN STOCK
Photo Part No Description Price (each) Stock
1R12632221AC BRACKET-APRON SUPPORT $35.62 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.32 IN STOCK
Photo Part No Description Price (each) Stock
703163 Nut, M6, Hex Flange Head, Locking $0.11 IN STOCK
View All

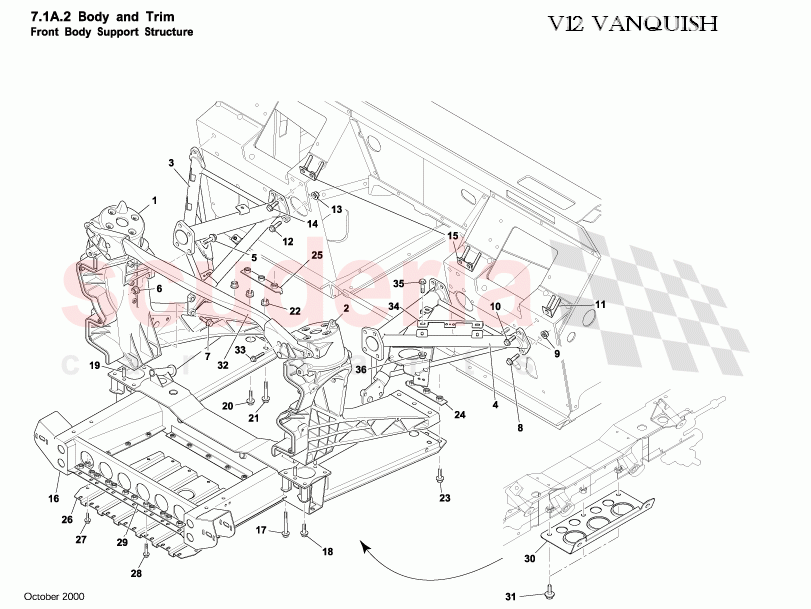

Front Body Support Structure of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 1R12200210AJ
STRUT TOWER - RH MACHINING DETAIL 		$2,911.58 1
2 1R12200209AJ
STRUT TOWER - LH MACHINING DETAIL 		$2,758.02 1
3 1R12160624AH
ASSY STRUT TOWER SUPPORT RH 		$1,529.23 1
4 1R12160625AH
ASSY STRUT TOWER SUP SUPPORT LH 		$1,529.23 1
5 700212
BOLT M12x45 HEX FLG 		$12.12 8
6 700147
NUT M12x1.75 HEX FLG 		$13.14 8
7 703183
BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE 		$0.74 6
8 700212
BOLT M12x45 HEX FLG 		$12.12 2
9 700147
NUT M12x1.75 HEX FLG 		$13.14 2
10 700212
BOLT M12x45 HEX FLG 		$12.12 2
11 1R12161798AB
NUTPLATE - STRUT TOWER SUPPORT OUTER 		$19.18 2
12 703183
BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE 		$0.74 4
13 700147
NUT M12x1.75 HEX FLG 		$13.14 4
14 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)
IN STOCK 		$21.44 4
15 1R12161229AB
NUTPLATE - STRUT TOWER SUPPORT 		$17.27 2
16 1R122110697
ASSY ENGINE CRADLE- PAINTED AND WAXED 		$11,080.94 1
17 700217
BOLT M10x90 HEX FLG 		$7.17 4
18 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)
IN STOCK 		$21.44 4
19 1R12201230AA
DOWEL - DIAM 10 X 30 LONG 		$2.09 4
19 694858
LOCTITE 648 50ML BOTTLE 		$78.70 -
20 700219
BOLT M12x50 HEX FLG 		$19.94 2
21 700988
BOLT M12 x 90 FLG HD 		$7.84 4
22 700147
NUT M12x1.75 HEX FLG 		$13.14 6
23 700985
SCREW-M12 x 30 FLGHD GRD 10.9 ADH 		$0.79 6
24 1R12161017AA
NUTPLATE - FRONT SUBFRAME LOWER LH 		$95.97 1
25 1R12161016AA
NUTPLATE - FRONT SUBFRAME LOWER RH 		$43.96 1
26 5R135S021AA
UNDERPANEL - VENTILATED
Vanquish S From (V) 501506 		$517.06 1
26 5R135S021AA
UNDERPANEL - VENTILATED 		$517.06 1
27 703730
Screw, M8 x 16, Hex Flange Head
IN STOCK 		$0.43 18
28 700224
SCREW M8x30 HEX FLG8 		$3.76 12
29 1R12201059AB
NUT PLATE - MOUNTING RAIL 		$136.03 1
30 1R12103709AC
Assy Panel, Steering Rack 		- 1 Enquire
31 703730
Screw, M8 x 16, Hex Flange Head
IN STOCK 		$0.43 3
32 1R12162405AD
ASSY STRUT BRACE 		$3,829.31 1
33 703187
SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE 		$0.65 2
33 700151
SCREW M8x45 HEX FLG8 		$2.16 2
33 700225
BOLT M8X50 HEX FLG HEAD GRD 10.9
IN STOCK 		$35.37 2
34 1R12632221AC
BRACKET-APRON SUPPORT 		$35.62 4
35 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.32 8
36 703163
Nut, M6, Hex Flange Head, Locking
IN STOCK 		$0.11 8
