Bonnet

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - Bonnet

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12641163AD ASSY BONNET COMPLETE $8,394.93 To Order
Photo Part No Description Price (each) Stock
1R12640101AA Ball Stud $5.23 IN STOCK
Photo Part No Description Price (each) Stock
1R12641072AD ASSY HINGE BONNET RH COMPLETE $281.06 To Order
1R12641073AD ASSY HINGE BONNET LH COMPLETE $281.06 To Order
Photo Part No Description Price (each) Stock
703155 SCREW/WASHER M8x25 CHROME FREE $2.46 IN STOCK
Photo Part No Description Price (each) Stock
1R12640299AC HOOD LINER $1,370.60 To Order
699826 WASHER M5x12.5x1 THK $3.08 To Order
697323 SCREW No8 x 3/8 S.T. REC FLG $0.50 To Order
Photo Part No Description Price (each) Stock
1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5) $6.01 IN STOCK
Photo Part No Description Price (each) Stock
1R12640784AB GAS STRUT - HOOD $97.33 To Order
Photo Part No Description Price (each) Stock
1R12640316AD CABLE HOOD RELEASE $200.50 To Order
697441 WASHER M6 PLAIN `A' $0.09 IN STOCK
Photo Part No Description Price (each) Stock
1R126410144 BONNET LATCH $103.19 To Order
Photo Part No Description Price (each) Stock
699819 SCREW M6x25 SKT BUTTON FLANGE $1.59 To Order
Photo Part No Description Price (each) Stock
1R126410145 BONNET STRIKER $155.55 To Order
Photo Part No Description Price (each) Stock
1R12642828AA REL LEVER - SAFETY CATCH - HOOD $124.93 To Order
700237 WASHER PLAIN 6.4x19 $1.04 To Order
700126 SCREW M6x20 HEX FLG $2.79 To Order
Photo Part No Description Price (each) Stock
1R12642132AC SPACER-HOOD LATCH $154.72 To Order
1R12770121AB HOOD SEAL REAR - EXTRUSION $9.35 To Order
Photo Part No Description Price (each) Stock
1R12641198AE MESH-HOOD VENT RH $325.04 To Order
1R12641199AE MESH-HOOD VENT LH $325.04 To Order
Photo Part No Description Price (each) Stock
700621 Clip, Spryco, C type Enquire To Order
Photo Part No Description Price (each) Stock
1R12643970AB MTG - HOOD RELEASE LEVER $142.58 To Order
Photo Part No Description Price (each) Stock
1R126410356 BONNET REL LEVER RH $219.72 To Order
Photo Part No Description Price (each) Stock
1R12834616AA Screw M6x50 Stainless Steel Socket Head Cap Screw $1.51 IN STOCK
697123 WASHER 1/4 PLAIN FORM A $0.09 To Order
Photo Part No Description Price (each) Stock
700622 SCREW & WASHER M6 x 16 $4.00 To Order
Photo Part No Description Price (each) Stock
FD43E830667AB WASHER 25MM X 6.4MM BLACK $0.64 IN STOCK
Photo Part No Description Price (each) Stock
1R12644421AA ASSY SCREW WASHER M8x25 BLACK $0.82 To Order
Photo Part No Description Price (each) Stock
700178 TIE STRAP - RELEASEABLE $0.33 To Order
View All

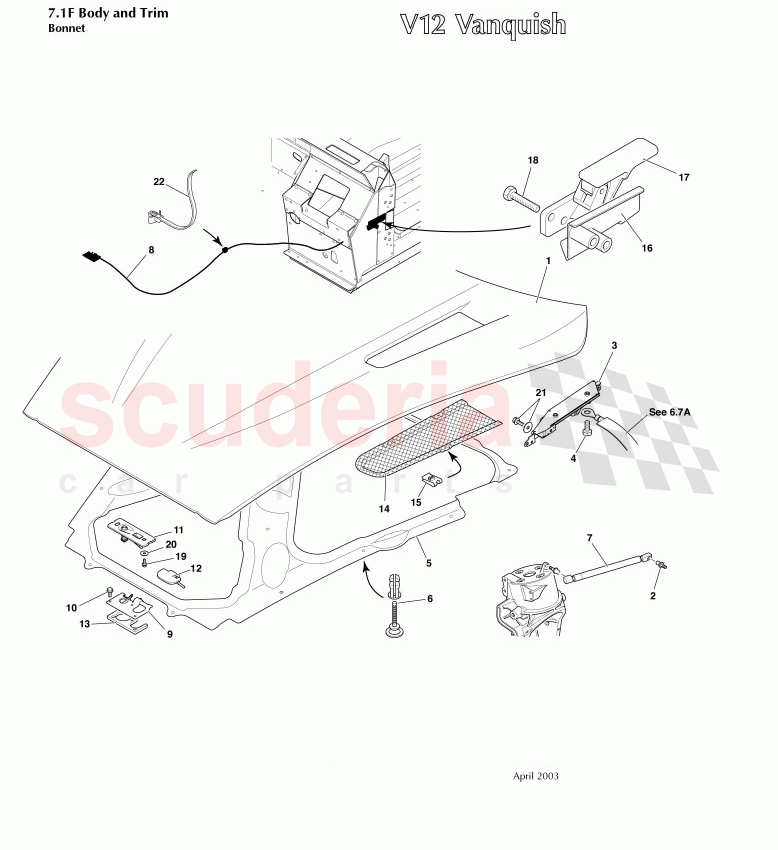

Bonnet of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 1R12641163AD
ASSY BONNET COMPLETE 		$8,394.93 1
2 1R12640101AA
Ball Stud
IN STOCK 		$5.23 4
3 1R12641072AD
ASSY HINGE BONNET RH COMPLETE 		$281.06 1
3 1R12641073AD
ASSY HINGE BONNET LH COMPLETE 		$281.06 1
4 703155
SCREW/WASHER M8x25 CHROME FREE
Bonnet hinges
IN STOCK 		$2.46 8
5 1R12640299AC
HOOD LINER 		$1,370.60 1
5 699826
WASHER M5x12.5x1 THK 		$3.08 6
5 697323
SCREW No8 x 3/8 S.T. REC FLG 		$0.50 6
6 1R12642790AAPK
Scrivet 8mm DIA PNL 3-10mm (Pack of 5)
IN STOCK 		$6.01 18
7 1R12640784AB
GAS STRUT - HOOD 		$97.33 2
8 1R12640316AD
CABLE HOOD RELEASE 		$200.50 1
8 697441
WASHER M6 PLAIN `A'
IN STOCK 		$0.09 3
9 1R126410144
BONNET LATCH 		$103.19 1
10 699819
SCREW M6x25 SKT BUTTON FLANGE 		$1.59 3
11 1R126410145
BONNET STRIKER 		$155.55 1
12 1R12642828AA
REL LEVER - SAFETY CATCH - HOOD 		$124.93 1
12 700237
WASHER PLAIN 6.4x19 		$1.04 2
12 700126
SCREW M6x20 HEX FLG 		$2.79 3
13 1R12642132AC
SPACER-HOOD LATCH 		$154.72 1
13 1R12770121AB
HOOD SEAL REAR - EXTRUSION 		$9.35 1
14 1R12641198AE
MESH-HOOD VENT RH 		$325.04 1
14 1R12641199AE
MESH-HOOD VENT LH 		$325.04 1
15 700621
Clip, Spryco, C type 		- 6 Enquire
16 1R12643970AB
MTG - HOOD RELEASE LEVER 		$142.58 1
17 1R126410356
BONNET REL LEVER RH 		$219.72 1
18 1R12834616AA
Screw M6x50 Stainless Steel Socket Head Cap Screw
IN STOCK 		$1.51 2
18 697123
WASHER 1/4 PLAIN FORM A 		$0.09 2
19 700622
SCREW & WASHER M6 x 16 		$4.00 2
20 FD43E830667AB
WASHER 25MM X 6.4MM BLACK
IN STOCK 		$0.64 2
21 1R12644421AA
ASSY SCREW WASHER M8x25 BLACK 		$0.82 8
22 700178
TIE STRAP - RELEASEABLE 		$0.33 4
