Front Bumper And Apron

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - Front Bumper and Apron

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4R12720819AA BUMPER ASSY FRONT - FEDERAL $2,626.36 To Order
4R12720172AA BUMPER ASSY FRONT - EUROPEAN $2,626.36 To Order
4R12720819AA BUMPER ASSY FRONT - FEDERAL $2,626.36 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
5R13171906EA Foam insert, energy absorbing, front bumper, upper $1,581.70 To Order
1R12721117AJ FOAM INSERT - EA BUMPER FRONT - UPPER ROW $336.83 To Order
Photo Part No Description Price (each) Stock
1R12720007AF FOAM INSERT - EA BUMPER FRONT - LOWER $340.40 To Order
Photo Part No Description Price (each) Stock
1R12721709AA FOAM RETAINER BUMPER FRONT LOWER $58.50 To Order
Photo Part No Description Price (each) Stock
1R12720174AF SIDE BRACKET BUMPER FRONT RH $51.23 To Order
699515 RIVET (HUCK ABP-R8-M3) $1.67 To Order
Photo Part No Description Price (each) Stock
1R12723546AE SPACER - ROCKER $14.63 To Order
1R12720173AF SIDE BRACKET BUMPER FRONT LH $48.50 To Order
FD43E830667AB WASHER 25MM X 6.4MM BLACK $0.65 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12723547AE Spacer - Rocker $6.30 To Order
Photo Part No Description Price (each) Stock
1R12721093AB BRACKET MOUNTING - WHEELHOUSE LINER $27.90 To Order
Photo Part No Description Price (each) Stock
5R13F17A385AA LICENCE PLATE BRACKET FRONT $287.16 To Order
1R12722002AA FEDERAL LICENCE PLATE BRACKET $115.04 To Order
700409 Gripper bag, heavy duty Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12725376AA SEAL HOUSING REG PLT $13.11 To Order
1R12725400AA SEAL HOUSING REG PLT $13.11 To Order
1R12722730AA SEAL HOUSING REG PLT $17.27 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
5R1317D635BA MESH - ASSY RADIATOR $192.90 To Order
5R1317D635AA MESH - RADIATOR LOWER $266.99 To Order
1R12715276AB MESH - ASSEMBLY RADIATOR LOWER (COLD CLIMATE) $163.25 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
5R138190AAW GRILLE - RADIATOR HP PAINTED $4,078.85 To Order
1R12710135AE GRILLE - RADIATOR $3,771.81 To Order
Photo Part No Description Price (each) Stock
699969PK RIVET-R LOK PACK 10 $7.16 To Order
Photo Part No Description Price (each) Stock
699818PK SCREW M6x20 SKT (10) $59.37 To Order
Photo Part No Description Price (each) Stock
FD43E830667AB WASHER 25MM X 6.4MM BLACK $0.65 IN STOCK
Photo Part No Description Price (each) Stock
1R12715277AB FINISHER RADIATOR LOWER MESH $7.20 To Order
Photo Part No Description Price (each) Stock
1R12325160AB BRACKET - COLD CLIMATE HEATER SOCKET (220V) $84.67 To Order
Photo Part No Description Price (each) Stock
1R12325179AA BRACKET - COLD CLIMATE HEATER SOCKET (110V) $122.21 To Order
Photo Part No Description Price (each) Stock
5R1302A34AA SPLITTER - BUMPER $415.36 To Order
4G4317A873AA RIVET 4.8 x 12 BLND LRG AL $1.72 To Order
699726 GROMMET - TOWING EYE COVER $14.93 To Order
...and 4 more part variants. See table on right for more details.
View All

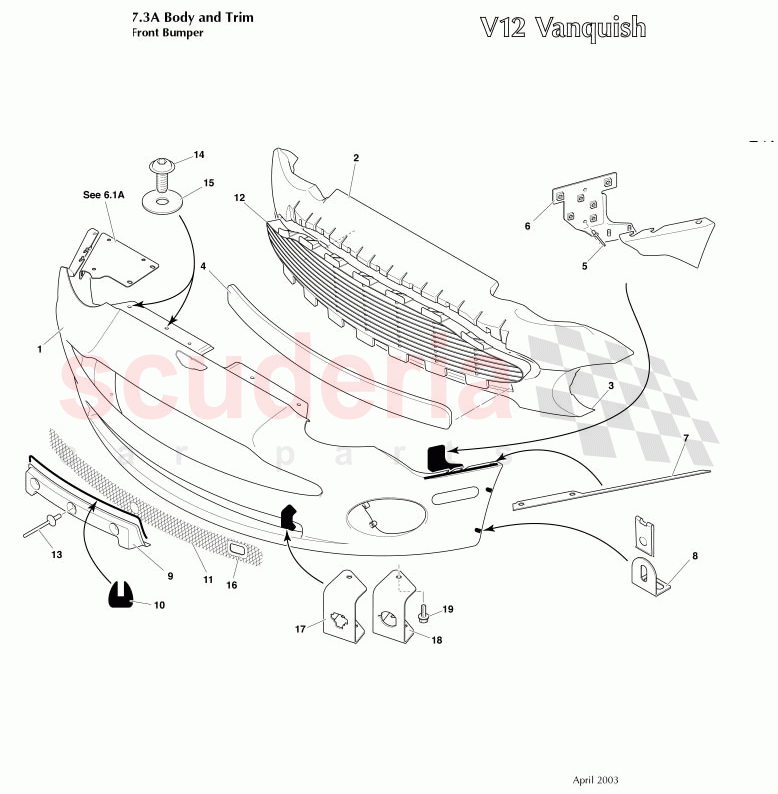

Front Bumper and Apron of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4R12720819AA
BUMPER ASSY FRONT - FEDERAL
Up to (V) 501285 		$2,626.36 1
1 4R12720172AA
BUMPER ASSY FRONT - EUROPEAN
Up to (V) 501285 		$2,626.36 1
1 4R12720819AA
BUMPER ASSY FRONT - FEDERAL
From (V) 501286 		$2,626.36 1
1 4R12720172AA
BUMPER ASSY FRONT - EUROPEAN
From (V) 501286 		$2,626.36 1
2 5R13171906EA
Foam insert, energy absorbing, front bumper, upper
Canada Vanquish S from (V) 501506 		$1,581.70 1
2 1R12721117AJ
FOAM INSERT - EA BUMPER FRONT - UPPER ROW 		$336.83 1
3 1R12720007AF
FOAM INSERT - EA BUMPER FRONT - LOWER 		$340.40 1
4 1R12721709AA
FOAM RETAINER BUMPER FRONT LOWER 		$58.50 1
5 1R12720174AF
SIDE BRACKET BUMPER FRONT RH 		$51.23 1
5 699515
RIVET (HUCK ABP-R8-M3) 		$1.67 4
6 1R12723546AE
SPACER - ROCKER 		$14.63 1
6 1R12720173AF
SIDE BRACKET BUMPER FRONT LH 		$48.50 1
6 FD43E830667AB
WASHER 25MM X 6.4MM BLACK
IN STOCK 		$0.65 4
6 703025
Screw, M6 x 25, Hex Flange Head
IN STOCK 		$0.19 4
7 1R12723547AE
Spacer - Rocker 		$6.30 1
8 1R12721093AB
BRACKET MOUNTING - WHEELHOUSE LINER 		$27.90 4
9 5R13F17A385AA
LICENCE PLATE BRACKET FRONT
ROW Vanquish S From (V) 501506 		$287.16 1
9 1R12722002AA
FEDERAL LICENCE PLATE BRACKET
Federal/Japan 		$115.04 1
9 700409
Gripper bag, heavy duty
Federal/Japan 		- 1 Enquire
9 697530PK
INSERT-THREADED (5)
Federal/Japan 		$15.39 3
9 700126
SCREW M6x20 HEX FLG
Federal/Japan 		$2.81 3
9 697286
Washer M6 Large OD
Federal/Japan
IN STOCK 		$1.37 3
9 1R12632920AA
DOUBLE SIDE TAPE 3M 5361x16WD
Federal/Japan 		$251.38 -
9 1R12725340AA
LICENCE PLATE BRACKET FRONT - SWISS
Swiss 		$77.91 1
9 1R12725378AA
LICENCE PLATE BRACKET FRONT - ITALY
Italy 		$308.74 1
9 1R12720176AC
LICENCE PLATE BRACKET FRONT
ROW 		$255.17 1
10 1R12725376AA
SEAL HOUSING REG PLT
Swiss 		$13.11 1
10 1R12725400AA
SEAL HOUSING REG PLT
Italy 		$13.11 1
10 1R12722730AA
SEAL HOUSING REG PLT
ROW 		$17.27 1
10 699969PK
RIVET-R LOK PACK 10 		$7.16 3
11 5R1317D635BA
MESH - ASSY RADIATOR
Vanquish S From (V) 501506 		$192.90 1
11 5R1317D635AA
MESH - RADIATOR LOWER
Vanquish S From (V) 501506 		$266.99 1
11 1R12715276AB
MESH - ASSEMBLY RADIATOR LOWER (COLD CLIMATE) 		$163.25 1
11 1R12375211AA
110V BLOCK HEATER CORD SET 		$55.10 1
11 1R12375210AA
220V BLOCK HEATER CORD SET 		$222.25 1
11 1R12710134AC
MESH-RADIATOR LOWER 		$206.53 1
11 1R12375275AB
120V EXTENSION CORD 		$49.94 1
11 1R12375274AA
230V EXTENSION CORD 		$52.00 1
11 699806
NYLON WASHER-WHITE 		$0.08 10
11 FD43E830667AB
WASHER 25MM X 6.4MM BLACK
IN STOCK 		$0.65 13
11 699818PK
SCREW M6x20 SKT (10) 		$59.37 13
11 699819
SCREW M6x25 SKT BUTTON FLANGE 		$1.60 3
11 700035
NYLON WASHER - FOG LAMP SPACER 		$0.25 6
11 703143
BUTTON TORX WASHER CHROME FREE 		$1.72 6
11 697441
WASHER M6 PLAIN `A'
IN STOCK 		$0.09 8
11 697781
NUT M6 FLG 		$0.09 8
12 5R138190AAW
GRILLE - RADIATOR HP PAINTED
Vanquish S From (V) 501506 		$4,078.85 1
12 1R12710135AE
GRILLE - RADIATOR 		$3,771.81 1
13 699969PK
RIVET-R LOK PACK 10 		$7.16 3
14 699818PK
SCREW M6x20 SKT (10) 		$59.37 4
15 FD43E830667AB
WASHER 25MM X 6.4MM BLACK
IN STOCK 		$0.65 4
16 1R12715277AB
FINISHER RADIATOR LOWER MESH 		$7.20 1
17 1R12325160AB
BRACKET - COLD CLIMATE HEATER SOCKET (220V) 		$84.67 1
18 1R12325179AA
BRACKET - COLD CLIMATE HEATER SOCKET (110V) 		$122.21 1
19 5R1302A34AA
SPLITTER - BUMPER
Vanquish S From (V) 501506 		$415.36 1
19 4G4317A873AA
RIVET 4.8 x 12 BLND LRG AL
Splitter attach 		$1.72 13
19 699726
GROMMET - TOWING EYE COVER 		$14.93 1
19 700607
Screw Hex Flange Head M6 x 16mm 		$0.19 3
19 703163
Nut, M6, Hex Flange Head, Locking
IN STOCK 		$0.11 3
19 5R13725107AA
PACKER - FRONT BUMPER ASSY 		$4.66 4
19 5R13725108AA
PACKER - FRONT BUMPER ASSY 		$4.66 4
