Centre Console and Trim (From VIN 501949) parts for Aston Martin Vanquish (2001-2007)

Find Your Part

Centre Console and Trim (From VIN 501949) of Aston Martin Aston Martin Vanquish (2001-2007)

View All

Aston Martin Vanquish (2001-2007) - Centre Console and Trim (From VIN 501949)

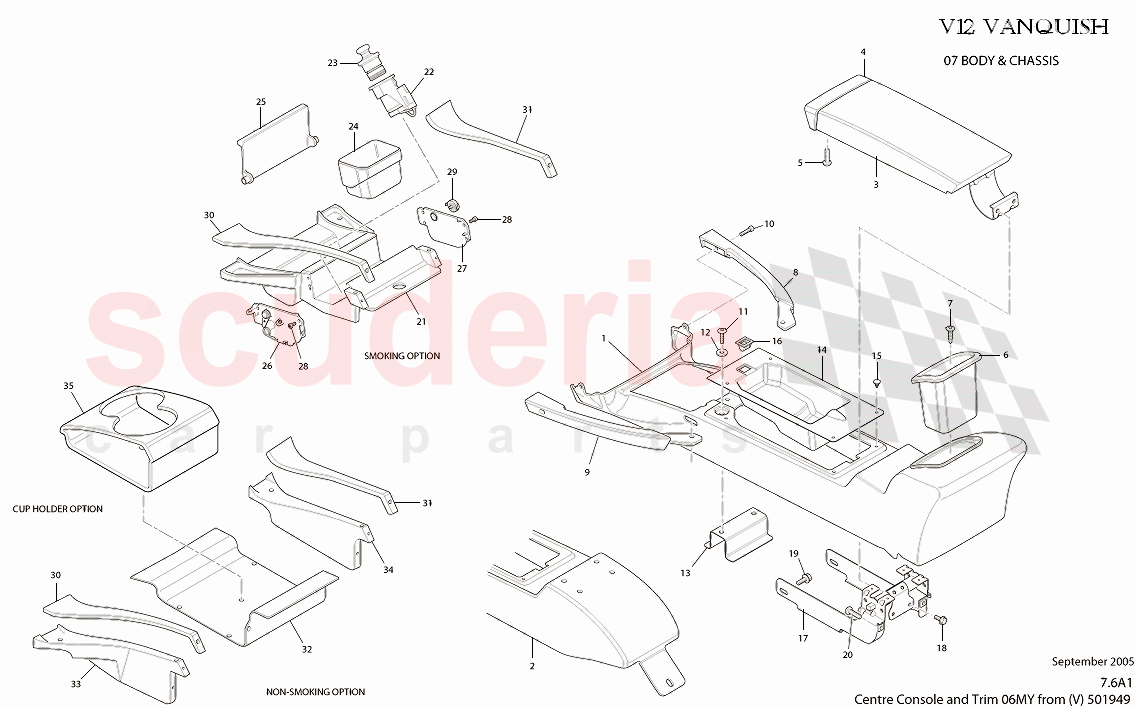

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6R1364320BAW	CENTRE CONSOLE (2+0)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12831901AB	HANDLE-TUNNEL CONSOLE LID	$300.90	To Order
	3R12835833AA	ASSY-TUNNEL CONSOLE LID HANDLE	$300.90	To Order
	1R12831901AD	HANDLE-TUNNEL CONSOLE LID	$261.70	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12830929ADW	LID-TUNNEL STOWAGE BOX ASSY	$1,211.45	To Order
	3R12830929ABW	LID-TUNNEL STOWAGE BOX ASSY	$1,361.26	To Order
	1R12830929ACW	LID-TUNNEL STOWAGE BOX ASSY	$1,257.11	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3R12835703AAW	Panel, ash tray painted	Enquire	To Order
	693824	SCREW M4 x 20 CHROME PAN HEAD POZI DRIVE	$0.54	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834239AA	ASH TRAY PANEL ASSY	$390.12	To Order
	4R12834239AA	ASH TRAY PANEL ASSY	$849.84	To Order
	1R12834239AA	ASH TRAY PANEL ASSY	$390.12	To Order

Photo	Part No	Description	Price (each)	Stock
	697630	SCREW No.8 x 5/8in PAN HEAD AB S.T.	$0.46	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12830918AF	RAIL-CENTRE GRAB RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834644AE	RAIL CENTRE GRAB RH	$531.13	To Order
	1R12834645AE	RAIL CENTRE GRAB LH	$531.13	To Order
	1R12830918AG	RAIL-CENTRE GRAB RH	$524.06	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12834615AA	SCREW M6x30 A2 S/STEEL SKT HD CAP SCREW TO DIN 912	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	699305	SCREW M6 X 20 SOCKET HEAD BUTTON	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12831611AC	Bracket, grab rail mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12835798AA	TUNNEL STOWAGE BOX INNER	$77.90	To Order
	1R12830927AE	TUNNEL STOWAGE BOX INNER - STANDARD TYPE	$86.06	To Order
	5R13C11600BAW	CENTRE CONSOLE TUNNEL STOWAGE BOX INNER	$363.70	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	700076	FIR TREE FASTENER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	1R126910191	LATCH-FEMALE	$26.44	To Order
	3R12835930	Washer, magnetic latch	Enquire	To Order
	3R12805834AA	LATCH MAGNETIC	$10.58	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12833162AA	Bracket, hinge support, tunnel console	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700126	SCREW M6x20 HEX FLG	$2.81	To Order

Photo	Part No	Description	Price (each)	Stock
	703278	Screw, M6 x 10, Flange Hex Head	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	697106	SCREW M8 x 20 HEX FLANGE HD GRD 8.8	$1.67	To Order
	6R13834466AA	BRACKET-MOUNTING- CTR CONSOLE LOWER	$37.12	To Order
	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	$9.11	IN STOCK

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6R13835499BAW	TRIMMED CARRIER ASHTRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12374643AB	CIGAR LIGHTER HOUSING (MODIFIED)	$103.32	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710409	CIGAR LIGHTER ELEMENT	$7.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43048A64AB	BOX CNSL PNL RR ASH RECPT	$181.85	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33043K78EA	DOOR UTILITY TRAY-PL	$587.86	To Order

Photo	Part No	Description	Price (each)	Stock
	6R13048W05AA	SUPT CNSL PNL ASH RECPT LH REWORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6R13048W04AA	SUPT CNSL PNL ASH RECPT RH REWORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701761	M3x8 SKT HD CAP SCREW -STAINLESS	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433975AA	DAMPER UNIT	$3.84	To Order

Photo	Part No	Description	Price (each)	Stock
	6R13836023BB	TRINKET TRAY TOP FINISHER LH	$330.15	To Order

Photo	Part No	Description	Price (each)	Stock
	6R13835553AA	FOAM PANEL TRINKET TRAY SURROUND SIDE LH	$5.31	To Order
	6R13835552AA	FOAM PANEL TRINKET TRAY SURROUND SIDE RH	$5.69	To Order
	6R13836023AB	TRINKET TRAY TOP FINISHER RH	$330.15	To Order

Photo	Part No	Description	Price (each)	Stock
	6R13835499AAW	TRIMMED TRINKET TRAY BASE	$456.05	To Order

Photo	Part No	Description	Price (each)	Stock
	6R13835486BAW	Side, trinket tray, LH, trimmed	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6R13835486AAW	Side, trinket tray, RH, trimmed	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6R13836022AAW	CUP HOLDER TRIMMED	$2,197.37	To Order
	6R13836022ABW	Cup holder, painted	Enquire	To Order
	6R13836022AB	Cup holder	$752.81	To Order

...and 3 more part variants. See table on right for more details.

View All

Centre Console and Trim (From VIN 501949) of Aston Martin Aston Martin Vanquish (2001-2007)

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	1	6R13835561AAW	Panel, tunnel, console, trimmed (2+2)	6R13835561AAW Panel, tunnel, console, trimmed (2+2) 06MY from (V) 501949	-	1		Enquire
	2	6R1364320BAW	CENTRE CONSOLE (2+0)	6R1364320BAW CENTRE CONSOLE (2+0) 06MY from (V) 501949	-	1		Enquire
	3	3R12831901AB	HANDLE-TUNNEL CONSOLE LID	3R12831901AB HANDLE-TUNNEL CONSOLE LID From (V) 500516-21 + 526 on Up to (V) 500820	$300.90	1
	3	3R12835833AA	ASSY-TUNNEL CONSOLE LID HANDLE	3R12835833AA ASSY-TUNNEL CONSOLE LID HANDLE (Magnetic latch) From (V) 500821	$300.90	1
	3	1R12831901AD	HANDLE-TUNNEL CONSOLE LID	1R12831901AD HANDLE-TUNNEL CONSOLE LID Up to (V) 500515 + 500522-525	$261.70	1
	4	1R12830929ADW	LID-TUNNEL STOWAGE BOX ASSY	1R12830929ADW LID-TUNNEL STOWAGE BOX ASSY From (V) 500516-21 + 526 on Up to (V) 500820	$1,211.45	1
	4	3R12830929ABW	LID-TUNNEL STOWAGE BOX ASSY	3R12830929ABW LID-TUNNEL STOWAGE BOX ASSY (Magnetic latch) From (V) 500821	$1,361.26	1
	4	1R12830929ACW	LID-TUNNEL STOWAGE BOX ASSY	1R12830929ACW LID-TUNNEL STOWAGE BOX ASSY Up to (V) 500515 + 500522-525	$1,257.11	1
	4	1R12830930AD	LID - TUNNEL STOWAGE BOX INNER	1R12830930AD LID - TUNNEL STOWAGE BOX INNER	$62.02	1
	5	3R12835703AAW	Panel, ash tray painted	3R12835703AAW Panel, ash tray painted From (V) 500516-21 + 526 on	-	1		Enquire
	5	693824	SCREW M4 x 20 CHROME PAN HEAD POZI DRIVE	693824 SCREW M4 x 20 CHROME PAN HEAD POZI DRIVE Handle to lid	$0.54	2
	6	1R12834239AA	ASH TRAY PANEL ASSY	1R12834239AA ASH TRAY PANEL ASSY Up to (V) 501285	$390.12	1
	6	4R12834239AA	ASH TRAY PANEL ASSY	4R12834239AA ASH TRAY PANEL ASSY From (V) 501286	$849.84	1
	6	1R12834239AA	ASH TRAY PANEL ASSY	1R12834239AA ASH TRAY PANEL ASSY	$390.12	1
	7	697630	SCREW No.8 x 5/8in PAN HEAD AB S.T.	697630 SCREW No.8 x 5/8in PAN HEAD AB S.T.	$0.46	4
	8	1R12830918AF	RAIL-CENTRE GRAB RH	1R12830918AF RAIL-CENTRE GRAB RH Up to (V) 500515 + 500522-525	-	1		Enquire
	9	1R12834644AE	RAIL CENTRE GRAB RH	1R12834644AE RAIL CENTRE GRAB RH From (V) 500516-21 + 526 on up to 03	$531.13	1
	9	1R12834645AE	RAIL CENTRE GRAB LH	1R12834645AE RAIL CENTRE GRAB LH From (V) 500516-21 + 526 on up to 03	$531.13	1
	9	1R12830918AG	RAIL-CENTRE GRAB RH	1R12830918AG RAIL-CENTRE GRAB RH From (V) 500516-21 + 526 on up to 03	$524.06	1
	9	1R12830919AG	RAIL-CENTRE GRAB LH	1R12830919AG RAIL-CENTRE GRAB LH From (V) 500516-21 + 526 on up to 03	$524.06	1
	9	1R12834644AB	RAIL CENTRE GRAB RH	1R12834644AB RAIL CENTRE GRAB RH Up to (V) 500515 + 500522-525	-	1		Enquire
	9	1R12834645AB	RAIL CENTRE GRAB LH	1R12834645AB RAIL CENTRE GRAB LH Up to (V) 500515 + 500522-525	-	1		Enquire
	9	1R12830919AF	RAIL-CENTRE GRAB LH	1R12830919AF RAIL-CENTRE GRAB LH Up to (V) 500515 + 500522-525	-	1		Enquire
	9	3R12836194AA	RAIL CENTRE GRAB RH	3R12836194AA RAIL CENTRE GRAB RH From (V) 501286	$240.79	1
	9	3R12836195AA	RAIL CENTRE GRAB LH	3R12836195AA RAIL CENTRE GRAB LH From (V) 501286	$240.79	1
	10	1R12834615AA	SCREW M6x30 A2 S/STEEL SKT HD CAP SCREW TO DIN 912	1R12834615AA SCREW M6x30 A2 S/STEEL SKT HD CAP SCREW TO DIN 912 Grab rail attach	$1.23	2
	11	699305	SCREW M6 X 20 SOCKET HEAD BUTTON	699305 SCREW M6 X 20 SOCKET HEAD BUTTON Grab rail attach	$0.32	2
	12	697286	Washer M6 Large OD IN STOCK	697286 Washer M6 Large OD Grab rail attach IN STOCK	$1.37	2
	13	1R12831611AC	Bracket, grab rail mounting	1R12831611AC Bracket, grab rail mounting	-	1		Enquire
	14	3R12835798AA	TUNNEL STOWAGE BOX INNER	3R12835798AA TUNNEL STOWAGE BOX INNER (Magnetic latch) From (V) 500821	$77.90	1
	14	1R12830927AE	TUNNEL STOWAGE BOX INNER - STANDARD TYPE	1R12830927AE TUNNEL STOWAGE BOX INNER - STANDARD TYPE Up to (V) 500515 + 500522-525	$86.06	1
	14	5R13C11600BAW	CENTRE CONSOLE TUNNEL STOWAGE BOX INNER	5R13C11600BAW CENTRE CONSOLE TUNNEL STOWAGE BOX INNER Vanquish S From (V) 501506	$363.70	1
	14	5R13C11600AAW	CENTRE CONSOLE TUNNEL STOWAGE BOX INNER - EURO	5R13C11600AAW CENTRE CONSOLE TUNNEL STOWAGE BOX INNER - EURO Vanquish S From (V) 501506	$269.11	1
	14	4R12835798AA	TUNNEL STOWAGE BOX INNER - FEDERAL	4R12835798AA TUNNEL STOWAGE BOX INNER - FEDERAL From (V) 501286	$77.99	1
	15	700076	FIR TREE FASTENER	700076 FIR TREE FASTENER	$0.06	4
	16	1R126910191	LATCH-FEMALE	1R126910191 LATCH-FEMALE Up to (V) 500820	$26.44	1
	16	3R12835930	Washer, magnetic latch	3R12835930 Washer, magnetic latch From (V) 500821	-	1		Enquire
	16	3R12805834AA	LATCH MAGNETIC	3R12805834AA LATCH MAGNETIC From (V) 500821	$10.58	1
	17	1R12833162AA	Bracket, hinge support, tunnel console	1R12833162AA Bracket, hinge support, tunnel console	-	1		Enquire
	18	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG	$2.81	2
	19	703278	Screw, M6 x 10, Flange Hex Head	703278 Screw, M6 x 10, Flange Hex Head	$0.16	2
	20	697106	SCREW M8 x 20 HEX FLANGE HD GRD 8.8	697106 SCREW M8 x 20 HEX FLANGE HD GRD 8.8 Console rear attach, 2 + 2 only	$1.67	1
	20	6R13834466AA	BRACKET-MOUNTING- CTR CONSOLE LOWER	6R13834466AA BRACKET-MOUNTING- CTR CONSOLE LOWER 06MY from (V) 501949	$37.12	1
	20	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) IN STOCK	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) 06MY from (V) 501949 IN STOCK	$9.11	2
	20	700987	Screw M4 x 16 pan hd	700987 Screw M4 x 16 pan hd	-	2		Enquire
	21	6R13835499BAW	TRIMMED CARRIER ASHTRAY	6R13835499BAW TRIMMED CARRIER ASHTRAY 06MY from (V) 501949	-	1		Enquire
	22	1R12374643AB	CIGAR LIGHTER HOUSING (MODIFIED)	1R12374643AB CIGAR LIGHTER HOUSING (MODIFIED) 06MY from (V) 501949	$103.32	1
	23	1R123710409	CIGAR LIGHTER ELEMENT IN STOCK	1R123710409 CIGAR LIGHTER ELEMENT 06MY from (V) 501949 IN STOCK	$7.90	1
	24	4G43048A64AB	BOX CNSL PNL RR ASH RECPT	4G43048A64AB BOX CNSL PNL RR ASH RECPT 06MY from (V) 501949	$181.85	1
	25	8D33043K78EA	DOOR UTILITY TRAY-PL	8D33043K78EA DOOR UTILITY TRAY-PL 06MY from (V) 501949	$587.86	1
	26	6R13048W05AA	SUPT CNSL PNL ASH RECPT LH REWORK	6R13048W05AA SUPT CNSL PNL ASH RECPT LH REWORK 06MY from (V) 501949	-	1		Enquire
	27	6R13048W04AA	SUPT CNSL PNL ASH RECPT RH REWORK	6R13048W04AA SUPT CNSL PNL ASH RECPT RH REWORK 06MY from (V) 501949	-	1		Enquire
	28	701761	M3x8 SKT HD CAP SCREW -STAINLESS	701761 M3x8 SKT HD CAP SCREW -STAINLESS 06MY from (V) 501949	$0.79	8
	29	4G433975AA	DAMPER UNIT	4G433975AA DAMPER UNIT 06MY from (V) 501949	$3.84	1
	30	6R13836023BB	TRINKET TRAY TOP FINISHER LH	6R13836023BB TRINKET TRAY TOP FINISHER LH 06MY from (V) 501949	$330.15	1
	31	6R13835553AA	FOAM PANEL TRINKET TRAY SURROUND SIDE LH	6R13835553AA FOAM PANEL TRINKET TRAY SURROUND SIDE LH 06MY from (V) 501949	$5.31	1
	31	6R13835552AA	FOAM PANEL TRINKET TRAY SURROUND SIDE RH	6R13835552AA FOAM PANEL TRINKET TRAY SURROUND SIDE RH 06MY from (V) 501949	$5.69	1
	31	6R13836023AB	TRINKET TRAY TOP FINISHER RH	6R13836023AB TRINKET TRAY TOP FINISHER RH 06MY from (V) 501949	$330.15	1
	32	6R13835499AAW	TRIMMED TRINKET TRAY BASE	6R13835499AAW TRIMMED TRINKET TRAY BASE 06MY from (V) 501949	$456.05	1
	33	6R13835486BAW	Side, trinket tray, LH, trimmed	6R13835486BAW Side, trinket tray, LH, trimmed 06MY from (V) 501949	-	1		Enquire
	34	6R13835486AAW	Side, trinket tray, RH, trimmed	6R13835486AAW Side, trinket tray, RH, trimmed 06MY from (V) 501949	-	1		Enquire
	35	6R13836022AAW	CUP HOLDER TRIMMED	6R13836022AAW CUP HOLDER TRIMMED 06MY from (V) 501949	$2,197.37	1
	35	6R13836022ABW	Cup holder, painted	6R13836022ABW Cup holder, painted 06MY from (V) 501949	-	1		Enquire
	35	6R13836022AB	Cup holder	6R13836022AB Cup holder 06MY from (V) 501949	$752.81	1
	35	701762	M3x16 SKT HD CAP SCREW STAINLESS STEEL	701762 M3x16 SKT HD CAP SCREW STAINLESS STEEL 06MY from (V) 501949	$2.53	2
	35	701763	Screw, M3 x 6 skt cap stainless	701763 Screw, M3 x 6 skt cap stainless 06MY from (V) 501949	-	2		Enquire
	35	701761	M3x8 SKT HD CAP SCREW -STAINLESS	701761 M3x8 SKT HD CAP SCREW -STAINLESS 06MY from (V) 501949	$0.79	6

Front Body Support Structure

Front Body Support Structure

Front Impact Structure

Front Impact Structure

Fuel Flap Mechanism

Fuel Flap Mechanism

Door Latch Mechanism

Door Latch Mechanism

Body Fittings 1

Body Fittings 1

Body Fittings 2

Body Fittings 2

Front Bumper and Apron

Front Bumper and Apron

Glass and Finishers

Glass and Finishers

Door Glass and Frames

Door Glass and Frames

Facia and Trim 1

Facia and Trim 1

Facia and Trim 2

Facia and Trim 2

Centre Console and Trim (To VIN 501948)

Centre Console and Trim (To VIN 501948)

Centre Console and Trim (From VIN 501949)

Centre Console and Trim (From VIN 501949)

Door Casings and Fittings

Door Casings and Fittings

Upper Trim and Roof Lining

Upper Trim and Roof Lining

Rear Trim (2 seater)

Rear Trim (2 seater)

Rear Trim (2 plus 2)

Rear Trim (2 plus 2)

Front Seats and Belts

Front Seats and Belts

Rear Seats and Belts 1

Rear Seats and Belts 1

Rear Seats and Belts 2

Rear Seats and Belts 2

Sound Deadening

Sound Deadening

Trunk Casing and Mats

Trunk Casing and Mats

Heat Deflectors and Shields 1

Heat Deflectors and Shields 1

Heat Deflectors and Shields 2

Heat Deflectors and Shields 2

Heat Deflectors and Shields 3

Heat Deflectors and Shields 3

Heat Deflectors and Shields 4

Heat Deflectors and Shields 4

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
