Aston Martin Vanquish (2001-2007) - Body Fittings 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12804558AAW ASSY FOOTREST RHD $63.76 To Order
1R12804559AAW ASSY FOOTREST LHD Enquire To Order
Photo Part No Description Price (each) Stock
1R12803600AB Pad, footrest Enquire To Order
Photo Part No Description Price (each) Stock
1R12803328AA BRACKET - FOOTREST RHD $22.22 To Order
1R12803329AA BRACKET - FOOTREST LHD $22.22 To Order
Photo Part No Description Price (each) Stock
700448 Screw, M5 x 30, csk Pedal pad Enquire To Order
703165 NUT M5 HEX FLG PLAS CHROME FREE $0.20 IN STOCK
Photo Part No Description Price (each) Stock
1R12834478AB MOUNTING SILL PLATE $84.93 To Order
Photo Part No Description Price (each) Stock
5R13132A51AA SILL PLATE ASSY VEHICLE NAME VANQUISH S $253.76 To Order
1R12830989AB SILL PLATE-V12 VANQ VEHICLE NAME $352.84 To Order
4R12836204AA SILL PLATE VEHICLE NAME(PAIR) $571.58 To Order
Photo Part No Description Price (each) Stock
1R128010477 SILL PLATE VANQ S $471.87 To Order
1R128010476 SILL PLATE VANQ V12 $471.87 To Order
1R128010476 SILL PLATE VANQ V12 $471.87 To Order
Photo Part No Description Price (each) Stock
699108 SCREW No4 x 12 C/SNK RSD HD $0.84 To Order
Photo Part No Description Price (each) Stock
697603 Screw, M6 x 25, Csk Socket Hd $0.27 IN STOCK
Photo Part No Description Price (each) Stock
1R12830226AEW Sunvisor assy, trimmed, RH Enquire To Order
1R12830225AEW Sunvisor assy, trimmed, LH Enquire To Order
4R12830226AAW SUNVISOR ASSY RHS TRIMMED - MIRROR $1,302.26 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12835394AB SUN VISOR MOUNTING PIN INNER $23.58 To Order
Photo Part No Description Price (each) Stock
1R12833592AC REAR LAMP - FINISHER RH $214.48 To Order
1R12832496AC SUNVISOR MNTG PIN $2.90 To Order
Photo Part No Description Price (each) Stock
1R12833593AC REAR LAMP FINISHER LH $214.48 To Order
Photo Part No Description Price (each) Stock
1R12831340AF SIDE STRAKE ASSY RH FENDER $961.34 To Order
1R12784295AB FRONT AIRDAM EXTRUSION $1,347.90 To Order
1R12831392AE Side strake rear, RH Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12834648AB SIDE STRAKE ASSY FENDER RH SATIN CHROME $819.57 To Order
1R12834649AB SIDE STRAKE ASSY FENDER LH SATIN CHROME $819.57 To Order
1R12831392AF SIDE STRAKE-DOOR-RH $283.67 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12835044AA REINF BAR - FRONT HEADER SUBSTRATE $20.75 To Order
Photo Part No Description Price (each) Stock
697431 NUT M4 NYLOC $0.12 To Order
Photo Part No Description Price (each) Stock
692054 WASHER M4 PLAIN MED MILD STEEL ZINC PLT $0.34 IN STOCK
Photo Part No Description Price (each) Stock
697517PK WASHER-M6 LGE OD BLK PACK OF 20 $22.22 To Order
Photo Part No Description Price (each) Stock
699969PK RIVET-R LOK PACK 10 $7.60 To Order
Photo Part No Description Price (each) Stock
1R12632802AB DRAIN HOSE $11.65 To Order
Photo Part No Description Price (each) Stock
1R12634144AC LEAF SCREEN - PLENUM CUP RH $22.22 To Order
1R12634145AC LEAF SCREEN - PLENUM CUP LH $22.22 To Order
Photo Part No Description Price (each) Stock
1R12633944AB DRAIN - CUP PLENUM $39.46 To Order
1R12633945AB DRAIN CUP - PLENUM $39.46 To Order
699233PK TIE-STRAP HT RES-100 $93.44 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
699508 PINE TREE CLIP $1.51 To Order
Photo Part No Description Price (each) Stock
9790423 AIRBAG WARNING LABEL ENGLISH $3.64 To Order
9790425 AIRBAG WARNING LABEL $2.58 To Order
9790434 AIRBAG WARNING LABEL FRENCH $2.58 To Order
...and 10 more part variants. See table on right for more details.
View All

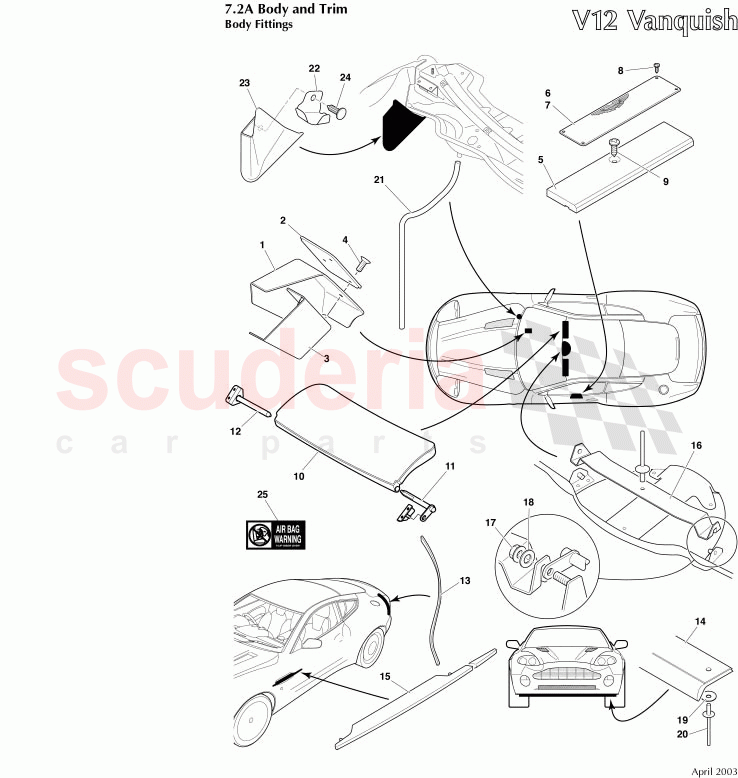

Body Fittings 1 of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 1R12804558AAW
ASSY FOOTREST RHD
RHD 		$63.76 1
1 1R12804559AAW
ASSY FOOTREST LHD
LHD 		- 1 Enquire
2 1R12803600AB
Pad, footrest 		- 1 Enquire
3 1R12803328AA
BRACKET - FOOTREST RHD
RHD 		$22.22 1
3 1R12803329AA
BRACKET - FOOTREST LHD
LHD 		$22.22 1
4 700448
Screw, M5 x 30, csk Pedal pad 		- 3 Enquire
4 703165
NUT M5 HEX FLG PLAS CHROME FREE
IN STOCK 		$0.20 3
5 1R12834478AB
MOUNTING SILL PLATE 		$84.93 2
6 5R13132A51AA
SILL PLATE ASSY VEHICLE NAME VANQUISH S
Vanquish S from (V) 501506 		$253.76 2
6 1R12830989AB
SILL PLATE-V12 VANQ VEHICLE NAME
Up to (V) 501285 		$352.84 2
6 4R12836204AA
SILL PLATE VEHICLE NAME(PAIR)
From (V) 501286 		$571.58 2
7 1R128010477
SILL PLATE VANQ S
Vanquish S from (V) 501506 		$471.87 2
7 1R128010476
SILL PLATE VANQ V12
Up to (V) 501285 		$471.87 2
7 1R128010476
SILL PLATE VANQ V12
From (V) 501286 		$471.87 2
8 699108
SCREW No4 x 12 C/SNK RSD HD 		$0.84 8
9 697603
Screw, M6 x 25, Csk Socket Hd
IN STOCK 		$0.27 4
10 1R12830226AEW
Sunvisor assy, trimmed, RH
Up to (V) 501285 		- 1 Enquire
10 1R12830225AEW
Sunvisor assy, trimmed, LH
Up to (V) 501285 		- 1 Enquire
10 4R12830226AAW
SUNVISOR ASSY RHS TRIMMED - MIRROR
From (V) 501286 		$1,302.26 1
10 4R12830225AAW
SUNVISOR ASSY LHS TRIMMED - MIRROR
From (V) 501286 		$1,302.26 1
11 1R12835394AB
SUN VISOR MOUNTING PIN INNER 		$23.58 2
12 1R12833592AC
REAR LAMP - FINISHER RH 		$214.48 1
12 1R12832496AC
SUNVISOR MNTG PIN 		$2.90 2
13 1R12833593AC
REAR LAMP FINISHER LH 		$214.48 1
14 1R12831340AF
SIDE STRAKE ASSY RH FENDER 		$961.34 1
14 1R12784295AB
FRONT AIRDAM EXTRUSION 		$1,347.90 1
14 1R12831392AE
Side strake rear, RH 		- 1 Enquire
14 5R1313550PIA2
DOUBLE SIDED TAPE 3M 5361 		$301.04 -
15 1R12834648AB
SIDE STRAKE ASSY FENDER RH SATIN CHROME
Optional 		$819.57 1
15 1R12834649AB
SIDE STRAKE ASSY FENDER LH SATIN CHROME
Optional 		$819.57 1
15 1R12831392AF
SIDE STRAKE-DOOR-RH
Optional 		$283.67 1
15 1R12831393AF
SIDE STRAKE-DOOR-LH
Optional 		$283.67 1
15 1R12831341AF
SIDE STRAKE ASSY- FENDER LH 		$742.39 1
15 1R12831392AF
SIDE STRAKE-DOOR-RH 		$283.67 1
15 1R12831393AF
SIDE STRAKE-DOOR-LH 		$283.67 1
15 1R12831393AE
Side strake rear, LH 		- 1 Enquire
15 5R1313550PIA2
DOUBLE SIDED TAPE 3M 5361 		$301.04 -
16 1R12835044AA
REINF BAR - FRONT HEADER SUBSTRATE 		$20.75 1
17 697431
NUT M4 NYLOC 		$0.12 2
18 692054
WASHER M4 PLAIN MED MILD STEEL ZINC PLT
IN STOCK 		$0.34 2
19 697517PK
WASHER-M6 LGE OD BLK PACK OF 20
Airdam attach 		$22.22 9
20 699969PK
RIVET-R LOK PACK 10
Airdam attach 		$7.60 9
21 1R12632802AB
DRAIN HOSE 		$11.65 1
22 1R12634144AC
LEAF SCREEN - PLENUM CUP RH 		$22.22 1
22 1R12634145AC
LEAF SCREEN - PLENUM CUP LH 		$22.22 1
23 1R12633944AB
DRAIN - CUP PLENUM 		$39.46 1
23 1R12633945AB
DRAIN CUP - PLENUM 		$39.46 1
23 699233PK
TIE-STRAP HT RES-100 		$93.44 2
23 1R12632220AE
DRAIN TUBE-PLENUM OUTER 		$70.02 2
24 699508
PINE TREE CLIP 		$1.51 2
25 9790423
AIRBAG WARNING LABEL ENGLISH
USA/Canada only 		$3.64 2
25 9790425
AIRBAG WARNING LABEL
USA/Canada only 		$2.58 2
25 9790434
AIRBAG WARNING LABEL FRENCH
Canada only 		$2.58 2
25 9790424
AIRBAG WARNING LABEL FRENCH
Canada only 		$3.64 2
25 1R12785178AB
WATER DEFLECTOR RH 		$237.11 1
25 1R12785177AB
WATER DEFLECTOR LH 		$237.11 1
25 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.34 10
25 700270
SCREW M6x10 FLG 		- 2 Enquire
25 699620
GROMMET (BLIND) SUPPLIER PART No 89736 		- 2 Enquire
25 1R12632656AB
COLLAR-HINGE SPACING 		$9.18 4
25 700226
WASHER PLAIN M6x17 		$7.27 6
25 1R12634756AA
CLIP - HEATSHIELD 		$10.37 6

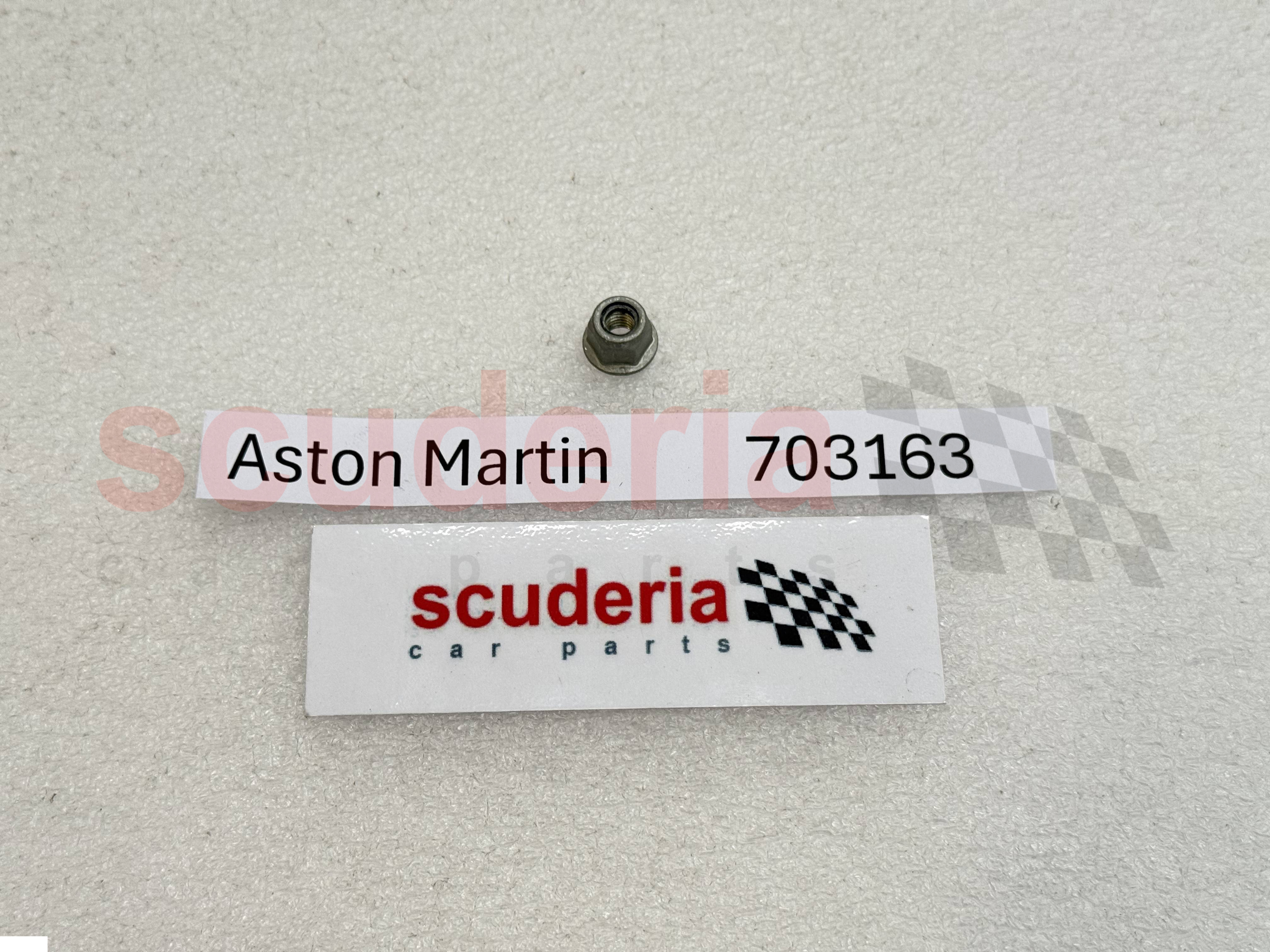

25 703163
Nut, M6, Hex Flange Head, Locking
IN STOCK 		$0.12 8
