Door Latch Mechanism parts for Aston Martin Vanquish (2001-2007)

Find Your Part

Door Latch Mechanism of Aston Martin Aston Martin Vanquish (2001-2007)

View All

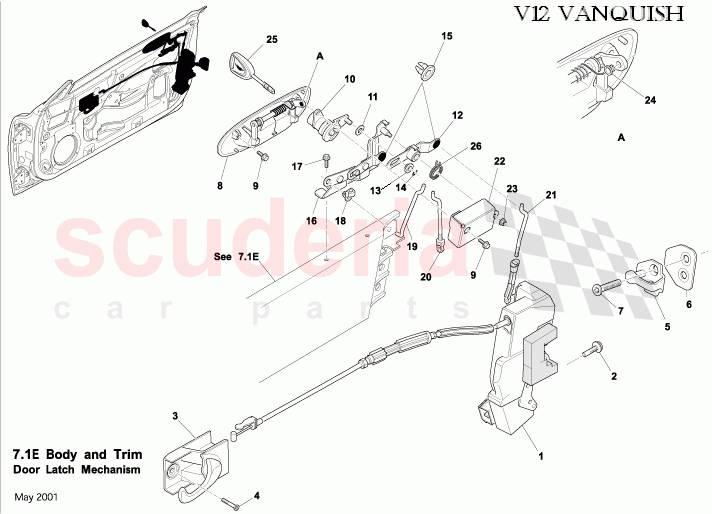

Aston Martin Vanquish (2001-2007) - Door Latch Mechanism

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12652128AC	ASSY-LATCH DOOR RH RHD	$325.58	To Order
	1R12652129AC	ASSY-LATCH DOOR LH RHD	$325.58	To Order
	1R12652126AC	ASSY-LATCH DOOR RH LHD	$325.58	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	700232	SCREW M6x16 PAN TORX	$6.95	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12651984AB	ASSY HANDLE REMOTE CONTROL RH	$67.21	To Order
	1R12651985AB	ASSY HANDLE REMOTE CONTROL LH	$67.21	To Order

Photo	Part No	Description	Price (each)	Stock
	700459	SCREW-PANHEAD-SELF TAPPING BRIGHT ZINC PLATED AB NO.4X6.4MM	$0.02	To Order
	1R12834228AA	SCREW M5x25 SKT HD - POLISHED	$1.62	To Order
	3R12656233AA	BRACKET - RETAINING -DOOR CABLE	$20.48	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R126510355	DOOR STRIKER	$6.76	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12651228AD	Spacer, striker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697163	WASHER M8 X 20.5 PLAIN FORM C	$0.08	To Order
	692045	WASHER M5 SPRING TYPE B WRGHT STEEL ZINC PLT	$0.32	To Order
	703147	SCREW M8x25 FLAT COUNTER SUNK PILOT CHROME FREE	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R12655388AAW	HANDLE DOOR EXTERIOR CHROME FLAP RH RHD - PAINTED	Enquire	To Order
	1R12655389AAW	HANDLE DOOR EXTERIOR CHROME FLAP LH RHD - PAINTED	Enquire	To Order
	1R12655386AAW	HANDLE DOOR EXTERIOR CHROME FLAP RH LHD - PAINTED	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	$1.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R12651800AB/N	LOCK BARREL-RHD TO NUMBER	Enquire	To Order
	1R12651801AB/N	LOCK BARREL LHD TO NUMBER	Enquire	To Order
	1R12651800AB	LOCK BARREL DOOR RHD	$104.44	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	699295	M5 NYLON WASHER	$0.82	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12654878AC	ASSY LEVER DOOR LOCK RHD	$35.10	To Order
	1R12654879AC	ASSY LEVER DOOR LOCK LHD	$29.65	To Order

Photo	Part No	Description	Price (each)	Stock
	6582284	BUSH PIVOT BELLCRANK	$7.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	699641	CIRCLIP	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	700234	CLIP	$5.14	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12652422AE	ASSY BRACKET DOOR LINKAGE RH	$157.91	To Order
	1R12652423AE	ASSY BRACKET DOOR LINKAGE LH	$157.91	To Order

Photo	Part No	Description	Price (each)	Stock
	700819	Screw, flg, M5x8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582287	CLIP-LINKAGE	$0.46	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12650326AA	Door Link, Handle RH	Enquire	To Order
	1R12650325AA	Door Link, Handle LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12652420AB	LINK ASSY DOOR LATCH	$68.30	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12652130AB	LINK DOOR LOCK RH	$59.31	To Order
	1R12652131AB	LINK DOOR LOCK LH	$59.31	To Order

Photo	Part No	Description	Price (each)	Stock
	5R13656364AA	Security shield, door lock	Enquire	To Order
	5R13656365AA	Security shield, door lock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697431	NUT M4 NYLOC	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	699642	PLASTIC BUSH - LINK ROD	$3.04	To Order

Photo	Part No	Description	Price (each)	Stock
	4R12656217AAN	KEY ASSY-TO NUMBER	$194.57	To Order
	4R12656217AA	Key Assy	Enquire	To Order
	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	$29.49	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12652444AB	LOCK SET RHD	$395.72	To Order
	1R12652445AB	LOCK SET LHD	$395.72	To Order
	4R12652444AA	LOCK SET RHD	$387.76	To Order

...and 5 more part variants. See table on right for more details.

View All

Door Latch Mechanism of Aston Martin Aston Martin Vanquish (2001-2007)

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	1	1R12652128AC	ASSY-LATCH DOOR RH RHD	1R12652128AC ASSY-LATCH DOOR RH RHD RHD	$325.58	1
	1	1R12652129AC	ASSY-LATCH DOOR LH RHD	1R12652129AC ASSY-LATCH DOOR LH RHD RHD	$325.58	1
	1	1R12652126AC	ASSY-LATCH DOOR RH LHD	1R12652126AC ASSY-LATCH DOOR RH LHD LHD	$325.58	1
	1	1R12652127AC	ASSY-LATCH DOOR LH LHD	1R12652127AC ASSY-LATCH DOOR LH LHD LHD	$325.58	1
	2	700232	SCREW M6x16 PAN TORX	700232 SCREW M6x16 PAN TORX	$6.95	6
	3	1R12651984AB	ASSY HANDLE REMOTE CONTROL RH	1R12651984AB ASSY HANDLE REMOTE CONTROL RH	$67.21	1
	3	1R12651985AB	ASSY HANDLE REMOTE CONTROL LH	1R12651985AB ASSY HANDLE REMOTE CONTROL LH	$67.21	1
	4	700459	SCREW-PANHEAD-SELF TAPPING BRIGHT ZINC PLATED AB NO.4X6.4MM	700459 SCREW-PANHEAD-SELF TAPPING BRIGHT ZINC PLATED AB NO.4X6.4MM Retaining brkt attach	$0.02	2
	4	1R12834228AA	SCREW M5x25 SKT HD - POLISHED	1R12834228AA SCREW M5x25 SKT HD - POLISHED	$1.62	2
	4	3R12656233AA	BRACKET - RETAINING -DOOR CABLE	3R12656233AA BRACKET - RETAINING -DOOR CABLE	$20.48	2
	4	1R12834615AA	SCREW M6x30 A2 S/STEEL SKT HD CAP SCREW TO DIN 912	1R12834615AA SCREW M6x30 A2 S/STEEL SKT HD CAP SCREW TO DIN 912	$1.23	2
	4	1R12834616AA	Screw M6x50 Stainless Steel Socket Head Cap Screw IN STOCK	1R12834616AA Screw M6x50 Stainless Steel Socket Head Cap Screw IN STOCK	$1.51	2
	5	1R126510355	DOOR STRIKER	1R126510355 DOOR STRIKER	$6.76	2
	6	1R12651228AD	Spacer, striker	1R12651228AD Spacer, striker	-	2		Enquire
	7	697163	WASHER M8 X 20.5 PLAIN FORM C	697163 WASHER M8 X 20.5 PLAIN FORM C Use selectively to adjust striker	$0.08	8
	7	692045	WASHER M5 SPRING TYPE B WRGHT STEEL ZINC PLT	692045 WASHER M5 SPRING TYPE B WRGHT STEEL ZINC PLT	$0.32	2
	7	703147	SCREW M8x25 FLAT COUNTER SUNK PILOT CHROME FREE IN STOCK	703147 SCREW M8x25 FLAT COUNTER SUNK PILOT CHROME FREE IN STOCK	$0.50	4
	8	1R12655388AAW	HANDLE DOOR EXTERIOR CHROME FLAP RH RHD - PAINTED	1R12655388AAW HANDLE DOOR EXTERIOR CHROME FLAP RH RHD - PAINTED RHD Optional	-	1		Enquire
	8	1R12655389AAW	HANDLE DOOR EXTERIOR CHROME FLAP LH RHD - PAINTED	1R12655389AAW HANDLE DOOR EXTERIOR CHROME FLAP LH RHD - PAINTED RHD Optional	-	1		Enquire
	8	1R12655386AAW	HANDLE DOOR EXTERIOR CHROME FLAP RH LHD - PAINTED	1R12655386AAW HANDLE DOOR EXTERIOR CHROME FLAP RH LHD - PAINTED LHD Optional	-	1		Enquire
	8	1R12655387AAW	Handle, door exterior, chrome flap, painted LH LHD	1R12655387AAW Handle, door exterior, chrome flap, painted LH LHD LHD Optional	-	1		Enquire
	8	1R12654288AA	HANDLE DOOR EXTERIOR CHROME FLAP RH RHD	1R12654288AA HANDLE DOOR EXTERIOR CHROME FLAP RH RHD RHD Optional	$1,184.06	1
	8	1R12654289AA	HANDLE DOOR EXTERIOR CHROME FLAP LH RHD	1R12654289AA HANDLE DOOR EXTERIOR CHROME FLAP LH RHD RHD Optional	$1,184.06	1
	8	1R12654286AA	HANDLE DOOR EXTERIOR - CHROME FLAP RH LHD	1R12654286AA HANDLE DOOR EXTERIOR - CHROME FLAP RH LHD LHD Optional	$1,184.06	1
	8	1R12654287AA	HANDLE EXTERIOR - CHROME FLAP LH LHD	1R12654287AA HANDLE EXTERIOR - CHROME FLAP LH LHD LHD Optional	$1,184.06	1
	8	1R12652124AA	HANDLE DOOR EXTERIOR RH RHD	1R12652124AA HANDLE DOOR EXTERIOR RH RHD RHD	$1,184.06	1
	8	1R12652125AA	HANDLE DOOR EXTERIOR LH RHD	1R12652125AA HANDLE DOOR EXTERIOR LH RHD RHD	$1,184.06	1
	8	1R12652122AA	HANDLE DOOR EXTERIOR RH LHD	1R12652122AA HANDLE DOOR EXTERIOR RH LHD LHD	$1,184.06	1
	8	1R12652123AA	HANDLE DOOR EXTERIOR LH LHD	1R12652123AA HANDLE DOOR EXTERIOR LH LHD LHD	$1,184.06	1
	9	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8 IN STOCK	697320 SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8 IN STOCK	$1.70	4
	10	1R12651800AB/N	LOCK BARREL-RHD TO NUMBER	1R12651800AB/N LOCK BARREL-RHD TO NUMBER	-	1		Enquire
	10	1R12651801AB/N	LOCK BARREL LHD TO NUMBER	1R12651801AB/N LOCK BARREL LHD TO NUMBER	-	1		Enquire
	10	1R12651800AB	LOCK BARREL DOOR RHD	1R12651800AB LOCK BARREL DOOR RHD	$104.44	1
	10	1R12651801AB	Lock Barrel Door LHD	1R12651801AB Lock Barrel Door LHD	-	1		Enquire
	11	699295	M5 NYLON WASHER	699295 M5 NYLON WASHER	$0.82	1
	12	1R12654878AC	ASSY LEVER DOOR LOCK RHD	1R12654878AC ASSY LEVER DOOR LOCK RHD RHD	$35.10	1
	12	1R12654879AC	ASSY LEVER DOOR LOCK LHD	1R12654879AC ASSY LEVER DOOR LOCK LHD LHD	$29.65	1
	13	6582284	BUSH PIVOT BELLCRANK IN STOCK	6582284 BUSH PIVOT BELLCRANK IN STOCK	$7.63	2
	14	699641	CIRCLIP	699641 CIRCLIP	$0.06	1
	15	700234	CLIP	700234 CLIP	$5.14	1
	16	1R12652422AE	ASSY BRACKET DOOR LINKAGE RH	1R12652422AE ASSY BRACKET DOOR LINKAGE RH	$157.91	1
	16	1R12652423AE	ASSY BRACKET DOOR LINKAGE LH	1R12652423AE ASSY BRACKET DOOR LINKAGE LH	$157.91	1
	17	700819	Screw, flg, M5x8	700819 Screw, flg, M5x8	-	2		Enquire
	18	6582287	CLIP-LINKAGE	6582287 CLIP-LINKAGE	$0.46	1
	19	1R12650326AA	Door Link, Handle RH	1R12650326AA Door Link, Handle RH	-	1		Enquire
	19	1R12650325AA	Door Link, Handle LH	1R12650325AA Door Link, Handle LH	-	1		Enquire
	20	1R12652420AB	LINK ASSY DOOR LATCH	1R12652420AB LINK ASSY DOOR LATCH	$68.30	1
	21	1R12652130AB	LINK DOOR LOCK RH	1R12652130AB LINK DOOR LOCK RH RHD	$59.31	1
	21	1R12652131AB	LINK DOOR LOCK LH	1R12652131AB LINK DOOR LOCK LH LHD	$59.31	1
	22	5R13656364AA	Security shield, door lock	5R13656364AA Security shield, door lock RHD	-	1		Enquire
	22	5R13656365AA	Security shield, door lock	5R13656365AA Security shield, door lock LHD	-	1		Enquire
	23	697431	NUT M4 NYLOC	697431 NUT M4 NYLOC	$0.11	1
	24	699642	PLASTIC BUSH - LINK ROD	699642 PLASTIC BUSH - LINK ROD	$3.04	2
	25	4R12656217AAN	KEY ASSY-TO NUMBER	4R12656217AAN KEY ASSY-TO NUMBER Up to (V) 501285	$194.57	1
	25	4R12656217AA	Key Assy	4R12656217AA Key Assy From (V) 501286	-	1		Enquire
	25	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	7784981PK Tape, Anti Rattle Rear Quarter Wheel	$29.49	2
	25	699813	M8 NYLON WASHER	699813 M8 NYLON WASHER	$0.22	2
	26	1R12652444AB	LOCK SET RHD	1R12652444AB LOCK SET RHD RHD Up to (V) 501285	$395.72	1
	26	1R12652445AB	LOCK SET LHD	1R12652445AB LOCK SET LHD LHD Up to (V) 501285	$395.72	1
	26	4R12652444AA	LOCK SET RHD	4R12652444AA LOCK SET RHD From (V) 501286	$387.76	1
	26	4R12652445AA	LOCK SET LHD	4R12652445AA LOCK SET LHD From (V) 501286	$387.76	1
	26	1R12654906AB	TORSION SPRING - DOOR LOCK LEVER	1R12654906AB TORSION SPRING - DOOR LOCK LEVER	$7.60	2
	26	697441	WASHER M6 PLAIN `A' IN STOCK	697441 WASHER M6 PLAIN `A' IN STOCK	$0.09	2
	26	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	7784981PK Tape, Anti Rattle Rear Quarter Wheel	$29.49	4
	26	699208	Tefoil and PTFE spray	699208 Tefoil and PTFE spray	-	-		Enquire
