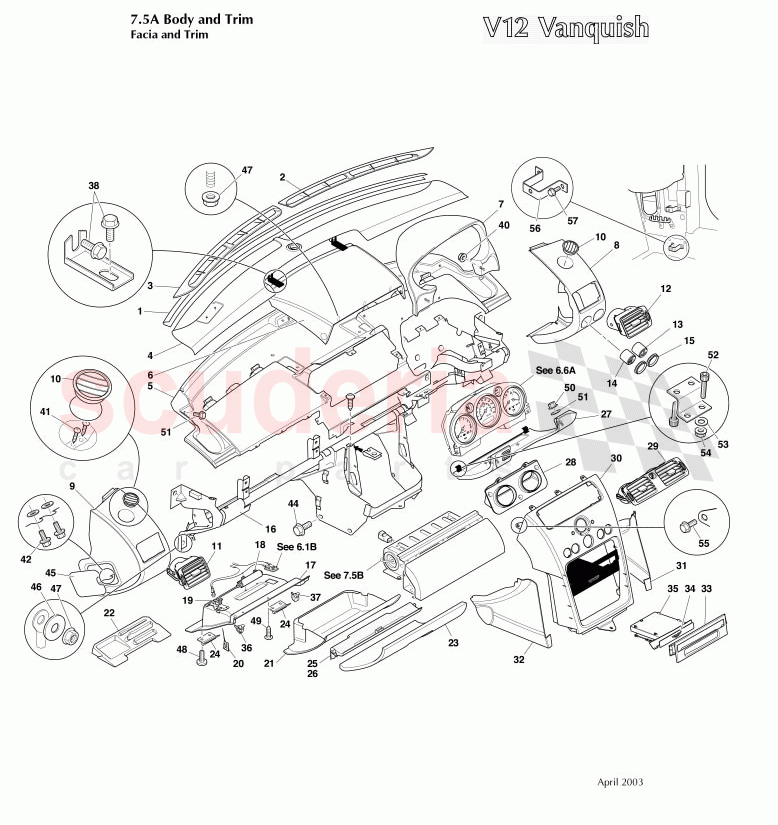

Aston Martin Vanquish (2001-2007) - Facia and Trim 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12832814AC	FLIP SEAL - IP TO SCREEN	$16.38	To Order

Photo	Part No	Description	Price (each)	Stock
	1R126910189	Vent, screen demist, RH	$11.99	To Order

Photo	Part No	Description	Price (each)	Stock
	699646	Spring clip	Enquire	To Order
	697666	Adhesive tape, double sided	$66.96	To Order
	1R12835071AA	Foam seal, demist to dash	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12832292AEW	SCUTTLE TRIM TRIMMED	$903.98	To Order
	1R12833075AA	SCUTTLE TRIM SUPPORT BRACKET - LOWER	Enquire	To Order
	700126	SCREW M6x20 HEX FLG	$2.80	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3R12375518AB	SWITCH SURROUND SATIN CHROME	$1,268.35	To Order
	1R12831982AD	SWITCH SURROUND - CENTRE CONSOLE	$30.05	To Order
	1R12831362ADW	IP ASSY RHD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12832336ADW	PANEL INSTRUMENT BNCL TRIMMED RHD	Enquire	To Order
	1R12832337ADW	PANEL INSTRUMENT BNCL TRIMMED LHD	$1,856.27	To Order
	6R13832244AAW	PANEL UPPER CENTRE CONSOLE ASSY-TRIMMED	$2,805.42	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	707620	Nut-M4 HEX FLANGED	$0.38	IN STOCK
	1R12833888AC	INSTRUMENT COWL ASY	$1,266.51	To Order
	1R12833889AC	INSTRUMENT COWL ASSY	$667.06	To Order

Photo	Part No	Description	Price (each)	Stock
	5R13C04562BAW	DRIVER END CAP SWITCH ASSY RH RHD	Enquire	To Order
	5R13C04563AAW	PASSENGER END CAP ASSY RH LHD	$1,053.20	To Order
	1R12834242AAW	PASSENGER END CAP ASSY RH LHD	$643.85	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	5R13C04562AAW	DRIVER END CAP SWITCH ASSY LH LHD	$1,053.20	To Order
	5R13C04563BAW	PASSENGER END CAP ASSY LH RHD	Enquire	To Order
	697495	SCREW No8 x 13 FLANGED AB S.T	$0.09	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12835605AA	Vent, side demist	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834260AA	AIR VENT RH	$228.94	To Order
	700110	SCREW No6x3/8in POZI	$3.24	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710156	SWITCH-KEYBOARD	$68.50	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710157	SWITCH-FUEL/BOOT REL	$108.73	To Order

Photo	Part No	Description	Price (each)	Stock
	5R13F045H84AAW	TRIP COMPUTER BEZEL (TO COLOUR REQUIRED)	$168.32	To Order
	1R123710158	BEZEL-TRIP COMPUTER	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12831366AL	LOWER STRUCTURE IP ASSY RHD	$1,543.21	To Order
	1R12831367AL	LOWER STRUCTURE IP ASSY LHD	$1,543.21	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12832813AE	ASSY - GLOVE BOX INNER RHD	$345.31	To Order
	1R12832812AE	ASSY - GLOVE BOX INNER LHD	$229.00	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12831900AA	PULLY (CORD ASSY)	$18.06	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834547AA	STRING (CORD) ASSY	$4.95	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12830898AD	GLOVE BOX INNER RHD	$311.18	To Order
	1R12830899AD	GLOVE BOX INNER LHD	$317.37	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834534AA	TRAY - MULTI TOOL KIT (FOR TYRE PRESSURE GAUGE)	$54.04	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12832268AEW	Glove box lid assy LH, trimmed	Enquire	To Order
	1R12832269AEW	KNEE BOLSTER / GLOVE BOX LID ASSY - TRIMMED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R126910350	HINGE-GLOVE BOX	$5.45	To Order

Photo	Part No	Description	Price (each)	Stock
	5R13061A12AAW	GLOVEBOX LATCH HANDLE - TRIMMED	$354.30	To Order
	697514	WASHER OVAL 1 x 1/2 x 7/32	$4.64	To Order
	1R12835453AA	Spacer, glove box latch	$1.10	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	699818PK	SCREW M6x20 SKT (10)	$59.06	To Order
	1R12832266AHW	Knee bolster assy, driver, trimmed	Enquire	To Order
	1R12832267AHW	KNEE BOLSTER DRIVER ASSY - TRIMMED	$544.15	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	5R13C06024BAW	KNEE BOLSTER / GLOVE BOX LID ASSY RHD - TRIMMED	Enquire	To Order
	5R13C06024AAW	KNEE BOLSTER /GLOVE BOX LID ASSY LHD - TRIMMED	$1,569.89	To Order
	1R12831252AG	KNEE BOLSTER DRIVER ASSY - UNTRIMMED	$477.02	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12890070AF	ADAPTOR - VENT CENTRE FACE	$98.36	To Order

Photo	Part No	Description	Price (each)	Stock
	697591	SCREW No8 x 9.5 FLANGED AB S.T.	$0.08	IN STOCK
	311298	CENTRE AIR VENT	$270.54	To Order

Photo	Part No	Description	Price (each)	Stock
	700275	SCREW 4.2x13 WSHR HD AB	$0.11	To Order
	700126	SCREW M6x20 HEX FLG	$2.80	To Order
	697565	Spire Nut	$0.30	IN STOCK

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6R13834856AAW	ASSY CENTRE CONSOLE SIDE CLOSER RH	$544.15	To Order
	1R12834856AAW	ASSY CENTRE CONSOLE SIDE CLOSER RH RHD	$182.81	To Order
	1R12834858AAW	ASSY CENTRE CONSOLE SIDE CLOSER RH LHD	$182.81	To Order

Photo	Part No	Description	Price (each)	Stock
	6R13834857AAW	ASST CENTRE CONSOLE SIDE CLOSER LH	$641.02	To Order
	1R12834857AAW	ASST CENTRE CONSOLE SIDE CLOSER LH RHD	Enquire	To Order
	1R12834859AAW	ASSY CENTRE CONSOLE SIDE CLOSER LH LHD	$634.97	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12375518AB	SWITCH SURROUND SATIN CHROME	$1,268.35	To Order
	1R12831982AD	SWITCH SURROUND - CENTRE CONSOLE	$30.05	To Order
	5R1319A200AA	ASSY - SURROUND - CARD TRAY	$362.89	To Order

Photo	Part No	Description	Price (each)	Stock
	8090018	CONSOLE BADGE- ASTON MARTIN	$127.39	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12375517AB	DRW FRT SAT CHROME	Enquire	To Order
	1R12834359AC	CARDHOLDER DRAWER FRONT	$116.92	To Order
	5R1319A201AA	DRAWER FRONT COIN TRAY	$271.23	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R126910204	LATCH PLATE-PASS LH	$4.34	To Order

Photo	Part No	Description	Price (each)	Stock
	700612	Screw, M4 x 16 pan hd, pozi	Enquire	To Order
	700272	WASHER M4x9x0.8	$0.02	To Order
	1R126910205	LATCH PLATE-PASS RH	$4.34	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	700126	SCREW M6x20 HEX FLG	$2.80	To Order

Photo	Part No	Description	Price (each)	Stock
	707620	Nut-M4 HEX FLANGED	$0.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	697495	SCREW No8 x 13 FLANGED AB S.T	$0.09	To Order

Photo	Part No	Description	Price (each)	Stock
	703202	Screw, M8 x 12, Flange Hd	$0.33	To Order

Photo	Part No	Description	Price (each)	Stock
	700253	PATCHLOCK M8x20 HEX	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834816AAW	Door, fusebox cover, trimmed	Enquire	To Order
	3R12834816AAW	DOOR FUSEBOX COVER TRIMMED ASSY	$221.61	To Order

Photo	Part No	Description	Price (each)	Stock
	4184347	WASHER M8 x 25mm OD HARDENED	$13.70	To Order

Photo	Part No	Description	Price (each)	Stock
	700130	NUT M8 HEX P/T PLAS8	$0.77	To Order

Photo	Part No	Description	Price (each)	Stock
	699798	SCREW M6x16 SKT BTN FLG BLK	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	697495	SCREW No8 x 13 FLANGED AB S.T	$0.09	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	$0.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FD43E830667AB	WASHER 25MM X 6.4MM BLACK	$0.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	700613	Screw, flg, M6, x 12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699614	WASHER 22 X 6.8 X 2 STAINLESS	$16.41	To Order

Photo	Part No	Description	Price (each)	Stock
	697177	Nut, M6, Flanged	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	9784799	LABEL-CHILD SAFETY AIRBAG WARNING RHD	$2.91	To Order
	9784800	LABEL-CHILD SAFETY AIR BAG WARNING LHD	$1.67	To Order
	700275	SCREW 4.2x13 WSHR HD AB	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834056AA	Bracket, side panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3785271	SEAL STRIP-SELF ADH.	$4.49	To Order
	700168	Screw, M6 x 12	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12832814AC	FLIP SEAL - IP TO SCREEN	1R12832814AC FLIP SEAL - IP TO SCREEN	$16.38	1
2	1R126910189	Vent, screen demist, RH	1R126910189 Vent, screen demist, RH	$11.99	1
3	699646	Spring clip	699646 Spring clip Demist vents attach	-	4	Enquire
3	697666	Adhesive tape, double sided	697666 Adhesive tape, double sided Demist vents attach	$66.96	-
3	1R12835071AA	Foam seal, demist to dash	1R12835071AA Foam seal, demist to dash	-	1	Enquire
3	1R126910190	SCRN DEMIST VENT LH	1R126910190 SCRN DEMIST VENT LH	$15.89	1
4	1R12832292AEW	SCUTTLE TRIM TRIMMED	1R12832292AEW SCUTTLE TRIM TRIMMED Demist vents attach	$903.98	1
4	1R12833075AA	SCUTTLE TRIM SUPPORT BRACKET - LOWER	1R12833075AA SCUTTLE TRIM SUPPORT BRACKET - LOWER Scuttle assy attach	-	2	Enquire
4	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG Scuttle assy attach	$2.80	4
4	1R12831235AD	SCUTTLE TRIM ASSY UNTRIMMED	1R12831235AD SCUTTLE TRIM ASSY UNTRIMMED	$238.70	1
5	3R12375518AB	SWITCH SURROUND SATIN CHROME	3R12375518AB SWITCH SURROUND SATIN CHROME From (V) 500516-21 + 526 onwards	$1,268.35	1
5	1R12831982AD	SWITCH SURROUND - CENTRE CONSOLE	1R12831982AD SWITCH SURROUND - CENTRE CONSOLE Up to (V) 500515 + 500522-525	$30.05	1
5	1R12831362ADW	IP ASSY RHD	1R12831362ADW IP ASSY RHD RHD	-	1	Enquire
5	1R12831363ADW	IP ASSY LHD	1R12831363ADW IP ASSY LHD LHD	$1,770.75	1
6	1R12832336ADW	PANEL INSTRUMENT BNCL TRIMMED RHD	1R12832336ADW PANEL INSTRUMENT BNCL TRIMMED RHD RHD 06MY from (V) 501949	-	1	Enquire
6	1R12832337ADW	PANEL INSTRUMENT BNCL TRIMMED LHD	1R12832337ADW PANEL INSTRUMENT BNCL TRIMMED LHD LHD 06MY from (V) 501949	$1,856.27	1
6	6R13832244AAW	PANEL UPPER CENTRE CONSOLE ASSY-TRIMMED	6R13832244AAW PANEL UPPER CENTRE CONSOLE ASSY-TRIMMED 06MY from (V) 501949	$2,805.42	1
6	1R12832336ABW	PANEL INSTRUMENT BNCL TRIMMED RHD	1R12832336ABW PANEL INSTRUMENT BNCL TRIMMED RHD RHD	-	1	Enquire
6	1R12832337ABW	Panel, instrument cowl, trimmed	1R12832337ABW Panel, instrument cowl, trimmed LHD	-	1	Enquire
6	1R12832244AAW	Panel, upper centre, trimmed	1R12832244AAW Panel, upper centre, trimmed	-	1	Enquire
7	707620	Nut-M4 HEX FLANGED IN STOCK	707620 Nut-M4 HEX FLANGED Instrument cowl to facia IN STOCK	$0.38	2
7	1R12833888AC	INSTRUMENT COWL ASY	1R12833888AC INSTRUMENT COWL ASY RHD	$1,266.51	1
7	1R12833889AC	INSTRUMENT COWL ASSY	1R12833889AC INSTRUMENT COWL ASSY LHD	$667.06	1
8	5R13C04562BAW	DRIVER END CAP SWITCH ASSY RH RHD	5R13C04562BAW DRIVER END CAP SWITCH ASSY RH RHD Vanquish S From (V) 501506	-	1	Enquire
8	5R13C04563AAW	PASSENGER END CAP ASSY RH LHD	5R13C04563AAW PASSENGER END CAP ASSY RH LHD Vanquish S From (V) 501506	$1,053.20	1
8	1R12834242AAW	PASSENGER END CAP ASSY RH LHD	1R12834242AAW PASSENGER END CAP ASSY RH LHD Up to (V) 501105	$643.85	1
8	1R12834240AAW	DRIVER END CAP SWITCH ASSY RH RHD	1R12834240AAW DRIVER END CAP SWITCH ASSY RH RHD Up to (V) 501105	-	1	Enquire
8	3R12834242AAW	Passenger end cap switch assy, RH LHD	3R12834242AAW Passenger end cap switch assy, RH LHD From (V) 501106	-	1	Enquire
8	3R12834240AAW	Driver end cap switch assy, RH RHD	3R12834240AAW Driver end cap switch assy, RH RHD From (V) 501106	-	1	Enquire
9	5R13C04562AAW	DRIVER END CAP SWITCH ASSY LH LHD	5R13C04562AAW DRIVER END CAP SWITCH ASSY LH LHD Vanquish S From (V) 501506	$1,053.20	1
9	5R13C04563BAW	PASSENGER END CAP ASSY LH RHD	5R13C04563BAW PASSENGER END CAP ASSY LH RHD Vanquish S From (V) 501506	-	1	Enquire
9	697495	SCREW No8 x 13 FLANGED AB S.T	697495 SCREW No8 x 13 FLANGED AB S.T End cap assys attach	$0.09	2
9	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head End cap assys attach IN STOCK	$0.31	4
9	697286	Washer M6 Large OD IN STOCK	697286 Washer M6 Large OD End cap assys attach IN STOCK	$1.37	4
9	697141PK	NUT-M8 NYLOC(PACK 10	697141PK NUT-M8 NYLOC(PACK 10 End cap assys attach	$2.04	4
9	1R12834243AAW	PASS END CAP ASSY LH RHD	1R12834243AAW PASS END CAP ASSY LH RHD Up to (V) 501105	-	1	Enquire
9	1R12834241AAW	DRIVER END CAP SWITCH ASSY LH LHD	1R12834241AAW DRIVER END CAP SWITCH ASSY LH LHD Up to (V) 501105	$705.62	1
9	3R12834243AAW	Passenger end cap switch assy, LH RHD	3R12834243AAW Passenger end cap switch assy, LH RHD From (V) 501106	-	1	Enquire
9	3R12834241AAW	Driver end cap switch assy, LH LHD	3R12834241AAW Driver end cap switch assy, LH LHD From (V) 501106	-	1	Enquire
10	1R12835605AA	Vent, side demist	1R12835605AA Vent, side demist	-	2	Enquire
11	1R12834259AA	AIR VENT LH	1R12834259AA AIR VENT LH	$228.94	1
12	1R12834260AA	AIR VENT RH	1R12834260AA AIR VENT RH	$228.94	1
12	700110	SCREW No6x3/8in POZI	700110 SCREW No6x3/8in POZI	$3.24	4
13	1R123710156	SWITCH-KEYBOARD	1R123710156 SWITCH-KEYBOARD	$68.50	1
14	1R123710157	SWITCH-FUEL/BOOT REL	1R123710157 SWITCH-FUEL/BOOT REL	$108.73	1
15	5R13F045H84AAW	TRIP COMPUTER BEZEL (TO COLOUR REQUIRED)	5R13F045H84AAW TRIP COMPUTER BEZEL (TO COLOUR REQUIRED) Vanquish S From (V) 501506	$168.32	2
15	1R123710158	BEZEL-TRIP COMPUTER	1R123710158 BEZEL-TRIP COMPUTER	$1.32	2
16	1R12831366AL	LOWER STRUCTURE IP ASSY RHD	1R12831366AL LOWER STRUCTURE IP ASSY RHD RHD	$1,543.21	1
16	1R12831367AL	LOWER STRUCTURE IP ASSY LHD	1R12831367AL LOWER STRUCTURE IP ASSY LHD LHD	$1,543.21	1
17	1R12832813AE	ASSY - GLOVE BOX INNER RHD	1R12832813AE ASSY - GLOVE BOX INNER RHD RHD	$345.31	1
17	1R12832812AE	ASSY - GLOVE BOX INNER LHD	1R12832812AE ASSY - GLOVE BOX INNER LHD LHD	$229.00	1
18	4G43C06102AB	Damper, Glovebox IN STOCK	4G43C06102AB Damper, Glovebox Part of 1R12-83-10212/3 IN STOCK	$51.94	1
19	1R12831900AA	PULLY (CORD ASSY)	1R12831900AA PULLY (CORD ASSY) Part of 1R12-83-10212/3	$18.06	1
20	1R12834547AA	STRING (CORD) ASSY	1R12834547AA STRING (CORD) ASSY	$4.95	1
21	1R12830898AD	GLOVE BOX INNER RHD	1R12830898AD GLOVE BOX INNER RHD RHD	$311.18	1
21	1R12830899AD	GLOVE BOX INNER LHD	1R12830899AD GLOVE BOX INNER LHD LHD	$317.37	1
22	1R12834534AA	TRAY - MULTI TOOL KIT (FOR TYRE PRESSURE GAUGE)	1R12834534AA TRAY - MULTI TOOL KIT (FOR TYRE PRESSURE GAUGE)	$54.04	1
23	1R12832268AEW	Glove box lid assy LH, trimmed	1R12832268AEW Glove box lid assy LH, trimmed LHD	-	1	Enquire
23	1R12832269AEW	KNEE BOLSTER / GLOVE BOX LID ASSY - TRIMMED	1R12832269AEW KNEE BOLSTER / GLOVE BOX LID ASSY - TRIMMED RHD	-	1	Enquire
24	1R126910350	HINGE-GLOVE BOX	1R126910350 HINGE-GLOVE BOX	$5.45	2
25	5R13061A12AAW	GLOVEBOX LATCH HANDLE - TRIMMED	5R13061A12AAW GLOVEBOX LATCH HANDLE - TRIMMED Vanquish S From (V) 501506	$354.30	1
25	697514	WASHER OVAL 1 x 1/2 x 7/32	697514 WASHER OVAL 1 x 1/2 x 7/32 Glovebox latch	$4.64	1
25	1R12835453AA	Spacer, glove box latch	1R12835453AA Spacer, glove box latch	$1.10	1
25	1R12832245AB	GLOVE BOX LATCH	1R12832245AB GLOVE BOX LATCH	$69.12	1
26	699818PK	SCREW M6x20 SKT (10)	699818PK SCREW M6x20 SKT (10) Glove box attch	$59.06	4
26	1R12832266AHW	Knee bolster assy, driver, trimmed	1R12832266AHW Knee bolster assy, driver, trimmed RHD	-	1	Enquire
26	1R12832267AHW	KNEE BOLSTER DRIVER ASSY - TRIMMED	1R12832267AHW KNEE BOLSTER DRIVER ASSY - TRIMMED LHD	$544.15	1
26	1R126910046	LOCK BARREL-GLOVEBOX	1R126910046 LOCK BARREL-GLOVEBOX	$93.28	1
27	5R13C06024BAW	KNEE BOLSTER / GLOVE BOX LID ASSY RHD - TRIMMED	5R13C06024BAW KNEE BOLSTER / GLOVE BOX LID ASSY RHD - TRIMMED RHD Vanquish S From (V) 501506	-	1	Enquire
27	5R13C06024AAW	KNEE BOLSTER /GLOVE BOX LID ASSY LHD - TRIMMED	5R13C06024AAW KNEE BOLSTER /GLOVE BOX LID ASSY LHD - TRIMMED LHD Vanquish S From (V) 501506	$1,569.89	1
27	1R12831252AG	KNEE BOLSTER DRIVER ASSY - UNTRIMMED	1R12831252AG KNEE BOLSTER DRIVER ASSY - UNTRIMMED RHD	$477.02	1
27	1R12831253AG	KNEE BOLSTER DRIVER ASSY - UNTRIMMED	1R12831253AG KNEE BOLSTER DRIVER ASSY - UNTRIMMED LHD	$440.42	1
28	1R12890070AF	ADAPTOR - VENT CENTRE FACE	1R12890070AF ADAPTOR - VENT CENTRE FACE	$98.36	1
29	697591	SCREW No8 x 9.5 FLANGED AB S.T. IN STOCK	697591 SCREW No8 x 9.5 FLANGED AB S.T. Air vent to adaptor IN STOCK	$0.08	2
29	311298	CENTRE AIR VENT	311298 CENTRE AIR VENT	$270.54	1
30	700275	SCREW 4.2x13 WSHR HD AB	700275 SCREW 4.2x13 WSHR HD AB Centre console panel attach	$0.11	2
30	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG Centre console panel attach	$2.80	2
30	697565	Spire Nut IN STOCK	697565 Spire Nut Centre console panel attach IN STOCK	$0.30	2
30	5R13C04350ABW	TRIMMED PANEL - CENTRE CONSOLE ASSY	5R13C04350ABW TRIMMED PANEL - CENTRE CONSOLE ASSY Vanquish S From (V) 501506	$2,090.47	1
30	6R13C04350AAW	TRIMMED PANEL - CENTRE CONSOLE ASSY	6R13C04350AAW TRIMMED PANEL - CENTRE CONSOLE ASSY 06MY From (V) 501949	$2,212.88	1
30	1R12834468ADW	PANEL CENTRE CONSOLE ASSY - PAINTED	1R12834468ADW PANEL CENTRE CONSOLE ASSY - PAINTED Up to (V) 501285	$3,873.45	1
30	4R12834468AAW	PANEL CENTRE CONSOLE ASSY	4R12834468AAW PANEL CENTRE CONSOLE ASSY From (V) 501286	$4,227.82	1
30	1R12835280AAW	Panel, centre console, painted, body colour	1R12835280AAW Panel, centre console, painted, body colour Optional	-	1	Enquire
30	1R12835281AAW	Panel, centre console, painted, any colour	1R12835281AAW Panel, centre console, painted, any colour Optional	-	1	Enquire
31	6R13834856AAW	ASSY CENTRE CONSOLE SIDE CLOSER RH	6R13834856AAW ASSY CENTRE CONSOLE SIDE CLOSER RH 06MY from (V) 501949	$544.15	1
31	1R12834856AAW	ASSY CENTRE CONSOLE SIDE CLOSER RH RHD	1R12834856AAW ASSY CENTRE CONSOLE SIDE CLOSER RH RHD RHD	$182.81	1
31	1R12834858AAW	ASSY CENTRE CONSOLE SIDE CLOSER RH LHD	1R12834858AAW ASSY CENTRE CONSOLE SIDE CLOSER RH LHD LHD	$182.81	1
32	6R13834857AAW	ASST CENTRE CONSOLE SIDE CLOSER LH	6R13834857AAW ASST CENTRE CONSOLE SIDE CLOSER LH 06MY from (V) 501949	$641.02	1
32	1R12834857AAW	ASST CENTRE CONSOLE SIDE CLOSER LH RHD	1R12834857AAW ASST CENTRE CONSOLE SIDE CLOSER LH RHD RHD	-	1	Enquire
32	1R12834859AAW	ASSY CENTRE CONSOLE SIDE CLOSER LH LHD	1R12834859AAW ASSY CENTRE CONSOLE SIDE CLOSER LH LHD LHD	$634.97	1
33	3R12375518AB	SWITCH SURROUND SATIN CHROME	3R12375518AB SWITCH SURROUND SATIN CHROME From (V) 500516-21 + 526 onwards	$1,268.35	1
33	1R12831982AD	SWITCH SURROUND - CENTRE CONSOLE	1R12831982AD SWITCH SURROUND - CENTRE CONSOLE Up to (V) 500515 + 500522-525	$30.05	1
33	5R1319A200AA	ASSY - SURROUND - CARD TRAY	5R1319A200AA ASSY - SURROUND - CARD TRAY Vanquish S From (V) 501506	$362.89	1
34	8090018	CONSOLE BADGE- ASTON MARTIN	8090018 CONSOLE BADGE- ASTON MARTIN Up to (V) 500515 + 500522-525	$127.39	1
35	3R12375517AB	DRW FRT SAT CHROME	3R12375517AB DRW FRT SAT CHROME From (V) 500516-21 + 526 onwards, Up to (V) 501285	-	1	Enquire
35	1R12834359AC	CARDHOLDER DRAWER FRONT	1R12834359AC CARDHOLDER DRAWER FRONT Up to (V) 500515 + 500522-525	$116.92	1
35	5R1319A201AA	DRAWER FRONT COIN TRAY	5R1319A201AA DRAWER FRONT COIN TRAY Vanquish S From (V) 501506	$271.23	1
35	4R12376205AA	DRAWER FRONT COIN TRAY	4R12376205AA DRAWER FRONT COIN TRAY From (V) 501286	$246.65	1
35	1R12834365AA	COIN TRAY	1R12834365AA COIN TRAY	$35.04	1
36	1R126910204	LATCH PLATE-PASS LH	1R126910204 LATCH PLATE-PASS LH	$4.34	1
37	700612	Screw, M4 x 16 pan hd, pozi	700612 Screw, M4 x 16 pan hd, pozi Latch plate attach	-	2	Enquire
37	700272	WASHER M4x9x0.8	700272 WASHER M4x9x0.8 Latch plate attach	$0.02	2
37	1R126910205	LATCH PLATE-PASS RH	1R126910205 LATCH PLATE-PASS RH	$4.34	1
37	1R128310212	Kit, glovebox	1R128310212 Kit, glovebox	-	1	Enquire
38	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG	$2.80	4
39	702295	Nut, M5, Hex Flange Head IN STOCK	702295 Nut, M5, Hex Flange Head IN STOCK	$0.09	4
40	707620	Nut-M4 HEX FLANGED IN STOCK	707620 Nut-M4 HEX FLANGED IN STOCK	$0.38	2
41	697495	SCREW No8 x 13 FLANGED AB S.T	697495 SCREW No8 x 13 FLANGED AB S.T	$0.09	4
42	703202	Screw, M8 x 12, Flange Hd	703202 Screw, M8 x 12, Flange Hd	$0.33	4
43	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head IN STOCK	$0.31	3
44	700253	PATCHLOCK M8x20 HEX	700253 PATCHLOCK M8x20 HEX	$0.47	4
45	1R12834816AAW	Door, fusebox cover, trimmed	1R12834816AAW Door, fusebox cover, trimmed Up to (V) 501105	-	2	Enquire
45	3R12834816AAW	DOOR FUSEBOX COVER TRIMMED ASSY	3R12834816AAW DOOR FUSEBOX COVER TRIMMED ASSY From (V) 501106	$221.61	2
46	4184347	WASHER M8 x 25mm OD HARDENED	4184347 WASHER M8 x 25mm OD HARDENED	$13.70	1
47	700130	NUT M8 HEX P/T PLAS8	700130 NUT M8 HEX P/T PLAS8	$0.77	3
48	699798	SCREW M6x16 SKT BTN FLG BLK	699798 SCREW M6x16 SKT BTN FLG BLK	$1.18	4
49	697495	SCREW No8 x 13 FLANGED AB S.T	697495 SCREW No8 x 13 FLANGED AB S.T	$0.09	2
50	702295	Nut, M5, Hex Flange Head IN STOCK	702295 Nut, M5, Hex Flange Head IN STOCK	$0.09	2
51	FD43E830667AB	WASHER 25MM X 6.4MM BLACK IN STOCK	FD43E830667AB WASHER 25MM X 6.4MM BLACK IN STOCK	$0.64	2
52	700613	Screw, flg, M6, x 12	700613 Screw, flg, M6, x 12	-	8	Enquire
53	699614	WASHER 22 X 6.8 X 2 STAINLESS	699614 WASHER 22 X 6.8 X 2 STAINLESS	$16.41	8
54	697177	Nut, M6, Flanged	697177 Nut, M6, Flanged	$0.11	8
55	9784799	LABEL-CHILD SAFETY AIRBAG WARNING RHD	9784799 LABEL-CHILD SAFETY AIRBAG WARNING RHD RHD	$2.91	1
55	9784800	LABEL-CHILD SAFETY AIR BAG WARNING LHD	9784800 LABEL-CHILD SAFETY AIR BAG WARNING LHD LHD	$1.67	1
55	700275	SCREW 4.2x13 WSHR HD AB	700275 SCREW 4.2x13 WSHR HD AB	$0.11	2
56	1R12834056AA	Bracket, side panel	1R12834056AA Bracket, side panel	-	2	Enquire
57	3785271	SEAL STRIP-SELF ADH.	3785271 SEAL STRIP-SELF ADH.	$4.49	1
57	700168	Screw, M6 x 12	700168 Screw, M6 x 12	-	4	Enquire
