Trunk Casing and Mats parts for Aston Martin Vanquish (2001-2007)

Find Your Part

Trunk Casing and Mats of Aston Martin Aston Martin Vanquish (2001-2007)

View All

Aston Martin Vanquish (2001-2007) - Trunk Casing and Mats

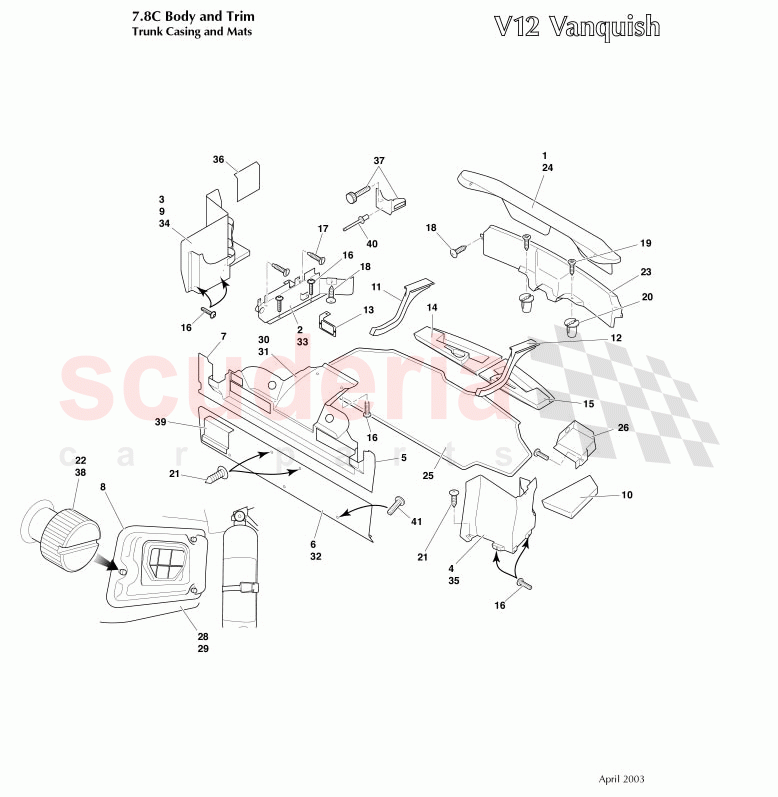

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12834854AAW	Carpet trim, boot lid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12830231AAW	CARPET TRIM BOOT LOWER RH	$15.95	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12830232AAW	CARPET TRIM BOOT UPPER MAIN RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12830233AAW	CARPET TRIM BOOT FRONT LH	$375.39	To Order

Photo	Part No	Description	Price (each)	Stock
	5R1346400BAW	Trim assy, boot centre upper	Enquire	To Order
	1R12830234ABW	Carpet, trim, boot centre upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12830235AAW	CARPET TRIM BOOT CENTRE LOWER	$23.15	To Order

Photo	Part No	Description	Price (each)	Stock
	6R13834398ABW	Carpet, trim, boot centre infill	Enquire	To Order
	1R12834398ABW	CARPET - TRIM BOOT CENTRE INFILL	$26.60	To Order
	1R12164094AA	ASSY LAMP REINF CVR	$347.46	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12164095AA	ASSY LAMP REINF CVR	$347.46	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12833765AC	SUBSTRATE TRIM BOOT HANDBOOK CARRIER	$80.37	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834493AB	INSERT BOOT TOWING EYE	$11.29	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12832900AF	TRIM BOOTLID SWAN NECK RH	$133.54	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12832901AF	TRIM BOOTLID SWAN NECK LH	$126.94	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834782AA	BRACKET - BOOT TRIM SWITCH	$17.26	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12853762AC	INSERT BOOT V INFILL RH	$47.82	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12853763AC	INSERT BOOT V INFILL LH	$47.82	To Order

Photo	Part No	Description	Price (each)	Stock
	699819	SCREW M6x25 SKT BUTTON FLANGE	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	696503PK	TRIM PIN PACK (10)	$21.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	697079	SCREW NO 8x5/8 POZI BLACK PAN HEAD CLOSING LATCH COVER	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	697495	SCREW No8 x 13 FLANGED AB S.T	$0.09	To Order

Photo	Part No	Description	Price (each)	Stock
	692240	NUT CAPTIVE NYLON	$2.62	To Order

Photo	Part No	Description	Price (each)	Stock
	699109	SCREW No8 x 19mm RSD C/SUNK HD	$0.13	To Order

Photo	Part No	Description	Price (each)	Stock
	699737	RETAINING SCREW	$13.72	To Order

Photo	Part No	Description	Price (each)	Stock
	5R1345400AAW	Trim, boot sill assy	Enquire	To Order
	1R12832837AAW	TRIM BOOT SILL ASSY	$704.06	To Order

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	$20.91	To Order
	696504PK	TRIM RETAINER-(10)	$43.13	To Order
	1R12832840ABW	Trim, boot lid assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12835556AAW	BOOT FLOOR OVERMAT	$1,504.89	To Order
	1R12833895AAW	BOOT FLOOR OVERMAT	Enquire	To Order
	4R12835556AAW	BOOT FLOOR OVERMAT	$575.80	To Order

Photo	Part No	Description	Price (each)	Stock
	699109	SCREW No8 x 19mm RSD C/SUNK HD	$0.13	To Order
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	$20.91	To Order
	692011	SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL	$0.44	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12833566AAW	CARPET TRIM BOOT LIGHT COVER RH ASSY	$302.56	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12833567AAW	CARPET TRIM BOOT LIGHT COVER LH ASSY	$292.91	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12834364AAW	TRIM BOOT CENTRE UPPER ASSY - SATELLITE NAVIGATION	$895.27	To Order

Photo	Part No	Description	Price (each)	Stock
	697532	Nut Spring U Type 8x(2.0-2.8)	$2.20	To Order
	699109	SCREW No8 x 19mm RSD C/SUNK HD	$0.13	To Order
	1R12832834AAW	Trim, boot upper, centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12832835AAW	Trim, boot lower, centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12832830AAW	TRIM BOOT RH LWR ASY	$937.10	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12835656ABW	Trim assy, boot, centre, lower, LH	Enquire	To Order
	3R12835655AAW	Trim assy, boot, centre, lower, RH	Enquire	To Order
	3R12835697AAW	Trim assy, boot, centre, upper	Enquire	To Order

...and 7 more part variants. See table on right for more details.

View All

Trunk Casing and Mats of Aston Martin Aston Martin Vanquish (2001-2007)

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	-	3R12835294AAW	CARPET KIT BOOT RHD (03MY)	3R12835294AAW CARPET KIT BOOT RHD (03MY) From (V) 500516-21 + 526 onwards up to (V) 501948	-	1		Enquire
	-	3R12835295AAW	CARPET KIT BOOT LHD (03MY)	3R12835295AAW CARPET KIT BOOT LHD (03MY) From (V) 500516-21 + 526 onwards up to (V) 501948	$1,414.92	1
	-	1R12835294AAW	CARPET KIT - BOOT RHD	1R12835294AAW CARPET KIT - BOOT RHD Up to (V) 500515 + 500522-525	$1,805.85	1
	-	1R12835295AAW	CARPET KIT - BOOT LHD	1R12835295AAW CARPET KIT - BOOT LHD Up to (V) 500515 + 500522-525	-	1		Enquire
	-	6R13835294AAW	Carpet kit, boot, RHD	6R13835294AAW Carpet kit, boot, RHD 06MY from (V) 501949	-	1		Enquire
	-	6R13835295AAW	Carpet kit, boot, LHD	6R13835295AAW Carpet kit, boot, LHD 06MY from (V) 501949	-	1		Enquire
	1	1R12834854AAW	Carpet trim, boot lid	1R12834854AAW Carpet trim, boot lid	-	1		Enquire
	2	1R12830231AAW	CARPET TRIM BOOT LOWER RH	1R12830231AAW CARPET TRIM BOOT LOWER RH	$15.95	1
	3	1R12830232AAW	CARPET TRIM BOOT UPPER MAIN RH	1R12830232AAW CARPET TRIM BOOT UPPER MAIN RH	-	1		Enquire
	4	1R12830233AAW	CARPET TRIM BOOT FRONT LH	1R12830233AAW CARPET TRIM BOOT FRONT LH	$375.39	1
	5	5R1346400BAW	Trim assy, boot centre upper	5R1346400BAW Trim assy, boot centre upper Vanquish S From (V) 501506	-	1		Enquire
	5	1R12830234ABW	Carpet, trim, boot centre upper	1R12830234ABW Carpet, trim, boot centre upper	-	1		Enquire
	6	1R12830235AAW	CARPET TRIM BOOT CENTRE LOWER	1R12830235AAW CARPET TRIM BOOT CENTRE LOWER	$23.15	1
	7	6R13834398ABW	Carpet, trim, boot centre infill	6R13834398ABW Carpet, trim, boot centre infill 06MY from (V) 501949	-	1		Enquire
	7	1R12834398ABW	CARPET - TRIM BOOT CENTRE INFILL	1R12834398ABW CARPET - TRIM BOOT CENTRE INFILL up to (V) 501948	$26.60	1
	7	1R12164094AA	ASSY LAMP REINF CVR	1R12164094AA ASSY LAMP REINF CVR	$347.46	1
	8	1R12164095AA	ASSY LAMP REINF CVR	1R12164095AA ASSY LAMP REINF CVR	$347.46	1
	9	1R12833765AC	SUBSTRATE TRIM BOOT HANDBOOK CARRIER	1R12833765AC SUBSTRATE TRIM BOOT HANDBOOK CARRIER	$80.37	1
	10	1R12834493AB	INSERT BOOT TOWING EYE	1R12834493AB INSERT BOOT TOWING EYE	$11.29	1
	11	1R12832900AF	TRIM BOOTLID SWAN NECK RH	1R12832900AF TRIM BOOTLID SWAN NECK RH	$133.54	1
	12	1R12832901AF	TRIM BOOTLID SWAN NECK LH	1R12832901AF TRIM BOOTLID SWAN NECK LH	$126.94	1
	13	1R12834782AA	BRACKET - BOOT TRIM SWITCH	1R12834782AA BRACKET - BOOT TRIM SWITCH	$17.26	1
	14	1R12853762AC	INSERT BOOT V INFILL RH	1R12853762AC INSERT BOOT V INFILL RH	$47.82	1
	15	1R12853763AC	INSERT BOOT V INFILL LH	1R12853763AC INSERT BOOT V INFILL LH	$47.82	1
	16	699819	SCREW M6x25 SKT BUTTON FLANGE	699819 SCREW M6x25 SKT BUTTON FLANGE	$1.60	14
	17	696503PK	TRIM PIN PACK (10) IN STOCK	696503PK TRIM PIN PACK (10) IN STOCK	$21.59	1
	18	697079	SCREW NO 8x5/8 POZI BLACK PAN HEAD CLOSING LATCH COVER	697079 SCREW NO 8x5/8 POZI BLACK PAN HEAD CLOSING LATCH COVER	$0.08	4
	19	697495	SCREW No8 x 13 FLANGED AB S.T	697495 SCREW No8 x 13 FLANGED AB S.T	$0.09	2
	20	692240	NUT CAPTIVE NYLON	692240 NUT CAPTIVE NYLON	$2.62	2
	21	699109	SCREW No8 x 19mm RSD C/SUNK HD	699109 SCREW No8 x 19mm RSD C/SUNK HD	$0.13	4
	22	699737	RETAINING SCREW	699737 RETAINING SCREW	$13.72	6
	23	5R1345400AAW	Trim, boot sill assy	5R1345400AAW Trim, boot sill assy Canada Vanquish S From (V) 501506	-	1		Enquire
	23	1R12832837AAW	TRIM BOOT SILL ASSY	1R12832837AAW TRIM BOOT SILL ASSY	$704.06	1
	24	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Sill trim attach	$20.91	2
	24	696504PK	TRIM RETAINER-(10)	696504PK TRIM RETAINER-(10) Sill trim attach	$43.13	2
	24	1R12832840ABW	Trim, boot lid assy	1R12832840ABW Trim, boot lid assy	-	1		Enquire
	25	3R12835556AAW	BOOT FLOOR OVERMAT	3R12835556AAW BOOT FLOOR OVERMAT From (V) 500516-21 + 526 onwards, up to (V) 501285	$1,504.89	1
	25	1R12833895AAW	BOOT FLOOR OVERMAT	1R12833895AAW BOOT FLOOR OVERMAT Up to (V) 500515 + 500522-525	-	1		Enquire
	25	4R12835556AAW	BOOT FLOOR OVERMAT	4R12835556AAW BOOT FLOOR OVERMAT From (V) 501286	$575.80	1
	26	699109	SCREW No8 x 19mm RSD C/SUNK HD	699109 SCREW No8 x 19mm RSD C/SUNK HD Solenoid cover attach	$0.13	1
	26	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Solenoid cover attach	$20.91	1
	26	692011	SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL	692011 SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL Solenoid cover attach	$0.44	1
	26	697565	Spire Nut IN STOCK	697565 Spire Nut Solenoid cover attach IN STOCK	$0.30	1
	26	1R12833572AAW	TRIM BOOT SOLENOID COVER ASSY	1R12833572AAW TRIM BOOT SOLENOID COVER ASSY	$335.40	1
	27	1R12832916ACW	TRIM BOOT MAIN ASSY	1R12832916ACW TRIM BOOT MAIN ASSY	$1,113.44	1
	28	1R12833566AAW	CARPET TRIM BOOT LIGHT COVER RH ASSY	1R12833566AAW CARPET TRIM BOOT LIGHT COVER RH ASSY	$302.56	1
	29	1R12833567AAW	CARPET TRIM BOOT LIGHT COVER LH ASSY	1R12833567AAW CARPET TRIM BOOT LIGHT COVER LH ASSY	$292.91	1
	30	1R12834364AAW	TRIM BOOT CENTRE UPPER ASSY - SATELLITE NAVIGATION	1R12834364AAW TRIM BOOT CENTRE UPPER ASSY - SATELLITE NAVIGATION	$895.27	1
	31	697532	Nut Spring U Type 8x(2.0-2.8)	697532 Nut Spring U Type 8x(2.0-2.8) Boot trim, upper centre	$2.20	1
	31	699109	SCREW No8 x 19mm RSD C/SUNK HD	699109 SCREW No8 x 19mm RSD C/SUNK HD Boot trim, upper centre	$0.13	1
	31	1R12832834AAW	Trim, boot upper, centre	1R12832834AAW Trim, boot upper, centre	-	1		Enquire
	32	1R12832835AAW	Trim, boot lower, centre	1R12832835AAW Trim, boot lower, centre	-	1		Enquire
	33	1R12832830AAW	TRIM BOOT RH LWR ASY	1R12832830AAW TRIM BOOT RH LWR ASY	$937.10	1
	36	3R12835656ABW	Trim assy, boot, centre, lower, LH	3R12835656ABW Trim assy, boot, centre, lower, LH From (V) 500516-21 + 526 onwards up to (V) 501948	-	1		Enquire
	36	3R12835655AAW	Trim assy, boot, centre, lower, RH	3R12835655AAW Trim assy, boot, centre, lower, RH From (V) 500516-21 + 526 onwards	-	1		Enquire
	36	3R12835697AAW	Trim assy, boot, centre, upper	3R12835697AAW Trim assy, boot, centre, upper From (V) 500516-21 + 526 onwards	-	1		Enquire
	36	3R12835695AAW	TRIM BOOT RH UPPER ASSY	3R12835695AAW TRIM BOOT RH UPPER ASSY From (V) 500516-21 + 526 onwards	$1,009.15	1
	36	3R12835735AA	22mm VELCRO LOOP COINS	3R12835735AA 22mm VELCRO LOOP COINS From (V) 500516-21 + 526 onwards	$0.11	1
	36	3R12835696AAW	Trim assy, boot, LH	3R12835696AAW Trim assy, boot, LH From (V) 500516-21 + 526 onwards	-	1		Enquire
	36	696503PK	TRIM PIN PACK (10) IN STOCK	696503PK TRIM PIN PACK (10) From (V) 500516-21 + 526 onwards IN STOCK	$21.59	2
	36	6R1346401ABW	Trimmed cover, non sat nav	6R1346401ABW Trimmed cover, non sat nav 06MY from(V) 501949	-	1		Enquire
	36	1R12835207AAW	CARPET - TRIM BOOT UPPER - BODY SIDE	1R12835207AAW CARPET - TRIM BOOT UPPER - BODY SIDE	$706.16	1
	36	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20	$20.91	1
