Upper Trim And Roof Lining

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - Upper Trim and Roof Lining

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
696680 TAPE SELF ADHESIVE 35x50M $126.24 To Order
1R12834373AAW ASSY REAR HEADER TRIMMED $385.45 To Order
Photo Part No Description Price (each) Stock
5R13519B80AAW ASSY TRIMMED SIDE RAIL RH $1,478.76 To Order
5R13519B81AAW ASSY TRIMMED SIDE RAIL LH $1,478.76 To Order
1R12834072ACW ASSY TRIMMED SIDE RAIL RH $1,123.02 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
696680 TAPE SELF ADHESIVE 35x50M $126.24 To Order
1R12213000ABW ASSY B POST TRIM RH $211.58 To Order
1R12213001ABW ASSY B POST TRIM LH $211.58 To Order
Photo Part No Description Price (each) Stock
1R12834813ADW ASSY TRIM FRT HEADER HOMELINK + MIC $1,064.10 To Order
1R12834812ADW ASSY TRIM FRONT HEADER - STD + MICROPHONE $2,918.55 To Order
1R12834191ADW Trim assy, front header, homelink Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12830040AB HEAD LINING CARRIER $229.08 To Order
1R12830041ABW HEAD LINING TRIM $1,534.52 To Order
Photo Part No Description Price (each) Stock
1R12832028ACW ASSY 'A' POST UPPER TRIM RH Enquire To Order
1R12832029ACW ASSY 'A' POST UPPER TRIM LH $156.09 To Order
8090178 FIXING - FIR TREE $0.91 To Order
Photo Part No Description Price (each) Stock
699873 WASHER PLAIN 5.3x13 $1.64 To Order
700106 SCREW No6x13 S/TAPP $3.46 To Order
5480002835 POP-RIVET 1/8 x .35 DOME HEAD. STEEL $0.25 To Order
...and 12 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12215165AA A PILLAR IMPACT FOAM LH $13.40 To Order
View All

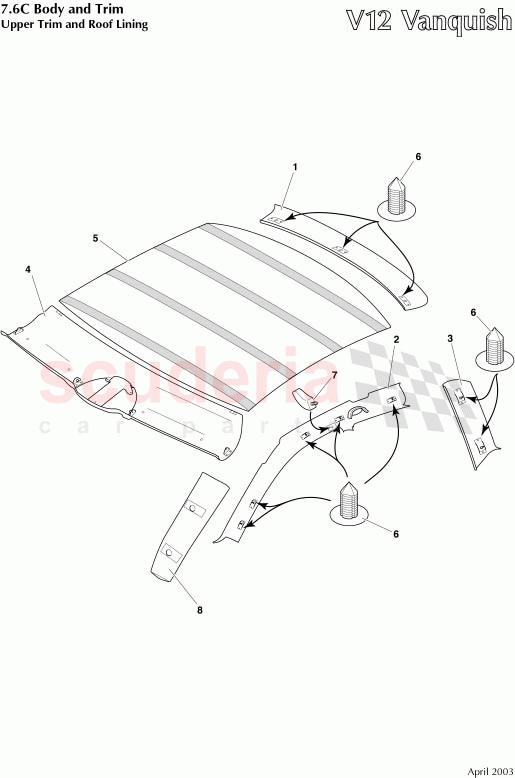

Upper Trim and Roof Lining of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 696680
TAPE SELF ADHESIVE 35x50M 		$126.24 1
1 1R12834373AAW
ASSY REAR HEADER TRIMMED 		$385.45 1
2 5R13519B80AAW
ASSY TRIMMED SIDE RAIL RH
Vanquish S From (V) 501506 		$1,478.76 1
2 5R13519B81AAW
ASSY TRIMMED SIDE RAIL LH
Vanquish S From (V) 501506 		$1,478.76 1
2 1R12834072ACW
ASSY TRIMMED SIDE RAIL RH 		$1,123.02 1
2 1R12834073ACW
ASSY TRIMMED SIDE PANEL LH 		$1,123.02 1
3 696680
TAPE SELF ADHESIVE 35x50M 		$126.24 1
3 1R12213000ABW
ASSY B POST TRIM RH 		$211.58 1
3 1R12213001ABW
ASSY B POST TRIM LH 		$211.58 1
4 1R12834813ADW
ASSY TRIM FRT HEADER HOMELINK + MIC 		$1,064.10 1
4 1R12834812ADW
ASSY TRIM FRONT HEADER - STD + MICROPHONE 		$2,918.55 1
4 1R12834191ADW
Trim assy, front header, homelink 		- 1 Enquire
4 1R12834190ADW
ASSY TRIM - FRONT HEADER - STD 		$1,425.86 1
5 1R12830040AB
HEAD LINING CARRIER 		$229.08 1
5 1R12830041ABW
HEAD LINING TRIM 		$1,534.52 1
6 1R12832028ACW
ASSY 'A' POST UPPER TRIM RH 		- 1 Enquire
6 1R12832029ACW
ASSY 'A' POST UPPER TRIM LH 		$156.09 1
6 8090178
FIXING - FIR TREE 		$0.91 17
7 699873
WASHER PLAIN 5.3x13
Between coat hook and cant rail 		$1.64 2
7 700106
SCREW No6x13 S/TAPP
Coat hook attach 		$3.46 2
7 5480002835
POP-RIVET 1/8 x .35 DOME HEAD. STEEL 		$0.25 1
7 1R12215164AA
A PILLAR IMPACT FOAM RH 		$13.40 1
7 1R12830039ABW
Trim assy, headlining 		- 1 Enquire
7 1R12830224AAW
Trim, cant rail, RH 		- 1 Enquire
7 1R12830223AAW
Trim, cant rail, LH 		- 1 Enquire
7 1R12830220AAW
A PILLAR TRIM RHS 		$411.51 1
7 1R12830219AAW
A PILLAR TRIM LHS 		$411.51 1
7 1R12831448AAW
Trim, B pillar, RH 		- 1 Enquire
7 1R12830447AAW
Trim, B pillar, LH 		- 1 Enquire
7 1R12830221AAW
Trim, C pillar, RH 		- 1 Enquire
7 1R12830222AAW
Trim, C pillar, LH 		- 1 Enquire
7 1R12831487AAW
Leather skin assy 		- 1 Enquire
7 1R12834074AAW
COAT HOOK - TRIMMED 		$263.47 2
8 1R12215165AA
A PILLAR IMPACT FOAM LH 		$13.40 1
