Lamborghini Urus (2018-2019) - SUSPENSION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4M0407151R FRONT WISHBONE LINK $355.15 To Order
4M0407152R FRONT WISHBONE LINK $355.15 To Order
Photo Part No Description Price (each) Stock
BONDED RUBBER BUSH Enquire To Order
Photo Part No Description Price (each) Stock
4M0407181 BONDED RUBBER BUSH $45.96 To Order
Photo Part No Description Price (each) Stock
WHT007028 12-POINT HEAD BOLT $8.14 To Order
Photo Part No Description Price (each) Stock
WHT001987 HEX. NUT, SELF-LOCKING WITH WASHER $2.58 To Order
Photo Part No Description Price (each) Stock
WHT006151 HEXAGON COLLAR NUT SELF-LOCKING M14 X 1.5 $4.26 IN STOCK
Photo Part No Description Price (each) Stock
4M0407693E SUSPENSION GUIDE $433.94 To Order
4M0407694F SUSPENSION GUIDE $486.98 IN STOCK
Photo Part No Description Price (each) Stock
4M0407183B HYDRO-MOUNTING $95.05 To Order
Photo Part No Description Price (each) Stock
N10817601 HEXAGON FLANGE SCREW (COMBI) $11.13 To Order
Photo Part No Description Price (each) Stock
4M0407505B CONTROL ARM,FRONT $272.02 To Order
8B3407505A CONTROL ARM,FRONT $238.23 To Order
8B3407506A CONTROL ARM,FRONT $238.23 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4M0407509G GUIDE $282.23 IN STOCK
8B3407510A CONTROL ARM,REAR $238.23 IN STOCK
Photo Part No Description Price (each) Stock
4M0407515A BONDED RUBBER BUSH $39.29 To Order
Photo Part No Description Price (each) Stock
N91221601 HEXAGON FLANGE SCREW (COMBI) $5.53 To Order
Photo Part No Description Price (each) Stock
CYLINDER FITTING SCREW WITH HEXAGON SOCKET HEAD Enquire To Order
Photo Part No Description Price (each) Stock
WHT006542 HEXAGON FLANGE SCREW $8.14 To Order
Photo Part No Description Price (each) Stock
N10272302 HEXAGON COLLAR NUT SELF-LOCKING $2.41 IN STOCK
Photo Part No Description Price (each) Stock
SPEED SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
4M0407253M WHEEL BEARING HOUSING $595.48 IN STOCK
4M0407254M WHEEL BEARING HOUSING $595.48 IN STOCK
Photo Part No Description Price (each) Stock
WHT006151 HEXAGON COLLAR NUT SELF-LOCKING M14 X 1.5 $4.26 IN STOCK
Photo Part No Description Price (each) Stock
4M0407689C SWIVEL JOINT $118.04 IN STOCK
Photo Part No Description Price (each) Stock
N10241507 HEX COLLARED BOLT $4.31 To Order
Photo Part No Description Price (each) Stock
4M0407613 WHEEL HUB $1,549.67 IN STOCK
Photo Part No Description Price (each) Stock
4ML498625 WHEEL BEARING WITH ASSEMBLY PARTS $377.09 To Order
Photo Part No Description Price (each) Stock
WHT006966 SCREW WITH INT. SERRATIONS $5.32 To Order
Photo Part No Description Price (each) Stock
8E0407643A SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $12.59 IN STOCK
Photo Part No Description Price (each) Stock
4M0413037J SUSPENSION FORKS $190.10 To Order
4M0413038J SUSPENSION FORKS $190.10 To Order
Photo Part No Description Price (each) Stock
LEVEL SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
N10272202 HEXAGON HEAD BOLT (COMBI) $7.26 To Order
Photo Part No Description Price (each) Stock
N10106402 HEXAGON COLLAR NUT SELF-LOCKING $2.53 IN STOCK
Photo Part No Description Price (each) Stock
N10784702 HEXAGON FLANGE SCREW M12 X 1.5 X 85 $7.11 IN STOCK
Photo Part No Description Price (each) Stock
WHT001987 HEX. NUT, SELF-LOCKING WITH WASHER $2.58 To Order
Photo Part No Description Price (each) Stock
4M0411317K COUPLING ROD FRONT SUSPENSION $105.64 IN STOCK
Photo Part No Description Price (each) Stock
WHT007422 12-POINT HEAD BOLT $13.31 To Order
Photo Part No Description Price (each) Stock
N0150816 HEXAGON COLLAR NUT $2.18 IN STOCK
Photo Part No Description Price (each) Stock
WHT007423 12-POINT HEAD BOLT $13.31 To Order
Photo Part No Description Price (each) Stock
GAS STRUT Enquire To Order
View All

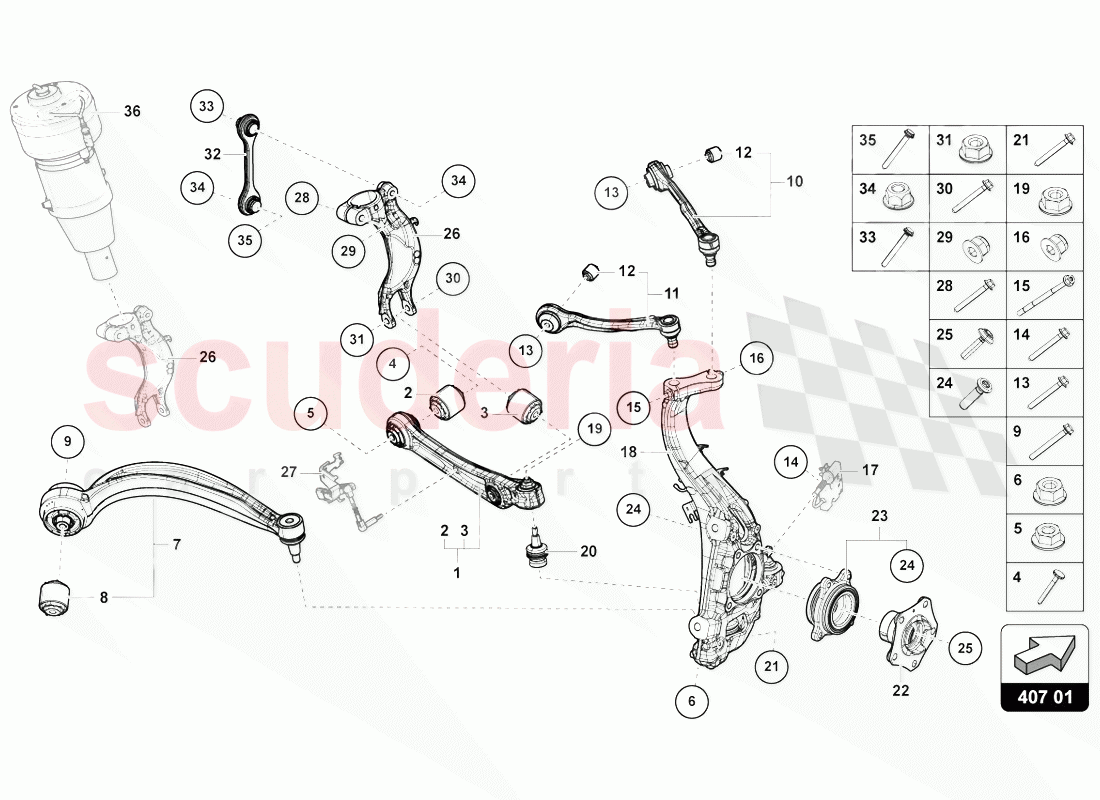

SUSPENSION of Lamborghini Lamborghini Urus (2018-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4M0407151R
FRONT WISHBONE LINK
LEFT 		$355.15 1
1 4M0407152R
FRONT WISHBONE LINK
RIGHT 		$355.15 1
2 BONDED RUBBER BUSH
NOT AVAILABLE-FRONT, INNER 		- - Enquire
3 4M0407181
BONDED RUBBER BUSH
FRONT, OUTER 		$45.96 2
4 WHT007028
12-POINT HEAD BOLT
M12X1,5X100 		$8.14 2
5 WHT001987
HEX. NUT, SELF-LOCKING WITH WASHER
M12X1,5 		$2.58 2
6 WHT006151
HEXAGON COLLAR NUT SELF-LOCKING M14 X 1.5
M14X1,5
IN STOCK 		$4.26 2
7 4M0407693E
SUSPENSION GUIDE
LEFT FRONT 		$433.94 1
7 4M0407694F
SUSPENSION GUIDE
RIGHT FRONT
IN STOCK 		$486.98 1
8 4M0407183B
HYDRO-MOUNTING
FRONT, INNER 		$95.05 2
9 N10817601
HEXAGON FLANGE SCREW (COMBI)
M12X1.5X140 		$11.13 2
10 4M0407505B
CONTROL ARM,FRONT
LEFT FRONT UPPER 		$272.02 1
10 8B3407505A
CONTROL ARM,FRONT
LEFT FRONT UPPER 		$238.23 1
10 8B3407506A
CONTROL ARM,FRONT
RIGHT FRONT UPPER 		$238.23 1
10 8B3407506A
CONTROL ARM,FRONT
RIGHT FRONT UPPER 		$238.23 1
11 4M0407509G
GUIDE
LEFT REAR UPPER
IN STOCK 		$282.23 1
11 8B3407510A
CONTROL ARM,REAR
RIGHT REAR UPPER
IN STOCK 		$238.23 1
12 4M0407515A
BONDED RUBBER BUSH
INNER UPPER 		$39.29 4
13 N91221601
HEXAGON FLANGE SCREW (COMBI)
M10X85 		$5.53 4
14 CYLINDER FITTING SCREW WITH HEXAGON SOCKET HEAD
NOT AVAILABLE - SEE ILLUSTRATION AND REF.: 927.01 		- - Enquire
15 WHT006542
HEXAGON FLANGE SCREW
M10X130 		$8.14 2
16 N10272302
HEXAGON COLLAR NUT SELF-LOCKING
M10
IN STOCK 		$2.41 (66.2% off) 2
17 SPEED SENSOR
NOT AVAILABLE - SEE ILLUSTRATION AND REF.: 927.01 		- - Enquire
18 4M0407253M
WHEEL BEARING HOUSING
LEFT
IN STOCK 		$595.48 1
18 4M0407254M
WHEEL BEARING HOUSING
RIGHT
IN STOCK 		$595.48 1
19 WHT006151
HEXAGON COLLAR NUT SELF-LOCKING M14 X 1.5
M14X1,5
IN STOCK 		$4.26 2
20 4M0407689C
SWIVEL JOINT
LEFT A. RIGHT
IN STOCK 		$118.04 2
21 N10241507
HEX COLLARED BOLT
M10X70 		$4.31 2

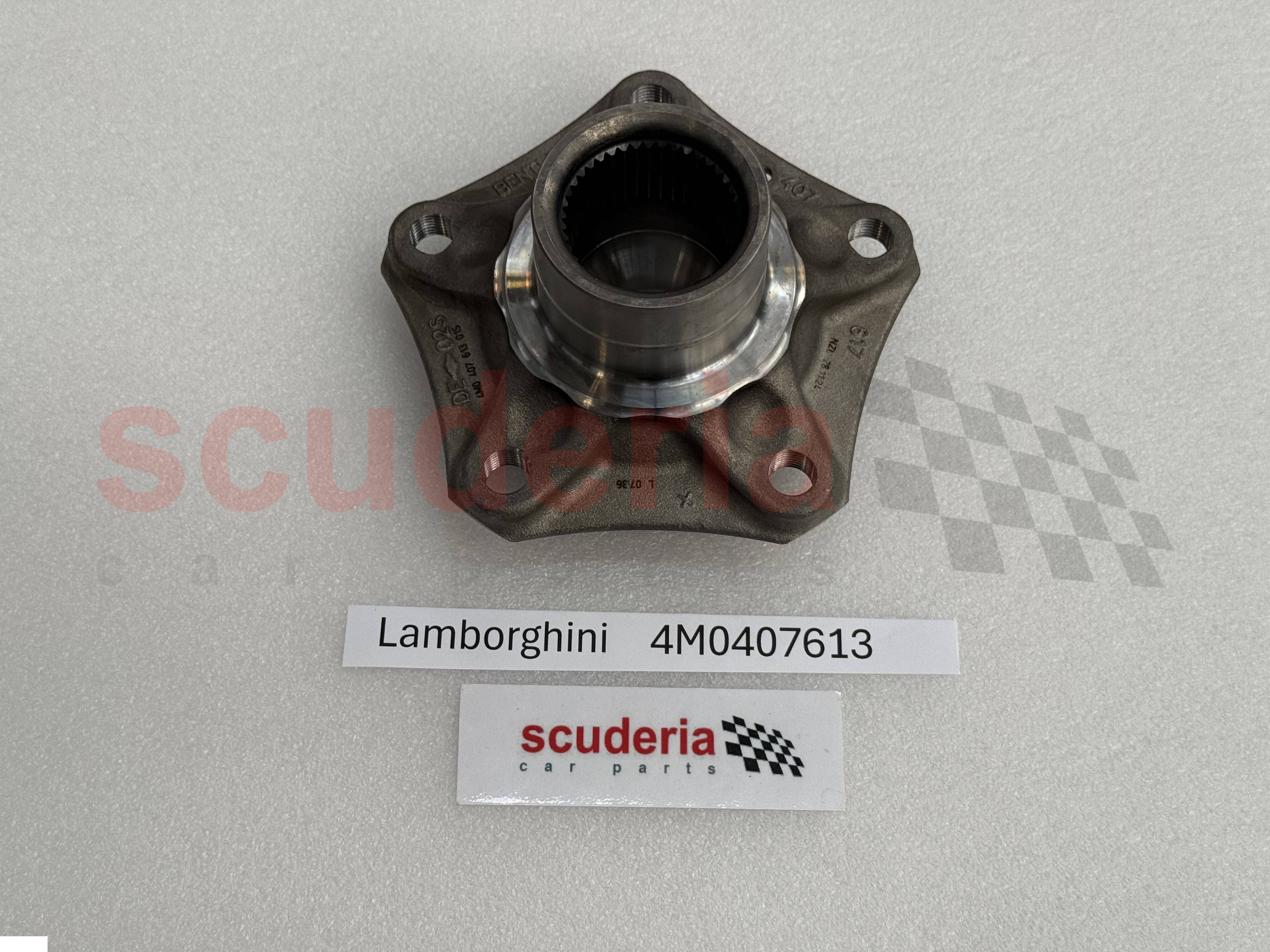

22 4M0407613
WHEEL HUB
IN STOCK 		$1,549.67 2
23 4ML498625
WHEEL BEARING WITH ASSEMBLY PARTS 		$377.09 2
24 WHT006966
SCREW WITH INT. SERRATIONS
M12X1,25X42 		$5.32 4
25 8E0407643A
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M16X1,5X72
IN STOCK 		$12.59 2
26 4M0413037J
SUSPENSION FORKS
LEFT 		$190.10 1
26 4M0413038J
SUSPENSION FORKS
RIGHT 		$190.10 1
27 LEVEL SENSOR
NOT AVAILABLE - SEE ILLUSTRATION :- 900-000 		- - Enquire
28 N10272202
HEXAGON HEAD BOLT (COMBI)
M12X1,5X95 		$7.26 2
29 N10106402
HEXAGON COLLAR NUT SELF-LOCKING
M12X1,5-M12X1,5
IN STOCK 		$2.53 2
30 N10784702
HEXAGON FLANGE SCREW M12 X 1.5 X 85
M12X1.5X85
IN STOCK 		$7.11 2
31 WHT001987
HEX. NUT, SELF-LOCKING WITH WASHER
M12X1,5 		$2.58 2
32 4M0411317K
COUPLING ROD FRONT SUSPENSION
LEFT A. RIGHT
IN STOCK 		$105.64 2
33 WHT007422
12-POINT HEAD BOLT
M12X85 		$13.31 2
34 N0150816
HEXAGON COLLAR NUT
M12X1,5-M12X1,5
IN STOCK 		$2.18 (69.4% off) 4
35 WHT007423
12-POINT HEAD BOLT
M12X65-M12X65 		$13.31 2
36 GAS STRUT
NOT AVAILABLE - SEE ILLUSTRATION : 411.01 		- - Enquire
37 GAS STRUT
NOT AVAILABLE - SEE ILLUSTRATION : 411.01 		- - Enquire
