Gearbox Control Tower of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

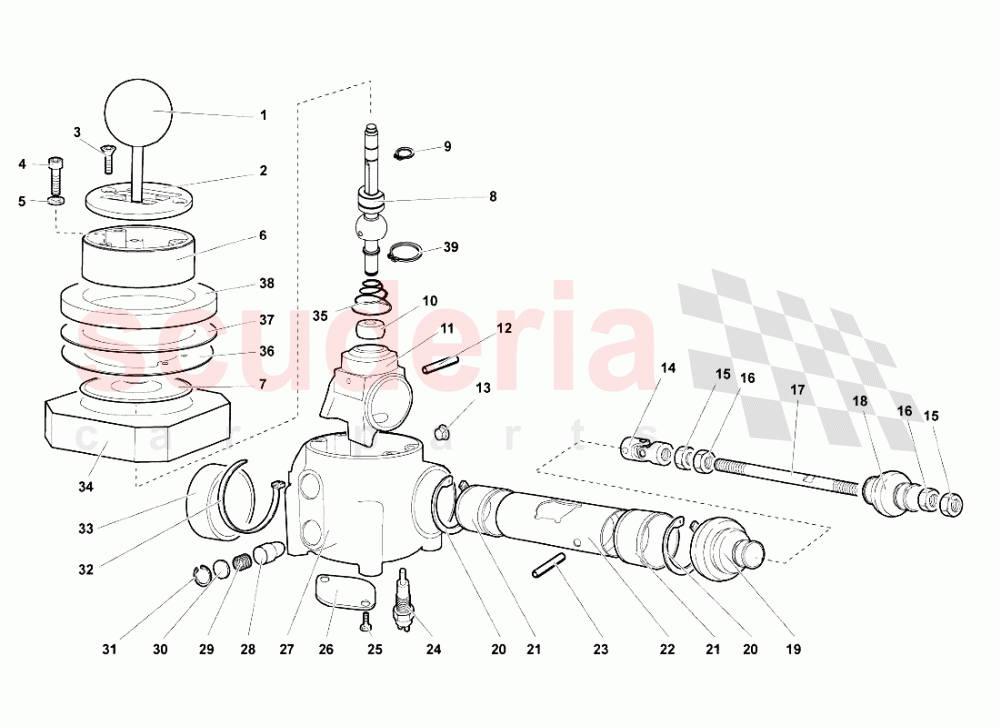

Lamborghini Murcielago LP640 Roadster - Gearbox Control Tower

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	410711141	HANDLE (FROM VIN 01202 USA MY04)	410711141 HANDLE (FROM VIN 01202 USA MY04)	$2,851.80	1
002	410713109	SELECTOR PLATE	410713109 SELECTOR PLATE	$3,447.20	1
003	WHT003564	SCREW	WHT003564 SCREW	$12.88	2
004	N10544302	SOCKET HEAD BOLT IN STOCK	N10544302 SOCKET HEAD BOLT IN STOCK	$1.76 MSRP: ~~7.27~~ (75.8% off)	4
005	N90247901	WASHER	N90247901 WASHER	$53.46	4
006	410711795A	SPACER	410711795A SPACER	$1,673.47	1
007	410711527A	BOOT	410711527A BOOT	$221.90	1
008	410711123	LEVER	410711123 LEVER	$6,317.79	1
009	N0124101	SEAL RING 10X1 IN STOCK	N0124101 SEAL RING 10X1 IN STOCK	$0.15 MSRP: ~~7.37~~ (98% off)	1
010	410711189	BALL	410711189 BALL	$727.07	1
011	410711111	SHIFT LEVER SEAT	410711111 SHIFT LEVER SEAT	$3,635.24	1
012	WHT003590	PIN	WHT003590 PIN	$12.06	1
013	410711514	FAIRLEAD.DKF6-9-12-3 IN STOCK	410711514 FAIRLEAD.DKF6-9-12-3 IN STOCK	$1.37 MSRP: ~~7.23~~ (81.1% off)	1
014	410711613	LH JOINT	410711613 LH JOINT	$769.68	1
015	WHT003615A	RH NUT IN STOCK	WHT003615A RH NUT IN STOCK	$1.09 MSRP: ~~7.21~~ (84.9% off)	1
017	410711433A	TIE ROD	410711433A TIE ROD	$1,397.68	1
018	410711423	BOOT	410711423 BOOT	$65.58	1
019	410711411	BOOT	410711411 BOOT	$191.84	1
020	WHT003579	RETAINING RING	WHT003579 RETAINING RING	$4.96	1
021	410711067	BUSHING	410711067 BUSHING	$261.98	1
022	410711158	SHAFT	410711158 SHAFT	$3,277.98	1
023	N10738501	PIN IN STOCK	N10738501 PIN IN STOCK	$0.30 MSRP: ~~7.35~~ (95.9% off)	1
024	86941521A	SWITCH	86941521A SWITCH	$102.55	1
025	N0102018	SCREW M4X8 IN STOCK	N0102018 SCREW M4X8 IN STOCK	$3.83 MSRP: ~~7.20~~ (46.8% off)	1
026	410711599	PLATE	410711599 PLATE	$42.17	1
027	410711061	SHIFT LEVER SUPPORT	410711061 SHIFT LEVER SUPPORT	$742.10	1
028	410711039	PAWL	410711039 PAWL	$69.84	2
029	410711490	SPRING	410711490 SPRING	$102.91	2
030	410711217A	DISK	410711217A DISK	$26.76	2
031	WHT003576	SEAL RING IN STOCK	WHT003576 SEAL RING IN STOCK	$0.18 MSRP: ~~7.37~~ (97.6% off)	2
032	N10267501	CLAMP IN STOCK	N10267501 CLAMP IN STOCK	$2.95 MSRP: ~~6.00~~ (50.8% off)	2
033	410711213	BOOT	410711213 BOOT	$59.48	1
035	410711369	SPRING	410711369 SPRING	$305.24	1
036	410711238	SPACER	410711238 SPACER	$31.14	1
037	410711353	INSULATION	410711353 INSULATION	$3.15	1
038	410711296	INSULATION	410711296 INSULATION	$312.77	1
039	WHT002646	RETAINING RING IN STOCK	WHT002646 RETAINING RING IN STOCK	$1.01 MSRP: ~~7.22~~ (86% off)	1
