Rear Drive Shaft

Lamborghini Murcielago LP640 Roadster

Find Your Part

Lamborghini Murcielago LP640 Roadster - Rear Drive Shaft

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

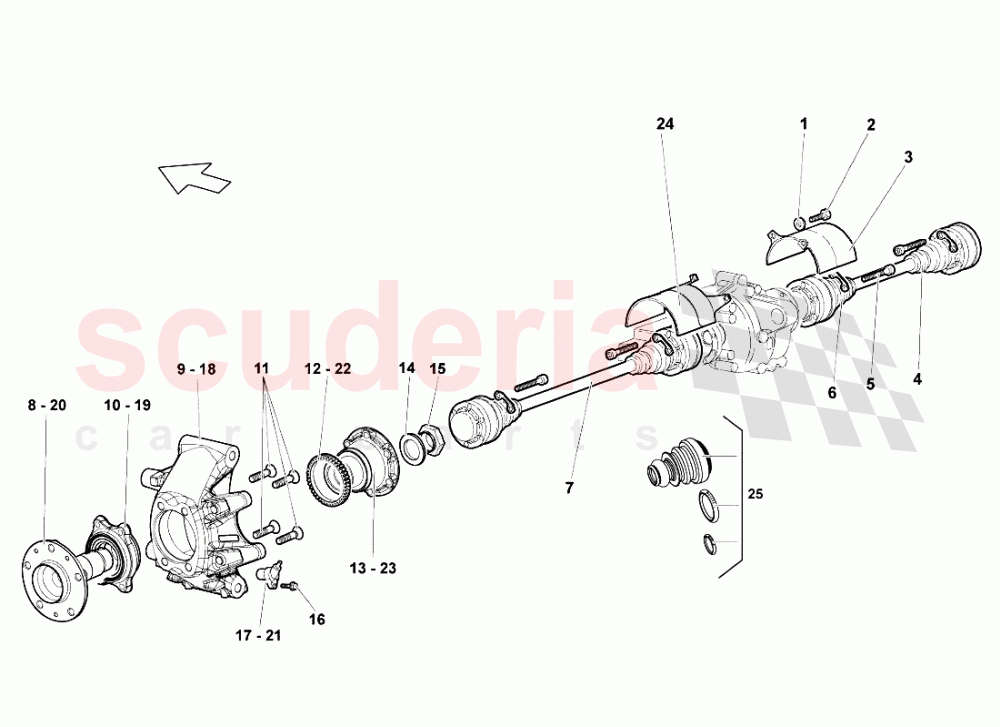

Rear Drive Shaft of Lamborghini Lamborghini Murcielago LP640 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 WHT001514
WASHER
IN STOCK 		$23.08 (63.9% off) 4
002 N91143901
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
IN STOCK 		$3.12 (56.8% off) 4
003 410501713
PANEL
IN STOCK 		$339.97 (35.1% off) 1
004 410501212B
RH REAR OMOKINETIC SHAFT 		$2,051.59 1
005 WHT002651
SCREW
IN STOCK 		$34.01 24
006 410501357
WASHER 		$9.65 12
007 410501211B
LH REAR OMOKINETIC SHAFT 		$2,051.59 1
008 410501653
HUB 		$2,225.64 1
009 410505435B
LEFT RIGHT HUB CARRIER (CERAMIC BRAKE) 		$862.51 1
010 4E0407625F
DOUBLE (ANGLED) BALL BEARING WITH FLANGE
IN STOCK 		$190.12 1
011 WHT000237
BALL SCREW
IN STOCK 		$6.67 8
012 410614150A
CROWN GEAR 		$2,113.74 1
013 410501655
FLANGE 		$7,068.61 1
014 410501279
WASHER 		$93.76 2
015 410501226
RING NUT 		$187.75 2
016 N10285602
SCREW 		$2.31 (68% off) 2
017 410927801C
ABS SENSOR (RIGHT-HAND) 		$1,136.69 1
018 410505436B
REAR RIGHT HUB CARRIER (CERAMIC BRAKE) 		$862.51 1
019 4E0407625F
DOUBLE (ANGLED) BALL BEARING WITH FLANGE
IN STOCK 		$190.12 1
020 410501653
HUB 		$2,225.64 1
021 410927801C
ABS SENSOR (RIGHT-HAND) 		$1,136.69 1
022 410614150A
CROWN GEAR 		$2,113.74 1
023 410501655
FLANGE 		$7,068.61 1
024 410501713
PANEL
IN STOCK 		$339.97 (35.1% off) 1
