Front Drive Shaft

Lamborghini Murcielago LP640 Roadster

Find Your Part

Lamborghini Murcielago LP640 Roadster - Front Drive Shaft

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

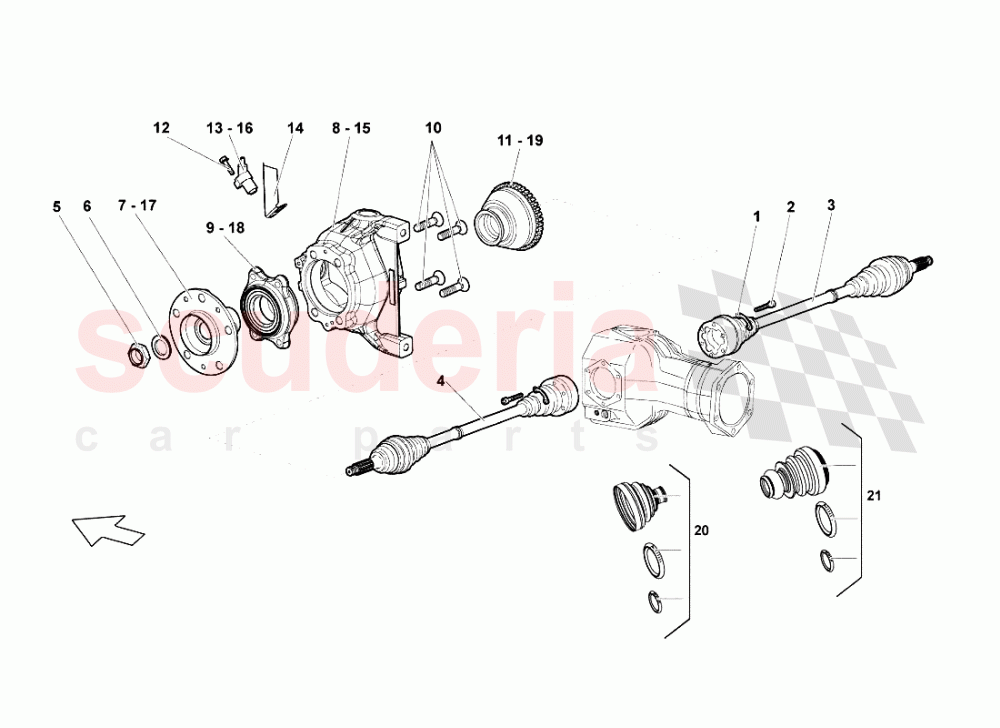

Front Drive Shaft of Lamborghini Lamborghini Murcielago LP640 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 1K0407357C
SPACER 		$1.94 (72.8% off) 6
002 WHT003312
SCREW M10X1,25X80 		$2.95 12
003 410407302C
RH FRONT DRIVE 		$1,994.95 1
004 410407301C
LH FRONT DRIVE SHAFT 		$1,838.59 1
005 410407338
NUT 		$574.10 2
006 410407631
WASHER 		$174.49 2
007 410407613
HUB 		$602.86 1
008 410407257A
LH HUB HOLDER (CERAMIC BRAKE) 		$1,757.32 1
009 4E0407625F
DOUBLE (ANGLED) BALL BEARING WITH FLANGE
IN STOCK 		$191.25 1
010 WHT000237
BALL SCREW
IN STOCK 		$6.71 8
011 410614149
TONE WHEEL 		$3,151.90 1
012 N10285602
SCREW 		$2.32 (67.8% off) 2
013 410927801C
ABS SENSOR (RIGHT-HAND) 		$1,143.42 1
014 410614754
RIGHT HEAT SHIELD (CERAMIC BRAKE) 		$636.63 1
014 410614753
LEFT HEAT SHIELD (CERAMIC BRAKE) 		$636.63 1
015 410407258A
RH HUB HOLDER (CERAMIC BRAKE) 		$1,951.17 1
016 410927801C
ABS SENSOR (RIGHT-HAND) 		$1,143.42 1
017 410407613
HUB 		$602.86 1
018 4E0407625F
DOUBLE (ANGLED) BALL BEARING WITH FLANGE
IN STOCK 		$191.25 1
019 410614149
TONE WHEEL 		$3,151.90 1
020 410498099
KIT AXELSHAFT FORE OUTER 		$5,615.85 2
021 410498099A
Wheel Shaft Outer
IN STOCK 		$89.43 2
