Rear Differential Case

Lamborghini Murcielago LP640 Roadster

Find Your Part

Lamborghini Murcielago LP640 Roadster - Rear Differential Case

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

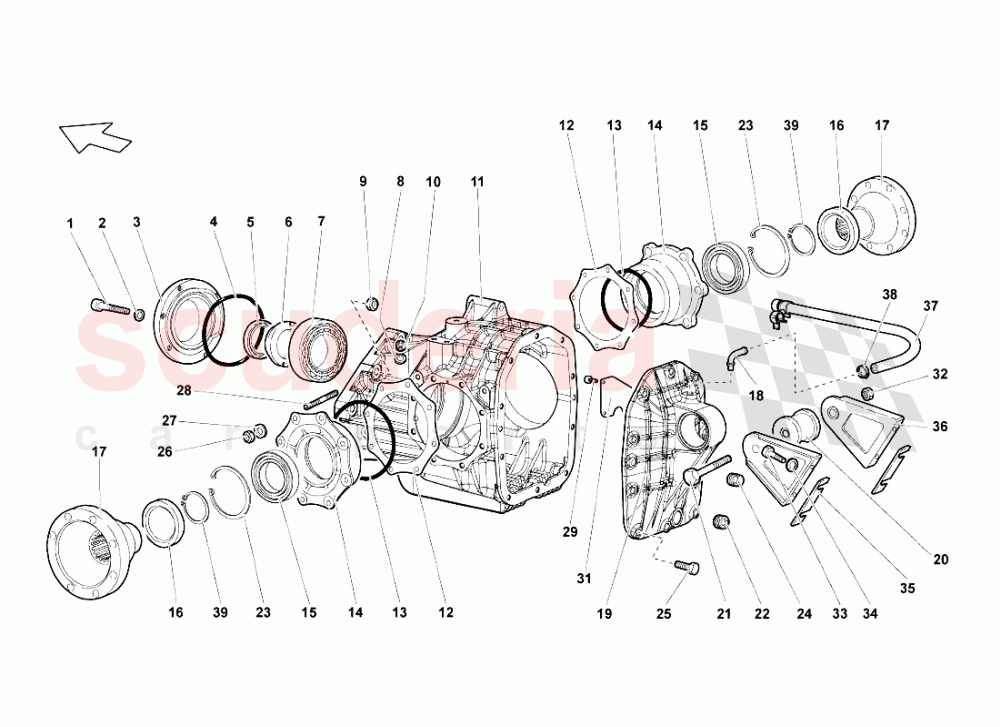

Rear Differential Case of Lamborghini Lamborghini Murcielago LP640 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N91126601
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$1.24 (83% off) 6
003 B9525584A
FLANGE 		$5,727.78 1
004 WHT002222
SEAL RING 		$12.32 1
005 B9525596
SEAL RING 		$59.42 1
006 B9517606
RING NUT 		$101.45 1
007 A5409123A
BEARING 		$196.77 1
008 N0138495
SEAL RING
IN STOCK 		$3.95 (45.2% off) 1
009 N10261311
HEXAGON NUT
IN STOCK 		$2.13 (70.7% off) 1
010 N0160276
PLUG 		$7.32 1
011 B9507103A
REAR DIFFERENTIAL CASE 		$3,129.34 1
012 B9517242H
0.2 mm ADJUSTMENT SHIM 		$15.93 2
012 B9517242K
0.05 mm ADJUSTMENT SHIM 		$19.06 2
012 B9517242F
0.5 MM ADJUSTMENT SHIM 		$57.39 2
012 B9517242J
0.1 mm ADJUSTMENT SHIM 		$20.12 2
012 B9517242G
0.3 mm ADJUSTMENT SHIM 		$29.67 2
013 WHT002221
GASKET 		$39.34 2
014 B9501312A
FLANGE 		$1,311.71 2
015 B9501660
BEARING 		$107.33 2
016 B9525583
OIL SEAL
IN STOCK 		$82.57 2
017 B9501265B
FLANGE 		$664.61 2
018 2D525118B
ELBOW FITTING 		$14.01 1
019 B9507145B
COVER 		$2,573.42 1
020 B9501144
support mount
IN STOCK 		$186.82 (1.9% off) 1
021 WHT003561
SCREW M14X80 		$9.57 1
022 86301141
MAGNETIC PLUG 		$25.87 1
023 N0122981
RETAINING RING 75X2,5 		$6.63 2
024 86301114A
PLUG 		$20.75 1
025 N0903168
SCREW M8X30 		$3.01 (58.1% off) 10
026 N01100845
HEXAGON NUT
IN STOCK 		$1.93 16
027 410422395
WASHER 		$10.04 16
028 N04440510
STUD BOLT M8X22 		$1.93 (72.6% off) 16
029 N90305304
SCREW M6X10 		$2.07 (71.8% off) 3
031 B9501716A
SHEET 		$53.02 1
032 WHT003614
NUT 		$6.63 1
033 N01033520
SCREW M8X35
IN STOCK 		$3.14 (56.3% off) 4
034 WHT002962
WASHER 14X8.4X1.5
IN STOCK 		$0.32 (95.6% off) 4
035 410813761A
PLATE 		$41.05 14
036 410813297
SUPPORT 		$245.48 2
037 B9525049
VENT HOSE 		$53.44 1
038 N90686701
SPRING BAND CLAMP
IN STOCK 		$1.88 (73.6% off) 1
039 N0123722
RETAINING RING 45X1,75 		$4.20 2
