Driven Shaft of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

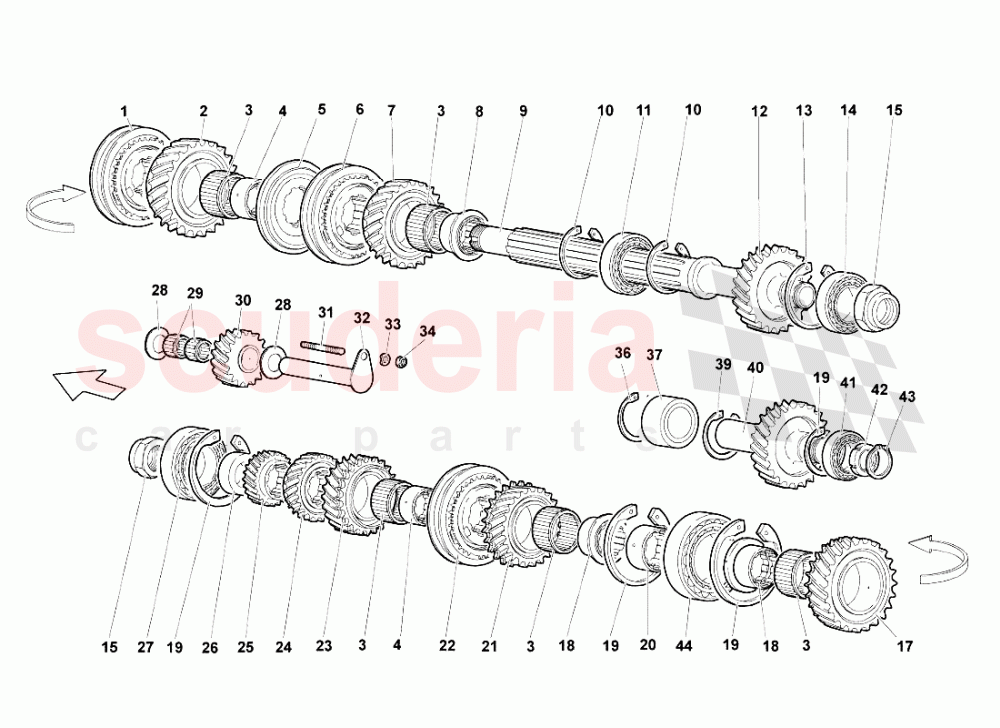

Lamborghini Murcielago LP640 Roadster - Driven Shaft

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	86311244B	SYNCHRONIZER T.C. D.100+CROWN GEAR	86311244B SYNCHRONIZER T.C. D.100+CROWN GEAR	$1,686.08	1
002	86311250F	FIRST GEAR ASSEMBLY linked to the ref. 9 tav. 311.02.00)	86311250F FIRST GEAR ASSEMBLY linked to the ref. 9 tav. 311.02.00)	$2,004.57	1
003	86311228A	Roller Bearing	86311228A Roller Bearing	$100.06	5
004	86301374A	BUSHING	86301374A BUSHING	$307.24	2
005	86311279A	SHIM ADJUSTMENT	86311279A SHIM ADJUSTMENT	$333.47	1
006	86311762C	SYNCHRONIZING GEAR D.82 CROWN GEAR	86311762C SYNCHRONIZING GEAR D.82 CROWN GEAR	$843.03	1
007	86311532F	REVERSE GEAR ASSEMBLY SYNCHRO	86311532F REVERSE GEAR ASSEMBLY SYNCHRO	$629.47	1
008	86311423B	INNER RING	86311423B INNER RING	$449.62	1
009	86311195F	SHAFT	86311195F SHAFT	$1,405.38	1
010	WHT003585	SEAL RING	WHT003585 SEAL RING	$43.54	2
011	86301609	BEARING 085	86301609 BEARING 085	$170.48	1
012	86311348B	GEAR	86311348B GEAR	$3,571.96	1
013	WHT003573	RETAINING RING	WHT003573 RETAINING RING	$2.50	1
014	86301897	BEARING	86301897 BEARING	$507.08	1
015	86301618	RING NUT	86301618 RING NUT	$268.54	2
017	86311270E	2 GEAR ASSEMBLY	86311270E 2 GEAR ASSEMBLY	$1,742.28	1
018	86311533A	INNER RING	86311533A INNER RING	$359.72	2
019	WHT003584	SEAL RING	WHT003584 SEAL RING	$29.91	4
020	86311187B	INNER RING	86311187B INNER RING	$328.49	1
021	86311129B	THIRD GEAR ASSEMBLY	86311129B THIRD GEAR ASSEMBLY	$1,629.88	1
022	86311309B	SYNCHRONIZING GEAR D.71/76 + CROWN GEAR	86311309B SYNCHRONIZING GEAR D.71/76 + CROWN GEAR	$1,348.86	1
023	86311145C	FOURTH GEAR ASSEMBLY	86311145C FOURTH GEAR ASSEMBLY	$1,629.88	1
024	86311153	FIFTH GEAR	86311153 FIFTH GEAR	$3,553.25	1
025	86311165	SIXTH GEAR	86311165 SIXTH GEAR	$3,553.25	1
026	86311876C	SPACER	86311876C SPACER	$179.25	1
027	86301845	BEARING	86301845 BEARING	$70.56	1
028	86311388	SHIM ADJUSTMENT	86311388 SHIM ADJUSTMENT	$34.87	2
029	86311770A	ROLLER CAGE	86311770A ROLLER CAGE	$42.41	2
030	86311531C	REVERSE IDLE GEAR	86311531C REVERSE IDLE GEAR	-	1	Enquire
031	WHT003165	STUD BOLT M6X25	WHT003165 STUD BOLT M6X25	$1.37 MSRP: ~~2.50~~ (45.2% off)	1
032	86311509	REVERS IDLE GEAR SHAFT	86311509 REVERS IDLE GEAR SHAFT	$342.22	1
033	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.28	1
034	WHT002953	NUT M6	WHT002953 NUT M6	$3.26	1
036	WHT003587A	SEAL RING	WHT003587A SEAL RING	$13.62	1
037	86311440	BEARING	86311440 BEARING	$167.36	1
039	WHT003582	SEAL RING	WHT003582 SEAL RING	$19.93	1
040	86311834A	GEAR	86311834A GEAR	$1,087.82	1
041	86311439	BEARING	86311439 BEARING	$61.70	1
042	86311667	RING NUT	86311667 RING NUT	$129.28	1
043	WHT003580	SEAL RING IN STOCK	WHT003580 SEAL RING IN STOCK	$14.18	1
044	86301133	BEARING 080	86301133 BEARING 080	$112.06	1
