Lamborghini Murcielago LP640 Roadster - E-gear Valves Group

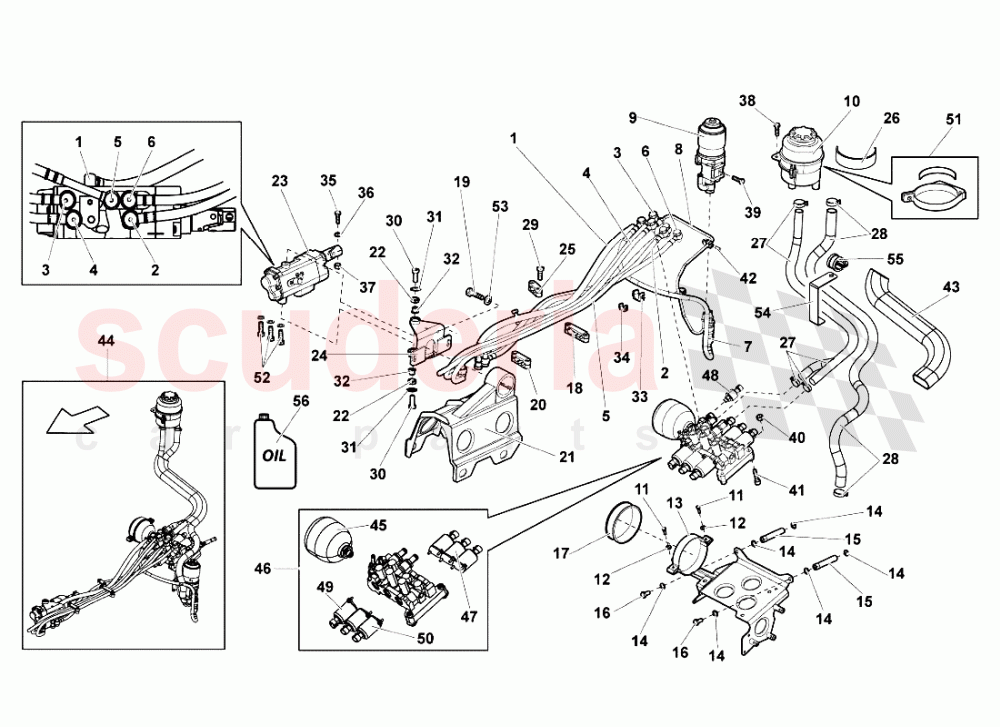

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	86325083A	PIPE KIT	86325083A PIPE KIT	$506.80	1
002	86325095A	EV2 PIPE KIT	86325095A EV2 PIPE KIT	$1,228.36	1
003	86325097A	EV3 PIPE KIT	86325097A EV3 PIPE KIT	$2,082.37	1
004	86325107A	EV1 PIPE KIT	86325107A EV1 PIPE KIT	$1,900.45	1
005	86325163A	EV4 PIPE KIT	86325163A EV4 PIPE KIT	$2,069.83	1
006	86325165A	EV5 PIPE KIT	86325165A EV5 PIPE KIT	$1,568.06	1
007	86325171A	EVF PIPE KIT IN STOCK	86325171A EVF PIPE KIT IN STOCK	$2,634.30	1
008	86325179A	HIGH PRESSURE PIPE	86325179A HIGH PRESSURE PIPE	$484.21	1
009	86398317	SELESPEED ELECTRIC PUMP	86398317 SELESPEED ELECTRIC PUMP	$2,496.84	1
010	86325161	SELESPEED OIL TANK	86325161 SELESPEED OIL TANK	$711.42	1
011	N10430103	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10430103 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.28 MSRP: ~~7.30~~ (82.5% off)	2
013	86398211	BRACKET	86398211 BRACKET	$516.95	1
014	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.11	6
015	86325516A	SPACER	86325516A SPACER	$111.65	2
016	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545)	$2.26 MSRP: ~~7.23~~ (68.7% off)	2
017	408326129	PUFFER	408326129 PUFFER	$27.10	1
018	86325300	4-SEAT CLAMP	86325300 4-SEAT CLAMP	$224.55	1
019	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545)	$2.26 MSRP: ~~7.23~~ (68.7% off)	1
020	86325300A	3-SEAT CLAMP	86325300A 3-SEAT CLAMP	$203.24	1
021	410399113A	GEARBOX SUPPORT	410399113A GEARBOX SUPPORT	$1,053.74	1
022	86325212	JOINT	86325212 JOINT	$57.63	1
023	86398270	ACTUATOR	86398270 ACTUATOR	$11,869.49	1
024	86325191A	ACTUATOR SUPPORT	86325191A ACTUATOR SUPPORT	$495.51	1
025	86325300B	2-SEAT CLAMP	86325300B 2-SEAT CLAMP	$179.39	1
026	86010530	NAMEPLATE	86010530 NAMEPLATE	$8.56	1
027	86325087A	3-WAY PIPE KIT	86325087A 3-WAY PIPE KIT	$575.62 MSRP: ~~623.00~~ (7.6% off)	1
028	86325319A	PIPE	86325319A PIPE	$1,762.50	1
029	N91158801	HEXAGON SOCKET HEAD BOLT	N91158801 HEXAGON SOCKET HEAD BOLT	$13.61	6
030	WHT002948	SCREW M8X20	WHT002948 SCREW M8X20	$18.13	2
031	WHT003578	RING	WHT003578 RING	$3.72	2
032	86325220	BUSHING	86325220 BUSHING	$102.98	2
033	400971848	BRACKET 0 6 MM IN STOCK	400971848 BRACKET 0 6 MM IN STOCK	$0.60 MSRP: ~~7.29~~ (91.8% off)	3
034	400611757	JOURNAL IN STOCK	400611757 JOURNAL IN STOCK	$1.94 MSRP: ~~7.04~~ (72.4% off)	2
035	N01024717	SCREW M8X35	N01024717 SCREW M8X35	$17.18	1
036	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.11	1
037	N90226404	HEXAGON COLLAR NUT SELF-LOCKING	N90226404 HEXAGON COLLAR NUT SELF-LOCKING	$2.26 MSRP: ~~7.22~~ (68.7% off)	1
038	N10653201	HEX COLLARED BOLT IN STOCK	N10653201 HEX COLLARED BOLT IN STOCK	$2.19	2
039	N91126601	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91126601 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.25 MSRP: ~~7.30~~ (82.9% off)	3
040	N90886602	NUT M8	N90886602 NUT M8	$2.19 MSRP: ~~7.26~~ (69.8% off)	3
041	N0147774	SCREW	N0147774 SCREW	$19.56	3
042	400611757	JOURNAL IN STOCK	400611757 JOURNAL IN STOCK	$1.94 MSRP: ~~7.04~~ (72.4% off)	2
043	86317831A	SHEATH	86317831A SHEATH	$1,022.38	2
045	86325585	Storage Battery IN STOCK	86325585 Storage Battery IN STOCK	$476.93	1
046	86325181C	VALVES GROUP	86325181C VALVES GROUP	$10,712.85	1
047	86325295	ACTUATOR + PACKING + LIVES + VALVE QPV02	86325295 ACTUATOR + PACKING + LIVES + VALVE QPV02	$1,229.36	3
048	86919331	PRESSURE SENSOR	86919331 PRESSURE SENSOR	$249.98 MSRP: ~~366.00~~ (31.7% off)	1
049	86325297	ACTUATOR + PACKING + LIVES + VALVE	86325297 ACTUATOR + PACKING + LIVES + VALVE	$1,354.79	1
050	86325293	ACTUATOR + PACKING + LIVES + VALVE PPV02	86325293 ACTUATOR + PACKING + LIVES + VALVE PPV02	$1,238.13	2
051	86398199	BRACKET	86398199 BRACKET	$90.10	1
053	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 IN STOCK	$1.44	2
054	410323425	BRACKET	410323425 BRACKET	$37.97	1
055	N0206253	CLAMP	N0206253 CLAMP	$1.83 MSRP: ~~7.07~~ (74.1% off)	1
056	900000170	OIL (1.0Ltr)	900000170 OIL (1.0Ltr)	$54.45	1
