Clutch (manual) of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

Lamborghini Murcielago LP640 Roadster - Clutch (manual)

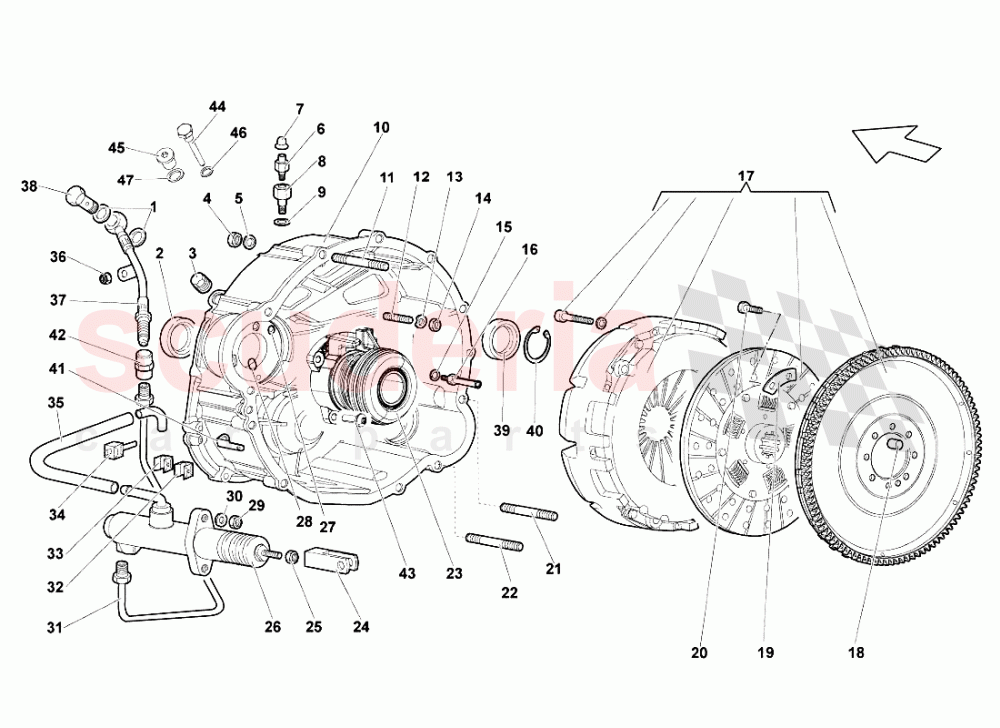

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N0138131	WASHER IN STOCK	N0138131 WASHER IN STOCK	$0.51 MSRP: ~~7.34~~ (93.1% off)	2
004	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.93	12
005	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.11	12
006	86301138	BLEEDER SCREW	86301138 BLEEDER SCREW	$23.90	1
007	86301147	DUST CAP IN STOCK	86301147 DUST CAP IN STOCK	$0.86 MSRP: ~~7.25~~ (88.1% off)	1
008	86323173B	CONNECTOR	86323173B CONNECTOR	$123.25	1
009	N91014802	SEAL RING	N91014802 SEAL RING	$11.00	1
010	86323209K	CLUTCH HOUSING	86323209K CLUTCH HOUSING	$3,037.53	1
011	WHT003027	STUD BOLT M8X35	WHT003027 STUD BOLT M8X35	$8.62	11
012	WHT002942	STUD BOLT	WHT002942 STUD BOLT	$10.27	3
013	WHT003213	WASHER	WHT003213 WASHER	$1.24 MSRP: ~~7.15~~ (82.7% off)	3
014	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 IN STOCK	$0.30 MSRP: ~~7.29~~ (95.9% off)	2
017	7M105269	Balanced Mechanism Clutch	7M105269 Balanced Mechanism Clutch	$8,155.21	1
018	WHT003078	DOWEL	WHT003078 DOWEL	$41.07	1
019	410141179	Retaining Plate	410141179 Retaining Plate	$59.51	4
020	WHT002951	Hexagon Head Bolt M8x1.25x23 IN STOCK	WHT002951 Hexagon Head Bolt M8x1.25x23 IN STOCK	$18.27	8
021	WHT002944	STUD BOLT M8X50	WHT002944 STUD BOLT M8X50	$15.63	2
022	WHT003166	STUD BOLT M8X40	WHT003166 STUD BOLT M8X40	$47.18	1
023	86141671M	Thrust Bearing	86141671M Thrust Bearing	$1,022.81	1
024	410721213A	FORK	410721213A FORK	$138.14	1
025	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.93	1
026	410721401A	CLUTCH PUMP	410721401A CLUTCH PUMP	$374.31	1
027	N90039604	O-RING 9.25 X 1.78 IN STOCK	N90039604 O-RING 9.25 X 1.78 IN STOCK	$10.90	1
028	WHT012530	O-RING 12.42X1.78-N IN STOCK	WHT012530 O-RING 12.42X1.78-N IN STOCK	$1.27	1
029	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.93	2
030	N0152785	WASHER IN STOCK	N0152785 WASHER IN STOCK	$0.44	2
031	413721461B	PIPE	413721461B PIPE	$625.00	1
032	400611799	BRACKET 0 5 MM IN STOCK	400611799 BRACKET 0 5 MM IN STOCK	$0.72 MSRP: ~~7.28~~ (90.1% off)	6
033	400971848	BRACKET 0 6 MM IN STOCK	400971848 BRACKET 0 6 MM IN STOCK	$0.59 MSRP: ~~7.29~~ (91.9% off)	2
034	400611757	JOURNAL IN STOCK	400611757 JOURNAL IN STOCK	$1.93 MSRP: ~~7.04~~ (72.6% off)	1
035	413721465	PIPE	413721465 PIPE	$17.87	1
036	WHT003226	NUT M12X1X7 IN STOCK	WHT003226 NUT M12X1X7 IN STOCK	$58.00	1
037	410721462B	HOSE	410721462B HOSE	$182.50	1
038	N0210717	SCREW WITH HOLE	N0210717 SCREW WITH HOLE	$3.39 MSRP: ~~6.55~~ (48.2% off)	1
039	86311819	SEAL RING	86311819 SEAL RING	$51.32	1
040	WHT003580	SEAL RING IN STOCK	WHT003580 SEAL RING IN STOCK	$14.19	1
041	410911085A	BRACKET	410911085A BRACKET	$25.26	1
042	410721419A	CONNECTOR	410721419A CONNECTOR	$326.25	1
044	86323961	PLUG	86323961 PLUG	$45.95	1
045	N0160276	PLUG	N0160276 PLUG	$7.32	1
046	N0138302	Washer Copper 8 x 1MM IN STOCK	N0138302 Washer Copper 8 x 1MM IN STOCK	$3.68 MSRP: ~~7.33~~ (49.8% off)	1
047	N0138495	SEAL RING IN STOCK	N0138495 SEAL RING IN STOCK	$3.95 MSRP: ~~7.21~~ (45.2% off)	1
