Find Your Part

Engine Hood 1 of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

Lamborghini Diablo VT Roadster (1998-2000) - Engine Hood 1

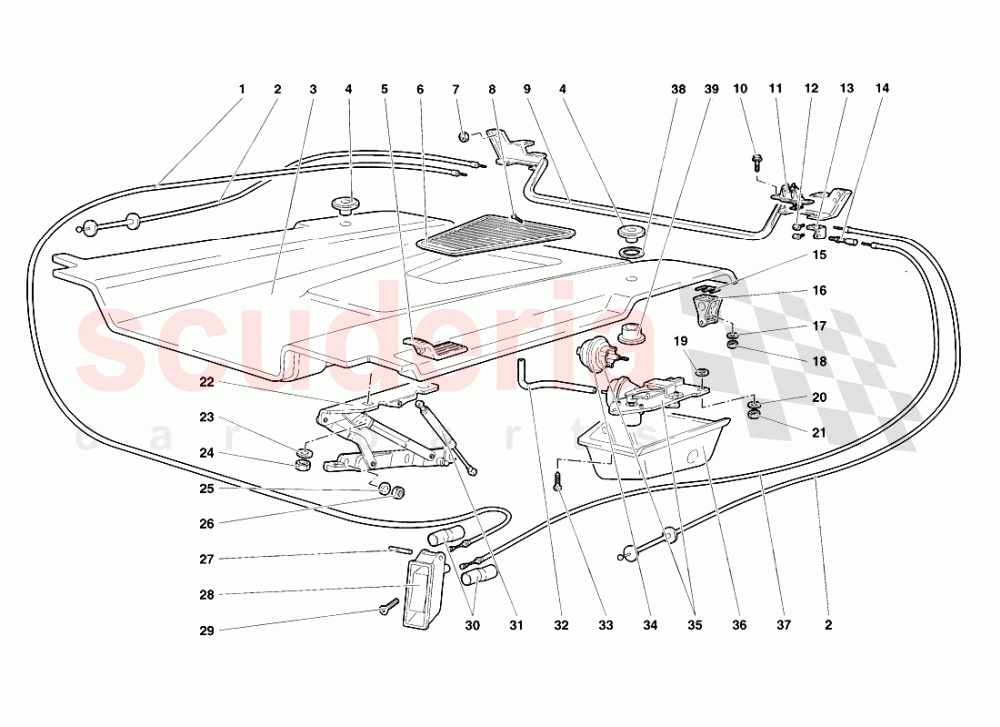

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9960001	RIGHT CABLE	9960001 RIGHT CABLE CAVO APERTURA DX	$27.06	1
002	9460003	CABLE	9460003 CABLE CAVO EMERGENZA	$26.94	2
004	9960265	PLASTIC BUSHING	9960265 PLASTIC BUSHING BOCCOLA Dl FINIZIONE SUP	$248.05	2
005	9960500	SHIELD	9960500 SHIELD PROTEZIONE	$151.81	2
006	9960400	GRILLE	9960400 GRILLE GRIGLIA	$2,860.25	1
007	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.19	4
008	8700344	SCREW	8700344 SCREW VITE	$0.15	6
009	4137285	SUPPORT - SUPPORTO	4137285 SUPPORT - SUPPORTO O	$550.46	1
010	8100603	SCREW	8100603 SCREW VITE	$1.29 MSRP: ~~7.35~~ (82.4% off)	4
011	9960203	LOCK	9960203 LOCK SERRATURA	$81.89	2
012	9460210	CLAMP	9460210 CLAMP MORSETTO	$29.10 MSRP: ~~31.55~~ (7.8% off)	4
013	4137286	BRACKET	4137286 BRACKET STAFFETTA	$31.35	2
014	9460213	ADJ/SCREW	9460213 ADJ/SCREW VITE REGOLAZIONE	-	2	Enquire
015	9960251	SHIM	9960251 SHIM SPESSORE Dl REGISTRO	$39.62	1
016	9960257	LEFT LOCK STRIKER	9960257 LEFT LOCK STRIKER RISCONTRO SX	$268.28	1
016	9960256	RIGHT LOCK STRIKER	9960256 RIGHT LOCK STRIKER RISCONTRO DX	$192.55	1
017	8400627	WASHER	8400627 WASHER RONDELLA	$20.48 MSRP: ~~22.95~~ (10.8% off)	4
018	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING DADO	$2.01 MSRP: ~~7.29~~ (72.4% off)	4
019	8400627	WASHER	8400627 WASHER DISTANZIALE	$20.48 MSRP: ~~22.95~~ (10.8% off)	1
020	8400627	WASHER	8400627 WASHER RONDELLA	$20.48 MSRP: ~~22.95~~ (10.8% off)	6
021	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.19	6
022	9960302	LEFT HINGE	9960302 LEFT HINGE CERNIERASX	$164.23	1
022	9960301	RIGHT HINGE	9960301 RIGHT HINGE CERNIERADX	$164.23	1
023	8400826	WASHER	8400826 WASHER RONDELLA	$2.49 MSRP: ~~2.65~~ (6% off)	4
024	N0111849	NUT IN STOCK	N0111849 NUT DADO IN STOCK	$2.13 MSRP: ~~7.25~~ (70.6% off)	4
025	8400627	WASHER	8400627 WASHER RONDELLA	$20.48 MSRP: ~~22.95~~ (10.8% off)	6
026	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING DADO	$2.01 MSRP: ~~7.29~~ (72.4% off)	6
027	8850304	PIN - SPINA	8850304 PIN - SPINA SA	$1.86 MSRP: ~~2.00~~ (7% off)	1
028	410823537	DOOR OPENING INTERIOR HANDLE ASSEMBLY IN STOCK	410823537 DOOR OPENING INTERIOR HANDLE ASSEMBLY IN STOCK	$1,227.76	1
029	8700539	SCREW	8700539 SCREW VITE	-	1	Enquire
030	9421385	LINER	9421385 LINER GUAINA	-	2	Enquire
031	92004389	SHOCK ABSORBER	92004389 SHOCK ABSORBER	-	2	Enquire
032	9960262	PIPE	9960262 PIPE TUBO	$36.77	2
033	8700433	SCREW	8700433 SCREW VITE	$0.08	8
034	7M907327	ACTUATOR INTAKE MANIFOLD	7M907327 ACTUATOR INTAKE MANIFOLD	$305.62	2
035	9960003	RIGHT LOCK	9960003 RIGHT LOCK SERRATURA DX	$1,095.16	1
035	9960004	LEFT LOCK	9960004 LEFT LOCK SERRATURA SX	$1,095.16	1
036	9960261	LEFT SHIELD	9960261 LEFT SHIELD PROTEZIONESX	$248.63	1
036	9960260	RIGHT SHIELD	9960260 RIGHT SHIELD PROTEZIONE DX	$248.63	1
037	9960002	LEFT CABLE	9960002 LEFT CABLE CAVO APERTURA SX	$92.62	1
038	9960264	GASKET	9960264 GASKET GUARNIZIONE	$2.44	2
039	9960263	PLASTIC BUSHING	9960263 PLASTIC BUSHING BOCCOLA Dl FINIZIONE INF	$36.60	2
