Coque Elements -Right Flank of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

Lamborghini Diablo VT Roadster (1998-2000) - Coque Elements -Right Flank

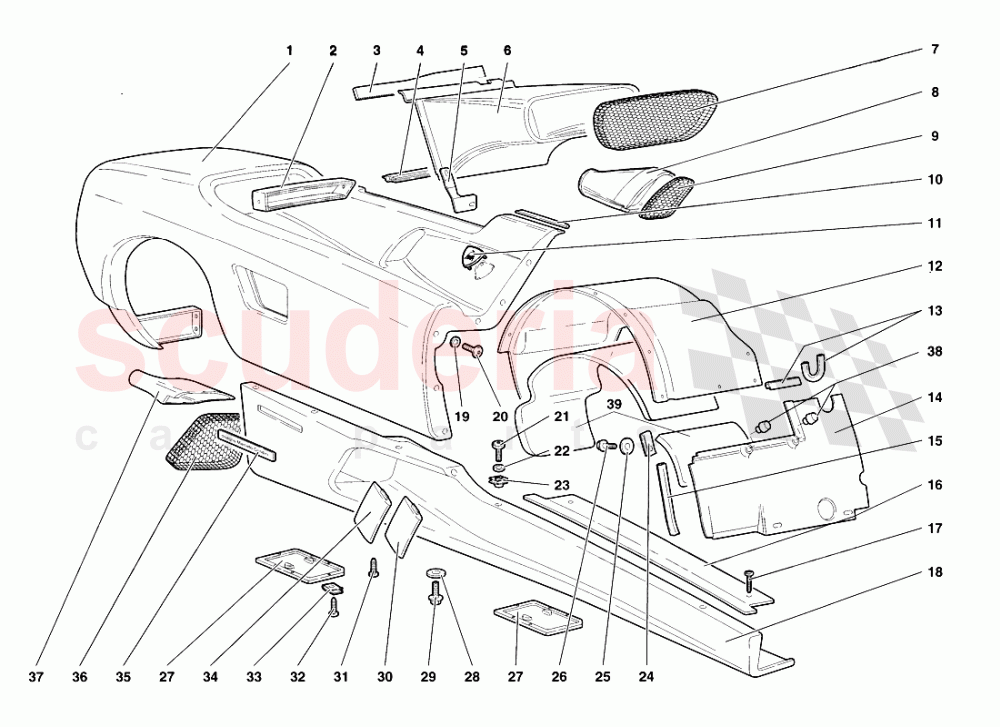

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	9910002	REAR WING	9910002 REAR WING	$9,209.04	1
002	9910207	GRILLE	9910207 GRILLE GRIGLIA	$149.63	1
003	4531592	GASKET	4531592 GASKET GUARNIZIONE	$8.64 MSRP: ~~9.45~~ (8.6% off)	1
004	7090117	GASKET	7090117 GASKET GUARNIZIONE .	$54.40	1
005	4135637	BRACKET	4135637 BRACKET STAFFA	$68.03	1
006	9953102	CONVEYOR	9953102 CONVEYOR CONVOGLIATORE	$770.11	1
007	9910202	NET	9910202 NET RETE	$106.74	1
008	9953100	CONVEYOR	9953100 CONVEYOR CONVOGLIATORE	$272.82	1
009	9910204	NET	9910204 NET RETE	$78.74	1
010	9907107	SHIELD	9907107 SHIELD PROTEZIONE	$15.95	1
011	6127985	ORNAMENT	6127985 ORNAMENT FREGIO	$422.46	1
012	9911500	REAR WHEELBOX	9911500 REAR WHEELBOX PASSARUOTA POST.	$390.25 MSRP: ~~425.00~~ (8.2% off)	1
013	9411513	GASKET	9411513 GASKET GUARNIZIONE	$169.90	2
014	9911502	PROTECTION	9911502 PROTECTION PARASASSI	$475.33	1
015	9411511	GASKET	9411511 GASKET GUARNIZIONE	$101.88	1
016	9458614	DOORSILL MOULDING	9458614 DOORSILL MOULDING BATTICALCAGNO	$709.11	1
017	8700334	SCREW	8700334 SCREW VITE	$0.65 MSRP: ~~7.25~~ (91% off)	2
018	9910300	SIDE PANEL	9910300 SIDE PANEL BRANCARDO	$5,580.11	1
019	8400629	WASHER	8400629 WASHER RONDELLA	$1.34 MSRP: ~~7.11~~ (81.2% off)	13
020	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$19.88	13
021	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$19.88	3
022	8400629	WASHER	8400629 WASHER RONDELLA	$1.34 MSRP: ~~7.11~~ (81.2% off)	3
023	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT IN STOCK	$1.23	6
024	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	$14.42	17
025	N91109201	WASHER IN STOCK	N91109201 WASHER RONDELLA IN STOCK	$1.61 MSRP: ~~5.85~~ (72.5% off)	17
026	8700449	SCREW IN STOCK	8700449 SCREW VITE IN STOCK	$2.77 MSRP: ~~7.37~~ (62.4% off)	17
027	9410306	INSPECTION LID	9410306 INSPECTION LID SPORTELLO ISPEZIONE	$62.62 MSRP: ~~70.60~~ (11.3% off)	2
028	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	3
029	WHT003069	SCREW M6X1X20	WHT003069 SCREW M6X1X20 VITE	$41.95	9
030	9410309	FIN	9410309 FIN ALETTA	$5,882.25	1
031	WHT003304	SCREW IN STOCK	WHT003304 SCREW VITE IN STOCK	$0.57 MSRP: ~~7.28~~ (92.2% off)	4
032	WHT003114	SCREW	WHT003114 SCREW VITE	$5.11	12
033	WHT003424	CLIP IN STOCK	WHT003424 CLIP MOLLETTA IN STOCK	$0.83 MSRP: ~~7.25~~ (88.6% off)	12
034	9410310	FIN	9410310 FIN ALETTA	$5,882.25	1
036	9430147	NET	9430147 NET RETE	$119.79	1
037	9953104	CONVEYOR	9953104 CONVEYOR CONVOGLIATORE	$561.76	1
038	9421428	RUBBER PAD	9421428 RUBBER PAD TAMPONE GOMMA	$4.77 MSRP: ~~5.30~~ (10% off)	2
039	9455517	RIGHT LINING	9455517 RIGHT LINING (Valid for SWITZERLAND1998) ISOLAMENTO DX	$75.73	1
