Lamborghini Diablo VT Roadster (1998-2000) - Doors 3

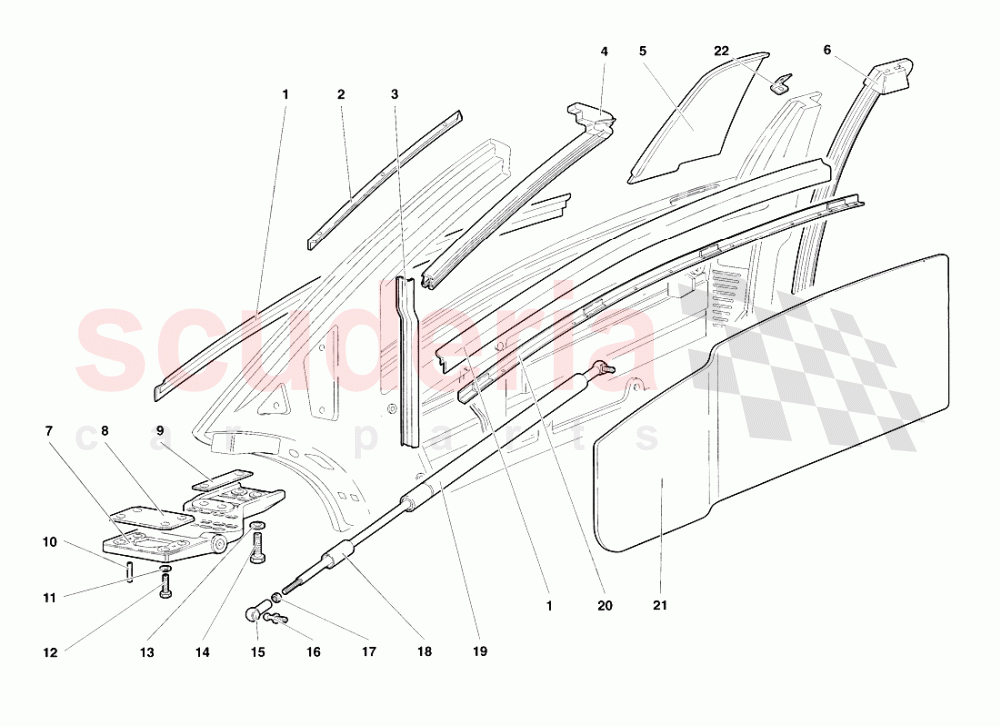

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9421700	GASKET	9421700 GASKET GUARNIZIONE VETRO	$1,066.65	4
002	9921506	RIGHT ANGLE PIECE	9921506 RIGHT ANGLE PIECE ANGOLARE DX	$120.94	1
002	9921507	LEFT ANGLE PIECE	9921507 LEFT ANGLE PIECE ANGOLARE SX	$58.22	1
003	9921714	GASKET GLAS	9921714 GASKET GLAS GUARNIZIONE VETRO	$92.94	2
004	72001686	LEFT GASKET GLAS	72001686 LEFT GASKET GLAS GUARNIZIONE VETRO SX	$918.10	1
004	72001683	RIGHT GASKET GLAS	72001683 RIGHT GASKET GLAS GUARNIZIONE VETRO DX	$270.81	1
005	9921118	PANEL	9921118 PANEL PANNELLO DX	$387.71	1
005	9921119	PANEL	9921119 PANEL PANNELLO SX	$452.30	1
006	9921717	GASKET	9921717 GASKET GUARNIZIONE MONTANTE POST. DX	$251.14	1
006	9921718	GASKET	9921718 GASKET GUARNIZIONE MONTANTE POST. SX	$251.14	1
007	410831402	RH HINGE	410831402 RH HINGE CERNIERADX	$1,086.75	1
007	9421030	LH HINGE	9421030 LH HINGE CERNIERASX	$1,192.02 MSRP: ~~1,335.00~~ (10.7% off)	1
008	4132052	SHIM	4132052 SHIM SPESSORE 1 MM	-	1	Enquire
008	4132051	SHIM	4132051 SHIM SPESSOREO,8MM	-	1	Enquire
008	4132054	SHIM	4132054 SHIM SPESSORE 1,5 MM	-	1	Enquire
008	4132053	SHIM	4132053 SHIM SPESSORE 1,2 MM	-	1	Enquire
009	9421381	SHIM	9421381 SHIM SPESSORE 1,5 MM	$26.35 MSRP: ~~29.45~~ (10.5% off)	1
009	9421380	SHIM	9421380 SHIM SPESSORE 1 MM	-	1	Enquire
010	8900401	PIN IN STOCK	8900401 PIN SA IN STOCK	$0.24 MSRP: ~~7.35~~ (96.7% off)	4
011	8400801	WASHER	8400801 WASHER RONDELLA	$0.64	8
012	8100821	SCREW	8100821 SCREW VITE	$1.21	8
013	8411015	WASHER	8411015 WASHER RONDELLA	$10.55 MSRP: ~~11.70~~ (9.8% off)	8
014	8101008	SCREW	8101008 SCREW VITE	$15.06	8
015	410837262	JACK HEAD	410837262 JACK HEAD TESTA A SNODO	$8.47	2
016	9421384	PIN	9421384 PIN PERNO	-	2	Enquire
017	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.94	2
018	9421385	LINER	9421385 LINER GUAINA	-	2	Enquire
019	9421382	DOOR STRUT	9421382 DOOR STRUT MOLLA A GAS COMPLETA	$78.25	2
020	9921708	LEFT CHANNEL	9921708 LEFT CHANNEL PROFILATO SX	$72.81	1
020	9921707	RIGHT CHANNEL	9921707 RIGHT CHANNEL PROFILATO DX	$555.49	1
021	9421535	SHIELD	9421535 SHIELD PROTEZIONE	$41.46	2
022	9963103	BRACKET	9963103 BRACKET STAFFA	$16.16	2
