Rear Coque Elements of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

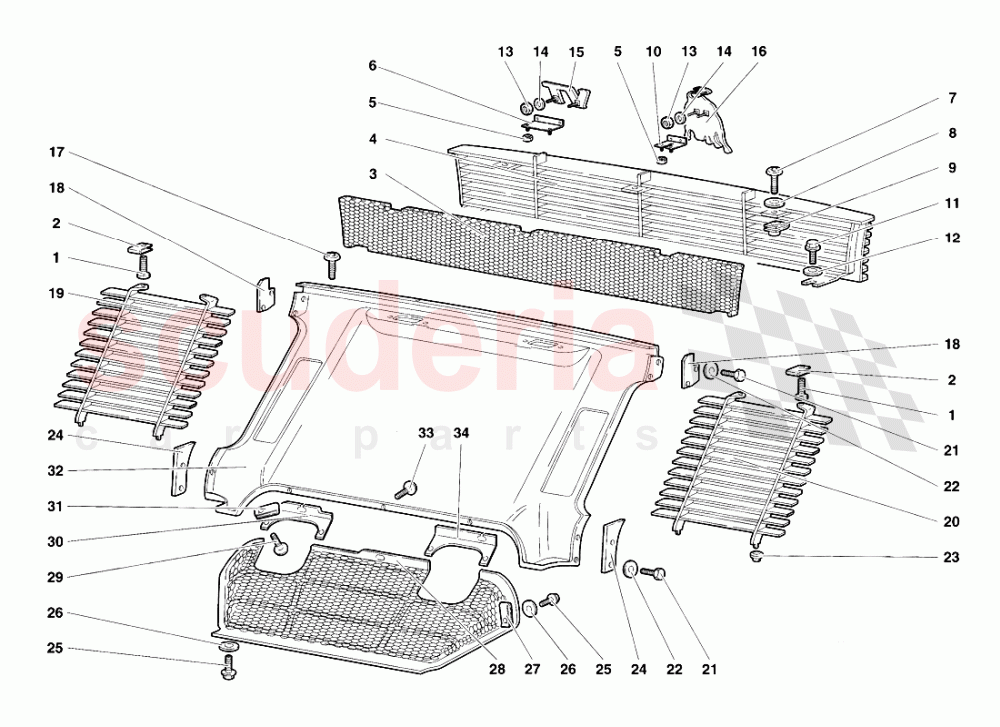

Lamborghini Diablo VT Roadster (1998-2000) - Rear Coque Elements

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8700437	SCREW	8700437 SCREW VITE	-	4	Enquire
002	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	$14.46	4
003	9430159	NET	9430159 NET RETE	$230.38	1
004	9910210	GRILLE	9910210 GRILLE GRIGLIA	$647.80	1
005	N01100412	HEXAGON NUT	N01100412 HEXAGON NUT DADO	-	1	Enquire
006	9430166	BRACKET	9430166 BRACKET STAFFA	$220.87	1
007	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$19.94	3
008	8400629	WASHER	8400629 WASHER RONDELLA	$1.34 MSRP: ~~7.11~~ (81.2% off)	3
009	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT IN STOCK	$1.23	3
010	9910211	BRACKET	9910211 BRACKET STAFFA	$14.16	1
011	8700449	SCREW IN STOCK	8700449 SCREW VITE IN STOCK	$2.78 MSRP: ~~7.37~~ (62.3% off)	2
012	N91109201	WASHER IN STOCK	N91109201 WASHER RONDELLA IN STOCK	$1.62 MSRP: ~~5.85~~ (72.3% off)	2
013	8200302	NUT IN STOCK	8200302 NUT DADO IN STOCK	$0.15	4
014	8400303	WASHER IN STOCK	8400303 WASHER RONDELLA IN STOCK	$0.04	4
015	9966003	PLATE	9966003 PLATE TARGHETTA VT	$24.43	1
016	9966005	ORNAMENT (BULL)	9966005 ORNAMENT (BULL) FREGIO	$274.83	1
017	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$19.94	2
018	9410205	SPACER	9410205 SPACER DISTANZIALE	$11.59	2
019	9430103	RIGHT GRILLE	9430103 RIGHT GRILLE GRIGLIA DX	$3,320.77	1
020	9430104	LEFT GRILLE	9430104 LEFT GRILLE GRIGLIA SX	$3,455.48	1
021	8100621	SCREW M6 X 20 UNI 5739/5S/Z IN STOCK	8100621 SCREW M6 X 20 UNI 5739/5S/Z VITE IN STOCK	$0.11 MSRP: ~~7.37~~ (98.5% off)	8
022	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	8
023	66002463	BUSHING	66002463 BUSHING BOCCOLA	$3.19 MSRP: ~~3.50~~ (8.9% off)	4
024	9410206	SPACER	9410206 SPACER DISTANZIALE	$46.61	2
025	8700449	SCREW IN STOCK	8700449 SCREW VITE IN STOCK	$2.78 MSRP: ~~7.37~~ (62.3% off)	4
026	N91109201	WASHER IN STOCK	N91109201 WASHER RONDELLA IN STOCK	$1.62 MSRP: ~~5.85~~ (72.3% off)	4
027	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	$14.46	4
028	9430174	GRILLE	9430174 GRILLE GRIGLIA	$488.45	1
029	N91049601	OVAL HEAD PANEL SCREW (COMBI) IN STOCK	N91049601 OVAL HEAD PANEL SCREW (COMBI) VITE IN STOCK	$0.95 MSRP: ~~7.31~~ (87% off)	4
030	9430144	RIGHT PLATE	9430144 RIGHT PLATE LAMIERINO DX	$39.56 MSRP: ~~42.80~~ (7.6% off)	1
031	8220402	CLIP	8220402 CLIP MOLLETTA	$4.11 MSRP: ~~7.12~~ (42.3% off)	4
032	9410200	REAR PANEL	9410200 REAR PANEL ELEMENTO SCOGCA POST.	$1,795.59 MSRP: ~~1,950.00~~ (7.9% off)	1
033	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$19.94	3
034	9430146	LEFT PLATE	9430146 LEFT PLATE LAMIERINO SX	$39.56 MSRP: ~~42.80~~ (7.6% off)	1
