Roof of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

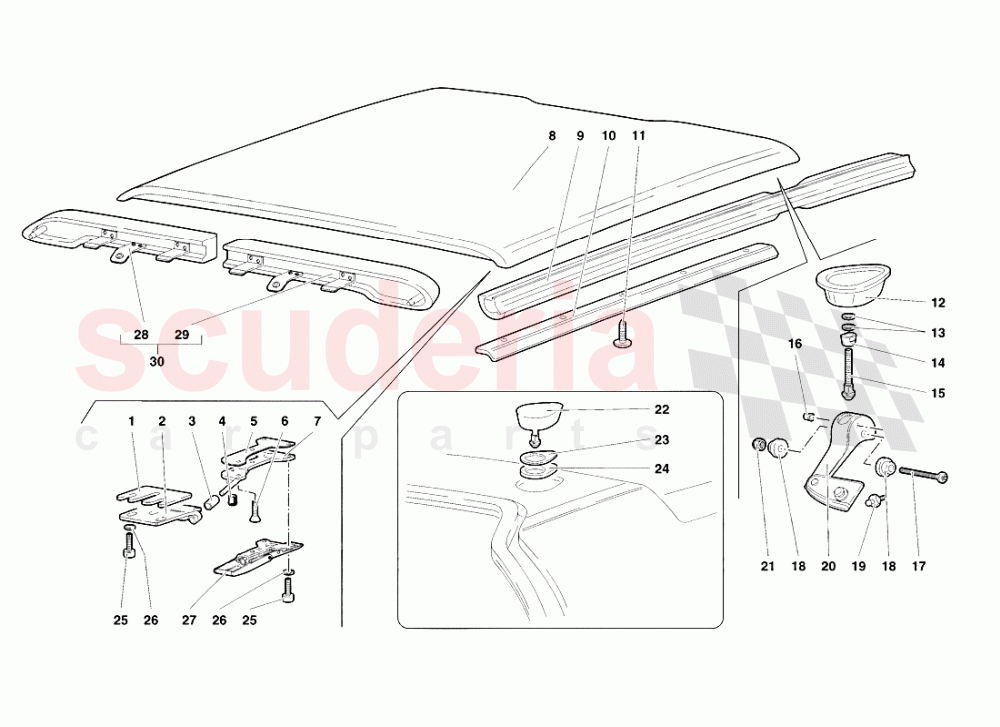

Lamborghini Diablo VT Roadster (1998-2000) - Roof

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9907324	SHIM	9907324 SHIM SPESSORE Dl REGISTRO 1 MM	$39.55	1
002	9907302	RIGHT LOCK STRIKER	9907302 RIGHT LOCK STRIKER RISCONTRO DX	$565.69	1
002	9907307	LEFT LOCK STRIKER	9907307 LEFT LOCK STRIKER RISCONTRO SX	$565.69	1
003	9907338	BUSHING	9907338 BUSHING BOCCOLA	$36.54	2
004	9907312	MAGNET - MAGNETE SU STAFFA TETTUCCIO	9907312 MAGNET - MAGNETE SU STAFFA TETTUCCIO E SU STAFFA TETTUCCIO	$9.53	2
005	9907323	SHIM	9907323 SHIM SPESSORE Dl REGISTRO 1 MM	$11.83	1
006	8740509	SCREW	8740509 SCREW VITE	$0.19	2
007	9907308	RIGHT BRACKET	9907308 RIGHT BRACKET STAFFA DX POSIZ.TETTUCCIO	$125.25	1
007	9907309	LEFT BRACKET	9907309 LEFT BRACKET STAFFA SX POSIZ.TETTUCCIO	$63.17	1
008	67001676	FOLDING TOP	67001676 FOLDING TOP TETTUCCIO MOBILE	$8,067.89	1
009	67004591	RIGHT ROOF GASKET	67004591 RIGHT ROOF GASKET	$622.28	1
009	67001680	LEFT ROOF GASKET	67001680 LEFT ROOF GASKET GUARNIZ. SXTETTO	$622.28	1
010	67003220	CHANNEL	67003220 CHANNEL PROFILATO	$69.75	2
011	8700463	SCREW	8700463 SCREW VITE AUTOFILETTANTE	$1.20 MSRP: ~~7.16~~ (83.2% off)	10
012	9907316	RIGHT BOOT	9907316 RIGHT BOOT CUFFIA DX	$60.95	1
012	9907317	LEFT BOOT	9907317 LEFT BOOT CUFFIA SX	$52.30	1
013	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 RONDELLA IN STOCK	$0.32 MSRP: ~~7.35~~ (95.6% off)	4
014	9907320	LOCK NUT	9907320 LOCK NUT CONTRODADO	$89.02	2
015	9907311	PIN	9907311 PIN PERNO GANCIO TETTO	$722.70	2
016	9907111	POSITION BALL	9907111 POSITION BALL POSIZIONATORE	$9.98 MSRP: ~~11.20~~ (10.9% off)	4
017	8740653	SCREW	8740653 SCREW VITE	$1.73	2
018	9907112	BUSHING IN STOCK	9907112 BUSHING BOCCOLA IN STOCK	$1.80	4
019	9907103	SELF-LOCKING SCREW	9907103 SELF-LOCKING SCREW VITE AUTOFILETTANTE	$27.37	2
020	9907009	LEFT HANDLE	9907009 LEFT HANDLE MANIGLIASX	$378.40	1
020	9907008	RIGHT HANDLE	9907008 RIGHT HANDLE MANIGLIADX	$221.52	1
021	8240610	SELF LOCKING NUT	8240610 SELF LOCKING NUT DADO AUTOBLOCCANTE	-	2	Enquire
022	9907005	LEFT PLUG	9907005 LEFT PLUG TAPPO SX	$499.69	1
022	9907004	RIGHT PLUG	9907004 RIGHT PLUG TAPPO DX	$499.69	1
023	9907006	SHIM IN STOCK	9907006 SHIM SPESSORE Dl REGISTRO 1,5 MM IN STOCK	$1.13	1
024	9907007	SHIM	9907007 SHIM SPESSORE Dl REGISTRO 3 MM	$4.05	1
025	8740531	SCREW	8740531 SCREW VITE	$0.19	6
026	WHT001187	WASHER IN STOCK	WHT001187 WASHER RONDELLA IN STOCK	$0.76 MSRP: ~~7.26~~ (89.5% off)	6
027	9907327	ROOF LOCKING HOOK	9907327 ROOF LOCKING HOOK GANCIO FISS. TETTO	-	2	Enquire
028	67001479	RIGHT HOOK SHIELD	67001479 RIGHT HOOK SHIELD PROTEZ. GANCIO DX	$653.25	1
029	67001480	LEFT HOOK SHIELD	67001480 LEFT HOOK SHIELD PROTEZ. GANCIO SX	$653.25	1
030	67003150	KIT SHIELD	67003150 KIT SHIELD KIT PROTEZIONI	-	1	Enquire
