Doors 1 of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

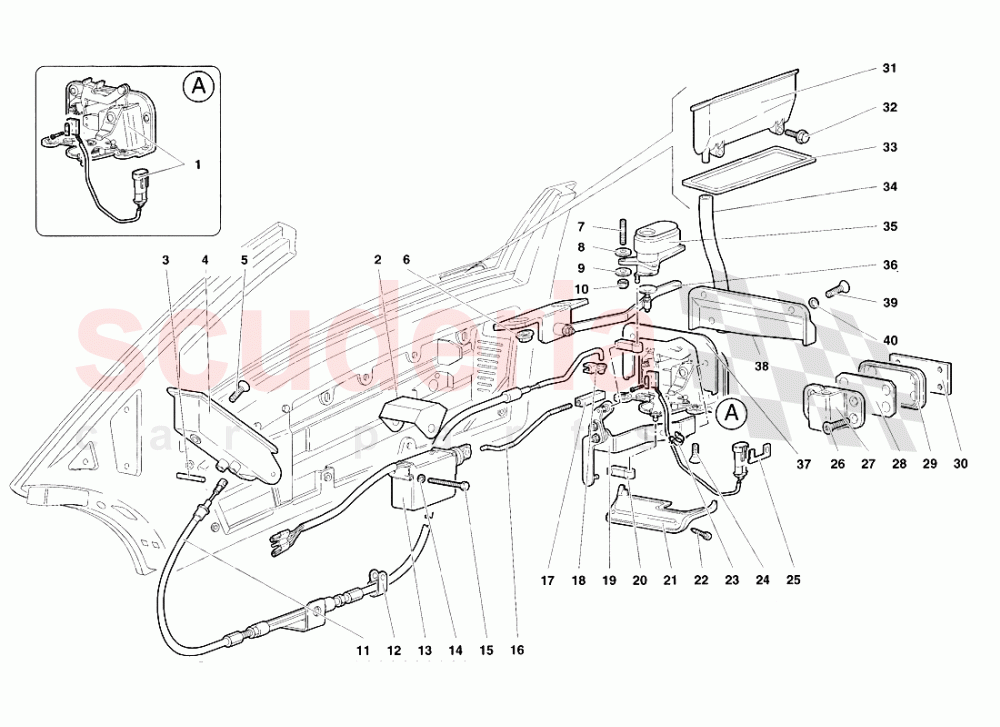

Lamborghini Diablo VT Roadster (1998-2000) - Doors 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9921219	LOCK	9921219 LOCK SERRATURA DX	$1,935.42	1
001	9921220	LOCK	9921220 LOCK SERRATURA SX	$1,935.42	1
002	9921113	LEFT SHIELD	9921113 LEFT SHIELD PROTEZIONE SX	$14.51 MSRP: ~~15.80~~ (8.2% off)	1
002	9921112	RIGHT SHIELD	9921112 RIGHT SHIELD PROTEZIONE DX	$79.39 MSRP: ~~86.40~~ (8.1% off)	1
003	8850304	PIN - SPINA	8850304 PIN - SPINA PERNO	$1.85 MSRP: ~~2.00~~ (7.5% off)	2
004	410823537	DOOR OPENING INTERIOR HANDLE ASSEMBLY IN STOCK	410823537 DOOR OPENING INTERIOR HANDLE ASSEMBLY IN STOCK	$1,223.07	2
005	8700539	SCREW	8700539 SCREW VITE	-	2	Enquire
006	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.19	4
007	8300403	STUD	8300403 STUD PRIGIONIERO (L=21 MM)	$24.49 MSRP: ~~27.55~~ (11.1% off)	4
007	9921221	STUD	9921221 STUD PRIGIONIERO(L=18MM)	$3.99 MSRP: ~~4.40~~ (9.3% off)	2
008	8400401	WASHER	8400401 WASHER RONDELLA	$0.12	1
009	8400401	WASHER	8400401 WASHER RONDELLA	$0.12	6
010	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT DADO IN STOCK	$0.77 MSRP: ~~7.26~~ (89.4% off)	6
011	9921010	RIGHT CABLE	9921010 RIGHT CABLE CAVO DX	$89.78	1
011	9921011	LEFT CABLE	9921011 LEFT CABLE CAVO SX	$89.78	1
012	8830907	STRAP IN STOCK	8830907 STRAP FASCETTA IN STOCK	$0.46 MSRP: ~~7.30~~ (93.7% off)	6
013	R1320008	RHS door actuator	R1320008 RHS door actuator	$435.47	1
013	R1320007	LHS door actuator	R1320007 LHS door actuator	$917.97	1
014	8400401	WASHER	8400401 WASHER RONDELLA	$0.12	4
015	8100404	SCREW	8100404 SCREW VITE	$0.59	4
016	9921211	LEFT TIE ROD	9921211 LEFT TIE ROD TIRANTE SX	$20.46 MSRP: ~~22.25~~ (8% off)	1
016	9921204	RIGHT TIE ROD	9921204 RIGHT TIE ROD TIRANTE DX	$20.46 MSRP: ~~22.25~~ (8% off)	1
017	7021016	PAWL	7021016 PAWL NOTTOLINO	-	2	Enquire
018	9421251	CLIP	9421251 CLIP MOLLETTA Dl AGGANCIO	-	2	Enquire
019	9921226	LEFT IDLE LEVER	9921226 LEFT IDLE LEVER RINVIO A LEVA SX	$226.38 MSRP: ~~246.50~~ (8.2% off)	1
019	9921225	RIGHT IDLE LEVER	9921225 RIGHT IDLE LEVER RINVIO A LEVA DX	$335.95	1
020	9421214	COUPLING	9421214 COUPLING TESTINA	-	4	Enquire
021	410837119	LEFT SHIELD	410837119 LEFT SHIELD PROTEZIONE SX	$54.60	1
021	410837120	RIGHT SHIELD	410837120 RIGHT SHIELD PROTEZIONE DX	$54.60	1
022	8700332	SCREW IN STOCK	8700332 SCREW VITE IN STOCK	$0.37	4
023	8830411	STRAP IN STOCK	8830411 STRAP FASCETTA IN STOCK	$1.20 MSRP: ~~7.09~~ (83.1% off)	2
024	WHT003068	COUNTERSUNK BOLT IN STOCK	WHT003068 COUNTERSUNK BOLT VITE IN STOCK	$1.32 MSRP: ~~7.17~~ (81.6% off)	8
025	6137785	SUPPORT - SUPPORTO	6137785 SUPPORT - SUPPORTO O	$1.82	2
026	8700610	SCREW IN STOCK	8700610 SCREW VITE IN STOCK	$0.62 MSRP: ~~7.29~~ (91.5% off)	8
027	410831407A	Hinge Half Left Hand IN STOCK	410831407A Hinge Half Left Hand RISCONTRO SX IN STOCK	$321.20 MSRP: ~~407.00~~ (21.1% off)	1
027	410831408A	Hinge Half Right hand	410831408A Hinge Half Right hand RISCONTRO DX	$808.56	1
028	410837963	SPACER IN STOCK	410837963 SPACER DISTANZIALE IN STOCK	$15.16	4
028	410837964	SPACER	410837964 SPACER DISTANZIALE	$14.80	4
029	410837899	ORNAMENT IN STOCK	410837899 ORNAMENT IN STOCK	$14.90	2
030	7021253	PLATE	7021253 PLATE PIASTRA	$663.55	2
031	9421200	RIGHT HANDLE	9421200 RIGHT HANDLE MANIGLIA DX	$319.22	1
031	9421201	LEFT HANDLE	9421201 LEFT HANDLE MANIGLIA SX	$334.68	1
032	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.68	4
033	9421713	LEFT GASKET	9421713 LEFT GASKET GUARNIZIONE SX	$12.28	1
033	9421712	RIGHT GASKET	9421712 RIGHT GASKET GUARNIZIONE DX	$5.08 MSRP: ~~5.55~~ (8.5% off)	1
034	9421245	PIPE	9421245 PIPE TUBO	$16.61 MSRP: ~~18.05~~ (8% off)	2
035	9421267	RIGHT BUTTON	9421267 RIGHT BUTTON PULSANTE DX	-	1	Enquire
035	9421268	LEFT BUTTON	9421268 LEFT BUTTON PULSANTE SX	-	1	Enquire
036	9921223	RIGHT IDLE LEVER	9921223 RIGHT IDLE LEVER RINVIO A LEVA DX	$226.38 MSRP: ~~246.50~~ (8.2% off)	1
036	9921224	LEFT IDLE LEVER	9921224 LEFT IDLE LEVER RINVIO A LEVA SX	$226.38 MSRP: ~~246.50~~ (8.2% off)	1
037	9421272	LEFT GASKET	9421272 LEFT GASKET GUARNIZIONE SX	-	1	Enquire
037	9421273	RIGHT GASKET	9421273 RIGHT GASKET GUARNIZIONE DX	-	1	Enquire
038	72001640	RIGHT SHIELD	72001640 RIGHT SHIELD (Valid for U.S.A.1998) PROTEZIONE DX	$283.40	1
038	72001640	RIGHT SHIELD	72001640 RIGHT SHIELD (Valid for CANADA 1998) PROTEZIONE DX	$283.40	1
038	72001640	RIGHT SHIELD	72001640 RIGHT SHIELD (Valid for AUSTRALIA 1998) PROTEZIONE DX	$283.40	1
038	72001639	RIGHT SHIELD	72001639 RIGHT SHIELD (Valid for AUSTRALIA 1998) PROTEZIONE SX	$283.40	1
038	72001639	RIGHT SHIELD	72001639 RIGHT SHIELD (Valid for U.S.A.1998) PROTEZIONE SX	$283.40	1
038	72001639	RIGHT SHIELD	72001639 RIGHT SHIELD (Valid for CANADA 1998) PROTEZIONE SX	$283.40	1
039	8400624	WASHER	8400624 WASHER (Valid for U.S.A. 1998) RONDELLA	$4.44	8
039	8400624	WASHER	8400624 WASHER (Valid for AUSTRALIA 1998)RONDELLA	$4.44	8
039	8400624	WASHER	8400624 WASHER (Valid for CANADA 1998) RONDELLA	$4.44	8
040	WHT003068	COUNTERSUNK BOLT IN STOCK	WHT003068 COUNTERSUNK BOLT (Valid for AUSTRALIA 1998) VITE IN STOCK	$1.32 MSRP: ~~7.17~~ (81.6% off)	4
040	WHT003068	COUNTERSUNK BOLT IN STOCK	WHT003068 COUNTERSUNK BOLT (Valid for U.S.A.1998) VITE IN STOCK	$1.32 MSRP: ~~7.17~~ (81.6% off)	4
040	WHT003068	COUNTERSUNK BOLT IN STOCK	WHT003068 COUNTERSUNK BOLT (Valid for CANADA 1998) VITE IN STOCK	$1.32 MSRP: ~~7.17~~ (81.6% off)	4
