Coque Elements - Left Flank of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

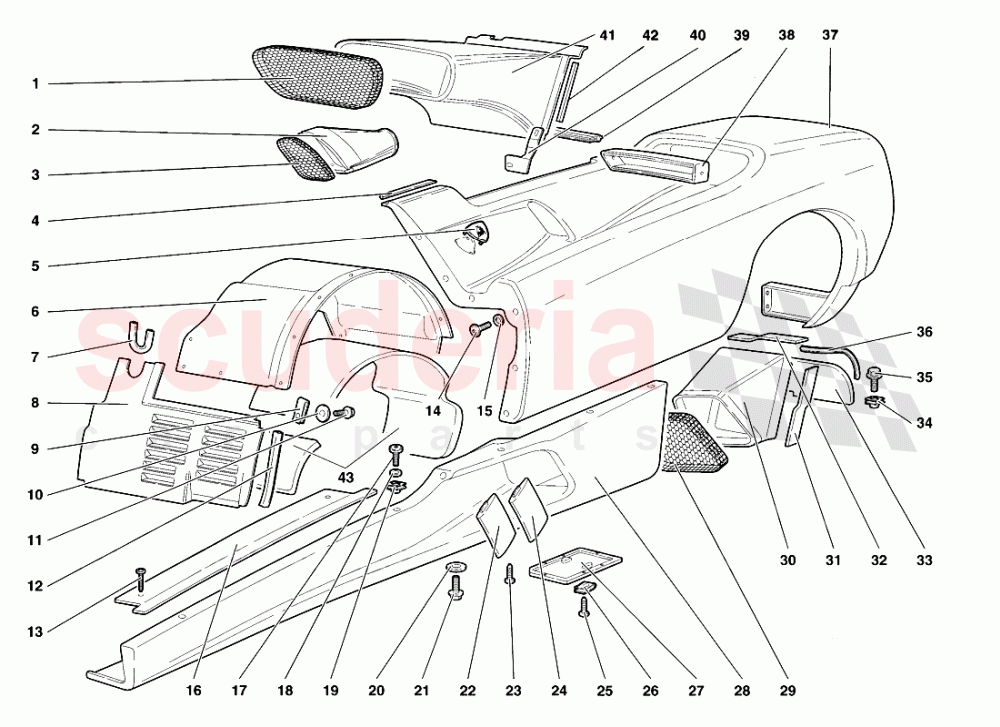

Lamborghini Diablo VT Roadster (1998-2000) - Coque Elements - Left Flank

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9910203	NET	9910203 NET RETE	$106.82	1
002	9953101	CONVEYOR	9953101 CONVEYOR CONVOGLIATORE SX	$273.03	1
003	9910205	NET	9910205 NET RETE	$78.80	1
004	9907108	SHIELD	9907108 SHIELD PROTEZIONE	$15.96	1
005	6127985	ORNAMENT	6127985 ORNAMENT FREGIO	$422.79	1
006	9911501	REAR WHEELBOX	9911501 REAR WHEELBOX PASSARUOTA POST.	$934.29	1
007	9411513	GASKET	9411513 GASKET GUARNIZIONE	$170.03	1
008	9911503	PROTECTION	9911503 PROTECTION PARASASSI	$826.57	1
009	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	$14.43	17
010	N91109201	WASHER IN STOCK	N91109201 WASHER RONDELLA IN STOCK	$1.61 MSRP: ~~5.85~~ (72.5% off)	17
011	8700449	SCREW IN STOCK	8700449 SCREW VITE IN STOCK	$2.77 MSRP: ~~7.37~~ (62.4% off)	17
012	9411511	GASKET	9411511 GASKET GUARNIZIONE	$101.96	1
013	8700334	SCREW	8700334 SCREW VITE	$0.65 MSRP: ~~7.25~~ (91% off)	2
014	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$19.89	13
015	8400629	WASHER	8400629 WASHER RONDELLA	$1.34 MSRP: ~~7.11~~ (81.2% off)	13
016	9458615	DOORSILL MOULDING	9458615 DOORSILL MOULDING BATTICALCAGNO	$709.66	1
017	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$19.89	3
018	8400629	WASHER	8400629 WASHER RONDELLA	$1.34 MSRP: ~~7.11~~ (81.2% off)	3
019	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT IN STOCK	$1.23	6
020	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	3
021	WHT003069	SCREW M6X1X20	WHT003069 SCREW M6X1X20 VITE	$41.98	9
022	9410311	FIN	9410311 FIN ALETTA	$5,886.81	1
023	WHT003304	SCREW IN STOCK	WHT003304 SCREW VITE IN STOCK	$0.57 MSRP: ~~7.28~~ (92.2% off)	4
024	9410312	FIN	9410312 FIN ALETTA	$5,886.81	1
025	WHT003114	SCREW	WHT003114 SCREW VITE	$5.12	6
026	WHT003424	CLIP IN STOCK	WHT003424 CLIP MOLLETTA IN STOCK	$0.83 MSRP: ~~7.25~~ (88.6% off)	6
027	9410306	INSPECTION LID	9410306 INSPECTION LID SPORTELLO ISPEZIONE	$62.67 MSRP: ~~70.60~~ (11.2% off)	1
028	9910301	SIDE PANEL	9910301 SIDE PANEL BRANCARDO	$5,591.16	1
029	9430148	NET	9430148 NET RETE	$119.88	1
030	9453149	CONVEYOR	9453149 CONVEYOR CONVOGLIATORE	-	1	Enquire
031	9453126	GASKET	9453126 GASKET GUARNIZIONE	$3.74 MSRP: ~~4.15~~ (9.9% off)	1
032	9453125	GASKET	9453125 GASKET GUARNIZIONE	$4.95 MSRP: ~~5.45~~ (9.2% off)	1
033	9453142	CONVEYOR	9453142 CONVEYOR CONVOGLIATORE	$100.80 MSRP: ~~113.50~~ (11.2% off)	1
034	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT IN STOCK	$1.23	2
035	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.68	2
036	9490200	GASKET IN STOCK	9490200 GASKET GUARNIZIONE IN STOCK	$126.73	1
037	9910003	REAR MUDGUARD FE.	9910003 REAR MUDGUARD FE. PARAFANGO POST.	$8,962.73	1
038	9910208	GRILLE	9910208 GRILLE GRIGLIA	$149.75	1
039	7090117	GASKET	7090117 GASKET GUARNIZIONE	$54.44	1
040	4135636	BRACKET	4135636 BRACKET STAFFA	$68.08	1
041	74001517	CONVEYOR	74001517 CONVEYOR CONVOGLIATORE SX	$749.97	1
042	74001522	GASKET	74001522 GASKET GUARNIZIONE	$8.17	1
043	9455518	LEFT LINING	9455518 LEFT LINING (Valid for SWITZERLAND.1998) ISOLAMENTO SX	-	1	Enquire
