Engine Hood (Valid For June 1992 Version)

Lamborghini Diablo (1990-1998)

Find Your Part

Lamborghini Diablo (1990-1998) - Engine Hood (Valid for June 1992 Version)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

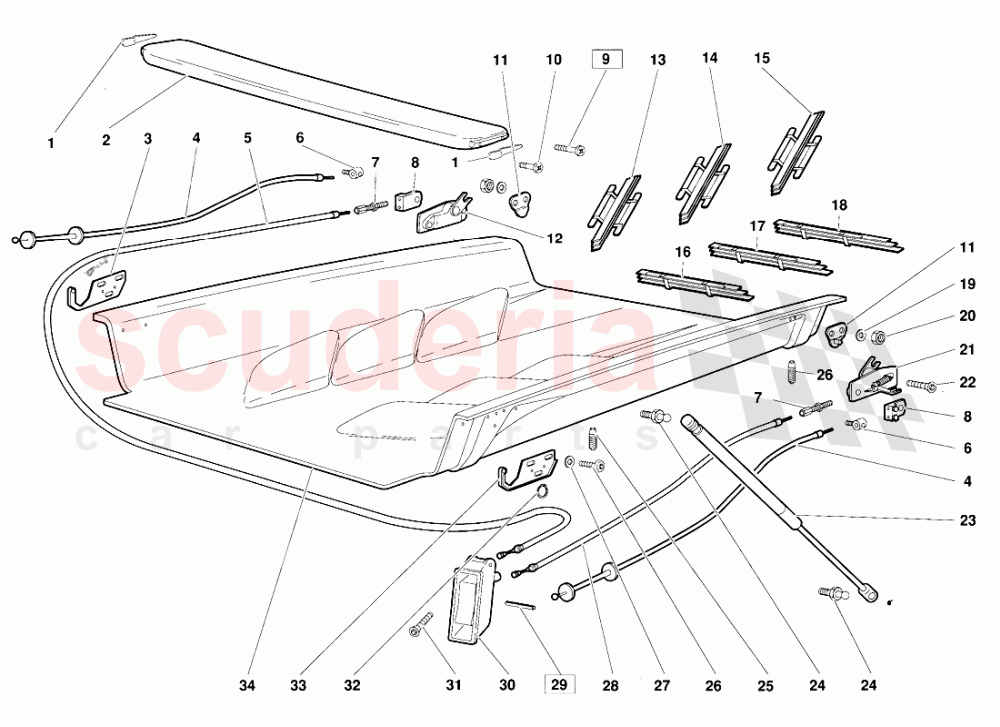

Engine Hood (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 9460100
GASKET
(Valid for June 1992 version) GUARNIZIONE 		$223.07 2
002 9460101
REAR WING
(Valid for June 1992 version) ALETTA 		$2,190.27 (8.4% off) 1
003 9460319
RIGHT HINGE
(Valid for June 1992 version) CERNIERA DESTRA 		$221.92 1
004 9460003
CABLE
(Valid for June 1992 version) CAVO APERTURA Dl EMERGENZA 		$26.85 2
005 9460006
RIGHT CABLE
(Valid for June 1992 version) CAVO DESTRO APERTURA COFANO 		$48.03 1
006 9460210
CLAMP
(Valid for June 1992 version) MORSETTO 		$29.00 (8.1% off) 2
007 9460213
ADJ/SCREW
(Valid for June 1992 version) TESTA REGISTRO 		- 2 Enquire
008 9460212
DOUBLE CLAMP
use 410814333 		- 2 Enquire
009 8700549
SCREW
(Valid for June 1992 version) VITE (sostituisce il 008700546)
IN STOCK 		$1.85 (7.5% off) 2
010 8700547
SCREW
(Valid for June 1992 version) VITE
IN STOCK 		$0.15 (98% off) 2
011 9460201
LOCK STRIKER
(Valid for June 1992 version) PIASTRINA Dl AGGANCIO 		$129.80 2
012 9460200
RIGHT LOCK
(Valid for June 1992 version) SERRATURA DESTRA 		$601.76 (8% off) 1
013 9460400
GRILLE
(Valid for June 1992 version) GRIGLIA 		$473.80 1
014 9460402
GRILLE
(Valid for June 1992 version) GRIGLIA 		$473.80 1
015 9460404
GRILLE
(Valid for June 1992 version) GRIGLIA 		$110.78 1
016 9460401
GRILLE
(Valid for June 1992 version) GRIGLIA 		$473.80 1
017 9460403
GRILLE
(Valid for June 1992 version) GRIGLIA 		$110.78 1
018 9460405
GRILLE
(Valid for June 1992 version) GRIGLIA 		$473.80 1
019 8400601
WASHER
(Valid for June 1992 version) RONDELLA 		$0.04 4
020 N01118312
HEXAGON NUT, SELF-LOCKING
(Valid for June 1992 version) DADO
IN STOCK 		$2.07 4
021 9460202
LEFT LOCK
(Valid for June 1992 version) SERRATURA SINISTRA 		$361.98 (8.4% off) 1
022 8700613
SCREW
(Valid for June 1992 version) VITE 		$0.15 (98% off) 4
023 92004388
ENGINE COVER STRUT
(Valid for June 1992 version) AMMORTIZZATORE A GAS
IN STOCK 		$202.32 2
024 9459305
BALL PIN
(Valid for June 1992 version) PERNO
IN STOCK 		$2.64 4
025 9460214
RUBBER BUMPER
(Valid for June 1992 version) TAMPONE COMMA
IN STOCK 		$8.08 4
026 8740685
SCREW
(Valid for June 1992 version) VITE
IN STOCK 		$19.91 6
027 N91115501
WASHER
(Valid for June 1992 version) RONDELLA 		$1.16 (84.2% off) 6
028 9460007
LEFT CABLE
(Valid for June 1992 version) CAVO SINISTRO APERTURA COFANO 		$48.03 1
029 8900304
PIN - (Valid for June 1992 version) SPINA (sostituisce il 008900305)
(Valid for June 1992 version) SA (sostituisce il 008900305) 		- 1 Enquire
030 410823537
DOOR OPENING INTERIOR HANDLE ASSEMBLY
IN STOCK 		$1,223.88 1
031 8700539
SCREW
(Valid for June 1992 version) VITE 		- 1 Enquire
032 8580802
RETAINER RING
(Valid for June 1992 version) ANELLO RITEGNO 		$3.41 2
033 9460320
LEFT HINGE
(Valid for June 1992 version) CERNIERA SINISTRA
IN STOCK 		$204.13 1
034 9460000
ENGINE BONNET
(Valid for June 1992 version) COFANO MOTORE 		$9,960.01 (11.2% off) 1
