Doors 1 of Lamborghini Lamborghini Diablo (1990-1998)

View All

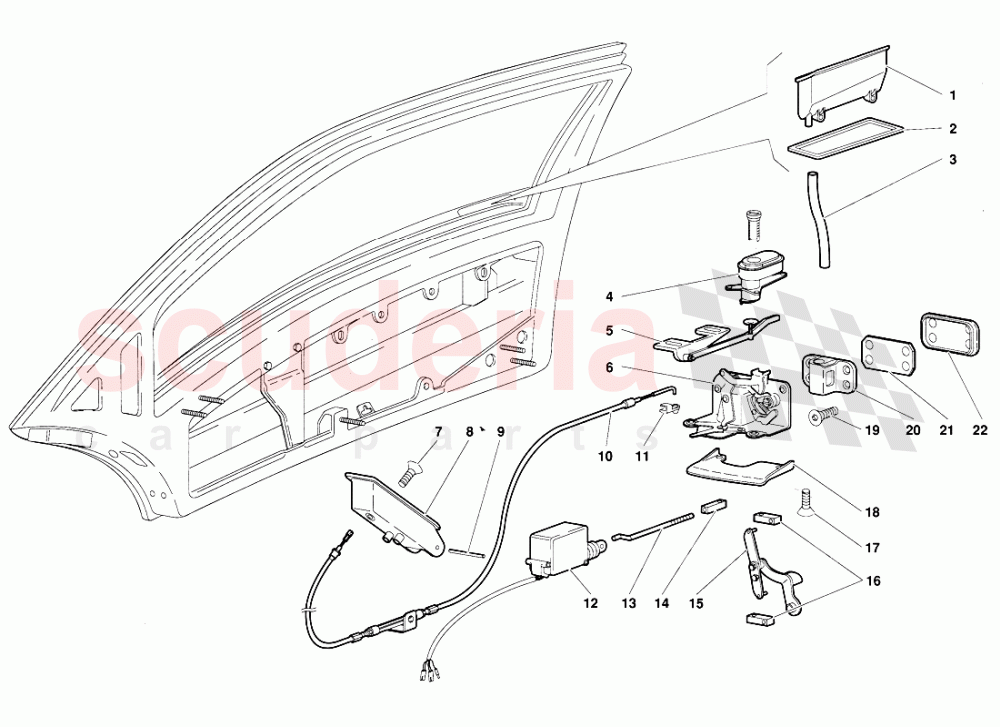

Lamborghini Diablo (1990-1998) - Doors 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9421201	LEFT HANDLE	9421201 LEFT HANDLE MANIGLIASINISTRA	$336.34	1
001	9421200	RIGHT HANDLE	9421200 RIGHT HANDLE MANIGLIA DESTRA	$320.80	1
002	9421712	RIGHT GASKET	9421712 RIGHT GASKET GUARNIZIONE DESTRA	$5.10 MSRP: ~~5.55~~ (8.1% off)	1
002	9421713	LEFT GASKET	9421713 LEFT GASKET GUARNIZIONE SINISTRA	$12.34	1
003	9421245	PIPE	9421245 PIPE TUBO	$16.69 MSRP: ~~18.05~~ (7.5% off)	2
004	72005036	LH & RH DOOR BUTTONS	72005036 LH & RH DOOR BUTTONS	$468.69	1
005	9421250	IDLE LEVER	9421250 IDLE LEVER RINVIO A LEVA SINISTRO	$239.67	1
005	9421249	IDLE LEVER	9421249 IDLE LEVER RINVIO A LEVA DESTRA	$239.67	1
006	410837015	LEFT LOCK	410837015 LEFT LOCK SERRATURA SINISTRA	$600.65	1
006	410837016	RIGHT LOCK	410837016 RIGHT LOCK SERRATURA DESTRA	$600.65	1
007	8700539	SCREW	8700539 SCREW VITE	-	2	Enquire
008	410823537	DOOR OPENING INTERIOR HANDLE ASSEMBLY IN STOCK	410823537 DOOR OPENING INTERIOR HANDLE ASSEMBLY IN STOCK	$1,229.15	2
009	8900305	PIN - SPINA	8900305 PIN - SPINA SA	$0.25 MSRP: ~~7.35~~ (96.6% off)	2
010	9421012	LEFT CABLE IN STOCK	9421012 LEFT CABLE CAVO APERTURA PORTA SX IN STOCK	$1,034.38	1
010	9421011	RIGHT CABLE	9421011 RIGHT CABLE CAVO APERTURA PORTA DX	$963.25	1
011	9421251	CLIP	9421251 CLIP FERMAGLIO	-	2	Enquire
012	R1320007	LHS door actuator	R1320007 LHS door actuator	$922.53	1
012	R1320008	RHS door actuator	R1320008 RHS door actuator	$437.63	1
013	9421223	TIE ROD	9421223 TIE ROD TIRANTE	$95.23	2
014	7021016	PAWL	7021016 PAWL NOTTOLINO	-	2	Enquire
015	9421248	IDLE LEVER	9421248 IDLE LEVER RINVIO A LEVA SINISTRO	$229.81	1
015	9421247	IDLE LEVER	9421247 IDLE LEVER RINVIO A LEVA DESTRO	$229.81	1
016	9421214	COUPLING	9421214 COUPLING NOTTOLINO	-	4	Enquire
017	8700613	SCREW	8700613 SCREW VITE	$0.15 MSRP: ~~7.37~~ (98% off)	8
018	9421237	LEFT SHIELD	9421237 LEFT SHIELD PROTEZIONESX	$256.65	1
018	9421236	RIGHT SHIELD	9421236 RIGHT SHIELD PROTEZIONE DX	$180.04	1
019	8700610	SCREW IN STOCK	8700610 SCREW VITE IN STOCK	$0.62 MSRP: ~~7.29~~ (91.5% off)	8
020	410831408A	Hinge Half Right hand	410831408A Hinge Half Right hand RISCONTRO SINISTRO	$812.57	1
020	410831407A	Hinge Half Left Hand IN STOCK	410831407A Hinge Half Left Hand RISCONTRO DESTRO IN STOCK	$322.80 MSRP: ~~407.00~~ (20.7% off)	1
021	410837963	SPACER IN STOCK	410837963 SPACER DISTANZIALE IN STOCK	$15.24	4
021	410837964	SPACER	410837964 SPACER DISTANZIALE	$14.88	4
022	410837899	ORNAMENT IN STOCK	410837899 ORNAMENT IN STOCK	$14.97	2
