Body Elements-Left Flank of Lamborghini Lamborghini Diablo (1990-1998)

View All

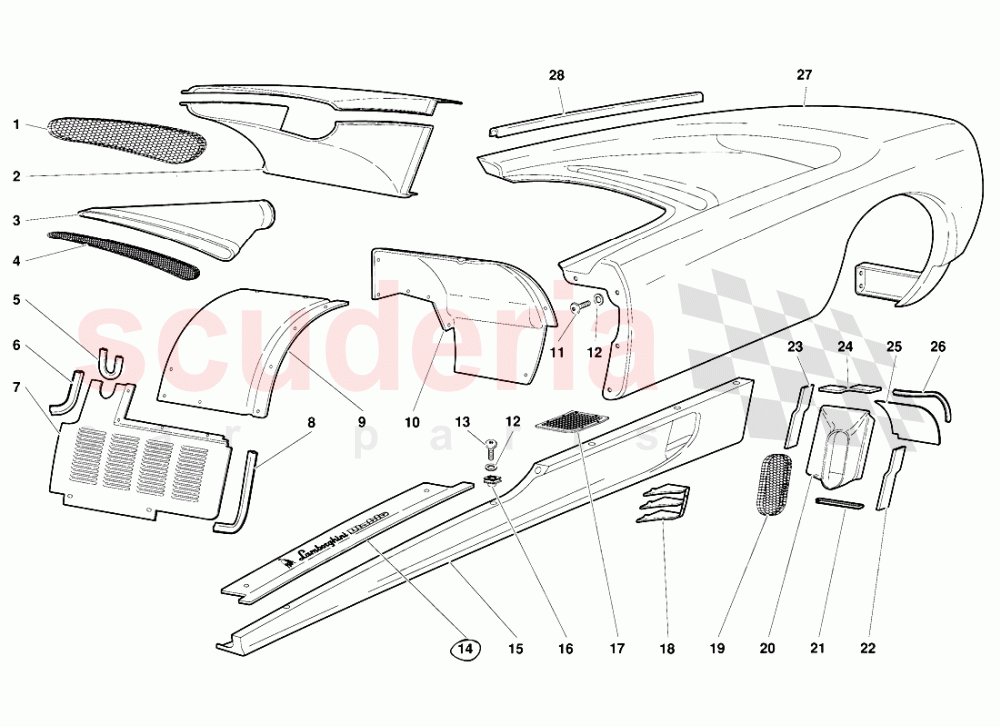

Lamborghini Diablo (1990-1998) - Body Elements-Left Flank

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9430125	NET	9430125 NET RETE	$378.87	1
002	9453101	CONVEYOR	9453101 CONVEYOR CONVOGLIATORE	$1,681.46	1
003	9453103	CONVEYOR	9453103 CONVEYOR CONVOGLIATORE	$541.98	1
004	9430127	NET	9430127 NET RETE	$232.87	1
005	9411513	GASKET	9411513 GASKET GUARNIZIONE	$170.56	1
006	9411512	GASKET	9411512 GASKET GUARNIZIONE	$63.38	1
007	9411504	PROTECTION	9411504 PROTECTION ELEMENTO PASSARUOTA POST.	$643.68	1
008	9411511	GASKET	9411511 GASKET GUARNIZIONE	$102.28	1
009	9411505	REAR WHEELBOX	9411505 REAR WHEELBOX ELEMENTO PASSARUOTA POST.	$469.19	1
010	9411506	REAR WHEELBOX	9411506 REAR WHEELBOX ELEMENTO PASSARUOTA POST.	$453.01	1
011	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$19.96	11
012	8400624	WASHER	8400624 WASHER RONDELLA	$4.46	11
013	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.69	9
014	9458308	DOORSILL MOULDING	9458308 DOORSILL MOULDING BATTICALCAGNO	$3,518.92	1
015	9410301	SIDE PANEL	9410301 SIDE PANEL BRANCARDO	$6,748.90	1
016	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT PIASTRINA FILETTATA IN STOCK	$1.23	9
017	9430131	GRILLE	9430131 GRILLE GRIGLIA	$229.97	1
018	9430002	GRILLE	9430002 GRILLE GRIGLIA	$169.29	1
019	9430102	NET	9430102 NET RETE	$282.45	1
020	9453104	CONVEYOR	9453104 CONVEYOR CONVOGLIATORE	$519.07	1
021	9453123	GASKET	9453123 GASKET GUARNIZIONE	$14.10	1
022	9453126	GASKET	9453126 GASKET GUARNIZIONE	$3.75 MSRP: ~~4.15~~ (9.6% off)	1
023	9453125	GASKET	9453125 GASKET GUARNIZIONE	$4.97 MSRP: ~~5.45~~ (8.8% off)	1
024	9453124	GASKET	9453124 GASKET GUARNIZIONE	$6.61	1
025	9453117	CONVEYOR	9453117 CONVEYOR CONVOGLIATORE	$84.36	1
026	9490200	GASKET IN STOCK	9490200 GASKET GUARNIZIONE IN STOCK	$127.12	1
027	9410003	REAR MUDGUARD FEN.	9410003 REAR MUDGUARD FEN. PARAFANGO POSTERIORE SINISTRO	-	1	Enquire
028	9490110	GASKET	9490110 GASKET GUARNIZIONE	-	1	Enquire
