Frame Elements of Lamborghini Lamborghini Diablo (1990-1998)

View All

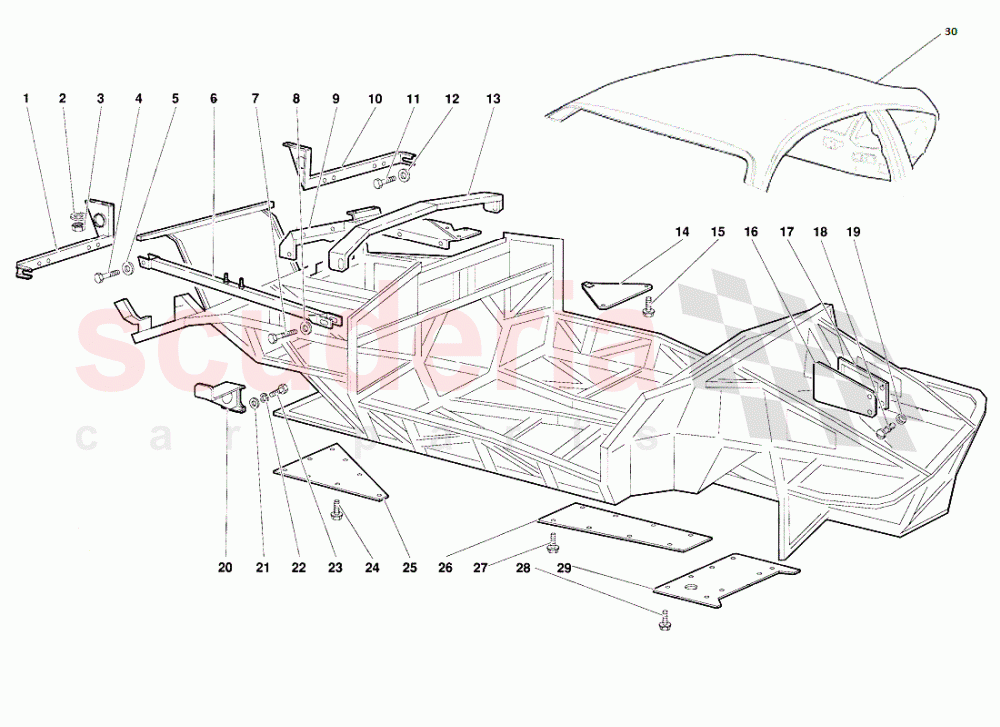

Lamborghini Diablo (1990-1998) - Frame Elements

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	4131090	Front subframe	4131090 Front subframe	-	1	Enquire
001	4130080	SUPPORT - SUPPORTO FANALE DESTRO	4130080 SUPPORT - SUPPORTO FANALE DESTRO O FANALE DESTRO	-	1	Enquire
002	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	4
003	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING DADO	$2.00 MSRP: ~~7.29~~ (72.6% off)	4
004	N0147519	SCREW M8X50	N0147519 SCREW M8X50 VITE	$12.07	2
005	8410819	WASHER	8410819 WASHER RONDELLA	$2.13 MSRP: ~~2.40~~ (11.3% off)	2
006	4131845	RIGHT ARM	4131845 RIGHT ARM BRACCIO DESTRO	$606.62	1
006	4131415	LEFT ARM	4131415 LEFT ARM BRACCIO SINISTRO	$223.09	1
007	8700846	SCREW	8700846 SCREW VITE	$2.04	2
008	8410819	WASHER	8410819 WASHER RONDELLA	$2.13 MSRP: ~~2.40~~ (11.3% off)	2
009	9411503	PLATE	9411503 PLATE PIASTRA FILTRO ARIA DESTRO	$163.14	1
009	9411507	PLATE	9411507 PLATE PIASTRA FILTRO ARIA SINISTRO	$163.14	1
010	4130079	SUPPORT - SUPPORTO FANALE SINISTRO	4130079 SUPPORT - SUPPORTO FANALE SINISTRO O FANALE SINISTRO	-	1	Enquire
011	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$2.07	4
012	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	4
013	4131512	CROSSRAIL	4131512 CROSSRAIL TRAVERSA	$383.91 MSRP: ~~430.00~~ (10.7% off)	1
014	4131098	PANEL	4131098 PANEL PANNELLO ISPEZIONE FILTRO OLIO	$176.96	1
015	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.68	2
016	4130207	LEFT PANEL	4130207 LEFT PANEL PANNELLO ISPEZIONE ALZAFARI SX	$201.04	1
016	4130206	RIGHT PANEL	4130206 RIGHT PANEL PANNELLO ISPEZIONE ALZAFARI DX	$91.46	1
017	410805349	RH GASKET	410805349 RH GASKET GUARNIZIONE DESTRA	$21.43	1
017	9490205	LEFT GASKET	9490205 LEFT GASKET GUARNIZIONE SINISTRA	-	1	Enquire
018	4131085	PIN	4131085 PIN PERNO AGGANCIO RAPIDO.	-	4	Enquire
019	7014263	RUBBER WASHER	7014263 RUBBER WASHER RONDELLA IN GOMMA	-	4	Enquire
020	4130092	SUPPORT - SUPPORTO SERBATOIO BENZINA	4130092 SUPPORT - SUPPORTO SERBATOIO BENZINA O SERBATOIO BENZINA	$159.68	1
021	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 RONDELLA IN STOCK	$1.44	2
022	8410819	WASHER	8410819 WASHER RONDELLA	$2.13 MSRP: ~~2.40~~ (11.3% off)	2
023	8100812	SCREW	8100812 SCREW VITE	$0.33 MSRP: ~~7.33~~ (95.5% off)	2
024	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.68	8
025	4131316	PANEL	4131316 PANEL PANNELLO ISPEZIONE FILTRI BENZINA	$411.59	1
026	4130445	PANEL	4130445 PANEL PANNELLO	$320.79	8
027	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.68	8
028	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.68	8
029	4130443	PANEL	4130443 PANEL PANNELLO	-	1	Enquire
030	4131089	COMPLETE ROOF	4131089 COMPLETE ROOF	-	1	Enquire
