Windows of Lamborghini Lamborghini Diablo (1990-1998)

View All

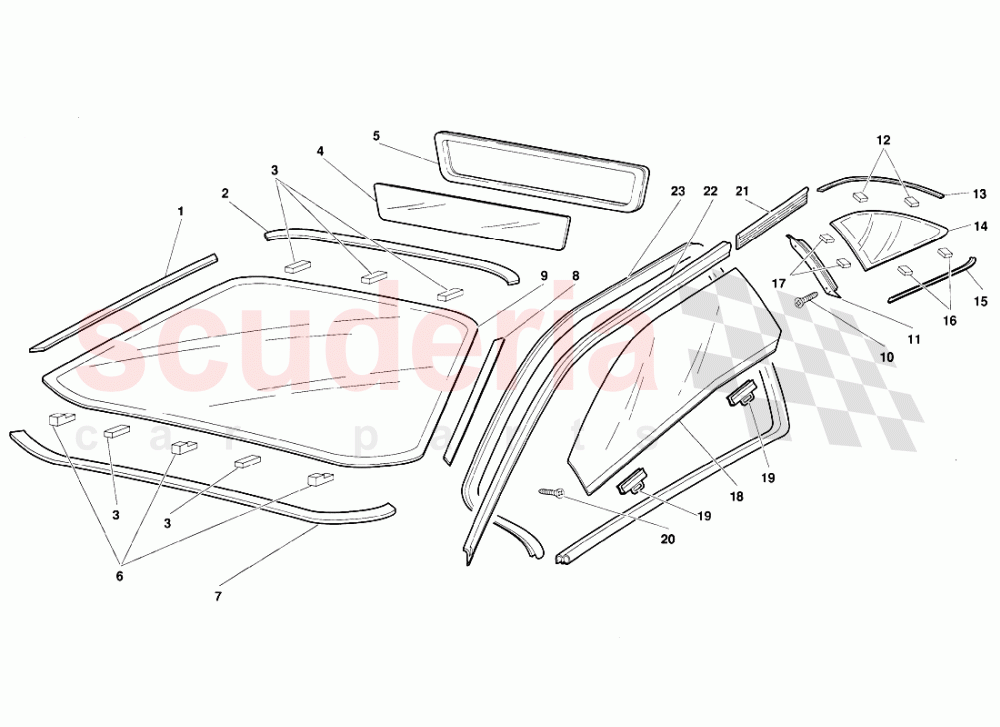

Lamborghini Diablo (1990-1998) - Windows

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9415204	RIGHT FRAME	9415204 RIGHT FRAME CORNICE LATERALE DESTRA	$387.78	1
002	9415200	TOP FRAME	9415200 TOP FRAME CORNICE SUPERIORE	$494.49	1
003	410845235	WINDSHIELD SPACER IN STOCK	410845235 WINDSHIELD SPACER IN STOCK	$51.49	5
004	9418100	REAR GLASS	9418100 REAR GLASS CRISTALLO POSTERIORE	$793.29 MSRP: ~~889.00~~ (10.8% off)	1
005	9418101	GASKET GLAS	9418101 GASKET GLAS GUARNIZIONE VETRO	-	1	Enquire
006	9415101	SPACER	9415101 SPACER DISTANZIALE	$14.53	3
007	9415201	BOTTOM FRAME	9415201 BOTTOM FRAME CORNICE	$441.79	1
008	9415205	LEFT FRAME	9415205 LEFT FRAME CORNICE	$490.45	1
009	9415107	FRONT GLASS	9415107 FRONT GLASS CRISTALLO ANTERIORE	$7,525.51	1
010	8700317	SCREW	8700317 SCREW VITE	$0.33	6
011	9417104	RIGHT FRAME	9417104 RIGHT FRAME CORNICE DESTRA	$580.97	1
011	9417105	LEFT FRAME	9417105 LEFT FRAME CORNICE SINISTRA	$435.05	1
012	410845626	SPACER	410845626 SPACER	$11.16	4
013	9417106	RIGHT FRAME	9417106 RIGHT FRAME CORNICE SUPERIORE DESTRA	$671.51	1
013	9417107	LEFT FRAME	9417107 LEFT FRAME CORNICE SUPERIORE SINISTRO	$343.18	1
014	70004149	RIGHT HAND GLASS	70004149 RIGHT HAND GLASS CRISTALLO LATERALE DESTRO	$10,700.55	1
014	70004150	LEFT HAND GLASS	70004150 LEFT HAND GLASS CRISTALLO LATERALE SINISTRO	$10,700.55	1
015	9417103	LEFT FRAME	9417103 LEFT FRAME CORNICE INFERIORE SINISTRA	$220.06	1
015	9417102	RIGHT FRAME	9417102 RIGHT FRAME CORNICE INFERIORE DESTRA	$259.41	1
016	400845633	QUARTER WINDOW GLASS SHIM	400845633 QUARTER WINDOW GLASS SHIM DISTANZIALE	$15.88	4
017	9417110	SPACER	9417110 SPACER DISTANZIALE	$15.74	4
018	72004147	RIGHT DOOR GLASS	72004147 RIGHT DOOR GLASS	$4,626.43	1
018	72004148	LEFT DOOR GLASS	72004148 LEFT DOOR GLASS	$4,627.44	1
019	9421607	BRACKET	9421607 BRACKET STAFFA	$55.32	4
020	8700211	BLACK SCREW	8700211 BLACK SCREW VITE	$0.07	4
021	9421733	GASKET	9421733 GASKET GUARNIZIONE	$38.37	2
022	72001177	GASKET	72001177 GASKET	$506.67	2
023	72010206	LHS GASKET	72010206 LHS GASKET GUARNIZIONE	$821.07	1
023	72010205	RHS GASKET	72010205 RHS GASKET	$665.90	1
