Body Elements-Right Flank (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

Lamborghini Diablo (1990-1998) - Body Elements-Right Flank (Valid for June 1992 Version)

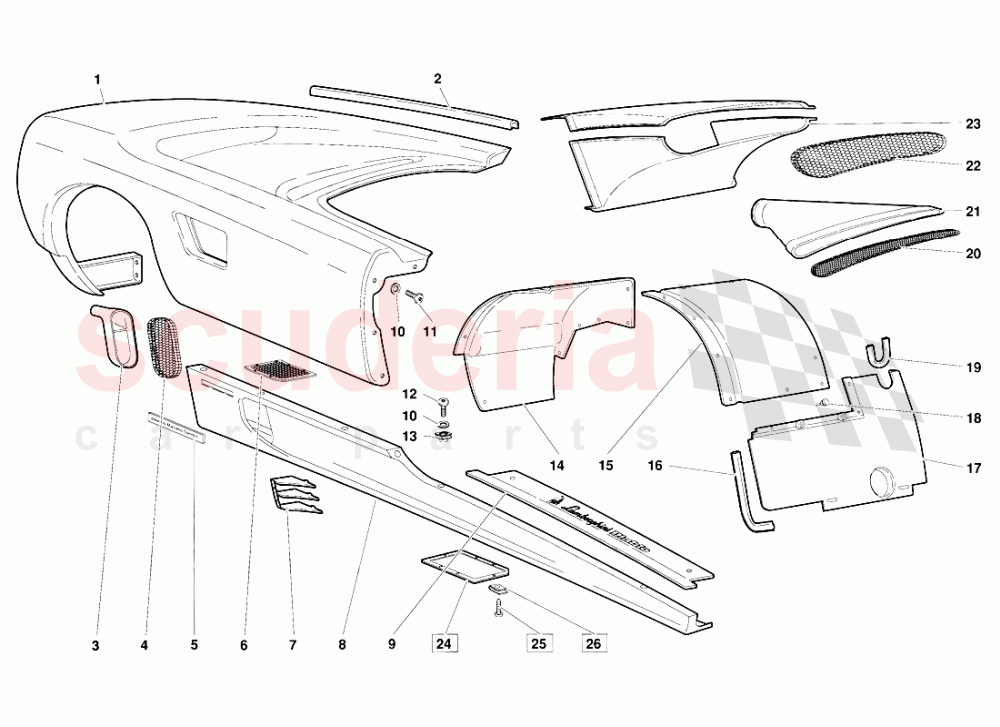

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9410012	RH REAR FENDER	9410012 RH REAR FENDER	$9,238.42 MSRP: ~~10,005.00~~ (7.7% off)	1
002	9490110	GASKET	9490110 GASKET (Valid for June 1992 version) GUARNIZIONE	-	1	Enquire
003	9453114	CONVEYOR	9453114 CONVEYOR (Valid for June 1992 version) CONVOGLIATORE	-	1	Enquire
004	9430101	NET	9430101 NET (Valid for June 1992 version) RETE	$282.25	1
006	9430130	GRILLE	9430130 GRILLE (Valid for June 1992 version) GRIGLIA	$229.81	1
007	9430001	GRILLE	9430001 GRILLE (Valid for June 1992 version) GRIGLIA	$870.72	1
008	9410300	SIDE PANEL	9410300 SIDE PANEL (Valid for June 1992 version) BRANCARDO	$6,744.04	1
009	9458307	DOORSILL MOULDING	9458307 DOORSILL MOULDING (Valid for June 1992 version) BATTICALCAGNO	$3,516.39	1
010	8400624	WASHER	8400624 WASHER (Valid for June 1992 version) RONDELLA	$4.45	11
011	8740685	SCREW IN STOCK	8740685 SCREW (Valid for June 1992 version) VITE IN STOCK	$19.94	11
012	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT (Valid for June 1992 version) VITE IN STOCK	$1.69	9
013	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT (Valid for June 1992 version) PIASTRINA FILETTATA IN STOCK	$1.23	9
014	9411502	REAR WHEELBOX	9411502 REAR WHEELBOX (Valid for June 1992 version) ELEMENTO PASSARUOTA POST.	$916.91	1
015	9411501	REAR WHEELBOX	9411501 REAR WHEELBOX (Valid for June 1992 version) ELEMENTO PASSARUOTA POST.	$401.87 MSRP: ~~450.00~~ (10.7% off)	1
016	9411511	GASKET	9411511 GASKET (Valid for June 1992 version) GUARNIZIONE	$102.21	1
017	9411500	PROTECTION	9411500 PROTECTION (Valid for June 1992 version) ELEMENTO PASSARUOTA POST.	-	1	Enquire
018	9421408	RUBBER BUMPER	9421408 RUBBER BUMPER (Valid for June 1992 version) TAMPONE COMMA	$21.16	2
019	9411513	GASKET	9411513 GASKET (Valid for June 1992 version) GUARNIZIONE	$170.44	1
020	9430126	NET	9430126 NET (Valid for June 1992 version) RETE	$506.97	1
021	9453102	CONVEYOR	9453102 CONVEYOR (Valid for June 1992 version) CONVOGLIATORE	$990.23	1
022	9430124	NET	9430124 NET (Valid for June 1992 version) RETE	$493.10	1
023	9453100	CONVEYOR	9453100 CONVEYOR (Valid for June 1992 version) CONVOGLIATORE	-	1	Enquire
024	9410306	INSPECTION LID	9410306 INSPECTION LID (Valid for June 1992 version) SPORTELLO ISPEZIONE RUBINETTO (dalla 12798)	$62.82 MSRP: ~~70.60~~ (11% off)	1
025	WHT003114	SCREW	WHT003114 SCREW (Valid for June 1992 version) VITE (dalla 12798)	$5.13	6
026	WHT003424	CLIP IN STOCK	WHT003424 CLIP (Valid for June 1992 version) PIASTRINA FILETTATA (dalla 12798) IN STOCK	$0.83 MSRP: ~~7.25~~ (88.6% off)	6
