Head Lamp Lighting System of Lamborghini Lamborghini Diablo (1990-1998)

View All

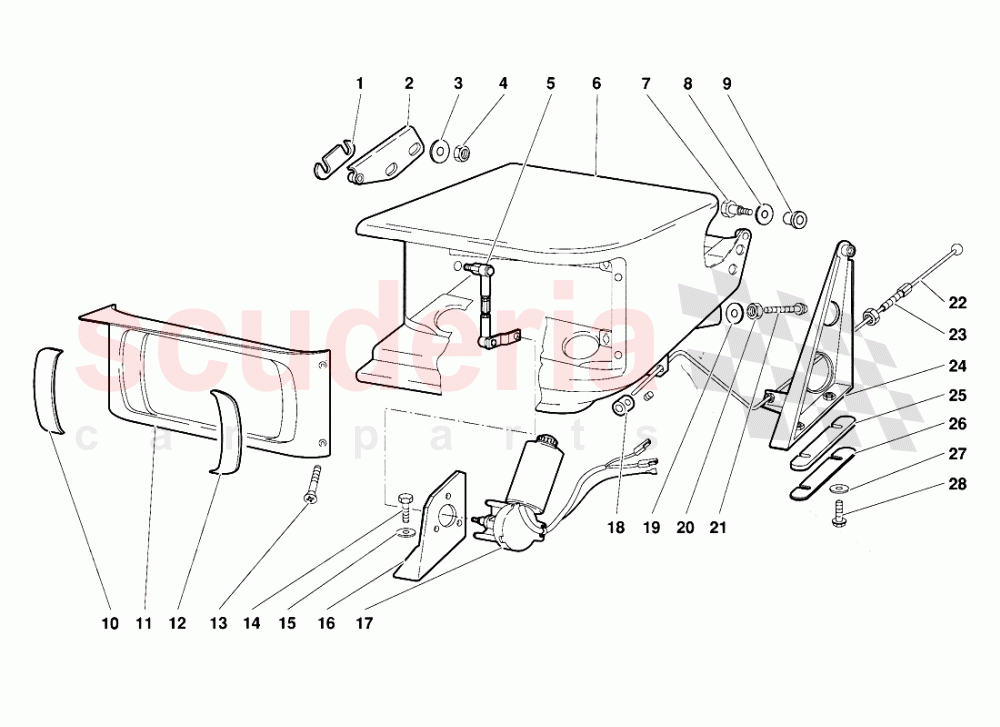

Lamborghini Diablo (1990-1998) - Head Lamp Lighting System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9444136	SHIM	9444136 SHIM SPESSORE	$21.17	1
001	9444137	SHIM	9444137 SHIM SPESSORE	$36.90	1
002	9444147	RIGHT BRACKET	9444147 RIGHT BRACKET O INTERNO FANALE DX	$41.34	1
002	9444148	LEFT BRACKET	9444148 LEFT BRACKET O INTERNO FANALE SX	$41.34	1
003	WHT003093	Washer IN STOCK	WHT003093 Washer RONDELLA IN STOCK	$0.44 MSRP: ~~7.33~~ (94% off)	2
004	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.07	2
005	9444203	TIE ROD	9444203 TIE ROD TIRANTE CON LEVA	-	2	Enquire
006	9444000	RIGHT HOUSING	9444000 RIGHT HOUSING PALPEBRA DESTRA	$1,128.68	1
006	9444001	LEFT HOUSING	9444001 LEFT HOUSING PALPEBRA SINISTRA	$1,128.68	1
007	8100857	SCREW	8100857 SCREW PERNO	$25.33	4
008	9444138	WASHER	9444138 WASHER RONDELLA	$0.83	4
009	8801004	BUSHING	8801004 BUSHING BOCCOLA	$57.41	4
010	9444140	LEFT ADHESIV	9444140 LEFT ADHESIV ADESIVO INTERNO PER CORNICE SX	$6.27	1
010	9444139	RIGHT ADHESIV	9444139 RIGHT ADHESIV ADESIVO ESTERNO PER CORNICE SX	$12.92	1
011	9444124	RIGHT FRAME	9444124 RIGHT FRAME CORNICE PER PALPEBRA DESTRA	$178.32	1
011	9444125	LEFT FRAME	9444125 LEFT FRAME CORNICE PER PALPEBRA SINISTRA	$120.03	1
012	9444142	LEFT ADHESIV	9444142 LEFT ADHESIV ADESIVO ESTERNO PER PALPEBRA DX	$12.92	4
012	9444141	RIGHT ADHESIV	9444141 RIGHT ADHESIV ADESIVO INTERNO PER PALPEBRA DX	$12.92	4
013	8700211	BLACK SCREW	8700211 BLACK SCREW VITE (NERA)	$0.07	4
013	8700210	WHITE SCREW	8700210 WHITE SCREW VITE (BIANCA)	$3.19	4
014	N10158604	SCREW	N10158604 SCREW VITE	$25.21	2
015	8400620	WASHER	8400620 WASHER RONDELLA	$1.40 MSRP: ~~7.38~~ (81% off)	2
016	9444144	LEFT SUPPORT	9444144 LEFT SUPPORT O SINISTRO	$86.78	1
016	9444143	RIGHT SUPPORT	9444143 RIGHT SUPPORT O DESTRO	$87.15	1
017	5937318	RIGHT ELECT MOTOR	5937318 RIGHT ELECT MOTOR MOTORING ALZAFARI DESTRO	$915.19	1
017	5937319	LEFT ELECT MOTOR	5937319 LEFT ELECT MOTOR MOTORING ALZAFARI SINISTRO	$315.08	1
018	9459217	CLAMP	9459217 CLAMP MORSETTO	-	2	Enquire
019	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 RONDELLA IN STOCK	$3.51 MSRP: ~~7.38~~ (52.4% off)	4
020	N01100632	NUT M6	N01100632 NUT M6 DADO	$4.20 MSRP: ~~7.33~~ (42.7% off)	4
021	9444205	ADJ/SCREW	9444205 ADJ/SCREW VITE FINE CORSA	$22.90	4
022	9444204	CABLE	9444204 CABLE CAVO	$53.46	1
023	9460213	ADJ/SCREW	9460213 ADJ/SCREW VITE REGISTRO	-	1	Enquire
024	9444127	RIGHT SUPPORT	9444127 RIGHT SUPPORT O ESTERNO PALPEBRA SX	$38.16	1
024	9444129	LEFT SUPPORT	9444129 LEFT SUPPORT O ESTERNO PALPEBRA DX	$38.16	1
025	9444135	SHIM	9444135 SHIM SPESSORE	$9.18	1
026	9444134	SHIM	9444134 SHIM SPESSORE	$16.92	1
027	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	1
028	N10158604	SCREW	N10158604 SCREW VITE	$25.21	1
