Gearbox (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

Lamborghini Diablo (1990-1998) - Gearbox (Valid for June 1992 Version)

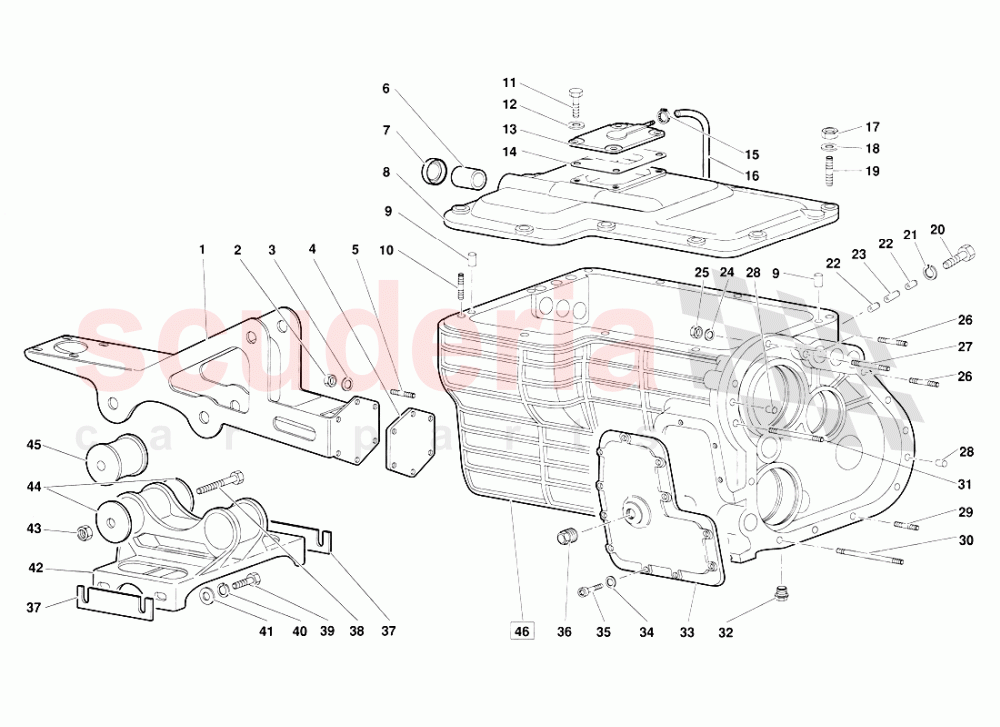

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2431479	SUPPORT - SUPPORTO	2431479 SUPPORT - SUPPORTO (Valid for June 1992 version) O TORRETTA	$418.18	1
002	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 (Valid for June 1992 version) DADO IN STOCK	$0.30 MSRP: ~~7.29~~ (95.9% off)	6
003	8410602	WASHER IN STOCK	8410602 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$41.66	6
004	2425638	COVER	2425638 COVER (Valid for June 1992 version) COPERCHIO	$58.88	1
005	8300602	STUD	8300602 STUD (Valid for June 1992 version) PRIGIONIERO	$6.22 MSRP: ~~6.95~~ (10.5% off)	6
006	8801612	BUSHING	8801612 BUSHING (Valid for June 1992 version) BOCCOLA	-	1	Enquire
007	8611605	SEAL	8611605 SEAL (Valid for June 1992 version) ANELLO TENUTA	$14.82 MSRP: ~~16.60~~ (10.7% off)	1
008	2424900	COVER	2424900 COVER (Valid for June 1992 version) COPERCHIO SUPERIORE	$511.51 MSRP: ~~557.00~~ (8.2% off)	1
009	8850806	DOWEL	8850806 DOWEL (Valid for June 1992 version) GRAND	-	2	Enquire
010	8300862	STUD	8300862 STUD (Valid for June 1992 version) PRIGIONIERO	-	1	Enquire
011	8100604	SCREW	8100604 SCREW (Valid for June 1992 version) VITE	$2.37	4
012	8410602	WASHER IN STOCK	8410602 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$41.66	4
013	2428645	COVER	2428645 COVER (Valid for June 1992 version) COPERCHIO SFIATO	$118.10 MSRP: ~~128.50~~ (8.1% off)	1
014	2428643	PAN	2428643 PAN (Valid for June 1992 version) VASCHETTA	$19.26 MSRP: ~~20.95~~ (8.1% off)	4
015	8830204	Clamp ring	8830204 Clamp ring (Valid for June 1992 version) FASCETTA	$8.02	1
016	2428649	VENT PIPE	2428649 VENT PIPE (Valid for June 1992 version) TUBO Dl SFIATO	-	1	Enquire
017	8200806	NUT	8200806 NUT (Valid for June 1992 version) DADO	$0.34 MSRP: ~~7.33~~ (95.4% off)	10
018	WHT001514	WASHER IN STOCK	WHT001514 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$23.16 MSRP: ~~64.00~~ (63.8% off)	10
019	8300825	STUD BOLT	8300825 STUD BOLT (Valid for June 1992 version) PRIGIONIERO	$13.35	9
020	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) (Valid for June 1992 version) VITE	$2.25 MSRP: ~~7.23~~ (68.9% off)	1
021	8400802	WASHER	8400802 WASHER (Valid for June 1992 version) RONDELLA	$1.39 MSRP: ~~7.27~~ (80.9% off)	1
022	2425223	ROD	2425223 ROD (Valid for June 1992 version) PUNTALINO	$25.99 MSRP: ~~28.30~~ (8.2% off)	2
023	2425224	ROD	2425224 ROD (Valid for June 1992 version) PUNTALINO	$26.65 MSRP: ~~29.00~~ (8.1% off)	1
024	WHT001514	WASHER IN STOCK	WHT001514 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$23.16 MSRP: ~~64.00~~ (63.8% off)	12
025	8200806	NUT	8200806 NUT (Valid for June 1992 version) DADO	$0.34 MSRP: ~~7.33~~ (95.4% off)	12
026	8300894	STUD	8300894 STUD (Valid for June 1992 version) PRIGIONIERO	$36.30	2
027	8300889	STUD	8300889 STUD (Valid for June 1992 version) PRIGIONIERO	$26.90	1
028	8850806	DOWEL	8850806 DOWEL (Valid for June 1992 version) GRANO	-	2	Enquire
029	8300892	STUD	8300892 STUD (Valid for June 1992 version) PRIGIONIERO	$31.91	7
030	8300896	STUD BOLT	8300896 STUD BOLT (Valid for June 1992 version) PRIGIONIERO	$25.22	1
031	8300895	STUD	8300895 STUD (Valid for June 1992 version) PRIGIONIERO	$7.49 MSRP: ~~8.40~~ (10.8% off)	1
032	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG (Valid for June 1992 version) TAPPO MAGNETICO	$34.83	1
033	2428586	SIDE COVER	2428586 SIDE COVER (Valid for June 1992 version) COPERCHIO	$1,078.30	1
034	8410602	WASHER IN STOCK	8410602 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$41.66	11
035	8700614	SCREW	8700614 SCREW (Valid for June 1992 version) VITE	$0.25	11
036	8931802	MAGNETIC PLUG	8931802 MAGNETIC PLUG (Valid for June 1992 version) TAPPO	$202.24	1
037	4126766	SPACER	4126766 SPACER (Valid for June 1992 version) SPESSORE Dl REGISTRO	-	5	Enquire
038	8101430	SCREW	8101430 SCREW (Valid for June 1992 version) VITE	$3.28 MSRP: ~~3.65~~ (10.1% off)	2
039	N01033520	SCREW M8X35 IN STOCK	N01033520 SCREW M8X35 (Valid for June 1992 version) VITE IN STOCK	$3.13 MSRP: ~~7.19~~ (56.5% off)	4
040	N0152785	WASHER IN STOCK	N0152785 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$0.44	4
041	N0122094	WASHER IN STOCK	N0122094 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$1.43 MSRP: ~~7.15~~ (80% off)	4
042	4131478	SUPPORT - SUPPORTO	4131478 SUPPORT - SUPPORTO (Valid for June 1992 version) O INFERIORE CAMBIO	$420.60	1
043	8201416	NUT	8201416 NUT (Valid for June 1992 version) DADO	$1.61	4
044	4130884	WASHER	4130884 WASHER (Valid for June 1992 version) DISTANZIALE	$39.33	4
045	B9501144	support mount IN STOCK	B9501144 support mount IN STOCK	$186.60 MSRP: ~~190.50~~ (2% off)	2
046	2429421	GEARBOX CASE	2429421 GEARBOX CASE (Valid for June 1992 version) SCATOLA CAMBIO (Errata corrige)	$3,818.94	1
