Clutch (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

Lamborghini Diablo (1990-1998) - Clutch (Valid for June 1992 Version)

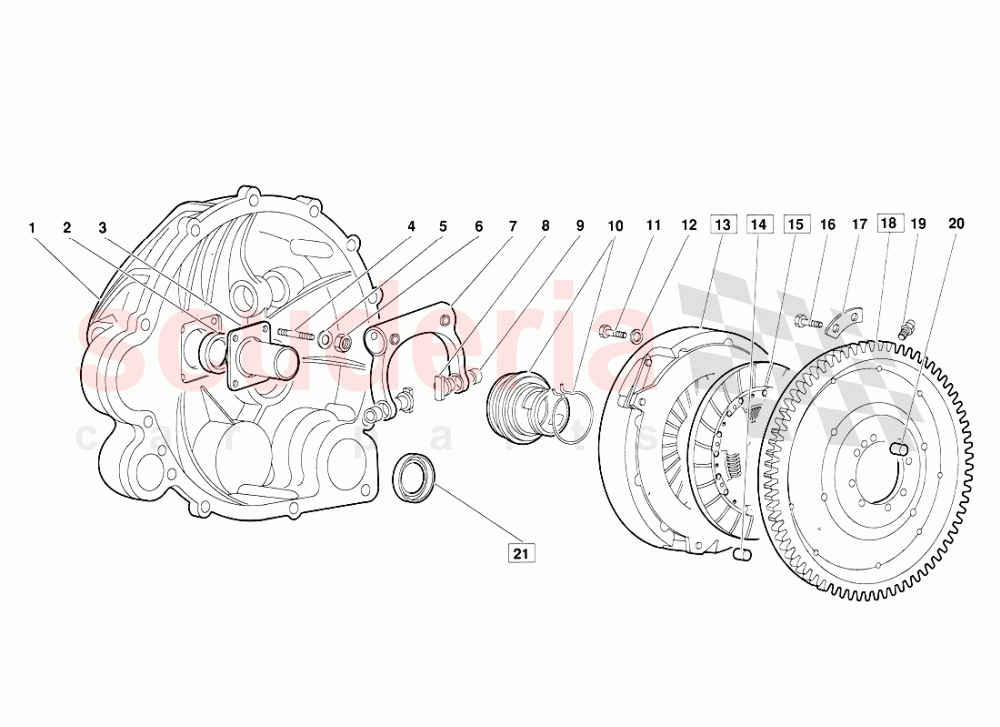

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2424451	CLUTCH BELL HOUSING	2424451 CLUTCH BELL HOUSING (Valid for June 1992 version) CAMPANA FRIZIONE	-	1	Enquire
002	8613206	SEAL IN STOCK	8613206 SEAL (Valid for June 1992 version) ANELLO TENUTA IN STOCK	$18.58 MSRP: ~~20.20~~ (8% off)	1
003	2428864	SUPPORT - SUPPORTO REGGISPINTA	2428864 SUPPORT - SUPPORTO REGGISPINTA (Valid for June 1992 version) O REGGISPINTA	$1,728.56	1
004	8300624	STUD	8300624 STUD (Valid for June 1992 version) PRIGIONIERO	$16.14	4
005	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 (Valid for June 1992 version) RONDELLA IN STOCK	$3.52 MSRP: ~~7.38~~ (52.3% off)	4
006	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 (Valid for June 1992 version) DADO IN STOCK	$0.30 MSRP: ~~7.29~~ (95.9% off)	4
007	2121341	FORK	2121341 FORK (Valid for June 1992 version) FORCELLA COMANDO FRIZIONE	$1,248.75	1
008	2128866	PAWL	2128866 PAWL (Valid for June 1992 version) NOTTOLINO	$424.34	2
009	8801206	BUSHING	8801206 BUSHING (Valid for June 1992 version) BOCCOLA	$4.57	2
010	2129353	SLEEVE T/OBEARING	2129353 SLEEVE T/OBEARING (Sachs)	$4,960.25	1
011	8100851	SCREW	8100851 SCREW (Valid for June 1992 version) VITE	$0.60	9
012	WHT001514	WASHER IN STOCK	WHT001514 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$23.25 MSRP: ~~64.00~~ (63.7% off)	9
013	2132598	PRESSURE PLATE	2132598 PRESSURE PLATE (Sachs)	$1,335.44	1
014	2132713	DOWEL	2132713 DOWEL (Valid for June 1992 version) GRAND (dallal 2682)	$51.22	3
015	2132599	CLUTCH DRIVEN	2132599 CLUTCH DRIVEN (Sachs)	$3,052.47	1
016	WHT002951	Hexagon Head Bolt M8x1.25x23 IN STOCK	WHT002951 Hexagon Head Bolt M8x1.25x23 (Valid for June 1992 version) VITE IN STOCK	$18.30	8
017	410141179	Retaining Plate	410141179 Retaining Plate	$59.62	4
018	2131489	FLYWHEEL	2131489 FLYWHEEL (Valid for June 1992 version) VOLANO CON PIOLI (fino alia 12681)	-	1	Enquire
018	2132714	FLYWHEEL WITH PINS	2132714 FLYWHEEL WITH PINS (Valid for June 1992 version) VOLANO CON PIOLI (dalla 12682) (Particolare intercambiabile)	$2,826.97	1
019	7M105357	PIN	7M105357 PIN	$48.71	6
020	8850806	DOWEL	8850806 DOWEL (Valid for June 1992 version) GRANO	-	1	Enquire
021	8613005	SEAL	8613005 SEAL (Valid for June 1992 version) ANELLO TENUTA (errata corrige)	$58.97	1
