Main Shaft of Lamborghini Lamborghini Diablo (1990-1998)

View All

Lamborghini Diablo (1990-1998) - Main Shaft

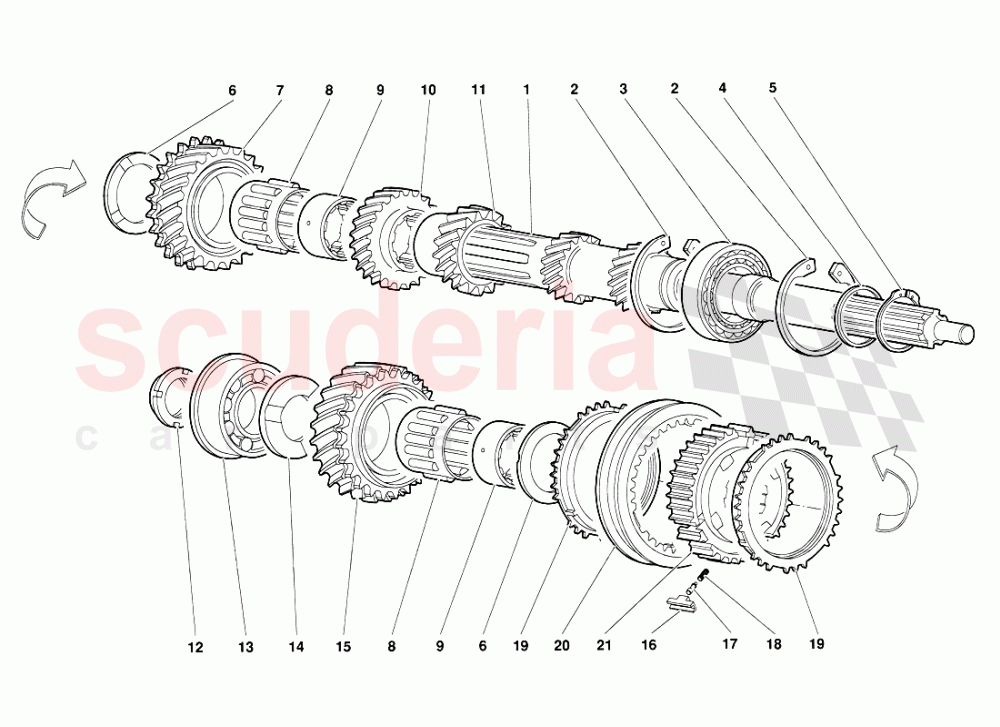

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2428863	MAIN SHAFT	2428863 MAIN SHAFT ALBERO PRIMARIO	$16,427.51	1
002	8578001	RETAINER RING	8578001 RETAINER RING ANELLO RITEGNO	$6.15	2
003	8524010	BEARING	8524010 BEARING CUSCINETTO	-	1	Enquire
004	2424859	RING	2424859 RING ANELLO	$21.99 MSRP: ~~23.90~~ (8% off)	1
005	8584001	RETAINER RING	8584001 RETAINER RING ANELLO RITEGNO	$7.97 MSRP: ~~8.90~~ (10.4% off)	1
006	2424864	WASHER	2424864 WASHER DISTANZIALE	$1,520.95	2
007	2424889	GEAR	2424889 GEAR INGRANAGGIO 4 - MARCIA	$378.42	1
008	8524701	ROLLER CAGE	8524701 ROLLER CAGE GABBIAARULLI	$44.47 MSRP: ~~50.10~~ (11.2% off)	2
009	2420124	SPLINED BUSHING	2420124 SPLINED BUSHING BOCCOLA DENTATA	$806.24	2
010	2424873	GEAR	2424873 GEAR INGRANAGGIO 3 - MARCIA	$237.67 MSRP: ~~259.00~~ (8.2% off)	1
011	2427097	GEAR	2427097 GEAR INGRANAGGIO 2 - MARCIA	$233.62 MSRP: ~~254.00~~ (8% off)	1
012	2431824	NUT	2431824 NUT GHIERA	$250.36	1
013	8503006	BEARING	8503006 BEARING CUSCINETTO	$646.07	1
014	2424861	SPACER	2424861 SPACER DISTANZIALE	$136.62	1
015	2426702	GEAR	2426702 GEAR INGRANAGGIO 5 - MARCIA	$2,197.77	1
016	2421420	BRAKE PAD	2421420 BRAKE PAD PATTING	$27.62	3
017	2421419	PIN	2421419 PIN PERNO	$32.37	3
018	2421418	SPRING	2421418 SPRING MOLLA	$62.86	3
019	2421416	FRICTION RING	2421416 FRICTION RING ANELLO SINCRONIZZATORE	$1,419.98	2
020	2425150	SLEEVE T/OBEARING	2425150 SLEEVE T/OBEARING ANELLO INNESTO	$1,286.37 MSRP: ~~1,395.00~~ (7.8% off)	1
021	2420126	SYNCHRONIZER	2420126 SYNCHRONIZER CORPO SINCRONIZZATORE	$303.43	1
