Clutch Control Levers of Lamborghini Lamborghini Diablo (1990-1998)

View All

Lamborghini Diablo (1990-1998) - Clutch Control Levers

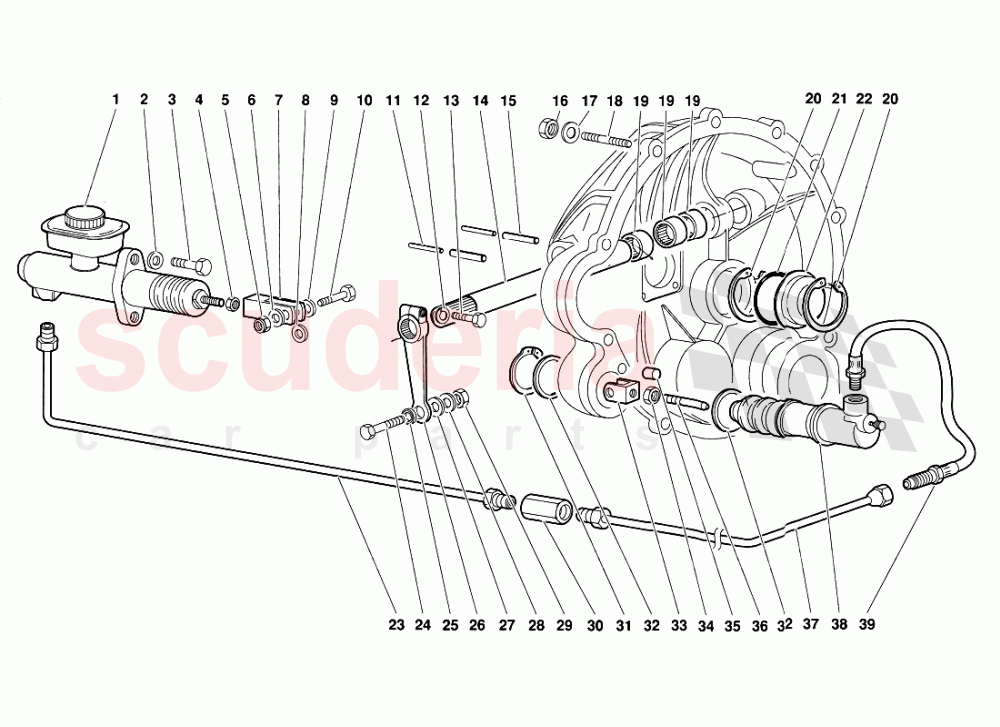

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4219984	CLUTCH PUMP ARRIVING SOON	4219984 CLUTCH PUMP POMPA FRIZIONE ARRIVING SOON	$338.17	1
002	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	2
003	N0124032	SCREW	N0124032 SCREW VITE	-	2	Enquire
004	8200811	NUT	8200811 NUT DADO	$5.41 MSRP: ~~6.00~~ (9.8% off)	1
005	N0111849	NUT IN STOCK	N0111849 NUT DADO IN STOCK	$2.13 MSRP: ~~7.25~~ (70.6% off)	1
006	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 RONDELLA IN STOCK	$0.32 MSRP: ~~7.35~~ (95.6% off)	1
007	4219591	FORK	4219591 FORK FORCELLA	-	1	Enquire
008	8400819	WASHER 8X12X1	8400819 WASHER 8X12X1 RONDELLA	$0.54 MSRP: ~~7.29~~ (92.6% off)	1
009	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 RONDELLA IN STOCK	$0.32 MSRP: ~~7.35~~ (95.6% off)	1
010	2129460	JOURNAL	2129460 JOURNAL PERNO	$30.09 MSRP: ~~32.70~~ (8% off)	1
011	8900503	PIN - SPINA	8900503 PIN - SPINA SA	$0.95	2
012	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	1
013	WHT002952	SCREW M8X1,25X30 IN STOCK	WHT002952 SCREW M8X1,25X30 VITE IN STOCK	$4.68	1
014	2125925	SHAFT	2125925 SHAFT ALBERO	$455.22	1
015	8900802	PIN - SPINA	8900802 PIN - SPINA SA	$7.04	2
016	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.93	11
017	WHT001514	WASHER IN STOCK	WHT001514 WASHER RONDELLA IN STOCK	$23.17 MSRP: ~~64.00~~ (63.8% off)	11
018	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	$5.64	9
019	8522204	ROLLER CAGE	8522204 ROLLER CAGE GABBIAARULLI	$18.69 MSRP: ~~20.90~~ (10.6% off)	3
020	8576601	RETAINER RING	8576601 RETAINER RING ANELLO RITEGNO	$0.76 MSRP: ~~7.26~~ (89.5% off)	2
021	8605600	SEAL	8605600 SEAL ANELLO TENUTA	$42.09	1
022	2424858	COVER	2424858 COVER COPERCHIO	$131.39	1
023	2130853	PIPE	2130853 PIPE TUBO	$221.26	1
024	WHT002952	SCREW M8X1,25X30 IN STOCK	WHT002952 SCREW M8X1,25X30 VITE IN STOCK	$4.68	1
025	4225225	COUPLING	4225225 COUPLING TESTA A SNODO	-	1	Enquire
026	2129457	LEVER	2129457 LEVER LEVA	$501.40	1
027	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 RONDELLA IN STOCK	$0.32 MSRP: ~~7.35~~ (95.6% off)	1
028	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	1
029	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.93	1
030	2131194	CONNECTION	2131194 CONNECTION RACCORDO	$128.50	1
031	8583701	RETAINER RING IN STOCK	8583701 RETAINER RING ANELLO RITEGNO IN STOCK	$0.51 MSRP: ~~7.31~~ (93% off)	1
032	2129128	SPACER	2129128 SPACER DISTANZIALE	$56.89	2
033	2121672	FORK	2121672 FORK FORCELLA	$93.35	1
034	8200811	NUT	8200811 NUT DADO	$5.41 MSRP: ~~6.00~~ (9.8% off)	1
035	8850806	DOWEL	8850806 DOWEL GRANO	-	1	Enquire
036	2121345	ROD	2121345 ROD PUNTALE	$289.24	1
037	2131528	PIPE	2131528 PIPE TUBO	$145.21	1
038	2136948	PUMP CYLINDER ARRIVING SOON	2136948 PUMP CYLINDER CILINDRO POMPA ARRIVING SOON	$129.31	1
039	2110618	PIPE IN STOCK	2110618 PIPE TUBO IN STOCK	$95.32	1
