Find Your Part

Gearbox Control Tower (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

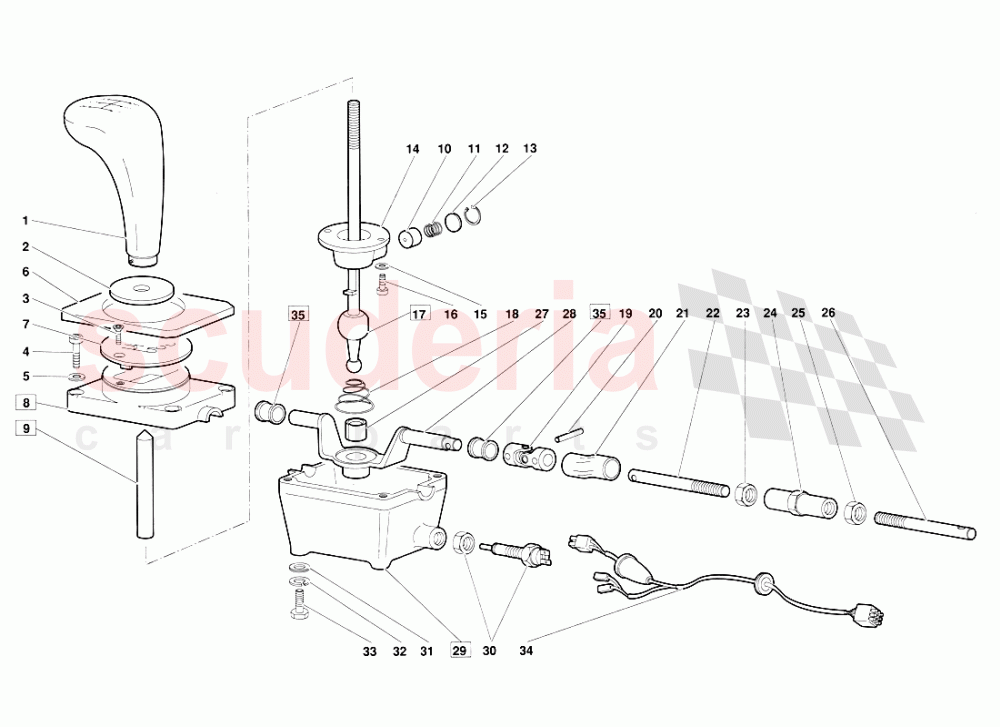

Lamborghini Diablo (1990-1998) - Gearbox Control Tower (Valid for June 1992 Version)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2428311	KNOB	2428311 KNOB (Valid for June 1992 version) POMELLO	$742.30	1
002	2431969	RUBBER RING IN STOCK	2431969 RUBBER RING (Valid for June 1992 version) RONDELLA IN GOMMA IN STOCK	$0.97	1
003	8740613	SCREW IN STOCK	8740613 SCREW (Valid for June 1992 version) VITE IN STOCK	$0.26 MSRP: ~~7.34~~ (96.5% off)	2
004	8700804	SCREW IN STOCK	8700804 SCREW (Valid for June 1992 version) VITE IN STOCK	$1.52 MSRP: ~~7.33~~ (79.3% off)	4
005	WHT000771	WASHER IN STOCK	WHT000771 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$1.11	4
006	2431785	FLEX PAD	2431785 FLEX PAD (Valid for June 1992 version) SPESSORE IN GOMMA	-	1	Enquire
007	2431668	PLATE	2431668 PLATE (Valid for June 1992 version) PIASTRA DISELEZIONE	$708.62	1
008	2427198	COVER	2427198 COVER (Valid for June 1992 version) COPERCHIO (fino 12525)	-	1	Enquire
008	2433019	COVER	2433019 COVER (Valid for June 1992 version) COPERCHIO (dalla 12526) (Per esigenze di lavorazione questo particolare e fornito assieme alia scatola 002433018)	-	1	Enquire
009	2432932	ADAPTER KNOB	2432932 ADAPTER KNOB (Valid for June 1992 version) ADATTATORE POMELLO (dalla 12526)	$72.28	1
009	2428889	ADAPTER KNOB	2428889 ADAPTER KNOB (Valid for June 1992 version) ADATTATORE POMELLO (fino 12525)	$95.38	1
010	2427202	CYLINDER	2427202 CYLINDER (Valid for June 1992 version) CILINDRO	$79.11	1
011	2432167	SPRING	2432167 SPRING (Valid for June 1992 version) MOLLA	$11.32 MSRP: ~~12.70~~ (10.9% off)	1
012	2427204	PLUG	2427204 PLUG (Valid for June 1992 version) TAPPO	$9.60 MSRP: ~~10.40~~ (7.7% off)	1
013	8572201	RETAINER RING IN STOCK	8572201 RETAINER RING (Valid for June 1992 version) ANELLO RITEGNO IN STOCK	$0.07 MSRP: ~~7.38~~ (99.1% off)	1
014	2427199	BALL SOCKFT	2427199 BALL SOCKFT (Valid for June 1992 version) SEDESFERICA	$1,101.60	1
015	8410602	WASHER IN STOCK	8410602 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$41.76	2
016	8700646	SCREW IN STOCK	8700646 SCREW (Valid for June 1992 version) VITE IN STOCK	$0.15 MSRP: ~~7.37~~ (98% off)	2
017	2431667	LEVER	2431667 LEVER LEVA SELEZIONE MARGE (fino 12327)	-	1	Enquire
017	2433014	LEVER	2433014 LEVER (Valid for June 1992 version) LEVA SELEZIONE MARGE (dalla 12328) (Particolare intercambiabile)	$1,291.94	1
018	2429160	SPRING	2429160 SPRING (Valid for June 1992 version) MOLLA	$159.64	1
019	2427208	UNIVERSAL JOINT	2427208 UNIVERSAL JOINT (Valid for June 1992 version) GIUNTO CARDANICO	$539.24	1
020	8900501	PIN - SPINA	8900501 PIN - SPINA (Valid for June 1992 version) SA	$5.27 MSRP: ~~5.80~~ (9.1% off)	2
021	2432117	LINER	2432117 LINER (Valid for June 1992 version) GUAINA IN GOMMA	$61.67	1
022	2430846	ROD	2430846 ROD (Valid for June 1992 version) ASIA	$23.45	1
023	8201223	NUT	8201223 NUT (Valid for June 1992 version) DADO	-	1	Enquire
024	2429793	TIE ROD	2429793 TIE ROD (Valid for June 1992 version) TIRANTE	$106.58	1
025	8201224	NUT	8201224 NUT (Valid for June 1992 version) DADO	-	1	Enquire
026	2430847	ROD	2430847 ROD (Valid for June 1992 version) ASIA	$69.28	1
027	2427207	BUSHING	2427207 BUSHING (Valid for June 1992 version) BOCCOLA	$299.08	1
028	2429161	SHAFT	2429161 SHAFT (Valid for June 1992 version) ALBERO	$283.50 MSRP: ~~308.00~~ (8% off)	1
029	2427197	CASE	2427197 CASE (Valid for June 1992 version) SCATOLA (fino 12525)	-	1	Enquire
029	2433018	CASE	2433018 CASE (Valid for June 1992 version) SCATOLA (dalla 12526) (Per esigenze di lavorazione questo particolare e fornito assieme al coperchio 002433019)	$371.82	1
030	2408637	SWITCH	2408637 SWITCH (Valid for June 1992 version) INTERRUTTORE RETROMARCIA	$109.13	1
031	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 (Valid for June 1992 version) RONDELLA IN STOCK	$1.44	4
032	8410817	WASHER	8410817 WASHER (Valid for June 1992 version) RONDELLA	$4.45	4
033	8100840	SCREW IN STOCK	8100840 SCREW (Valid for June 1992 version) VITE IN STOCK	$0.43	4
034	6130717	ELECT CABLE	6130717 ELECT CABLE (Valid for June 1992 version) CABLAGGIO INTERRUTTORE R.M.	$278.86	1
035	2433020	BUSHING	2433020 BUSHING (Valid for June 1992 version) BOCCOLA (dalla 12526) (Particolare compatibile solamente con la scatola 002433018 e il coperchio 002433019)	$73.04	2
