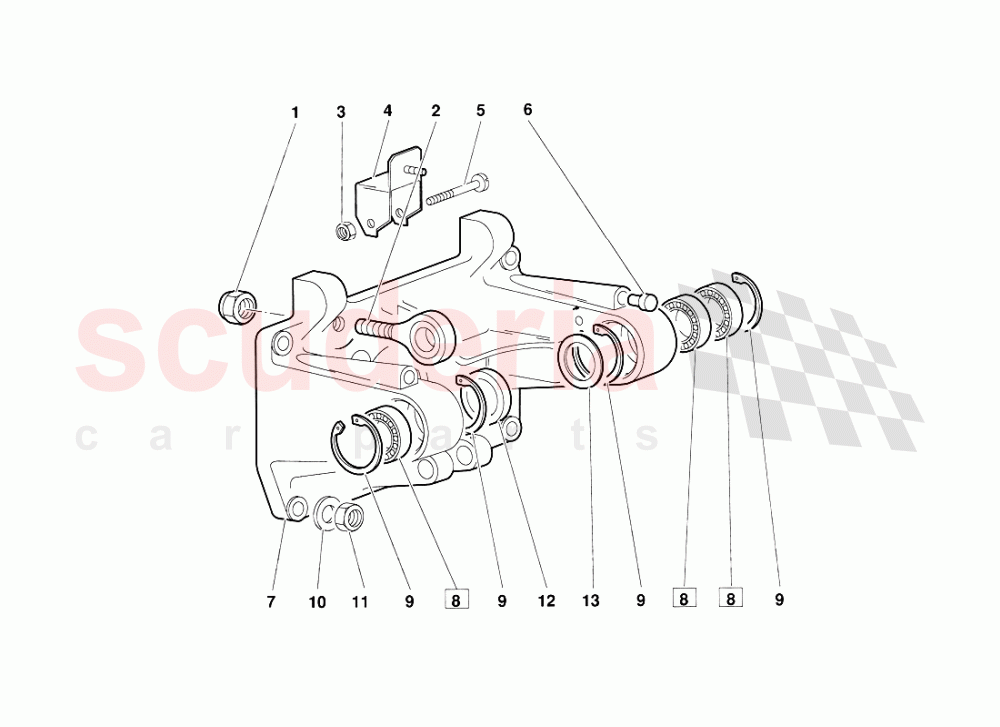

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	8201010	NUT IN STOCK	8201010 NUT (Valid for June 1992 version) DADO IN STOCK	$1.16	1
002	4229456	COUPLING	4229456 COUPLING (Valid for June 1992 version) TESTA A SNODO	$63.55	1
003	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING (Valid for June 1992 version) DADO IN STOCK	$2.08	1
004	4231515	SUPPORT - SUPPORTO	4231515 SUPPORT - SUPPORTO (Valid for June 1992 version) O	$39.16 MSRP: ~~42.45~~ (7.8% off)	1
005	8100654	SCREW	8100654 SCREW (Valid for June 1992 version) VITE	$5.20	1
006	410721381	STOP	410721381 STOP	$79.83	2
007	4231558	PEDALS SUPPORT	4231558 PEDALS SUPPORT (Valid for June 1992 version) SUPPORTO PEDALI	$713.93	1
008	8502513	BEARING	8502513 BEARING (Valid for June 1992 version) CUSCINETTO (sostituisce 008502510)	$34.03 MSRP: ~~38.20~~ (10.9% off)	3
009	8573701	RETAINING RING	8573701 RETAINING RING (Valid for June 1992 version) ANELLO RITEGNO	$0.59 MSRP: ~~7.26~~ (91.9% off)	4
010	8410803	WASHER	8410803 WASHER (Valid for June 1992 version) RONDELLA	$0.07	4
011	N0111849	NUT IN STOCK	N0111849 NUT (Valid for June 1992 version) DADO IN STOCK	$2.13 MSRP: ~~7.25~~ (70.6% off)	4
012	4230923	SPACER	4230923 SPACER (Valid for June 1992 version) DISTANZIALE	$26.57 MSRP: ~~29.85~~ (11% off)	1
013	8402507	WASHER	8402507 WASHER (Valid for June 1992 version) DISTANZIALE	$26.06 MSRP: ~~29.15~~ (10.6% off)	1
