Rear Suspension -Shock Absorber And Brake Disc

Ferrari 288 GTO

Find Your Part

Ferrari 288 GTO - Rear Suspension -Shock Absorber and Brake Disc

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
125726 Shaft with left hub Enquire To Order
125727 Shaft with right hub $689.43 To Order
Photo Part No Description Price (each) Stock
144807 BEARING $96.10 To Order
Photo Part No Description Price (each) Stock
145805 BEARING $142.33 To Order
Photo Part No Description Price (each) Stock
120876 Inner spacer $93.48 To Order
Photo Part No Description Price (each) Stock
118190 SPACER $40.45 To Order
Photo Part No Description Price (each) Stock
119372 Flange, connecting axle shafts $251.64 To Order
Photo Part No Description Price (each) Stock
105511 Washer $8.51 To Order
Photo Part No Description Price (each) Stock
102289 RING NUT $49.87 To Order
Photo Part No Description Price (each) Stock
110579 CENTRIFUGALRING $7.16 To Order
Photo Part No Description Price (each) Stock
124458 Suspension spring Enquire To Order
Photo Part No Description Price (each) Stock
113581 LOWER SPACER $20.34 To Order
Photo Part No Description Price (each) Stock
113582 UPPER SPACER $105.83 To Order
Photo Part No Description Price (each) Stock
114335 Shock absorber $270.48 To Order
Photo Part No Description Price (each) Stock
116358 Pad $38.09 To Order
Photo Part No Description Price (each) Stock
100809 Estendblock $35.07 To Order
Photo Part No Description Price (each) Stock
112441 Screw $67.01 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $5.00 IN STOCK
Photo Part No Description Price (each) Stock
148020 NUT M12 X 1.25 $3.85 To Order
Photo Part No Description Price (each) Stock
386600109 Hyperblock with 4 - Enquire IN STOCK
Photo Part No Description Price (each) Stock
151547 SPRING RETAINING CUP $40.97 To Order
Photo Part No Description Price (each) Stock
13543524 STUD BOLT $4.15 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $5.00 IN STOCK
Photo Part No Description Price (each) Stock
113113 WASHER $0.93 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.25 IN STOCK
Photo Part No Description Price (each) Stock
148020 NUT M12 X 1.25 $3.85 To Order
Photo Part No Description Price (each) Stock
114815 WASHER $1.09 To Order
Photo Part No Description Price (each) Stock
125755 Hub holder, left Enquire To Order
125756 Hub holder, right Enquire To Order
Photo Part No Description Price (each) Stock
125976 Flange, connecting axle shafts $40.71 To Order
Photo Part No Description Price (each) Stock
13543324 Stud -Valid for gearbox $5.17 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
115168 Sealing ring Enquire To Order
Photo Part No Description Price (each) Stock
11061576 SEEGER RING $1.53 To Order
Photo Part No Description Price (each) Stock
103117 MUDGUARDS COVER $88.94 To Order
Photo Part No Description Price (each) Stock
125735 Rear Brake disc $316.54 IN STOCK
Photo Part No Description Price (each) Stock
125736 Screw $2.38 To Order
Photo Part No Description Price (each) Stock
127497 SPRING WASHER M10 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
13524570 Heli -coil $2.28 To Order
View All

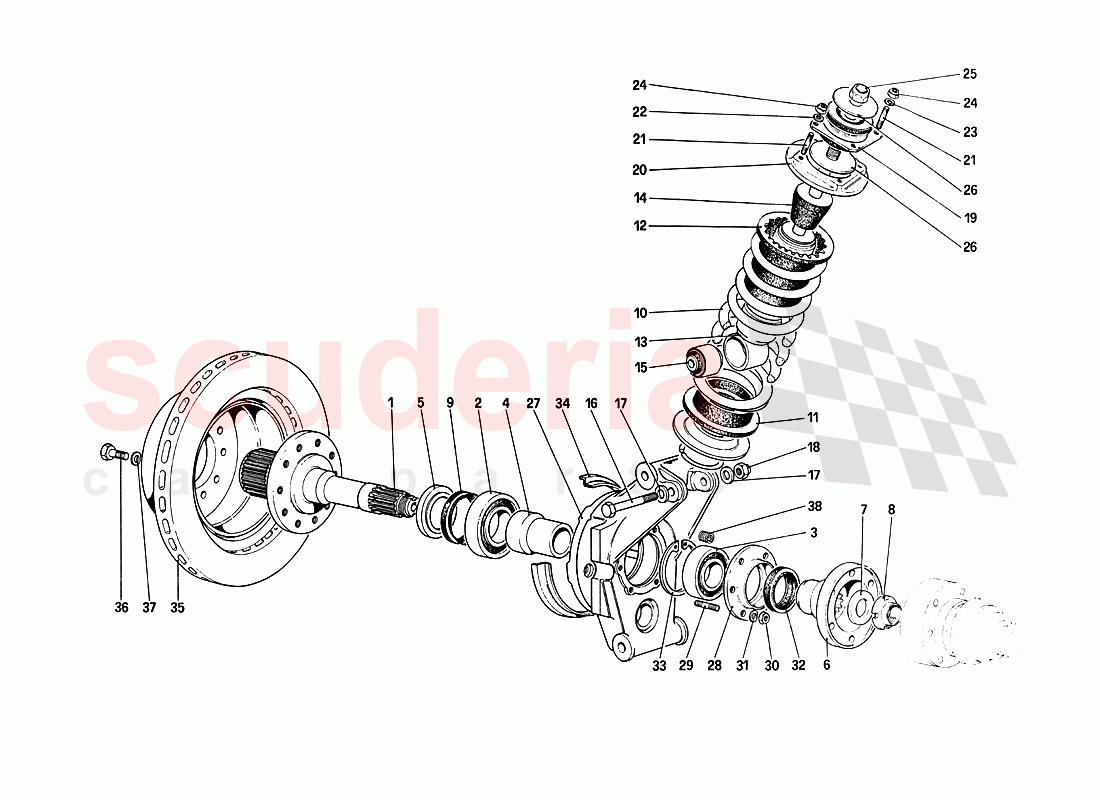

Rear Suspension -Shock Absorber and Brake Disc of Ferrari Ferrari 288 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 125726
Shaft with left hub 		- 1 Enquire
1 125727
Shaft with right hub 		$689.43 1
2 144807
BEARING 		$96.10 (68.5% off) 2
3 145805
BEARING 		$142.33 2
4 120876
Inner spacer 		$93.48 2
5 118190
SPACER 		$40.45 2
6 119372
Flange, connecting axle shafts 		$251.64 (26.1% off) 2
7 105511
Washer 		$8.51 (64.4% off) 2
8 102289
RING NUT 		$49.87 (27.7% off) 2
9 110579
CENTRIFUGALRING 		$7.16 (52.2% off) 2
10 124458
Suspension spring 		- 2 Enquire
11 113581
LOWER SPACER 		$20.34 (10.4% off) 2
12 113582
UPPER SPACER 		$105.83 (38.5% off) 2
13 114335
Shock absorber 		$270.48 (69% off) 2
14 116358
Pad 		$38.09 (15.4% off) 2
15 100809
Estendblock 		$35.07 2
16 112441
Screw 		$67.01 (62.6% off) 2
17 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$5.00 4
18 148020
NUT M12 X 1.25 		$3.85 2
19 386600109
Hyperblock with 4 -
IN STOCK 		- 2 Enquire
20 151547
SPRING RETAINING CUP 		$40.97 (31.4% off) 2
21 13543524
STUD BOLT 		$4.15 (4.6% off) 8
22 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$5.00 6
23 113113
WASHER 		$0.93 (63.7% off) 2
24 104030
NUT
IN STOCK 		$0.25 (75% off) 8
25 148020
NUT M12 X 1.25 		$3.85 2
26 114815
WASHER 		$1.09 (77.1% off) 4
27 125755
Hub holder, left 		- 1 Enquire
27 125756
Hub holder, right 		- 1 Enquire
28 125976
Flange, connecting axle shafts 		$40.71 2
29 13543324
Stud -Valid for gearbox
IN STOCK 		$5.17 2
30 14040711
NUT
IN STOCK 		$0.35 2
31 127496
WASHER 		$0.06 (80% off) 2
32 115168
Sealing ring 		- 2 Enquire
33 11061576
SEEGER RING 		$1.53 2
34 103117
MUDGUARDS COVER 		$88.94 2
35 125735
Rear Brake disc
(knock on type)
IN STOCK 		$316.54 (42.4% off) 2
36 125736
Screw 		$2.38 (60.7% off) 20
37 127497
SPRING WASHER M10
IN STOCK 		$0.06 (92% off) 20
38 13524570
Heli -coil 		$2.28 4
