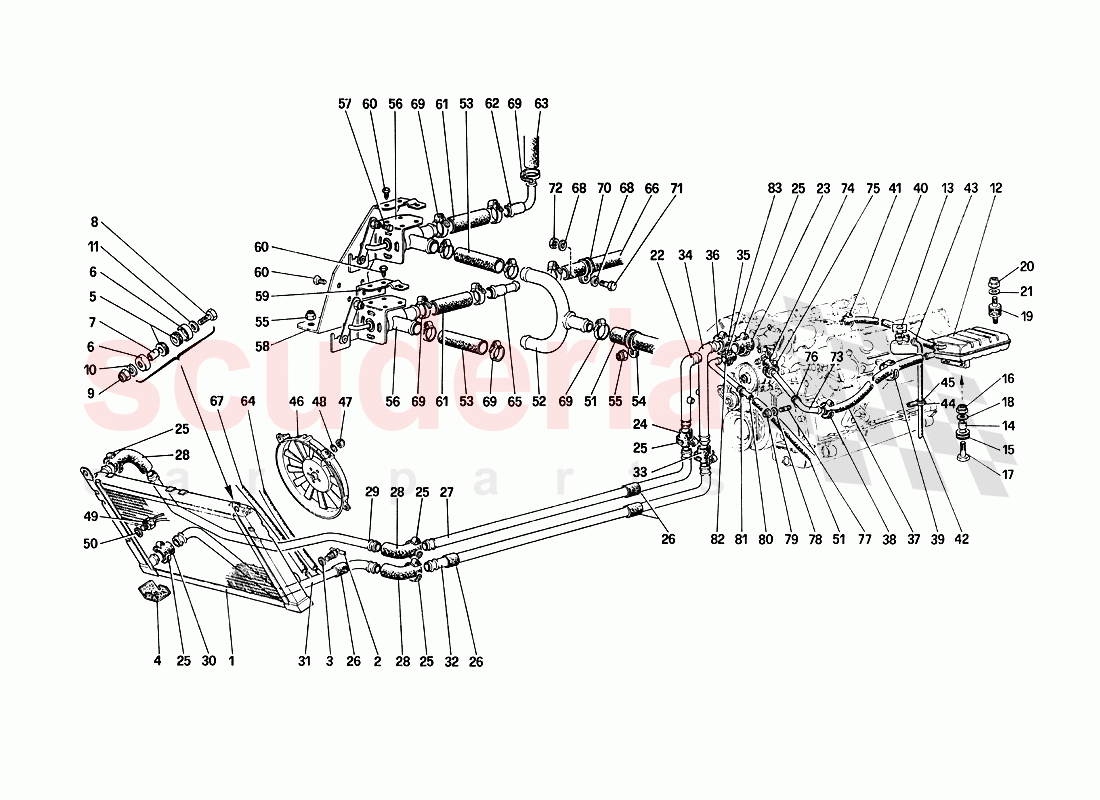

Ferrari 288 GTO - Cooling System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	119951	Water radiator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101488	Water drain tap	$153.04	To Order

Photo	Part No	Description	Price (each)	Stock
	101496	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	120030	Rubber insulating spacer	$8.03	To Order

Photo	Part No	Description	Price (each)	Stock
	107978	VIBRATION DAMPER	$12.69	To Order

Photo	Part No	Description	Price (each)	Stock
	107979	STOP CAP	$10.16	To Order

Photo	Part No	Description	Price (each)	Stock
	107980	SHIM	$5.16	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SCREW	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16104411	Selflocking nut	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	108292	Washer	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	124404	Expansion tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137644	Plug for tank	$24.12	To Order

Photo	Part No	Description	Price (each)	Stock
	103550	Spacer bush -Only for	$1.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	12571411	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902521	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102947	VIBRATION DAMPER	$18.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	123336	Coolant pipe at engine outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121258	Sleeve	$34.36	To Order

Photo	Part No	Description	Price (each)	Stock
	105190	Sleeve	$31.51	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	PIPE CLAMP 30-45MM	$7.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	105385	Sleeve	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	123337	Central pipe delivery to radiator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164417	RETURN RUBBER HOSE	$75.85	To Order

Photo	Part No	Description	Price (each)	Stock
	123338	Pipe for radiator inlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121258	Sleeve	$34.36	To Order

Photo	Part No	Description	Price (each)	Stock
	123340	Pipe for radiator outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123348	Return pipe central from radiator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121258	Sleeve	$34.36	To Order

Photo	Part No	Description	Price (each)	Stock
	123349	Return pipe to engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121258	Sleeve	$34.36	To Order

Photo	Part No	Description	Price (each)	Stock
	12180090	Clamp	$0.54	To Order

Photo	Part No	Description	Price (each)	Stock
	126011	Feeding pipe, extension tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12180190	SCREW COLLAR	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	105550	CLAMP	$0.90	To Order

Photo	Part No	Description	Price (each)	Stock
	122220	Brettherpipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	126291	Breather pipe	$4.77	To Order

Photo	Part No	Description	Price (each)	Stock
	13423379	ELASTIC COLLAR	$0.09	To Order

Photo	Part No	Description	Price (each)	Stock
	103004	Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100471	Fair lead	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124595	Electric fan	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER D.6.4 X 11.95 X 1.6	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	168008	Temperature sensitive switch	$71.29	To Order

Photo	Part No	Description	Price (each)	Stock
	101508	Gasket	$1.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	106699	Pipe engine to 3 way fitting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116319	3 way fitting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116680	Sleeve	$6.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14401890	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	110066	Water valve for heater	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	110077	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123331	Bracket	$24.35	To Order

Photo	Part No	Description	Price (each)	Stock
	116321	Lower bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	110105	Screw	$0.54	To Order

Photo	Part No	Description	Price (each)	Stock
	110277	Sleeve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116322	Fitting 90	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122235	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126824	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116323	Fitting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126825	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126826	Pipe	$12.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14496411	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	SCREW CLAMP	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	108553	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	175223	RUBBER HOSE	$8.31	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	Screw Collar	$0.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10441790	BRACKET WITH SHEATH	$0.64	To Order

Photo	Part No	Description	Price (each)	Stock
	13540724	STUD BOLT	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	12644424	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	123476	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	110277	Sleeve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	SCREW CLAMP	$1.39	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	119951	Water radiator	119951 Water radiator	-	1	Enquire
2	101488	Water drain tap	101488 Water drain tap	$153.04	1
3	101496	Gasket	101496 Gasket	-	1	Enquire
4	120030	Rubber insulating spacer	120030 Rubber insulating spacer	$8.03	2
5	107978	VIBRATION DAMPER	107978 VIBRATION DAMPER	$12.69	4
6	107979	STOP CAP	107979 STOP CAP	$10.16 MSRP: ~~11.98~~ (15.2% off)	4
7	107980	SHIM	107980 SHIM	$5.16 MSRP: ~~6.25~~ (17.4% off)	2
8	231629	SCREW IN STOCK	231629 SCREW IN STOCK	$0.61 MSRP: ~~0.95~~ (35.8% off)	2
9	16104411	Selflocking nut IN STOCK	16104411 Selflocking nut IN STOCK	$0.20 MSRP: ~~0.92~~ (78.3% off)	2
10	128010	Washer	128010 Washer	$2.13 MSRP: ~~9.17~~ (76.8% off)	2
11	108292	Washer	108292 Washer	$2.61	2
12	124404	Expansion tank	124404 Expansion tank	-	1	Enquire
13	137644	Plug for tank	137644 Plug for tank Round cap 0.9 Bar	$24.12 MSRP: ~~39.75~~ (39.3% off)	1
14	103550	Spacer bush -Only for IN STOCK	103550 Spacer bush -Only for IN STOCK	$1.73 MSRP: ~~3.25~~ (46.8% off)	2
15	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.53	2
16	12571411	Nut	12571411 Nut	-	2	Enquire
17	10902521	SCREW	10902521 SCREW	$0.06	2
18	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	2
19	102947	VIBRATION DAMPER IN STOCK	102947 VIBRATION DAMPER IN STOCK	$18.36 MSRP: ~~19.52~~ (5.9% off)	1
20	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	1
21	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	1
22	123336	Coolant pipe at engine outlet	123336 Coolant pipe at engine outlet	-	1	Enquire
23	121258	Sleeve	121258 Sleeve	$34.36 MSRP: ~~48.75~~ (29.5% off)	1
24	105190	Sleeve	105190 Sleeve	$31.51	1
25	296781	PIPE CLAMP 30-45MM IN STOCK	296781 PIPE CLAMP 30-45MM IN STOCK	$7.79	14
26	105385	Sleeve	105385 Sleeve	$1.96 MSRP: ~~68.49~~ (97.1% off)	10
27	123337	Central pipe delivery to radiator	123337 Central pipe delivery to radiator	-	1	Enquire
28	164417	RETURN RUBBER HOSE	164417 RETURN RUBBER HOSE	$75.85 MSRP: ~~101.50~~ (25.3% off)	3
29	123338	Pipe for radiator inlet	123338 Pipe for radiator inlet	-	1	Enquire
30	121258	Sleeve	121258 Sleeve	$34.36 MSRP: ~~48.75~~ (29.5% off)	1
31	123340	Pipe for radiator outlet	123340 Pipe for radiator outlet	-	1	Enquire
32	123348	Return pipe central from radiator	123348 Return pipe central from radiator	-	1	Enquire
33	121258	Sleeve	121258 Sleeve	$34.36 MSRP: ~~48.75~~ (29.5% off)	1
34	123349	Return pipe to engine	123349 Return pipe to engine	-	1	Enquire
35	121258	Sleeve	121258 Sleeve	$34.36 MSRP: ~~48.75~~ (29.5% off)	1
36	12180090	Clamp	12180090 Clamp	$0.54 MSRP: ~~3.75~~ (85.6% off)	2
37	126011	Feeding pipe, extension tank	126011 Feeding pipe, extension tank	-	1	Enquire
38	12180190	SCREW COLLAR	12180190 SCREW COLLAR	$0.37	2
39	105550	CLAMP	105550 CLAMP	$0.90	1
40	122220	Brettherpipe	122220 Brettherpipe	-	1	Enquire
41	13432070	HOSE COLLAR IN STOCK	13432070 HOSE COLLAR IN STOCK	$0.49 MSRP: ~~1.07~~ (54.2% off)	2
42	126291	Breather pipe	126291 Breather pipe	$4.77	1
43	13423379	ELASTIC COLLAR	13423379 ELASTIC COLLAR	$0.09	1
44	103004	Plate	103004 Plate	-	1	Enquire
45	100471	Fair lead	100471 Fair lead	-	1	Enquire
46	124595	Electric fan	124595 Electric fan	-	2	Enquire
47	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	8
48	10519424	WASHER D.6.4 X 11.95 X 1.6 IN STOCK	10519424 WASHER D.6.4 X 11.95 X 1.6 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	8
49	168008	Temperature sensitive switch	168008 Temperature sensitive switch	$71.29 MSRP: ~~86.18~~ (17.3% off)	1
50	101508	Gasket IN STOCK	101508 Gasket IN STOCK	$1.23 MSRP: ~~1.84~~ (33.2% off)	1
51	106699	Pipe engine to 3 way fitting	106699 Pipe engine to 3 way fitting	-	1	Enquire
52	116319	3 way fitting	116319 3 way fitting	-	1	Enquire
53	116680	Sleeve	116680 Sleeve	$6.51	2
54	14401890	Clamp	14401890 Clamp	-	1	Enquire
55	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	3
56	110066	Water valve for heater	110066 Water valve for heater	-	2	Enquire
57	110077	Screw	110077 Screw	-	2	Enquire
58	123331	Bracket	123331 Bracket	$24.35	1
59	116321	Lower bracket	116321 Lower bracket	-	1	Enquire
60	110105	Screw	110105 Screw	$0.54	8
61	110277	Sleeve	110277 Sleeve	-	2	Enquire
62	116322	Fitting 90	116322 Fitting 90	-	1	Enquire
63	122235	Pipe	122235 Pipe	-	1	Enquire
64	126824	Pipe	126824 Pipe	-	1	Enquire
65	116323	Fitting	116323 Fitting	-	1	Enquire
66	126825	Pipe	126825 Pipe	-	1	Enquire
67	126826	Pipe	126826 Pipe	$12.06	1
68	14496411	Washer	14496411 Washer	-	2	Enquire
69	262111	SCREW CLAMP	262111 SCREW CLAMP	$1.39	8
70	108553	Clamp	108553 Clamp	-	1	Enquire
71	10902424	SCREW IN STOCK	10902424 SCREW IN STOCK	$0.14 MSRP: ~~0.70~~ (80% off)	1
72	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	1
73	122843	Pipe	122843 Pipe	-	1	Enquire
74	175223	RUBBER HOSE	175223 RUBBER HOSE	$8.31 MSRP: ~~11.58~~ (28.2% off)	1
75	13000490	Screw Collar IN STOCK	13000490 Screw Collar IN STOCK	$0.72 MSRP: ~~1.90~~ (62.1% off)	2
76	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH	$0.64 MSRP: ~~3.45~~ (81.4% off)	1
77	13540724	STUD BOLT	13540724 STUD BOLT	$0.43	1
78	12644424	WASHER IN STOCK	12644424 WASHER IN STOCK	$0.06 MSRP: ~~0.40~~ (85% off)	1
79	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	1
80	123476	Pipe	123476 Pipe	-	1	Enquire
81	123478	Clamp	123478 Clamp	$3.79	1
82	110277	Sleeve	110277 Sleeve	-	1	Enquire
83	262111	SCREW CLAMP	262111 SCREW CLAMP	$1.39	2
