Hand - Brake Control of Ferrari Ferrari 288 GTO

View All

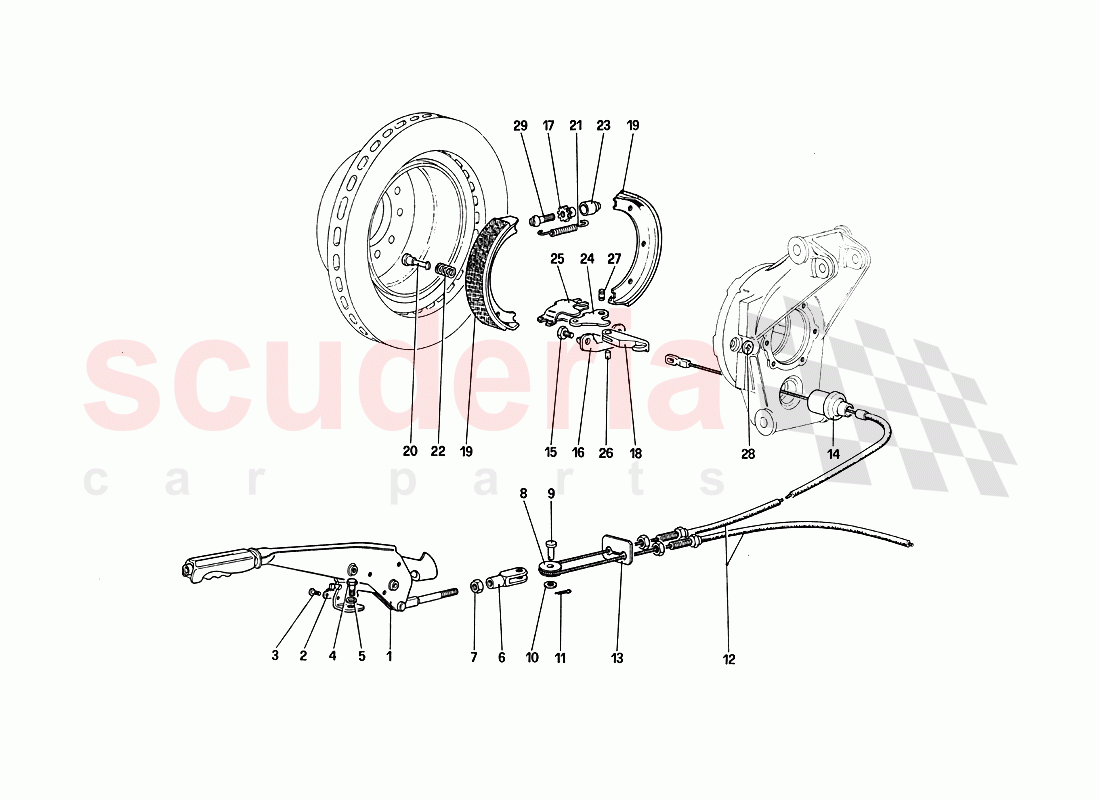

Ferrari 288 GTO - Hand - Brake Control

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	125462	Hand brake lever	$208.24	To Order

Photo	Part No	Description	Price (each)	Stock
	122043	SWITCH FOR BRAKE	$81.83	To Order

Photo	Part No	Description	Price (each)	Stock
	13271906	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043021	SCREW	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	10248271	FORK FOR CLUTCH LEVER	$22.46	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	FLANGED NUT M8 X 1.25	$0.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	122091	PULLEY	$9.01	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10050814	PIN	$2.38	To Order

Photo	Part No	Description	Price (each)	Stock
	13550311	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10734208	SPLIT PIN	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	122090	Cable complete	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122092	Plate	$0.86	To Order

Photo	Part No	Description	Price (each)	Stock
	132129	STOP LIMIT FOR HAND BRAKE SHEATH	$180.47	To Order

Photo	Part No	Description	Price (each)	Stock
	106242	SCREW	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	106243	HUB HOLDER SMALL BLOCK	$24.39	To Order

Photo	Part No	Description	Price (each)	Stock
	101286	Nut for adjusting screw	$68.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	105270	Inner lever control fork	$47.01	To Order

Photo	Part No	Description	Price (each)	Stock
	134847	Hand brake shoes	$120.05	To Order

Photo	Part No	Description	Price (each)	Stock
	101275	Spring securing pin	$19.91	To Order

Photo	Part No	Description	Price (each)	Stock
	101276	RETURN SPRING FOR BRAKE SHOES	$45.74	To Order

Photo	Part No	Description	Price (each)	Stock
	101277	SPRING	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	101279	SEAT FOR ADJUSTMENT SCREW	$115.65	To Order

Photo	Part No	Description	Price (each)	Stock
	101280	Inner Control Lever	$83.87	To Order

Photo	Part No	Description	Price (each)	Stock
	101281	Outer Control Lever	$109.29	To Order

Photo	Part No	Description	Price (each)	Stock
	101282	FIXING FORK TO INNER LEVER PIN	$12.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	101283	Pin for joint	$25.78	To Order

Photo	Part No	Description	Price (each)	Stock
	101284	PLATE FOR SPRING	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	101285	SCREW	$55.07	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	125462	Hand brake lever	125462 Hand brake lever	$208.24	1
2	122043	SWITCH FOR BRAKE	122043 SWITCH FOR BRAKE	$81.83	1
3	13271906	Screw	13271906 Screw	-	2	Enquire
4	16043021	SCREW	16043021 SCREW	$0.15	2
5	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
6	10248271	FORK FOR CLUTCH LEVER	10248271 FORK FOR CLUTCH LEVER	$22.46	1
7	14059311	FLANGED NUT M8 X 1.25 IN STOCK	14059311 FLANGED NUT M8 X 1.25 IN STOCK	$0.25 MSRP: ~~0.50~~ (50% off)	1
8	122091	PULLEY IN STOCK	122091 PULLEY IN STOCK	$9.01	1
9	10050814	PIN	10050814 PIN	$2.38 MSRP: ~~6.25~~ (61.9% off)	1
10	13550311	Washer	13550311 Washer	-	1	Enquire
11	10734208	SPLIT PIN	10734208 SPLIT PIN	$0.02	1
12	122090	Cable complete	122090 Cable complete	-	1	Enquire
13	122092	Plate	122092 Plate	$0.86	1
14	132129	STOP LIMIT FOR HAND BRAKE SHEATH	132129 STOP LIMIT FOR HAND BRAKE SHEATH	$180.47	2
15	106242	SCREW	106242 SCREW	$2.53 MSRP: ~~13.62~~ (81.4% off)	4
16	106243	HUB HOLDER SMALL BLOCK	106243 HUB HOLDER SMALL BLOCK	$24.39 MSRP: ~~103.99~~ (76.5% off)	2
17	101286	Nut for adjusting screw IN STOCK	101286 Nut for adjusting screw IN STOCK	$68.62	2
18	105270	Inner lever control fork	105270 Inner lever control fork	$47.01 MSRP: ~~112.88~~ (58.4% off)	2
19	134847	Hand brake shoes	134847 Hand brake shoes Set of 4 (25 mm)	$120.05	4
20	101275	Spring securing pin	101275 Spring securing pin	$19.91 MSRP: ~~49.55~~ (59.8% off)	4
21	101276	RETURN SPRING FOR BRAKE SHOES	101276 RETURN SPRING FOR BRAKE SHOES	$45.74	4
22	101277	SPRING	101277 SPRING	$0.75 MSRP: ~~5.25~~ (85.7% off)	4
23	101279	SEAT FOR ADJUSTMENT SCREW	101279 SEAT FOR ADJUSTMENT SCREW	$115.65	2
24	101280	Inner Control Lever	101280 Inner Control Lever	$83.87	2
25	101281	Outer Control Lever	101281 Outer Control Lever	$109.29 MSRP: ~~154.96~~ (29.5% off)	2
26	101282	FIXING FORK TO INNER LEVER PIN IN STOCK	101282 FIXING FORK TO INNER LEVER PIN IN STOCK	$12.71	2
27	101283	Pin for joint	101283 Pin for joint	$25.78	2
28	101284	PLATE FOR SPRING	101284 PLATE FOR SPRING	$1.46 MSRP: ~~2.75~~ (46.9% off)	4
29	101285	SCREW IN STOCK	101285 SCREW IN STOCK	$55.07	2
