Ferrari 288 GTO - Timing System - Tappets

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
117562 TAPPET FOR VALVE CONTROL $112.73 To Order
Photo Part No Description Price (each) Stock
117583 DITTO, THICKNESS mm. 3,95 $40.61 IN STOCK
117570 DITTO, THICKNESS mm. 3,30 $20.30 To Order
117571 DITTO, THICKNESS mm. 3,35 $20.30 To Order
...and 25 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
123884 Intake valve $112.77 To Order
Photo Part No Description Price (each) Stock
123885 Exhaust valve Enquire To Order
Photo Part No Description Price (each) Stock
117563 SUCTION VALVE GUIDE $120.12 To Order
117564 SUCTION VALVE GUIDE 0,2 mm. OVERSIZED $120.12 To Order
Photo Part No Description Price (each) Stock
123886 Intake valve seat $126.55 To Order
Photo Part No Description Price (each) Stock
123887 Exhaust valve seat $133.05 To Order
Photo Part No Description Price (each) Stock
117558 INNER SPRING FOR VALVE RETURN $6.11 To Order
Photo Part No Description Price (each) Stock
117559 OUTER SPRING FOR VALVE RETURN $12.16 To Order
Photo Part No Description Price (each) Stock
117567 UPPER CUP FOR RETAINING SPRING $32.03 To Order
Photo Part No Description Price (each) Stock
117568 LOWER CUP FOR RETAINING SPRING $6.08 To Order
Photo Part No Description Price (each) Stock
141565 Oil retainer on valve guide $34.10 IN STOCK
Photo Part No Description Price (each) Stock
117283 Cotter for valve spring cup $2.37 To Order
Photo Part No Description Price (each) Stock
124243 Exhaust valve guide $83.37 To Order
124244 Exhaust valve guide overized of 0,2 mm. $49.69 To Order
View All

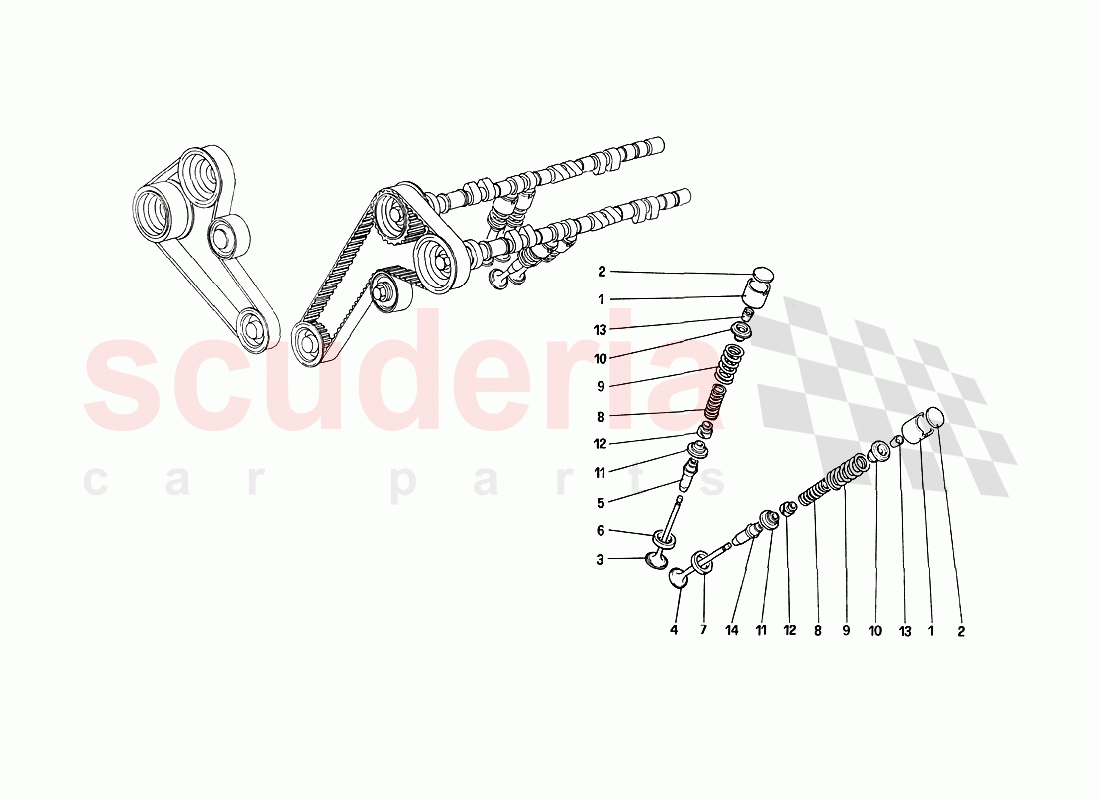

Timing System - Tappets of Ferrari Ferrari 288 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 117562
TAPPET FOR VALVE CONTROL 		$112.73 (42.7% off) 32
2 117583
DITTO, THICKNESS mm. 3,95
IN STOCK 		$40.61 32
2 117570
DITTO, THICKNESS mm. 3,30 		$20.30 32
2 117571
DITTO, THICKNESS mm. 3,35 		$20.30 32
2 117572
DITTO, THICKNESS mm. 3,40 		$20.30 32
2 117573
DITTO, THICKNESS mm. 3,45 		$20.30 32
2 117574
DITTO, THICKNESS mm. 3,50 		$20.30 32
2 117575
DITTO, THICKNESS mm. 3,55
IN STOCK 		$40.61 32
2 117576
DITTO, THICKNESS mm. 3,60 		$48.23 32
2 117577
DITTO, THICKNESS mm. 3,65
IN STOCK 		$48.23 32
2 117578
DITTO, THICKNESS mm. 3,70
IN STOCK 		$48.23 32
2 117579
DITTO, THICKNESS mm. 3,75
IN STOCK 		$48.23 32
2 117580
DITTO, THICKNESS mm. 3,80 		$48.23 32
2 117581
DITTO, THICKNESS mm. 3,85
IN STOCK 		$48.23 32
2 117582
DITTO, THICKNESS mm. 3,90
IN STOCK 		$48.23 32
2 117584
DITTO, THICKNESS mm. 4,00
IN STOCK 		$48.23 32
2 117585
DITTO, THICKNESS mm. 4,05 		$40.61 32
2 117587
DITTO, THICKNESS mm. 4,15 		$48.23 32
2 117586
DITTO, THICKNESS mm. 4,10 		$48.23 32
2 117588
DITTO, THICKNESS mm. 4,20 		$36.81 32
2 117589
DITTO, THICKNESS mm. 4,25 		$36.81 32
2 117590
DITTO, THICKNESS mm. 4,30 		$36.81 32
2 117591
DITTO, THICKNESS mm. 4,35 		$19.03 32
2 117592
DITTO, THICKNESS mm. 4,40 		$20.30 32
2 117593
DITTO, THICKNESS mm. 4,45 		$20.30 32
2 117594
DITTO, THICKNESS mm. 4,50 		$20.30 32
2 117595
DITTO, THICKNESS mm. 4,55 		$20.30 32
2 117596
DITTO, THICKNESS mm. 4,60 		$20.30 32
2 117569
VALVE SETTING PLATE mm. 3,25 		$20.30 (3.8% off) 32
3 123884
Intake valve 		$112.77 (1.3% off) 16
4 123885
Exhaust valve 		- 16 Enquire
5 117563
SUCTION VALVE GUIDE 		$120.12 16
5 117564
SUCTION VALVE GUIDE 0,2 mm. OVERSIZED 		$120.12 (48.3% off) 16
6 123886
Intake valve seat 		$126.55 16
7 123887
Exhaust valve seat 		$133.05 16
8 117558
INNER SPRING FOR VALVE RETURN 		$6.11 (89.7% off) 32
9 117559
OUTER SPRING FOR VALVE RETURN 		$12.16 (58.6% off) 32
10 117567
UPPER CUP FOR RETAINING SPRING 		$32.03 (66.2% off) 32
11 117568
LOWER CUP FOR RETAINING SPRING 		$6.08 32
12 141565
Oil retainer on valve guide
IN STOCK 		$34.10 32
13 117283
Cotter for valve spring cup 		$2.37 (13.8% off) 64
14 124243
Exhaust valve guide 		$83.37 16
14 124244
Exhaust valve guide overized of 0,2 mm. 		$49.69 (32.5% off) 16
