Ferrari 288 GTO - Crankshaft - Connecting Rods and Pistons - Flywheel

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
128794 Crankshaft $3,789.17 To Order
Photo Part No Description Price (each) Stock
14326150 CAP $0.50 IN STOCK
Photo Part No Description Price (each) Stock
100119 1st undersize 0,254 mm. on Ø $40.73 To Order
100120 2nd undersize 0,508 mm on Ø $46.80 To Order
100118 UPPER HALF BEARING $31.13 To Order
Photo Part No Description Price (each) Stock
100123 1st undersize 0,254 mm. on Ø $122.73 To Order
100124 2nd undersize 0,508 mm on Ø $43.07 To Order
100122 LOWER HALF BEARING $32.43 To Order
Photo Part No Description Price (each) Stock
153214 HALF BEARING SET - 1st UNDERSIZE mm. 0,254 $264.25 To Order
104025 2nd undersize 0,508 mm on Ø $36.12 To Order
104023 UPPER AND LOWER HALF BEARING $32.43 To Order
Photo Part No Description Price (each) Stock
113984 SHIM 1st OVERSIZE mm 0.127 $80.99 To Order
100147 SHIM 2nd OVERSIZE mm 0.250 $14.57 To Order
4150813 Shim for rear support Enquire To Order
Photo Part No Description Price (each) Stock
10206020 Tongue $0.99 To Order
Photo Part No Description Price (each) Stock
122064 Connecting rod, complete $405.75 To Order
Photo Part No Description Price (each) Stock
122064 Connecting rod, complete $405.75 To Order
Photo Part No Description Price (each) Stock
100156 CONNECTING ROD TIGHTENING SCREW $16.57 To Order
Photo Part No Description Price (each) Stock
104011 CONNECTING ROD TIGHTENING NUT $53.40 To Order
Photo Part No Description Price (each) Stock
121975 Gudgeon pin $12.12 To Order
Photo Part No Description Price (each) Stock
100174 Ring for gudgeon pin $5.16 To Order
Photo Part No Description Price (each) Stock
122453 Piston with piston ring Enquire To Order
Photo Part No Description Price (each) Stock
121954 Driving sprocket for timing sys. $678.19 To Order
125667 Set of piston rings Enquire To Order
Photo Part No Description Price (each) Stock
122610 Torsion damper with pulley Enquire To Order
Photo Part No Description Price (each) Stock
138792 WASHER $4.59 To Order
Photo Part No Description Price (each) Stock
103877 BEARING $31.33 IN STOCK
Photo Part No Description Price (each) Stock
123381 Engine flywheel Enquire To Order
Photo Part No Description Price (each) Stock
201755 Bolt Hex Head M10 x 1.25 $1.05 IN STOCK
Photo Part No Description Price (each) Stock
215963 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
123317 Dowel $1.59 To Order
Photo Part No Description Price (each) Stock
200323 REAR MAIN OIL SEALING RING D.80-100X10 $48.36 IN STOCK
Photo Part No Description Price (each) Stock
109316 Driving gear for scavenge pump Enquire To Order
View All

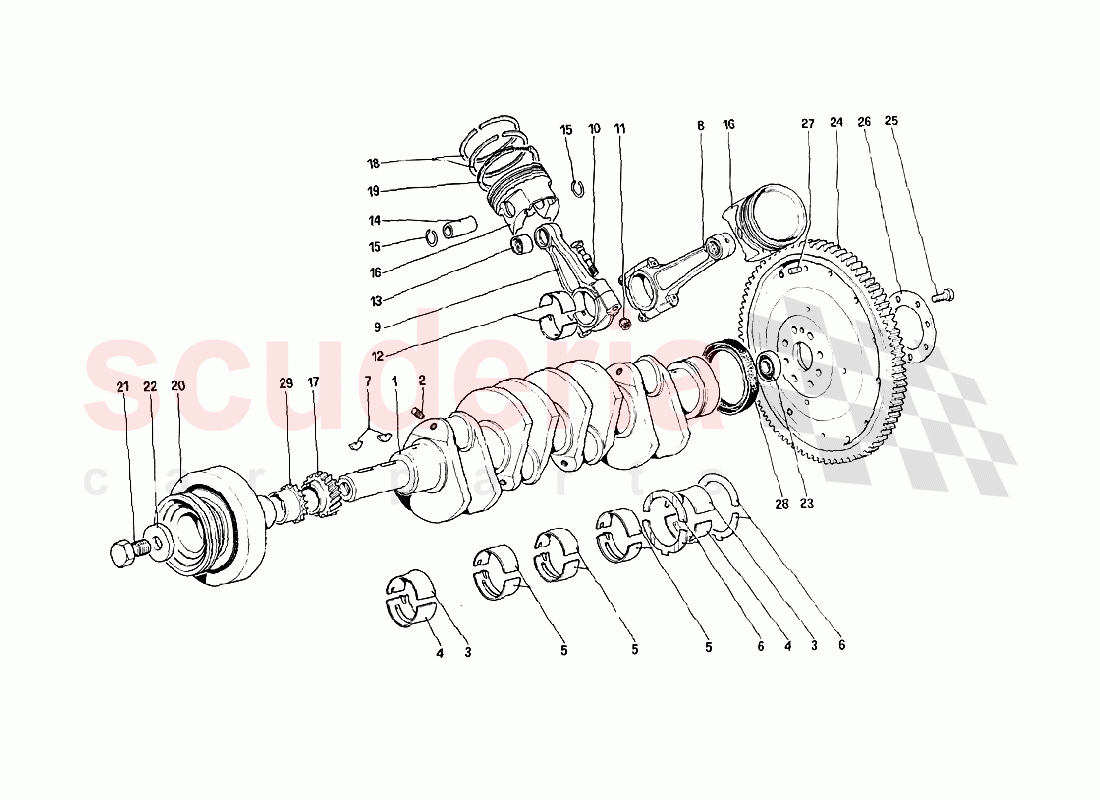

Crankshaft - Connecting Rods and Pistons - Flywheel of Ferrari Ferrari 288 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 128794
Crankshaft 		$3,789.17 1
2 14326150
CAP
IN STOCK 		$0.50 (66.7% off) 8
3 100119
1st undersize 0,254 mm. on Ø 		$40.73 (42.3% off) 2
3 100120
2nd undersize 0,508 mm on Ø 		$46.80 2
3 100118
UPPER HALF BEARING 		$31.13 (30.8% off) 2
4 100123
1st undersize 0,254 mm. on Ø 		$122.73 (44.2% off) 2
4 100124
2nd undersize 0,508 mm on Ø 		$43.07 2
4 100122
LOWER HALF BEARING 		$32.43 (33.7% off) 2
5 153214
HALF BEARING SET - 1st UNDERSIZE mm. 0,254 		$264.25 6
5 104025
2nd undersize 0,508 mm on Ø 		$36.12 6
5 104023
UPPER AND LOWER HALF BEARING 		$32.43 (42.1% off) 6
6 113984
SHIM 1st OVERSIZE mm 0.127 		$80.99 2
6 100147
SHIM 2nd OVERSIZE mm 0.250 		$14.57 (26.4% off) 2
6 4150813
Shim for rear support
(includes upper and lower thrust washer) 		- 2 Enquire
7 10206020
Tongue 		$0.99 (72.8% off) 2
8 122064
Connecting rod, complete 		$405.75 8
9 122064
Connecting rod, complete
With assembly no. 122064 		$405.75 8
10 100156
CONNECTING ROD TIGHTENING SCREW 		$16.57 (62.8% off) 16
11 104011
CONNECTING ROD TIGHTENING NUT 		$53.40 16
12 106184
1st undersize 0,254 mm. on Ø 		- 16 Enquire
12 106185
2nd undersize 0,508 mm on Ø 		- 16 Enquire
12 106183
CONNECTING ROD HALF BEARING
use 100150/A for complete set 		$24.16 16
13 121974
Bush for gudgeon pin 		$22.42 8
14 121975
Gudgeon pin 		$12.12 8
15 100174
Ring for gudgeon pin 		$5.16 (39.3% off) 16
16 122453
Piston with piston ring 		- 8 Enquire
17 121954
Driving sprocket for timing sys. 		$678.19 1
17 125667
Set of piston rings 		- 1 Enquire
18 122457
AC conical seal ring (1st- 2nd groove)
With complete set. no. 125667 		- 16 Enquire
19 119535
ROF scraper ring with spring (3td groove)
With complete set. no. 125667 		- 8 Enquire
20 122610
Torsion damper with pulley 		- 1 Enquire
21 138793
SCREW 		$87.52 1
22 138792
WASHER 		$4.59 1
23 103877
BEARING
IN STOCK 		$31.33 1
24 123381
Engine flywheel 		- 1 Enquire
25 201755
Bolt Hex Head M10 x 1.25
IN STOCK 		$1.05 (46.2% off) 8
26 215963
WASHER 		- 1 Enquire
27 123317
Dowel 		$1.59 4
28 200323
REAR MAIN OIL SEALING RING D.80-100X10
As option to no. 40000230
IN STOCK 		$48.36 (28% off) 1
29 109316
Driving gear for scavenge pump 		- 1 Enquire
