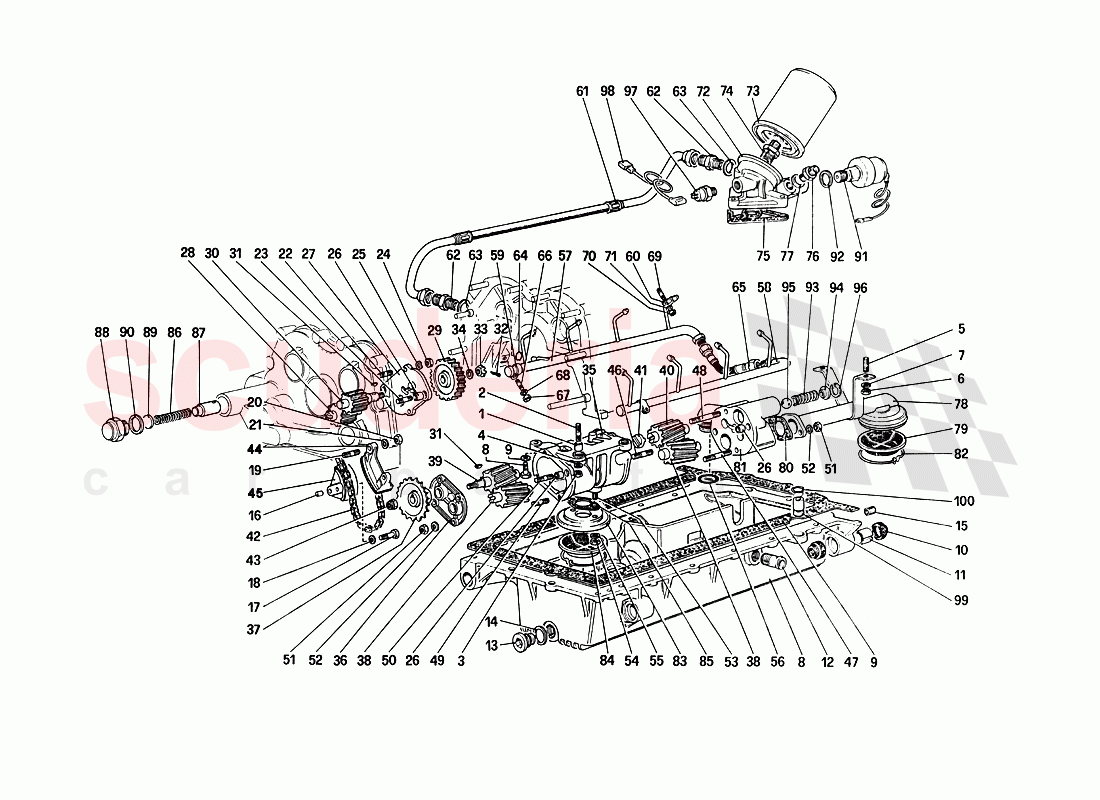

Ferrari 288 GTO - Lubrication - Filter and Oil Pumps

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	121906	Dowel	$1.91	To Order

Photo	Part No	Description	Price (each)	Stock
	13543624	STUD BOLT	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13516421	Stud	$2.56	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	123928	Oil sump	Enquire	To Order
	124697	Oil sump complete	Enquire	To Order
	124697	Oil sump complete	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	144254	Gasket	$25.66	To Order

Photo	Part No	Description	Price (each)	Stock
	121929	Ring	$6.12	To Order

Photo	Part No	Description	Price (each)	Stock
	124467	Bush	$4.20	To Order

Photo	Part No	Description	Price (each)	Stock
	104658	Fitting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5	$5.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	122976	Hell -coil	$7.84	To Order

Photo	Part No	Description	Price (each)	Stock
	125716	CENTERING DOWEL	$3.01	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11500224	STUD BOLT	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13540824	STUD BOLT	$0.20	To Order

Photo	Part No	Description	Price (each)	Stock
	13541124	STUD BOLT	$20.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	124111	Cover for oil pump	$72.48	To Order

Photo	Part No	Description	Price (each)	Stock
	124113	Driven gear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	117659	Control gear	$252.05	To Order

Photo	Part No	Description	Price (each)	Stock
	124112	Driving gear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10205620	Key	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	102900	Nut	$5.40	To Order

Photo	Part No	Description	Price (each)	Stock
	11198570	Washer	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	122051	Scavenge pump body complete	$695.46	To Order
	122051	Scavenge pump body complete	$695.46	To Order

Photo	Part No	Description	Price (each)	Stock
	109301	Front cover for pump	$198.96	To Order

Photo	Part No	Description	Price (each)	Stock
	109318	External gear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116056	Driven gear	$57.70	To Order

Photo	Part No	Description	Price (each)	Stock
	116057	Front driving gear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116058	Rear driving gear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109309	JOINT	$16.43	To Order

Photo	Part No	Description	Price (each)	Stock
	109326	Chain	$13.55	To Order

Photo	Part No	Description	Price (each)	Stock
	104011	CONNECTING ROD TIGHTENING NUT	$53.38	To Order

Photo	Part No	Description	Price (each)	Stock
	109350	Right tension pad	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136196	Right tension pad	$91.23	To Order

Photo	Part No	Description	Price (each)	Stock
	11501424	STUD	$3.16	To Order

Photo	Part No	Description	Price (each)	Stock
	11501821	Stud	$2.38	To Order

Photo	Part No	Description	Price (each)	Stock
	11500324	STUD BOLT	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	11500524	STUD BOLT	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11500024	Stud for cover of flywheel	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	104213	Scaling ring	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	123174	Oil delivery pipe right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123175	Oil delivery pipe lett	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123171	Clamp	$2.90	To Order

Photo	Part No	Description	Price (each)	Stock
	123170	Clamp	$67.75	To Order

Photo	Part No	Description	Price (each)	Stock
	120780	Fitting	$16.43	To Order

Photo	Part No	Description	Price (each)	Stock
	10261460	COPPER WASHER 16 X 24 X 1.5	$0.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	123622	O-Ring	$1.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	123192	Pipe	$55.08	To Order

Photo	Part No	Description	Price (each)	Stock
	11500024	Stud for cover of flywheel	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER D.6.4 X 11.95 X 1.6	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13539024	STUD BOLT	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	14496324	WASHER	$2.78	To Order

Photo	Part No	Description	Price (each)	Stock
	123202	Filter base	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100327	Fitting	$20.70	To Order

Photo	Part No	Description	Price (each)	Stock
	151105	Gasket	$4.90	To Order

Photo	Part No	Description	Price (each)	Stock
	109889	UNION	$4.13	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	121947	Suction pipe rear	$347.46	To Order

Photo	Part No	Description	Price (each)	Stock
	100332	OIL PICKUP FILTER	$17.87	To Order

Photo	Part No	Description	Price (each)	Stock
	144251	Gasket	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	103944	Sealing ring	$115.11	To Order

Photo	Part No	Description	Price (each)	Stock
	122428	Suction pipe front	$49.83	To Order

Photo	Part No	Description	Price (each)	Stock
	122429	Oil Pickup Filter	$10.91	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	147701	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106900	Spring	$2.55	To Order

Photo	Part No	Description	Price (each)	Stock
	125885	Piston -Valid from engine	$85.79	To Order

Photo	Part No	Description	Price (each)	Stock
	106237	Plug	$56.08	To Order

Photo	Part No	Description	Price (each)	Stock
	106238	Spacer	$1.08	To Order

Photo	Part No	Description	Price (each)	Stock
	907923	DOWTY WASHER	$36.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	122592	Sender	$167.90	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	121972	Washer	$2.17	To Order

Photo	Part No	Description	Price (each)	Stock
	121306	BALL	$3.16	To Order

Photo	Part No	Description	Price (each)	Stock
	11058076	SEEGER RING	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	110664	Switch for oil pressure warning light	$99.59	To Order

Photo	Part No	Description	Price (each)	Stock
	112388	Cable	$3.39	To Order

Photo	Part No	Description	Price (each)	Stock
	103838	Dowel	$1.71	To Order

Photo	Part No	Description	Price (each)	Stock
	103839	Ring	$4.96	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	121906	Dowel	121906 Dowel	$1.91	2
2	13543624	STUD BOLT	13543624 STUD BOLT	$0.43	2
3	14040711	NUT IN STOCK	14040711 NUT IN STOCK	$0.35	2
4	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	2
5	13516421	Stud	13516421 Stud	$2.56	2
6	14040711	NUT IN STOCK	14040711 NUT IN STOCK	$0.35	2
7	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
8	123928	Oil sump	123928 Oil sump With assembly no. 124696	-	1	Enquire
8	124697	Oil sump complete	124697 Oil sump complete With assembly no. 124697	-	1	Enquire
8	124697	Oil sump complete	124697 Oil sump complete Cars without A.C.	-	1	Enquire
8	124697	Oil sump complete	124697 Oil sump complete Cars with A.C.	-	1	Enquire
9	144254	Gasket	144254 Gasket	$25.66 MSRP: ~~34.22~~ (25% off)	1
10	121929	Ring	121929 Ring	$6.12	4
11	124467	Bush	124467 Bush	$4.20	2
12	104658	Fitting	104658 Fitting	-	2	Enquire
13	104280	MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 IN STOCK	104280 MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 IN STOCK	$5.40 MSRP: ~~6.90~~ (21.7% off)	1
14	10263460	COPPER GASKET D.28-22.3 X 1.5 IN STOCK	10263460 COPPER GASKET D.28-22.3 X 1.5 IN STOCK	$0.35 MSRP: ~~1.00~~ (65% off)	1
15	122976	Hell -coil	122976 Hell -coil	$7.84	3
16	125716	CENTERING DOWEL	125716 CENTERING DOWEL	$3.01	1
17	10902424	SCREW IN STOCK	10902424 SCREW IN STOCK	$0.14 MSRP: ~~0.70~~ (80% off)	1
18	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	1
19	11500224	STUD BOLT	11500224 STUD BOLT	$0.35	2
20	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	2
21	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2
22	13540824	STUD BOLT	13540824 STUD BOLT	$0.20	2
23	13541124	STUD BOLT IN STOCK	13541124 STUD BOLT IN STOCK	$20.25	2
24	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	4
25	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	4
26	102725	CENTERING DOWEL	102725 CENTERING DOWEL	$1.01 MSRP: ~~2.25~~ (55.1% off)	6
27	124111	Cover for oil pump	124111 Cover for oil pump	$72.48	1
28	124113	Driven gear	124113 Driven gear	-	1	Enquire
29	117659	Control gear	117659 Control gear	$252.05	1
30	124112	Driving gear	124112 Driving gear	-	1	Enquire
31	10205620	Key	10205620 Key	$0.37 MSRP: ~~2.33~~ (84.1% off)	2
32	10734301	SPLIT PIN	10734301 SPLIT PIN	$0.06	1
33	102900	Nut	102900 Nut	$5.40	1
34	11198570	Washer	11198570 Washer	$0.06	1
35	122051	Scavenge pump body complete	122051 Scavenge pump body complete With assembly p. no. 122051	$695.46	1
35	122051	Scavenge pump body complete	122051 Scavenge pump body complete	$695.46	1
36	109301	Front cover for pump	109301 Front cover for pump	$198.96	1
37	109318	External gear	109318 External gear	-	1	Enquire
38	116056	Driven gear	116056 Driven gear	$57.70	2
39	116057	Front driving gear	116057 Front driving gear	-	1	Enquire
40	116058	Rear driving gear	116058 Rear driving gear	-	1	Enquire
41	109309	JOINT	109309 JOINT	$16.43 MSRP: ~~82.94~~ (80.2% off)	1
42	109326	Chain	109326 Chain	$13.55 MSRP: ~~47.38~~ (71.4% off)	1
43	104011	CONNECTING ROD TIGHTENING NUT	104011 CONNECTING ROD TIGHTENING NUT	$53.38	1
44	109350	Right tension pad	109350 Right tension pad	-	1	Enquire
45	136196	Right tension pad	136196 Right tension pad	$91.23	1
46	11501424	STUD	11501424 STUD	$3.16	1
47	11501821	Stud	11501821 Stud	$2.38	1
49	11500324	STUD BOLT	11500324 STUD BOLT	$0.26	2
50	11500524	STUD BOLT	11500524 STUD BOLT	$0.34 MSRP: ~~1.00~~ (66% off)	2
51	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	8
52	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	8
53	11500024	Stud for cover of flywheel	11500024 Stud for cover of flywheel	$0.67	2
54	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	2
55	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2
56	104213	Scaling ring	104213 Scaling ring	$0.18 MSRP: ~~0.44~~ (59.1% off)	1
57	123174	Oil delivery pipe right	123174 Oil delivery pipe right	-	1	Enquire
58	123175	Oil delivery pipe lett	123175 Oil delivery pipe lett	-	1	Enquire
59	123171	Clamp	123171 Clamp	$2.90	4
60	123170	Clamp	123170 Clamp	$67.75	8
61	138789	Pipe from filter base to crankcase	138789 Pipe from filter base to crankcase	$98.69	1
62	120780	Fitting	120780 Fitting	$16.43	2
63	10261460	COPPER WASHER 16 X 24 X 1.5 IN STOCK	10261460 COPPER WASHER 16 X 24 X 1.5 IN STOCK	$0.32 MSRP: ~~1.00~~ (68% off)	2
64	123622	O-Ring IN STOCK	123622 O-Ring IN STOCK	$1.39	1
65	123192	Pipe	123192 Pipe	$55.08	1
66	11500024	Stud for cover of flywheel	11500024 Stud for cover of flywheel	$0.67	4
67	13679811	Washer	13679811 Washer	$0.09	4
68	10519424	WASHER D.6.4 X 11.95 X 1.6 IN STOCK	10519424 WASHER D.6.4 X 11.95 X 1.6 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	4
69	13539024	STUD BOLT	13539024 STUD BOLT	$1.34	8
70	13677911	NUT	13677911 NUT	$0.26	8
71	14496324	WASHER	14496324 WASHER	$2.78	8
72	123202	Filter base	123202 Filter base	-	1	Enquire
74	100327	Fitting	100327 Fitting	$20.70	1
75	151105	Gasket	151105 Gasket	$4.90	1
76	109889	UNION	109889 UNION	$4.13 MSRP: ~~13.34~~ (69% off)	2
77	10280060	WASHER COPPER D14. 20 X 1.5 IN STOCK	10280060 WASHER COPPER D14. 20 X 1.5 IN STOCK	$0.20 MSRP: ~~1.00~~ (80% off)	2
78	121947	Suction pipe rear	121947 Suction pipe rear	$347.46	1
79	100332	OIL PICKUP FILTER	100332 OIL PICKUP FILTER	$17.87	1
80	144251	Gasket	144251 Gasket	$1.17 MSRP: ~~1.57~~ (25.5% off)	1
81	121953	Rear cover pump	121953 Rear cover pump	$854.70	1
82	103944	Sealing ring	103944 Sealing ring	$115.11	2
83	122428	Suction pipe front	122428 Suction pipe front	$49.83	1
84	122429	Oil Pickup Filter IN STOCK	122429 Oil Pickup Filter IN STOCK	$10.91 MSRP: ~~14.20~~ (23.2% off)	1
85	147701	Gasket	147701 Gasket	-	1	Enquire
86	106900	Spring	106900 Spring	$2.55 MSRP: ~~12.00~~ (78.8% off)	1
87	125885	Piston -Valid from engine	125885 Piston -Valid from engine	$85.79 MSRP: ~~348.74~~ (75.4% off)	1
88	106237	Plug	106237 Plug	$56.08	1
89	106238	Spacer	106238 Spacer	$1.08 MSRP: ~~3.36~~ (67.9% off)	1
90	907923	DOWTY WASHER IN STOCK	907923 DOWTY WASHER IN STOCK	$36.07	1
91	122592	Sender	122592 Sender	$167.90 MSRP: ~~180.00~~ (6.7% off)	1
92	10259960	Copper Washer 18 - 24 x 1.5 IN STOCK	10259960 Copper Washer 18 - 24 x 1.5 IN STOCK	$0.31 MSRP: ~~1.25~~ (75.2% off)	1
93	121981	Spring	121981 Spring	$3.84	1
94	121972	Washer	121972 Washer	$2.17	1
95	121306	BALL	121306 BALL	$3.16	1
96	11058076	SEEGER RING	11058076 SEEGER RING	$0.05	1
97	110664	Switch for oil pressure warning light	110664 Switch for oil pressure warning light	$99.59	1
98	112388	Cable	112388 Cable	$3.39	1
99	103838	Dowel	103838 Dowel	$1.71	2
100	103839	Ring	103839 Ring	$4.96 MSRP: ~~17.66~~ (71.9% off)	2
