Timing System - Controls

Ferrari 288 GTO

Find Your Part

Ferrari 288 GTO - Timing System - Controls

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
121957 Right cover $381.30 To Order
Photo Part No Description Price (each) Stock
122174 Left cover, complete $250.61 To Order
122174 Left cover, complete $250.61 To Order
Photo Part No Description Price (each) Stock
114818 SCREW $35.81 To Order
Photo Part No Description Price (each) Stock
15972021 Screw $0.86 To Order
Photo Part No Description Price (each) Stock
121660 Screw $14.53 To Order
Photo Part No Description Price (each) Stock
109013 Screw $23.21 To Order
Photo Part No Description Price (each) Stock
12638601 WASHER $0.55 To Order
Photo Part No Description Price (each) Stock
127497 SPRING WASHER M10 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
60793500 Spring clip $0.61 To Order
Photo Part No Description Price (each) Stock
117628 Protection right belt $471.09 To Order
Photo Part No Description Price (each) Stock
117627 Protection left belt $471.09 To Order
Photo Part No Description Price (each) Stock
10977724 SCREW $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12601174 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
15688502 Screw $0.09 To Order
Photo Part No Description Price (each) Stock
111334 Timing belt $5.74 IN STOCK
Photo Part No Description Price (each) Stock
113097 Driver gear $401.16 To Order
Photo Part No Description Price (each) Stock
113098 Driver gear $401.16 To Order
Photo Part No Description Price (each) Stock
117256 Belt stretcher plate $341.38 To Order
Photo Part No Description Price (each) Stock
111458 Screw $32.97 To Order
Photo Part No Description Price (each) Stock
111460 SHIM $15.21 To Order
Photo Part No Description Price (each) Stock
13524670 THREADED INSERT $0.63 To Order
Photo Part No Description Price (each) Stock
105206B Belt idler ring Enquire To Order
Photo Part No Description Price (each) Stock
102824 WASHER $2.40 To Order
Photo Part No Description Price (each) Stock
104148 Spring $46.91 To Order
Photo Part No Description Price (each) Stock
125717 CENTRING DOWEL $2.95 IN STOCK
Photo Part No Description Price (each) Stock
118153 Support for left belt stretcher $166.93 To Order
118152 Support for right belt stretcher $166.93 To Order
Photo Part No Description Price (each) Stock
146540 SCREW $4.62 To Order
Photo Part No Description Price (each) Stock
117274 WASHER $3.35 To Order
Photo Part No Description Price (each) Stock
106203 CENTERING DOWEL $6.73 To Order
Photo Part No Description Price (each) Stock
121955 Drive gear for distribution shafts Enquire To Order
Photo Part No Description Price (each) Stock
121273 Driving pulley $224.18 To Order
Photo Part No Description Price (each) Stock
121275 Bearing of crankcase $8.34 To Order
Photo Part No Description Price (each) Stock
121274 Bearing on front cover $229.03 To Order
Photo Part No Description Price (each) Stock
121276 GASKET $18.16 To Order
Photo Part No Description Price (each) Stock
104919 RING LOCK NUT $4.90 IN STOCK
Photo Part No Description Price (each) Stock
121279 Washer $12.93 To Order
Photo Part No Description Price (each) Stock
121277 Seeger Ring $0.32 To Order
Photo Part No Description Price (each) Stock
10206320 DISC TAB $1.44 IN STOCK
Photo Part No Description Price (each) Stock
124643 Bracket $24.88 To Order
Photo Part No Description Price (each) Stock
13516624 STUD BOLT $0.29 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.24 IN STOCK
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
123925 Spacer $18.16 To Order
Photo Part No Description Price (each) Stock
128944 WASHER $2.74 To Order
View All

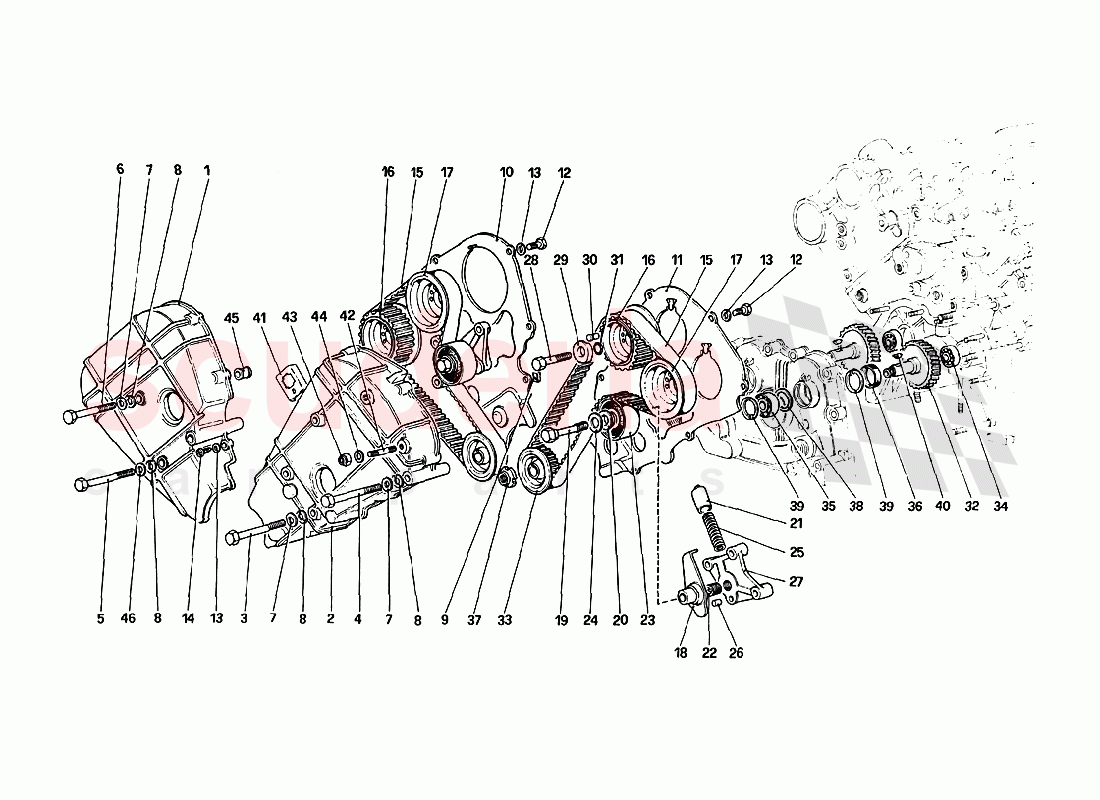

Timing System - Controls of Ferrari Ferrari 288 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 121957
Right cover 		$381.30 1
2 122174
Left cover, complete
With assembly no. 122174 		$250.61 1
2 122174
Left cover, complete 		$250.61 1
3 114818
SCREW 		$35.81 1
4 15972021
Screw 		$0.86 1
5 121660
Screw 		$14.53 (43.6% off) 2
6 109013
Screw 		$23.21 1
7 12638601
WASHER 		$0.55 (45% off) 6
8 127497
SPRING WASHER M10
IN STOCK 		$0.06 (92% off) 7
9 60793500
Spring clip 		$0.61 1
10 117628
Protection right belt 		$471.09 1
11 117627
Protection left belt 		$471.09 1
12 10977724
SCREW
IN STOCK 		$0.06 12
13 12601174
WASHER 		$0.06 (82.9% off) 13
14 15688502
Screw 		$0.09 1
15 111334
Timing belt
IN STOCK 		$5.74 (82.1% off) 2
16 113097
Driver gear 		$401.16 (41.3% off) 2
17 113098
Driver gear 		$401.16 (41.3% off) 2
18 117256
Belt stretcher plate 		$341.38 2
19 111458
Screw 		$32.97 (49.2% off) 2
20 111460
SHIM 		$15.21 (14.8% off) 2
21 102819
Pin 		$88.78 (35.3% off) 2
22 13524670
THREADED INSERT 		$0.63 2
23 105206B
Belt idler ring 		- 2 Enquire
24 102824
WASHER 		$2.40 (36.5% off) 2
25 104148
Spring 		$46.91 2
26 125717
CENTRING DOWEL
IN STOCK 		$2.95 2
27 118153
Support for left belt stretcher 		$166.93 1
27 118152
Support for right belt stretcher 		$166.93 1
28 146540
SCREW 		$4.62 (59.8% off) 4
29 117274
WASHER 		$3.35 4
30 106203
CENTERING DOWEL 		$6.73 (35.9% off) 4
31 114808
O-Ring
IN STOCK 		$4.10 (13.7% off) 4
32 121955
Drive gear for distribution shafts 		- 2 Enquire
33 121273
Driving pulley 		$224.18 2
34 121275
Bearing of crankcase 		$8.34 (67.1% off) 2
35 121274
Bearing on front cover 		$229.03 2
36 121276
GASKET 		$18.16 (29.7% off) 2
37 104919
RING LOCK NUT
IN STOCK 		$4.90 2
38 121279
Washer 		$12.93 (61.7% off) 2
39 121277
Seeger Ring 		$0.32 (59% off) 4
40 10206320
DISC TAB
IN STOCK 		$1.44 (4% off) 2
41 124643
Bracket 		$24.88 1
42 13516624
STUD BOLT 		$0.29 1
43 104030
NUT
IN STOCK 		$0.24 (76% off) 1
44 12638524
WASHER D8.15-15 X 1.5
IN STOCK 		$0.06 (76% off) 1
45 123925
Spacer
Cars without A.C. 		$18.16 1
46 128944
WASHER 		$2.74 1
