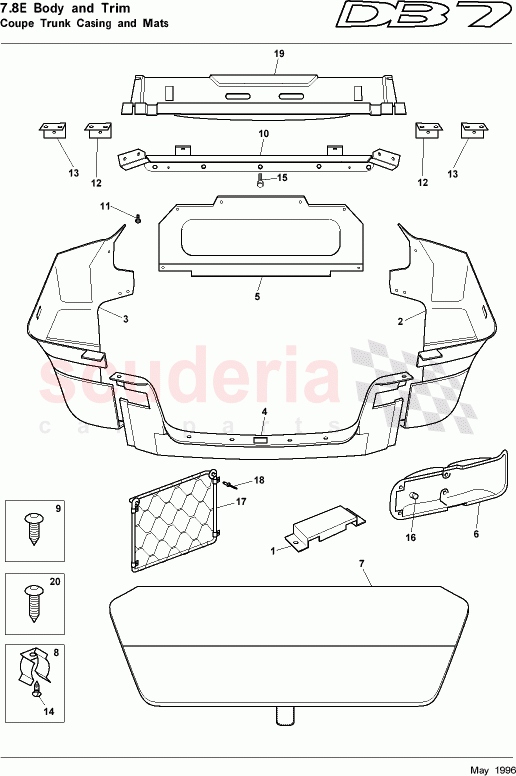

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	83111300AAW	TRIM PANEL ASSY - TAIL LAMP RH	$95.52	To Order

Photo	Part No	Description	Price (each)	Stock
	83123841AA	LOAD FLOOR - BOOT	$1,334.23	To Order

Photo	Part No	Description	Price (each)	Stock
	8382612	CLIP RETENTION -JACK HANDLE	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	8382617	BRKT ASSY - SUPT COVER	$94.15	To Order

Photo	Part No	Description	Price (each)	Stock
	697551	SCREW S.F.	$0.03	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	37123985AA	H/LAMP APERTURE FOAM	37123985AA H/LAMP APERTURE FOAM Boot lid harness retention	$6.76	1
-	697550	INSERT M5	697550 INSERT M5 Brackets to parcel shelf	$0.77	8
-	83111299AAW	TRIM PANEL ASSY - TAIL LAMP LH	83111299AAW TRIM PANEL ASSY - TAIL LAMP LH	$95.52	1
-	8582615	UNDERLAY - CARPET REAR RH	8582615 UNDERLAY - CARPET REAR RH	$35.01	1
-	8582616	UNDERLAY - CARPET REAR LH	8582616 UNDERLAY - CARPET REAR LH	$33.82	1
-	8582613	UNDERLAY - CARPET RH	8582613 UNDERLAY - CARPET RH	$22.02	1
-	8582614	Underlay, carpet - LH	8582614 Underlay, carpet - LH	$16.99	1
-	3481437	PAD	3481437 PAD	$3.41	1
6	83111300AAW	TRIM PANEL ASSY - TAIL LAMP RH	83111300AAW TRIM PANEL ASSY - TAIL LAMP RH	$95.52	1
7	83123841AA	LOAD FLOOR - BOOT	83123841AA LOAD FLOOR - BOOT	$1,334.23	1
8	8382612	CLIP RETENTION -JACK HANDLE	8382612 CLIP RETENTION -JACK HANDLE	$1.10	3
10	8382617	BRKT ASSY - SUPT COVER	8382617 BRKT ASSY - SUPT COVER	$94.15	1
14	697551	SCREW S.F.	697551 SCREW S.F. Clip to well cover	$0.03	3
